Applicable to 50～80µm small diameter fiber splicing
Imported motor for precise fiber core alignment
5”high resolution display, dual operating mode (touch screen & button)
Intelligent operating system, automatic & real-time ARC calibration
Large capacity Li-battery, typical fusion splicing heating 300 times
Universal fiber holder, suitable for a variety of fiber types
Item NO.:
S-100

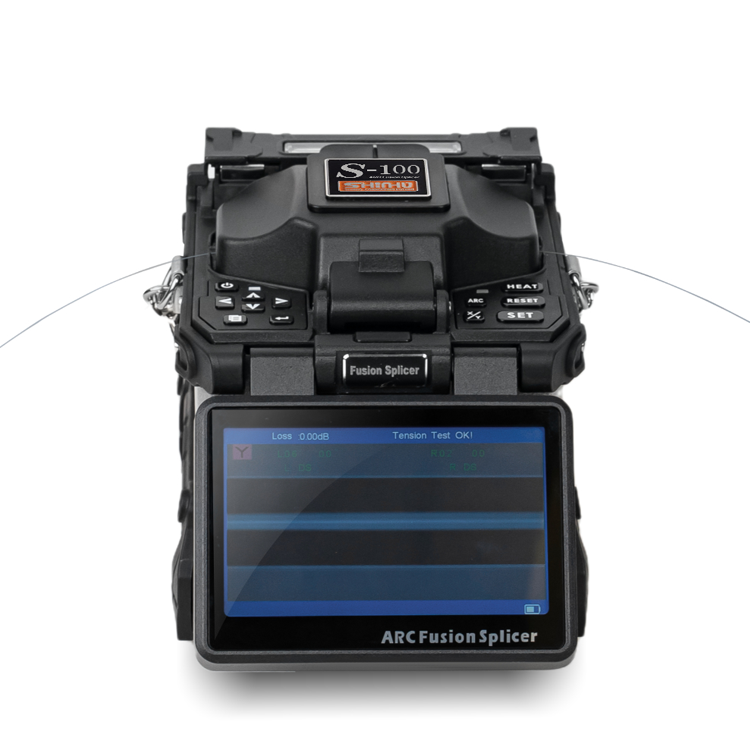

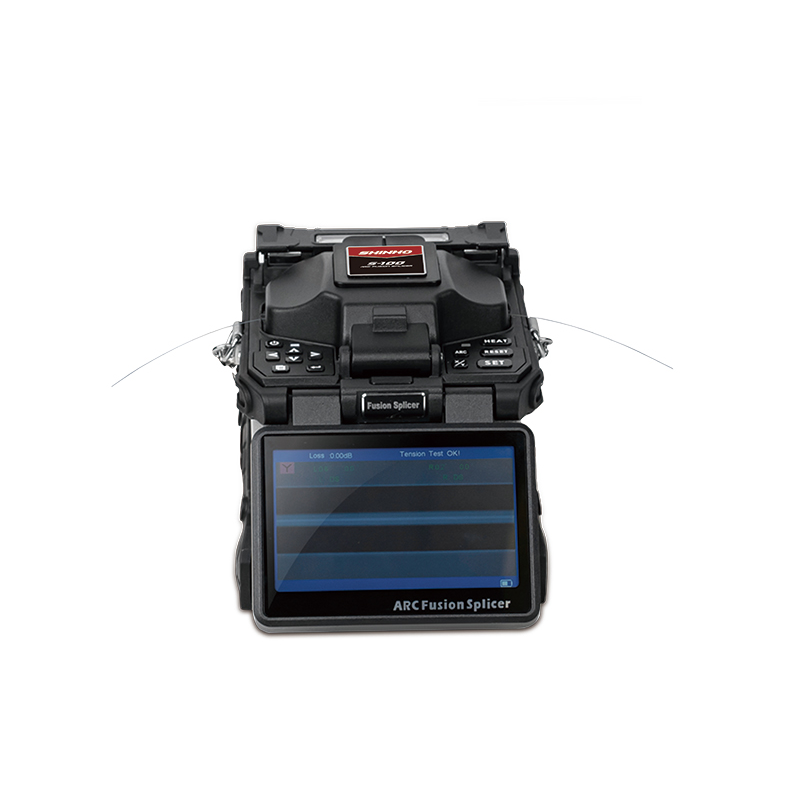

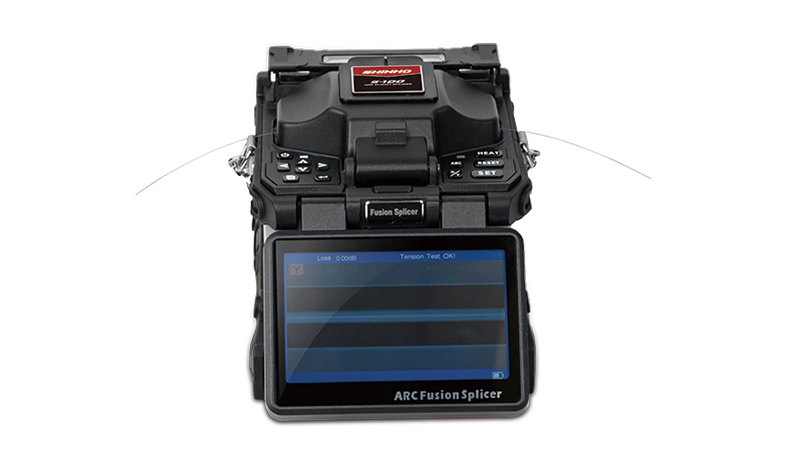

Small Diameter Fusion Splicer S-100
Features
Specifications
|
Applicable fiber |
SM(ITU-T G.652),MM(ITU-T G.651),DS(ITU-T G.653),NZDS(ITU-T G.655), EDFA, others(including G.657) |
|
Diameter of cladding |
50 -80μm |
|
Diameter of coating |
100-160μm |
| Typical splice loss | 50μm-50μm＜0.2dB; 80μm-50μm＜0.2dB |
| Return loss | ＞ 60dB |
| Fibe cleaved length | 5-16mm ( coating diameter ＜ 250um), 16mm (coating diameter:250-3000um) |
| Splicing program | 100 groups |
| Operate mode | Automatic/Manual |
| Auto-heating | Available |
| Typical splicing time | 6-12 seconds |
| Typical heating time | 18-26 seconds for 60mm and 40mm shrinkable sleeves |
| Fiber magnification | 400X (X or Y view), 200X (X and Y view) |
| Display screen | 5.0 inch color LCD monitor, touch screen |
| Date storage | Last 20000 results and 100 images |
| Loss evaluation | Available |
| Tension test | 1.8-2.2N |
| Interface | GUI menu interface, easy for operation |
| Battery | 5200mAh Li-battery, typical 300 cycles splicing and heating |
| Power supply | Adapter, input: AC 100-240(50/60Hz), output:DC 11-13.5V |
| Electrodes life | More than 5000 ARC discharges, can be replaced conveniently |
| Ternimal | USB2.0 port, for uploading splicer results and upgrading software |
| Operating conditions | Altitude: 0-5000m, Humidity: 0-95%,Operating Temperature: -20℃~+50℃, Storage temperature -25℃~+60℃；Wind speed: Max 15m/s |
| Dimension | 155mm(L) * 144mm(W) * 155mm(H) (including rubber armor) |
| Weight | 2.37kg (including battery) |
Standard Accessories
| NO. | ITEM |
| 1 | Carrying box |
| 2 | Fiber cleaver |
| 3 | Fiber stripper |
| 4 | Drop cable stripper |
| 5 | Power cord |
| 6 | Adapter |
| 7 | Cooling tray |
| 8 | User manual (USB) |
| 9 | Spare electrodes |
| 10 | Cleaning tool kit |
| 11 |
Strap |

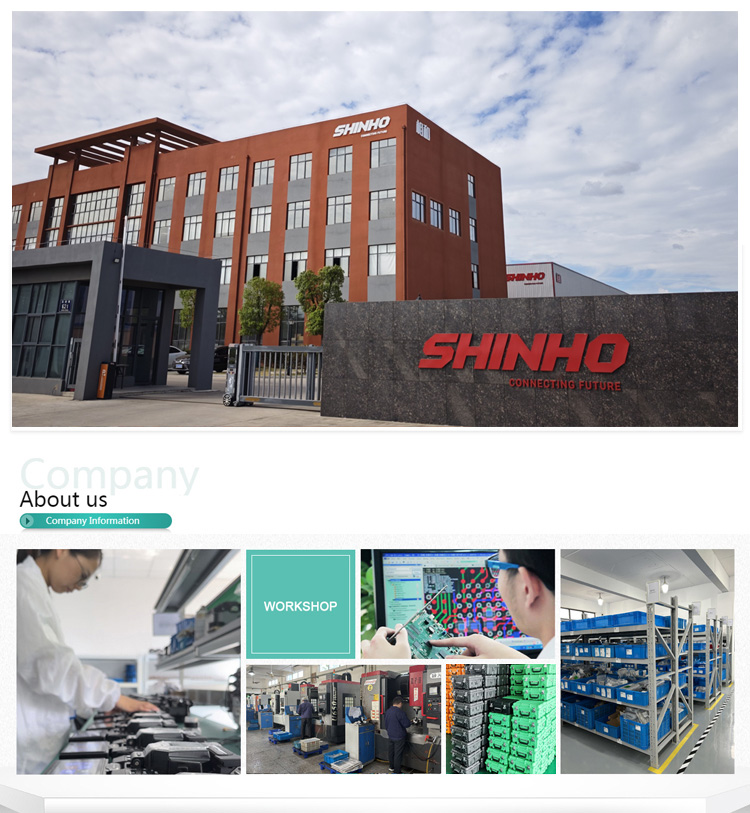

Company Information
