Common cleaning and adjustment of fiber cleaver (use Shinho X-50D fiber cleaver for example)

Common cleaning of fiber Cleaver

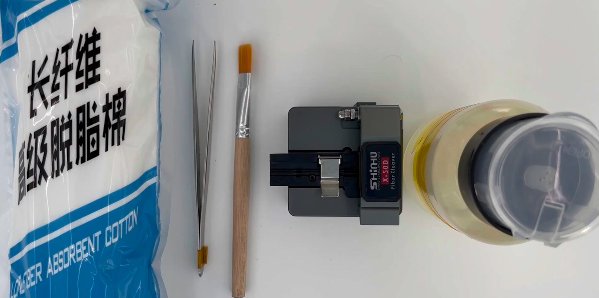

Preparation tools: Absorbent cotton, tweezers, brush, anhydrous alcohol

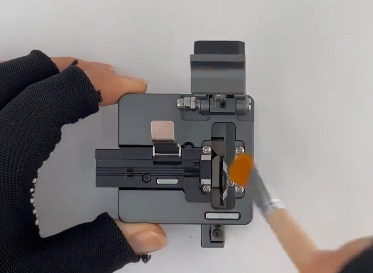

1. Use the brush to gently sweep away the dust

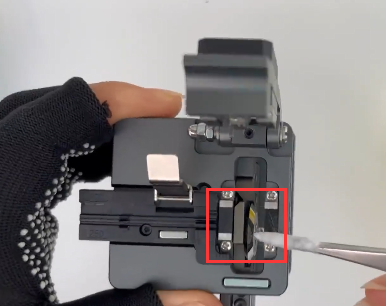

2. Use absorbent cotton soaked in alcohol to wipe rubber mat and pressure plate

Adjustment of Fiber Cleaver

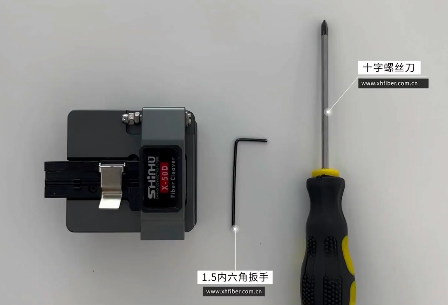

Preparation tools:1.5inch Allen key and Phillips screwdriver

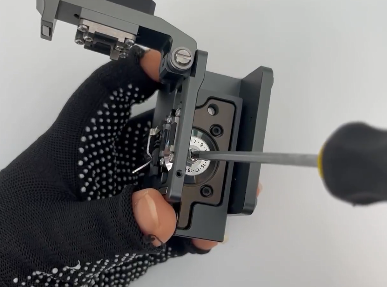

1. How to adjust the fiber cleaver blade cutting point

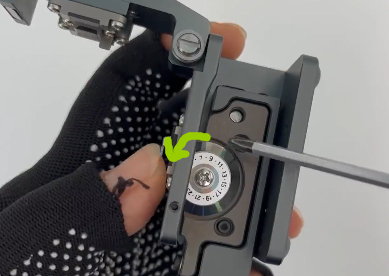

Use a screwdriver to loosen the screw clockwise, turn the blade to change the cutting point, and tighten the screw counterclockwise

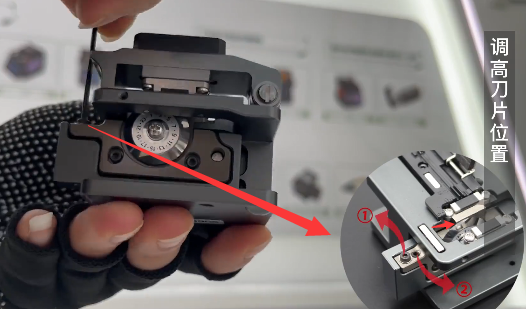

2. How to adjust the blade height higher

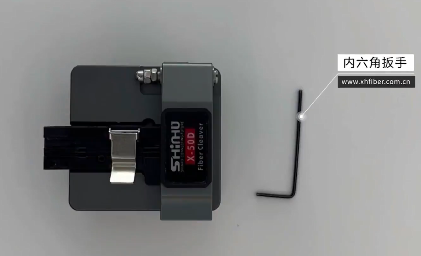

Preparation tool :1.5inch Allen key screwdriver

Use the wrench to turn No. 1 screw 1/4 anti-clockwise and tighten No. 2 screw clockwise

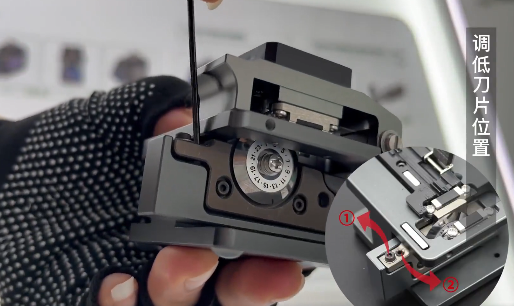

3. How to adjust the blade height lower

Preparation tool :1.5inch Allen key screwdriver

Use the wrench to turn No. 2 screw 1/4 counterclockwise and No. 1 screw to tighten clockwise

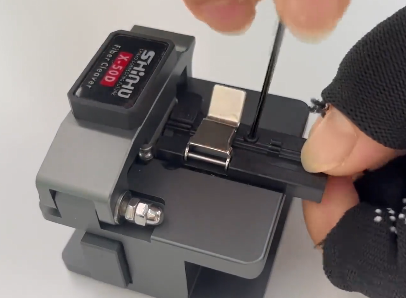

4. Replacement of Fiber Clamps

Use the wrench to loosen the screw counterclockwise

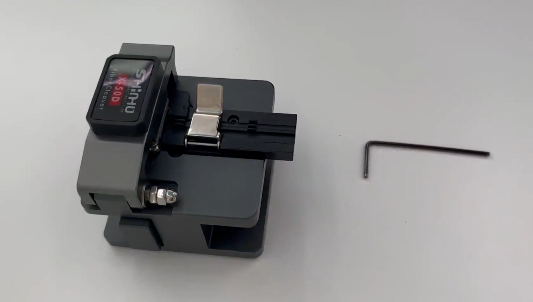

Use the wrench to tighten the screw clockwise

Above is the common cleaning and adjusitng of fiber cleavers. For more details, welcome to visit www.xhifber.com or contact sales@xhfiber.com.
