Replacement and adjusting blade of the Cleaver in fusion splicer kit

Replacement and adjusting blade of the Cleaver in fusion splicer kit

  • 2020-03-17

Note:1. 1-16 cutting points are marked on the blade

2. When the cutting knife cannot be used normally, please clean the blade and fixture in time

3. If it still cannot be cut normally, it means that the cutting point is worn and cannot be used anymore, and the position of the blade needs to be adjusted.

A. Adjust the cutting point

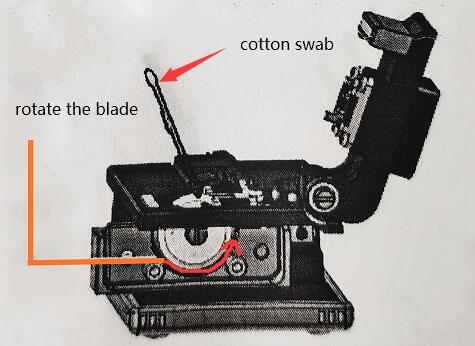

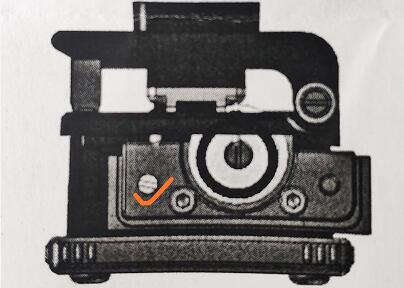

Unscrew blade screw by Slotted screwdriver. Rotate the blade to a new cutting point by cotton swab




                                                                                                          Attention: 1. Do not rotate bale directly by hand.

                                                                                                                         2. Do not rotate blade by any hard tool. It may hurt the blade.



B. Adjust the height of the blade.

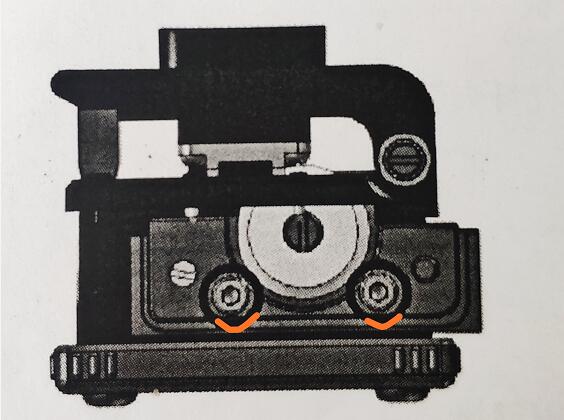

Unscrew the two screws under the blade with an inner hexagon wrench

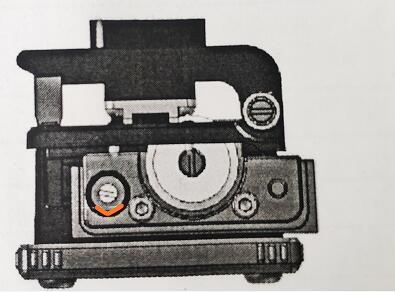

Fine-tune the word slotted screw, turn the screw clockwise to raise the blade, anticlockwise to lower.

Open the pressing cover and clamp. Put a bare fiber on it. Close the cover and Push the cutter back and forth. Find the best postion.
