Ribbon fiber thermal stripper is designed for stripping ribbon fiber jackets. With its simple and fast operation, anyone can do clear stripping with near-zero failure. It could also be used for single fiber jacket stripping.

How to use the thermal stripper?

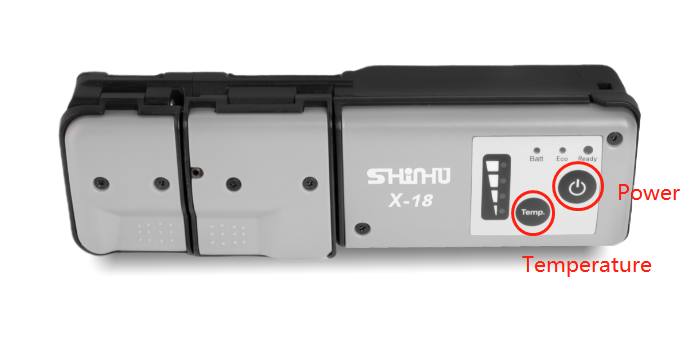

1. Turn on the thermal stripper and choose a proper mode and temperature.

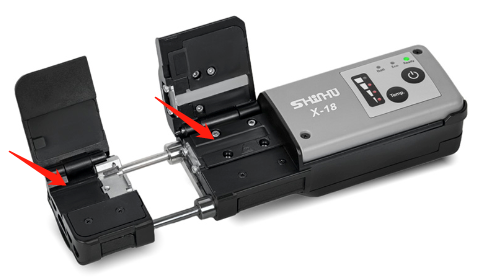

2. Place fiber holder, close the cover and stick the holder part to the main body.

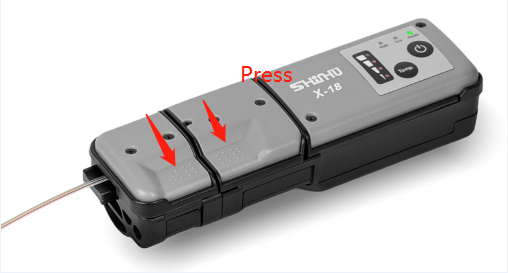

3. Press cover and wait until temperature light flickers and it beeps.

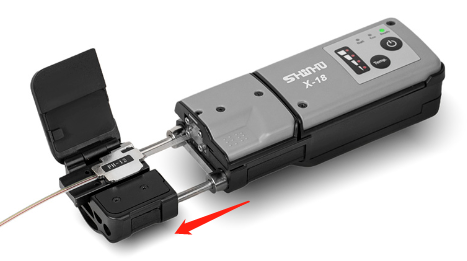

4. Pull the holder section out of the main body and open the holder part to check the stripped fiber.

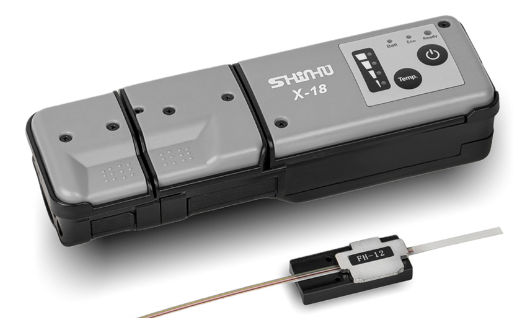

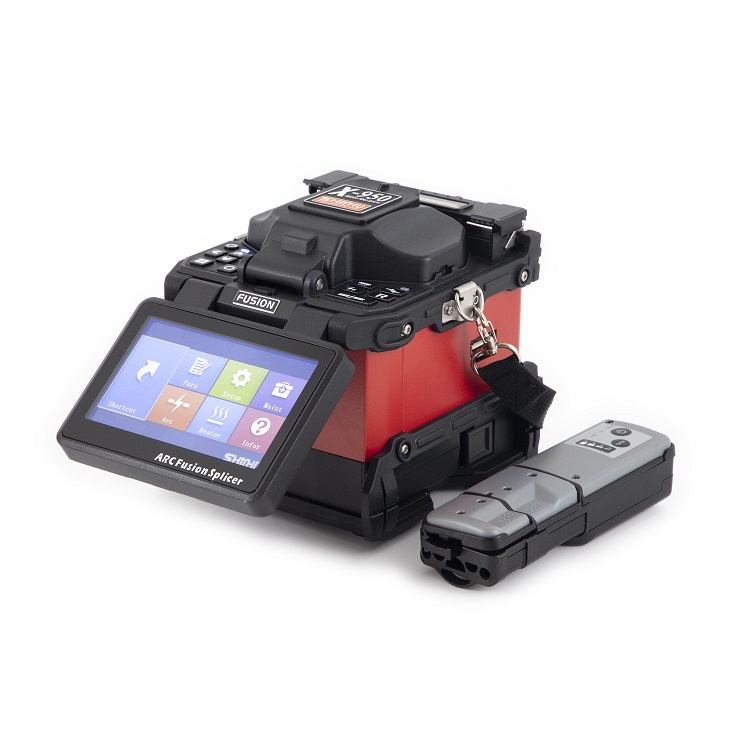

Shinho X-18 Thermal Stripper is a newly developed hand-held thermal stripper, specially designed for nondestructive thermal stripping of the jacket of single fiber and ribbon cable up to 12 fibers. 4 seconds fast heating, 4 levels temperature optional. A good and reliable tool for ribbon fiber splicing work. It can be used with Shinho X-950 Ribbon Fiber Fusion Splicer.
