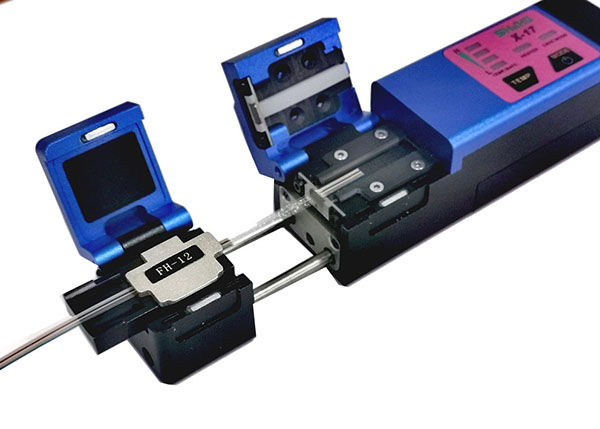

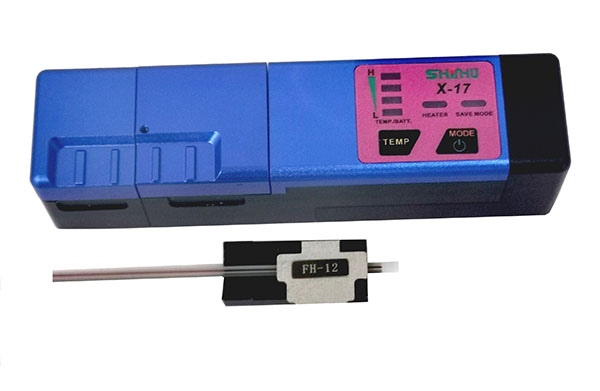

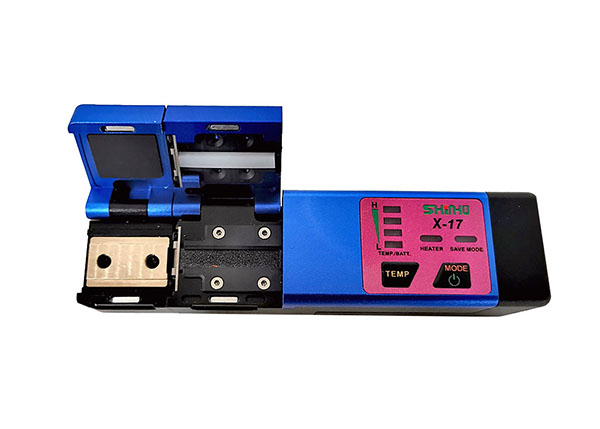

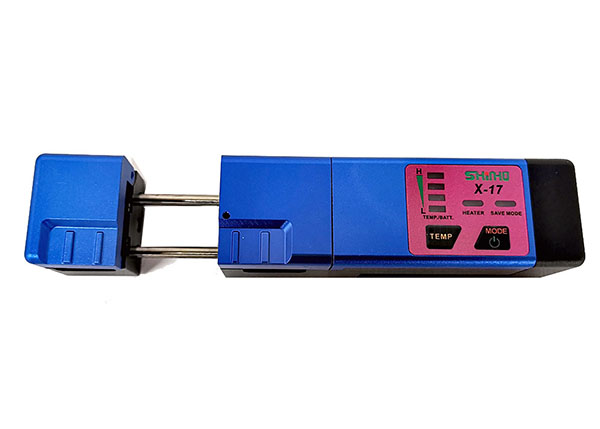

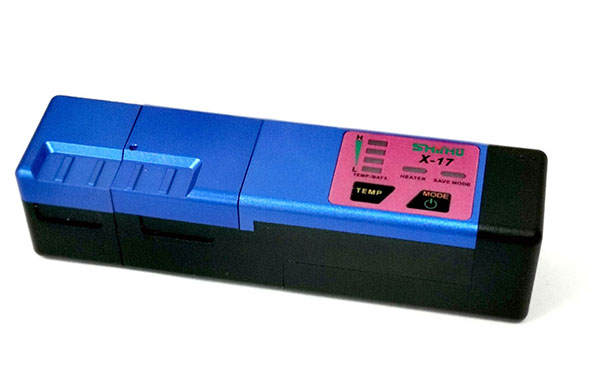

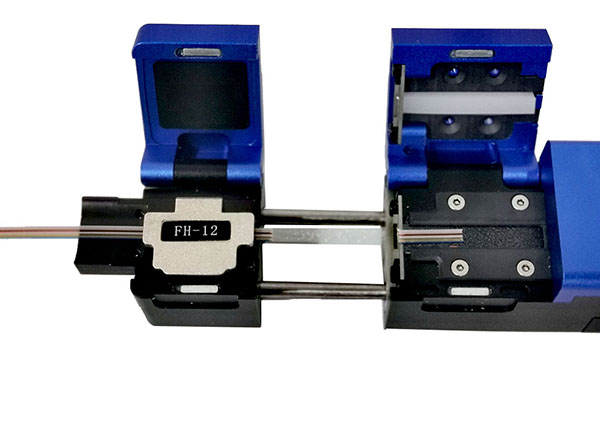

Fiber Optic Thermal Stripper for Ribbon Fiber X17

Shinho X-17 Thermal Stripper is a newly developed hand-held thermal stripper, specially designed for nondestructive thermal stripping of the jacket of single fiber and ribbon cable up to 12 fibers. A good and reliable tool for ribbon fiber splicing work.

Item NO.:
X-17
Product Origin:
CHINA
Color:
Standard
Shipping Port:
Shanghai/Shenzhen
Lead Time:
3 working days

Product Details

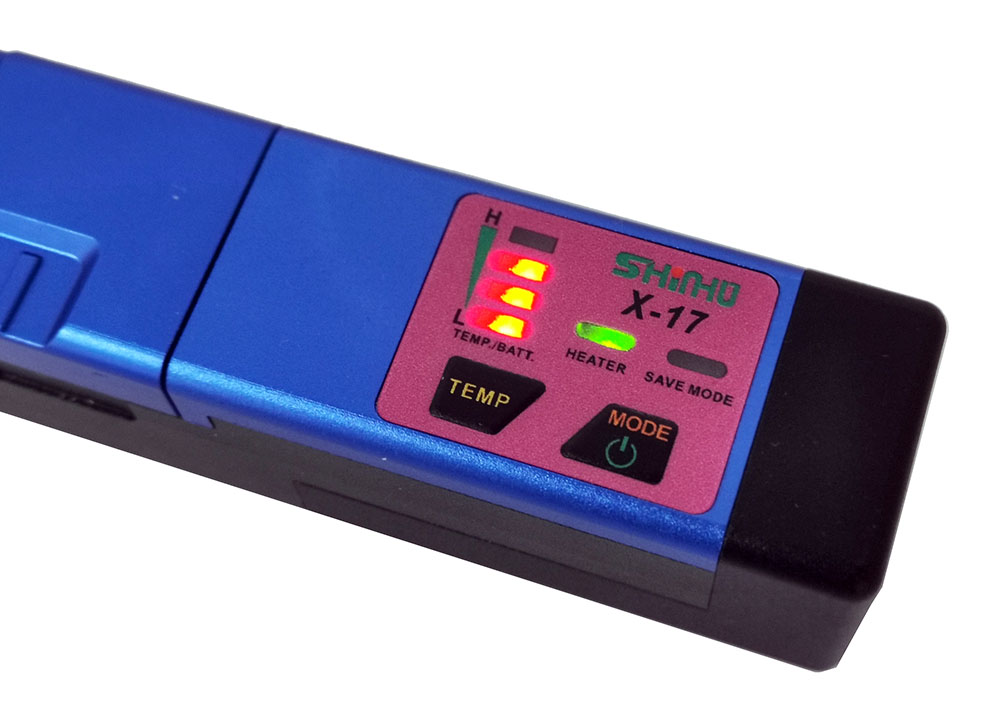

Thermal Stripper for Ribbon Fiber X 17

Features

Apply to single and ribbon (up to 12 cores) fibers
4 seconds fast heating, 4 levels temperature optional
Normal and Power saving modes Optional
Pluggable Li-battery, support more than 300 cycles
Small size and light weight, conenient to carry
Rugged and durable for any tough environment
Easy to operate and maintain, near zero failure.
Reach CE, ROHS international standards

Specifications

Fiber material	Silica glass
Coating material	UV curable resin
Coating diameter	Single core: 0.25~0.4mm; 2~12 ribbon fiber: 0.3~0.4mm
Cladding diameter	125µm
Coating stripping length	Max 30mm
Fiber types	Single fiber, ribbon fiber
Fiber holder type	FH-2,FH-4,FH-6,FH-8,FH-10,FH-12,FH-250,FH-900,FH-U (for 250/900µm fibers)
Heating mode	Normal mode, power saving mode
Temperature setting	Normal mode: 80℃, 95℃ 110℃, 130℃. Power saving mode: 70℃, 80℃, 95℃, 110℃.
Typical heating time	Normal mode: 4~5secs Power saving mode: 5~6secs
Battery capacity	800mAh Li-battery. Support more than 300 cycles stripping once fully charged
Power supply	AC adapter, input: AC100-240V(50/60HZ), output: DC12V-1A
Operation environment	Altitude: 0-5000m, Relative humidity: 0-95%, Temperature: 0℃ ~ +40 ℃, Wind speed: 15m/s maximum
Dimension/Weight	138mm (L)×34.5mm (W)×35mm (H) /300g（inlcuding battery）

Standard Accessories

① Thermal stripper

② AC adapter

③ Cleaning brush

Shinho X-17 Thermal Stripper Video
