Six motors fusion splicer, real core to core alignment technology.
Typical splicing time: 6-12 seconds, fast splicing 6 seconds
Typical heating time: 18s heating, identify fiber types automatically.
Typical splice loss:G651: 0.01dB; G652: 0.02dB; G653: 0.04dB; G654: 0.04dB; G.655:0.04dB; G657:0.02dB.
Battery Capacity: 5200mAh Li-battery, typical 300 cycles splicing and heating.
Used for WAN/ MAN/ Telecommunication projects.
Item NO.:
X-900Product Origin:
CHINAColor:
StandardShipping Port:
Shanghai/ShenzhenLead Time:
3 working days

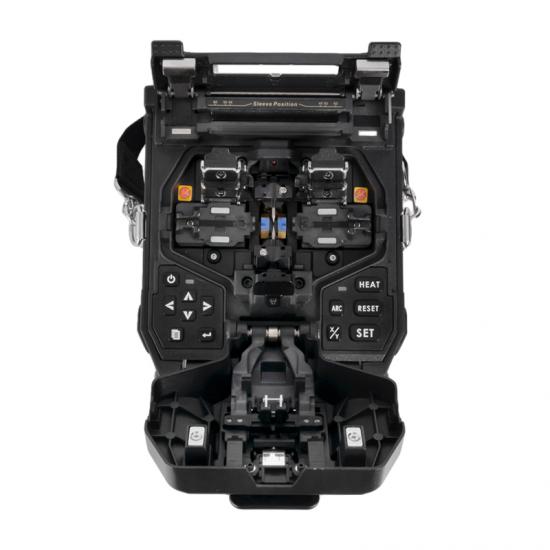

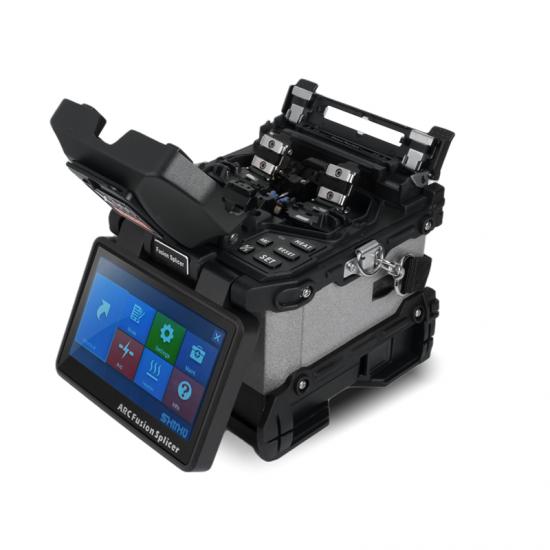

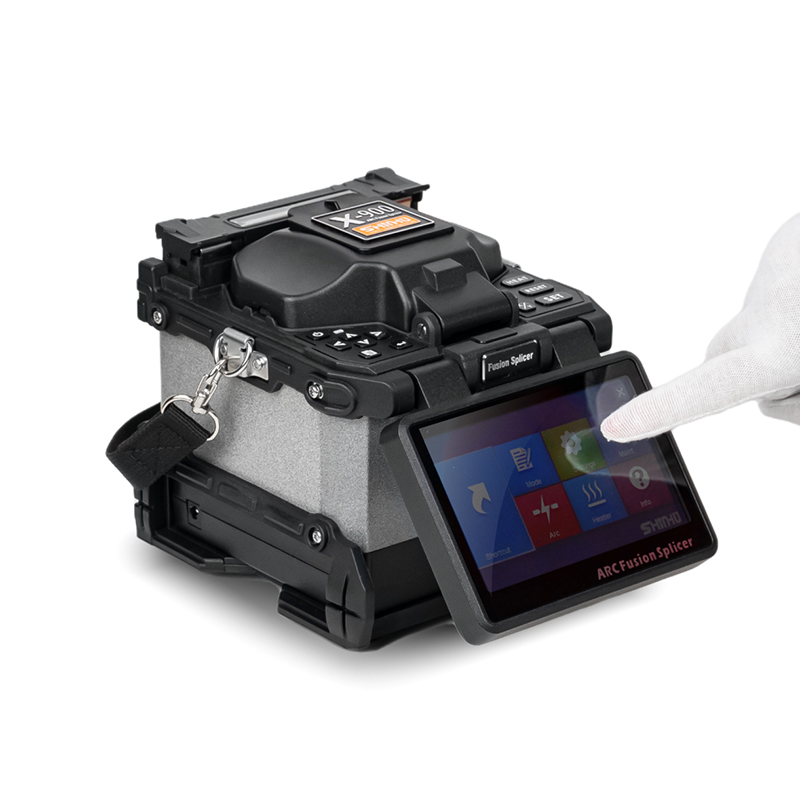

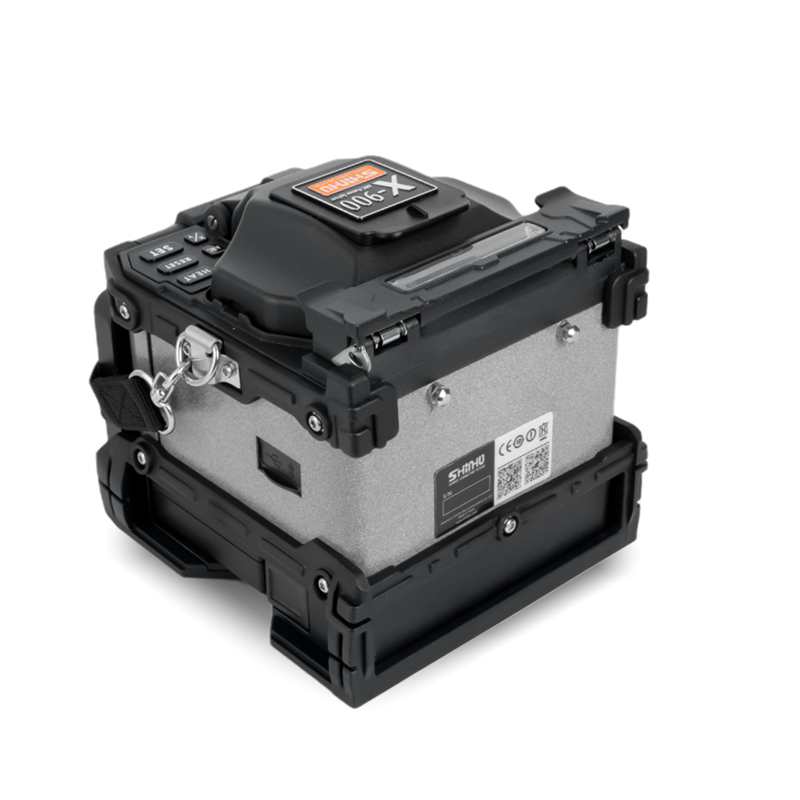

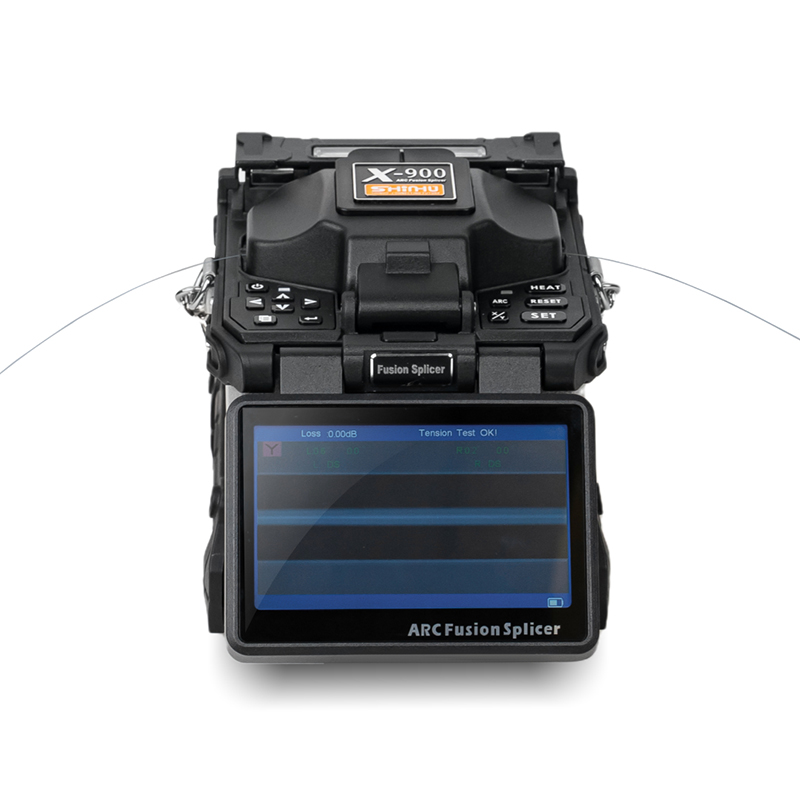

Core to Core Alignment Fiber Fusion Splicer X 900
X-900 Fiber fusion splicer is a 6-motor fusion splicer with the latest fiber core to core alignment technology, it has very stable performance and low fusion loss, it is suitable for different fiber optical projects , including backbone, FTTx etc.
Features
Specifications
|
Applicable fiber |
G651/G652/G653/G654/G655/G657 etc. |
|
Diameter of cladding |
80 -150μm |
|
Diameter of coating |
160-3000μm |
| Typical splice loss | G651: 0.01dB; G652: 0.02dB; G653: 0.04dB; G654: 0.04dB; G.655:0.04dB; G657:0.02dB |
| Return loss | ＞ 60dB |
| Fibe cleaved length | 10-16mm ( coating diameter ＜ 250um), 16mm (coating diameter:250-3000um) |
| Splicing program | 40 groups |
| Operate mode | Automatic/Manual |
| Auto-heating | 100 groups, auto-heating supported |
| Typical splicing time | 6-12 seconds, fast splicing 6 seconds |
| Typical heating time | 18-26 seconds for 60mm and 40mm shrinkable sleeves |
| Fiber magnification | 400X (X or Y view), 200X (X and Y view) |
| Viewing Display | Dual high sensitivity camera, 5.0 inch color LCD monitor, touch screen |
| Data storage | 10000 groups fusion records, 100 groups images |
| Loss evaluation | Available |
| Tension test | 1.8-2.2N |
| Interface | GUI menu interface, easy for operation |
| Battery Capacity | 5200mAh Li-battery, typical 300 cycles splicing and heating |
| Power supply | Adapter, input: AC 100-240V(50/60Hz), output: DC 11-13.5V |
| Electrodes life | More than 5000 ARC discharges, easy to replace |
| Terminal | USB2.0 port, for uploading splicer results and upgrading software |
| Operating conditions | Altitude: 0-5000m, Humidity: 0-95%,Operating Temperature: -20℃~+50℃, Storage temperature -25℃~+60℃；Wind speed: Max 15m/s |
| Dimension | 155mm(L) * 144mm(W) * 155mm(H) (including rubber bumper) |
| Weight | 2.37kg (including battery) |

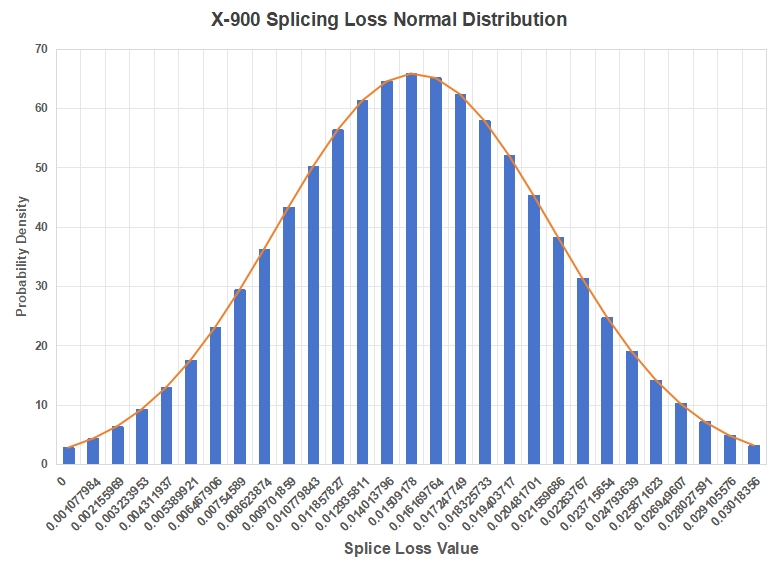

Actual Measured 200 Core Probability Density Chart

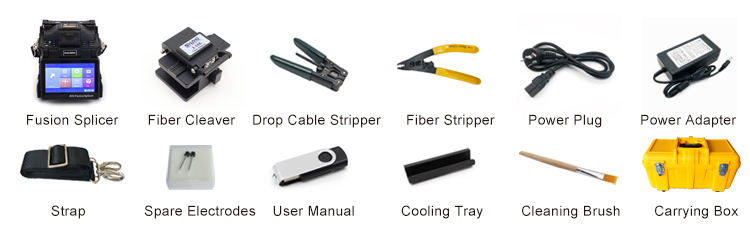

Standard Accessories
| NO. | ITEM |
| 1 | Carrying box |
| 2 | Fiber cleaver |
| 3 | Fiber stripper |
| 4 | Drop cable stripper |
| 5 | Power cord |
| 6 | Adapter |
| 7 | Cooling tray |
| 8 | User manual (USB) |
| 9 | Spare electrodes |
| 10 | Cleaning tool kit |
| 11 |
Strap |
Multi-Language Sites

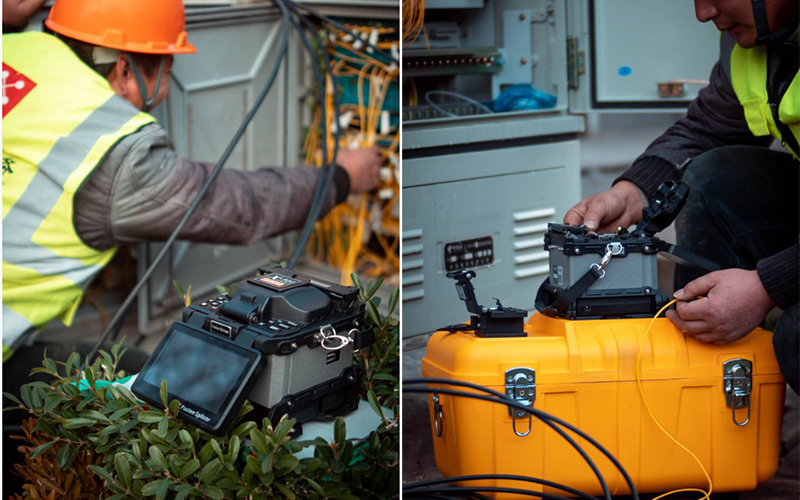

Operating Condition
