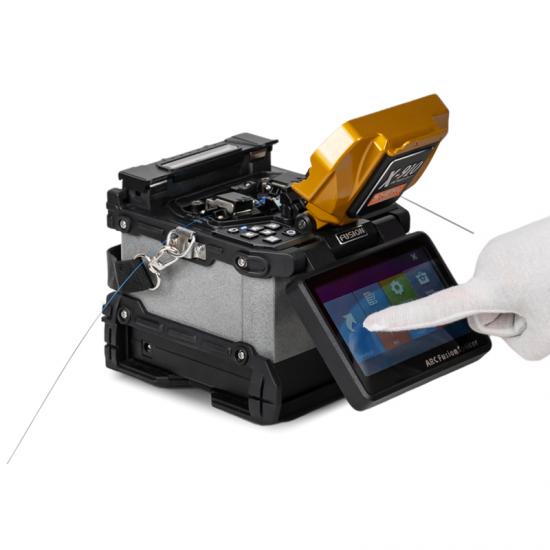

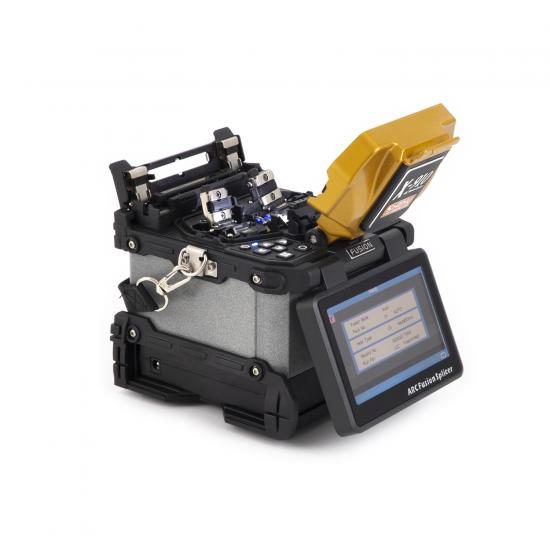

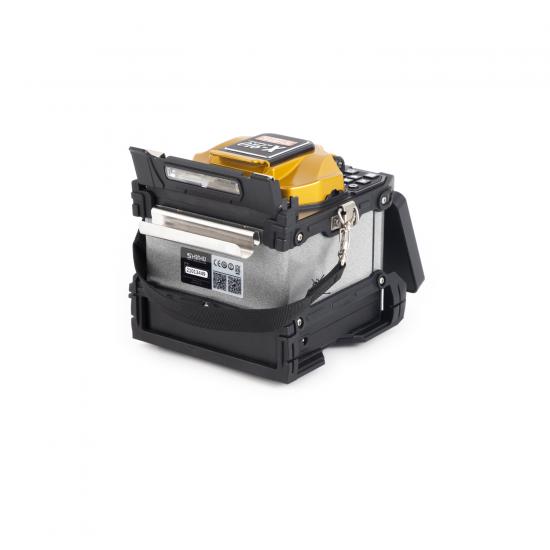

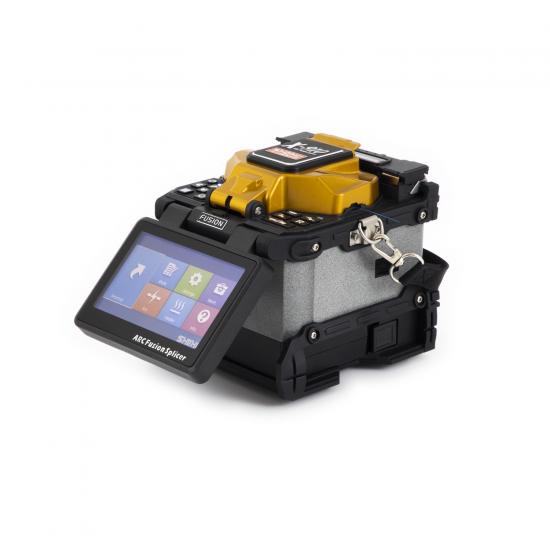

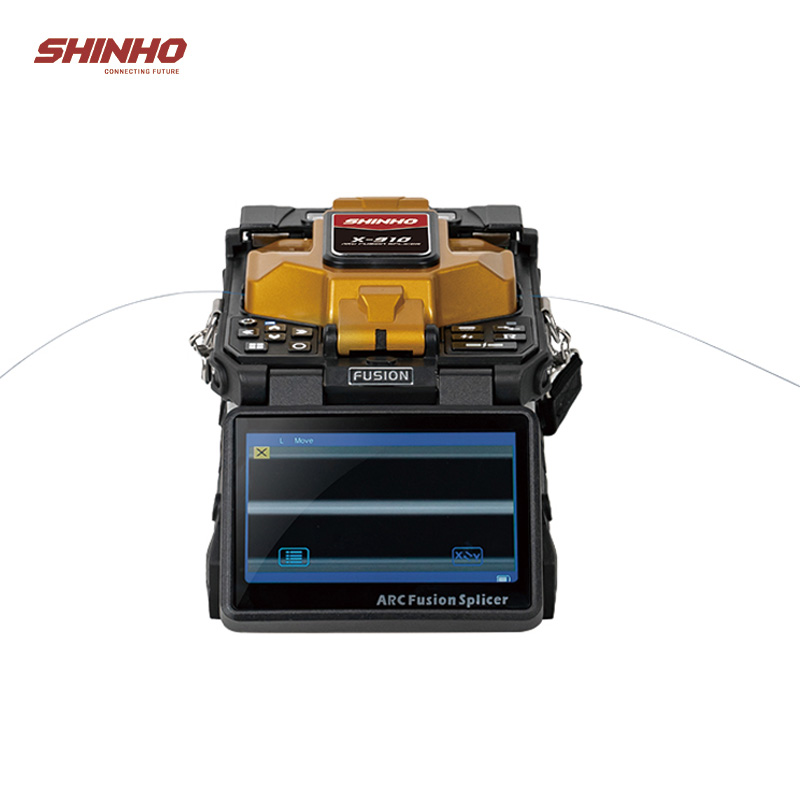

Core to Core Alignment Six Motors Fusion Splicer X910

Six motors fusion splicer, real core to core alignment technology.

6s splicing, 18s heating, identify fiber types automatically.

Used for WAN/ MAN/ Telecommunication projects.

  • Item NO.:

    X-910
  • Product Origin:

    China
  • Color:

    Standard
  • Shipping Port:

    Shanghai/Shenzhen
  • Lead Time:

    Based on quantity
Product Details


Feedback

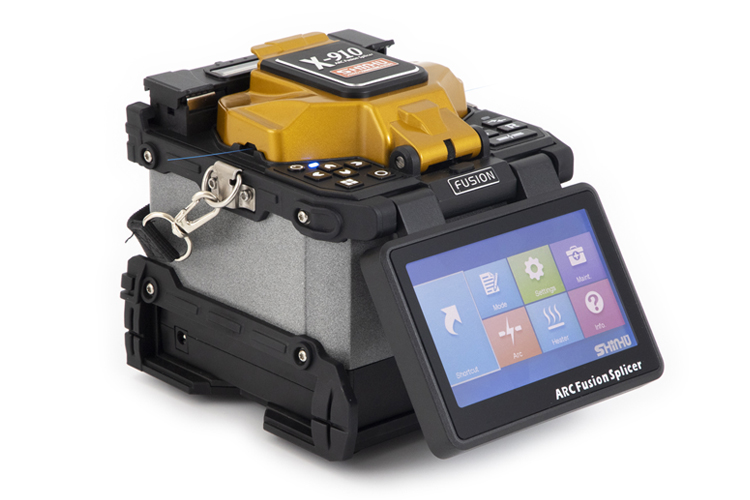

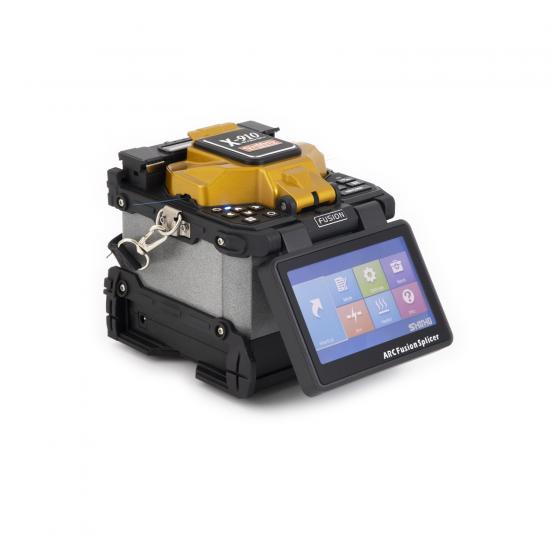

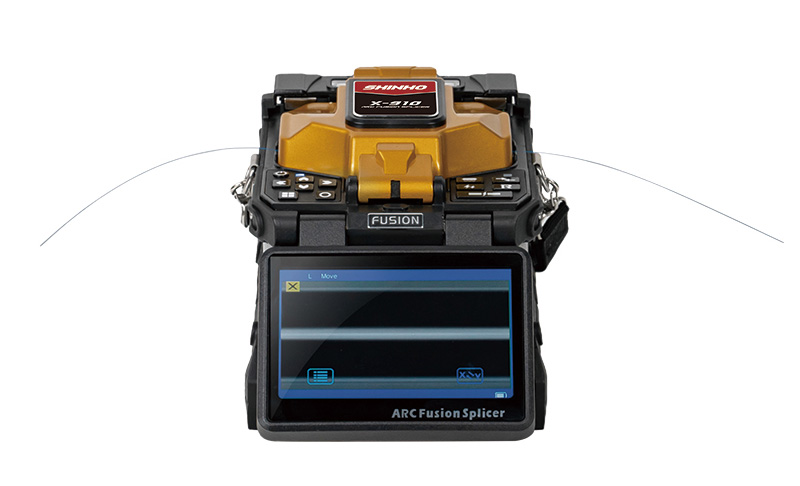

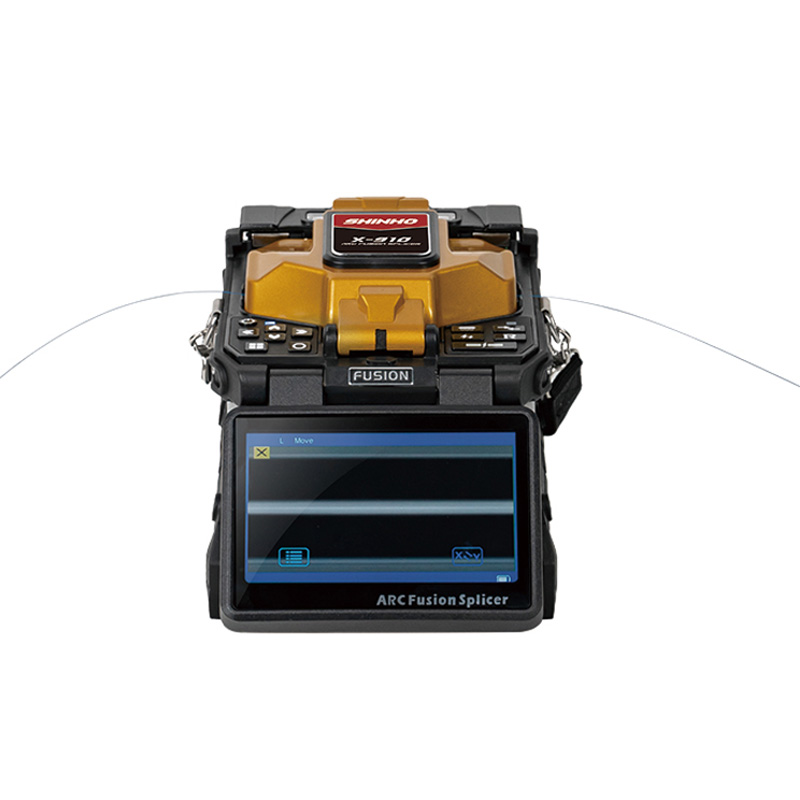

Core to Core Alignment Fiber Fusion Splicer X 910


X-910 Fiber fusion splicer is a 6-motor fusion splicer with the latest fiber core to core alignment technology, it has very stable performance and low fusion loss, it is suitable for different fiber optical projects , including backbone, FTTx etc.


Features


※ 6 motors accurate core to core alignment

※ Identify fiber types(SM/MM) automatically

※ 6 seconds splicing & 18 seconds heating

※ Automatic & real-time ARC calibration

※ Real-time heating temperature monitoring

※ Anti-shock, anti vibration, dustproof &water resistant

※ Apply to 250um/0.9mm/2.0mm/3.0mm fibers

※ Without reflective-mirror design,easy to maintain


Specifications



Applicable fiber

SM(ITU-T G.652),MM(ITU-T G.651),DS(ITU-T G.653),NZDS(ITU-T G.655), EDFA, others(including G.657)

Diameter of cladding

80 -150μm

Diameter of coating

160-3000μm

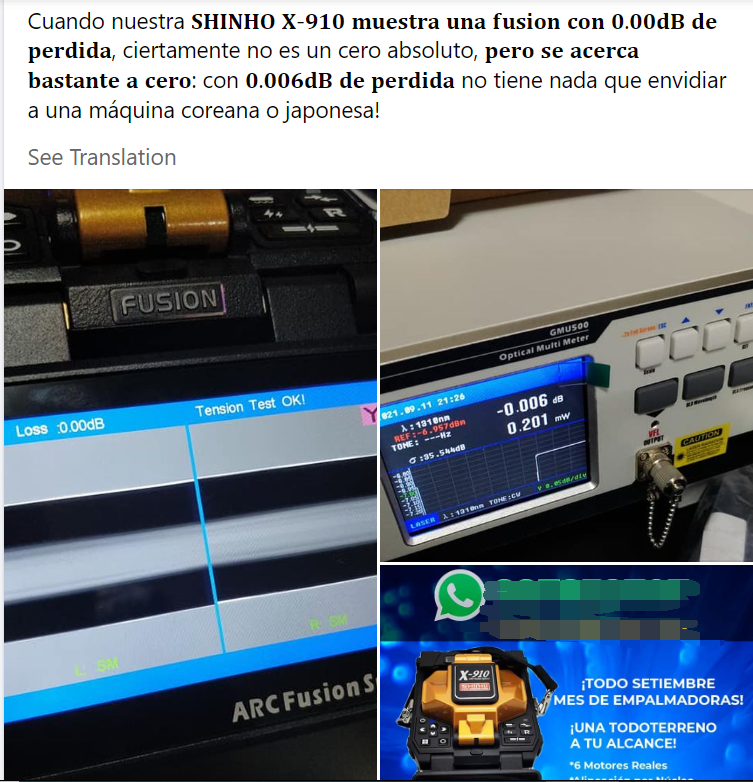

Typical splice loss SM: 0.02dB, MM: 0.01dB, DS: 0.04dB, NZDS: 0.04dB
Return loss > 60dB
Fibe cleaved length 5-16mm ( coating diameter < 250um), 16mm (coating diameter:250-1000um)
Splicing program 40 groups
Operate mode Automatic/Manual
Auto-heating Available
Typical splicing time 6 seconds
Typical heating time 18 seconds for 60mm and 40mm shrinkable sleeves
Fiber magnification 250X (X or Y view), 125X (X and Y view)
Display screen 2 CMOS cameras, 5.0 inch color LCD monitor
Records storage 8000 groups data and 100 groups image
Loss evaluation Available
Tension test >2.2N
Interface GUI menu interface, easy for operation
Battery 5200mAh Li-battery, typical 300 cycles splicing and heating, suppport separating charging, operating time more than 5 hours, discharging time more 8 hours
Power supply Adapter, input: AC 220±30V(50/60HZ), output:DC 12±2V
Electrodes life More than 5000 ARC discharges, can be replaced conveniently
Ternimal USB2.0 port, for uploading splicer results and upgrading software
Operating conditions Altitude: 0-5000m, Humidity: 0-95%,Operating Temperature: -25℃~+50℃, Storage temperature -40℃~+80℃;Wind speed: Max 15m/s
Dimension 156mm(L) * 141mm(W) * 156mm(H) (including rubber armor)
Weight 2.45kg (including battery)

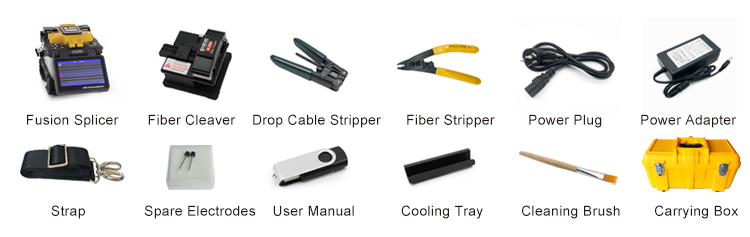

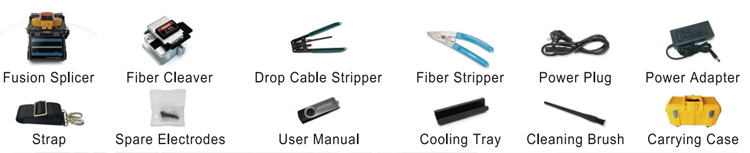

Standard  Accessories

NO. ITEM
1 Carrying case
2 Fiber cleaver
3 Fiber stripper
4 Drop cable stripper
5 Power cord
6 Adapter
7 Cooling tray
8 User manual (USB)
9 Spare electrodes
10 Cleaning tool kit
11

Strap

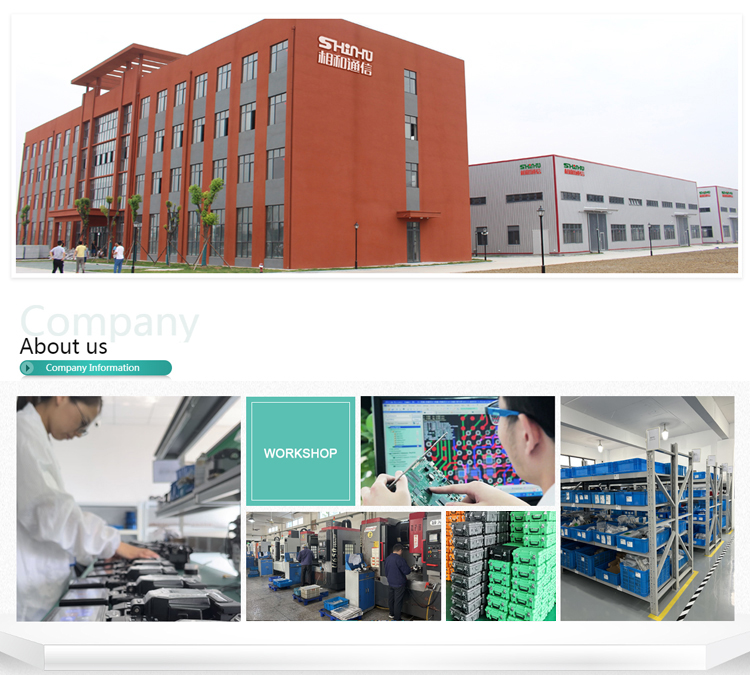

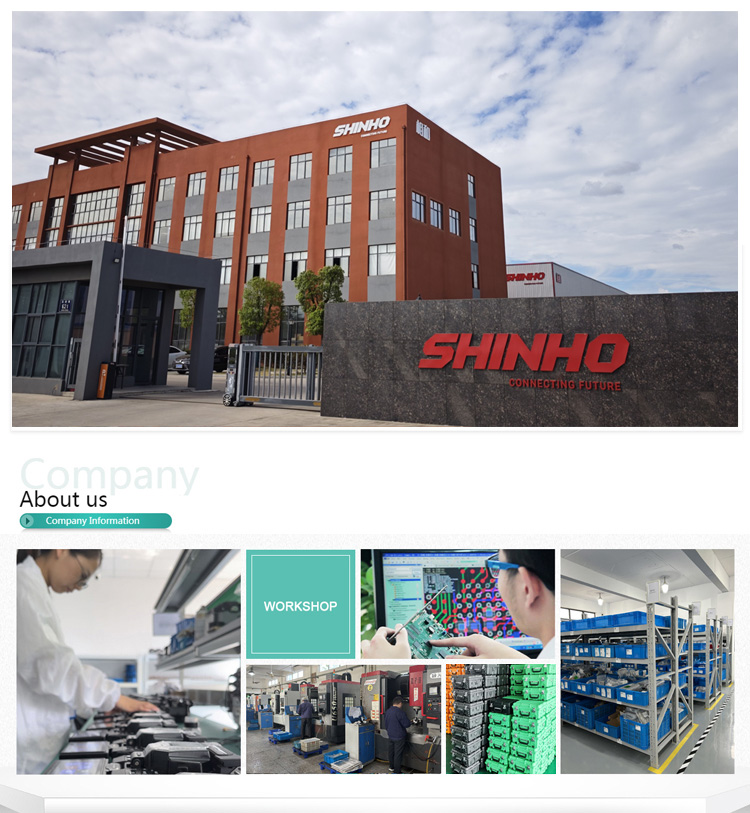

Company Information



Certifications



Exhibition




Why Choose us


1. Reliable product quality


1) Factory with ISO9001:2015 quality management system.

2) Strict quality control process from materials to finished products and package.

3) Vibration testing for every fusion splicer (3 hours).

4) Splicing loss testing by OTDR for every fusion splicer (50 times).

5) Low/high temperature (-20~+50 C) testing for every fusion splicer (both 3 hours).


2. Satisfying after-sales service

1) Lifelong technical support. Any problem during using, we will offer guidance to solve the problem.

2) Quick feedback. Usually customers can get our reply within 1 hour, latest will be not over 10 hours.

3) 24 months warranty period. Within warranty period, all repair and replacement are for free.

4) Reasonable cost for repair & replacement. According to our experience, most problems could be solved by machine menu operation via our remote guidance, do not need repairing or replacement.


3. Industry technology leader

1) More than 20 years experience in the field. Keep developing & upgrading new technology.

2) The latest fiber core to core alignment technology, high level industrial standard design.

3) Different kinds fusion splicers cover all fiber splicing applications.


4. Strong production capacity

1) More than 10,000 units machines are produced every year.

2) Supply fusion splicers to more than 50 countries and zones in the world.

3) OEM/ODM is available.


Consult and place an order now, you can get a pair of Shinho original electrodes.We are sincerely looking forward to building a business relationship with you!
