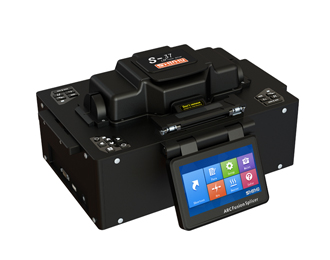

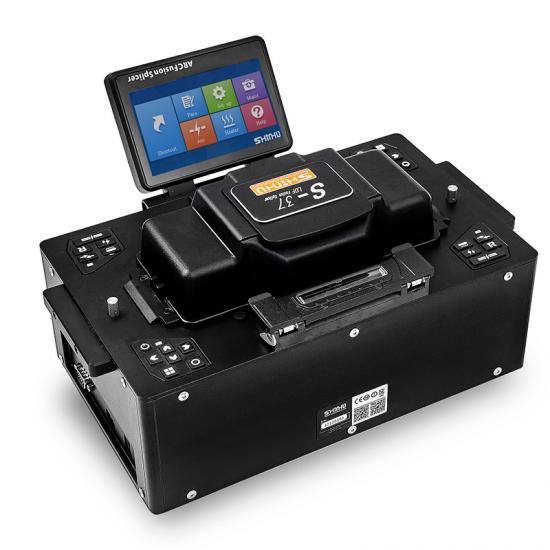

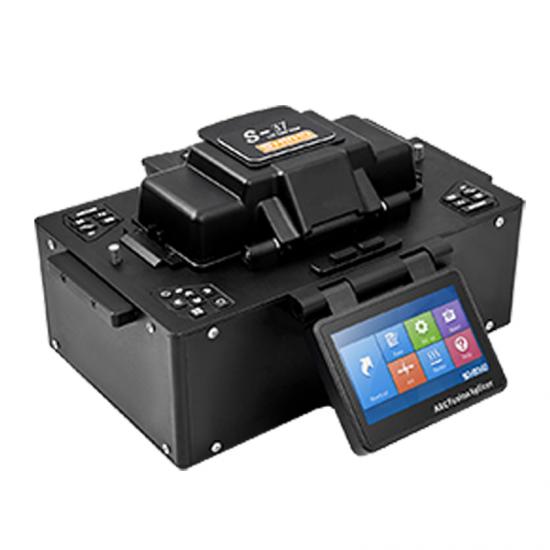

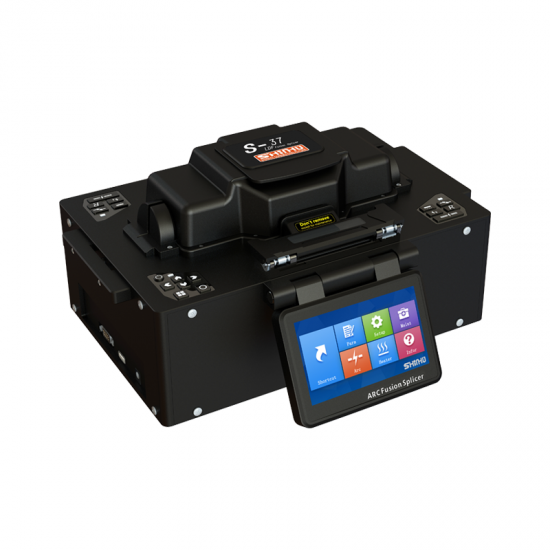

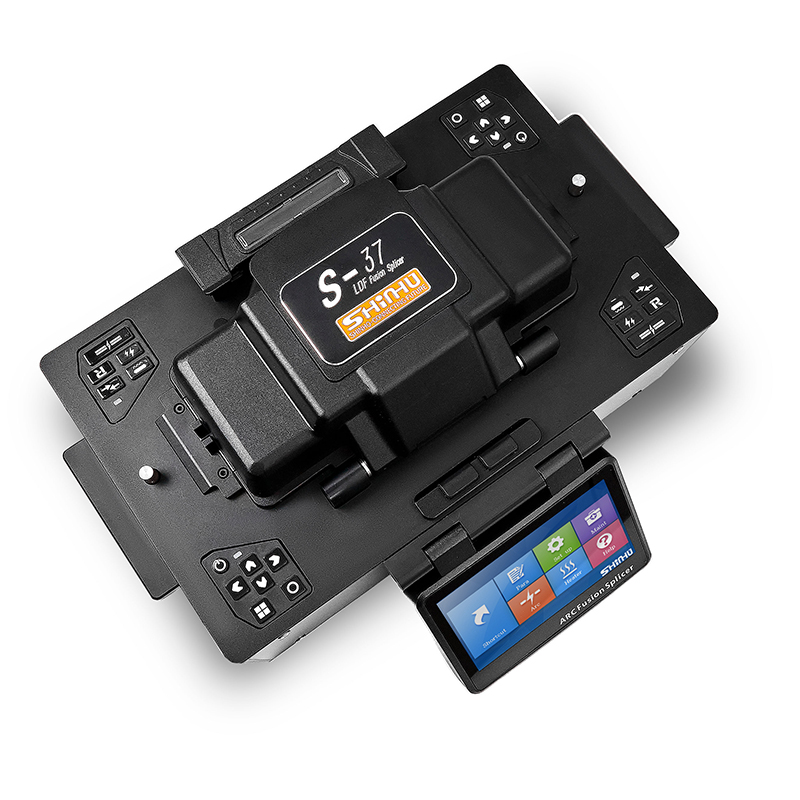

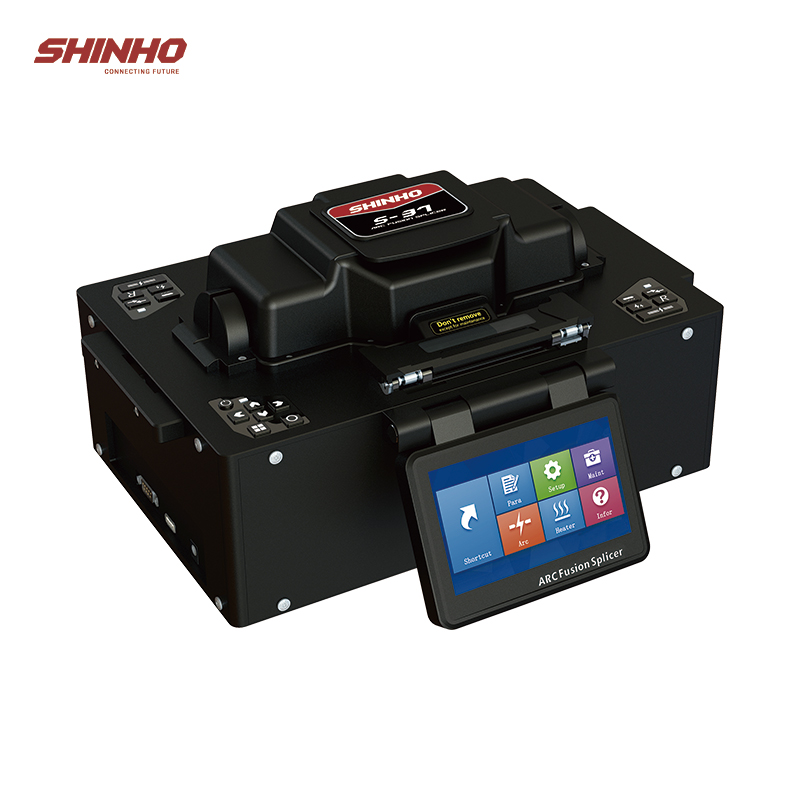

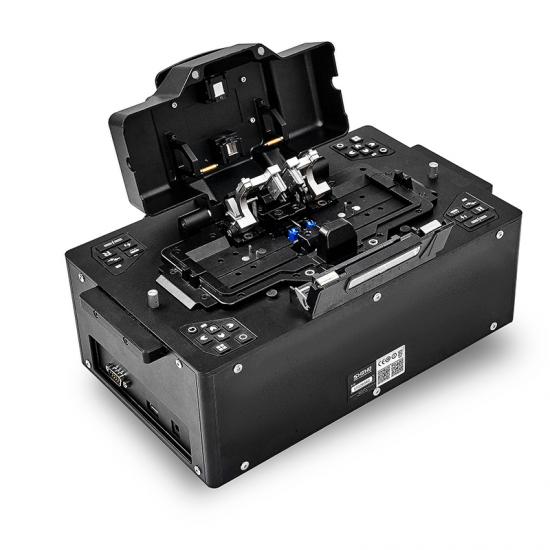

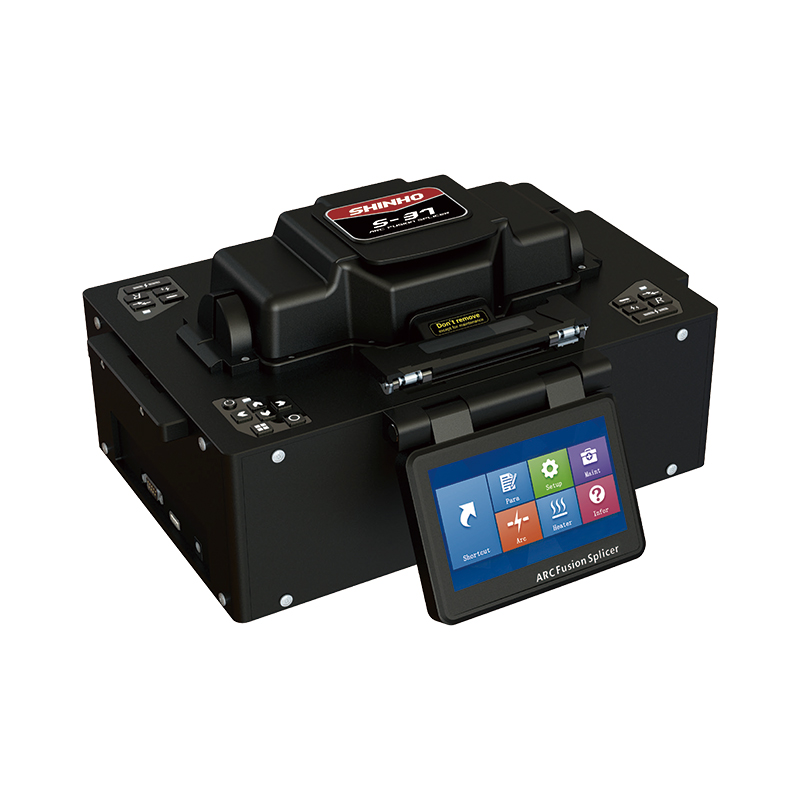

S-37 LDF Speialty Fiber Fusion Splicer

SHINHO S-37 is the latest model we developed, it could splice fiber cladding diameter from 125 to 400μm with low splice loss.

We equipped the machine with 3 different fiber holders, and 2 pairs of spare electrodes.

  • Item NO.:

    S-37
Product Details


FEATURES


※Applicable to cladding diameter 125~500μm fibers

※Accurate alignment, world standard fusion loss

※30s splicing time for 400um cladding

※ Ruggedized body, waterproof, anti-dust, anti-shock

※Easy to maintenance, easy to replace the electrodes

※USB port for software upgrading, records exporting
※Support 8000/100 groups fusion records/fusion images

※Comply with CE/Rohs international standard

Specification



Model

S-37

Alignment Method

Core to core

Cladding Diameter

125 to 500um

Coating Diameter

250~800µm

Splicing Program

40 groups

Operation Mode

Manual/ Automatic

Applicable Fiber

SM (ITU-T G652),MM( ITU-T G651),DS( ITU-TG653),NZ-DS,EDF,DCF,LDF

Typical Splice

Loss

ITU-T G652:0.03dB; ITU-T G651: 0.02dB; ITU-T G653:0.05dB

Auto- Heating

Available

Typical Splice Time

30 seconds for 400um cladding

Typical Heating Time

35 seconds typical

Fiber Magnification

100~200 adjustable

ViewingDisplay

Dual high sensitivity camera, 5 inch 800*480 LCD Monitor

Data Storage

8000 groups data records and 100 group images

Cleave Length

13-15mm (NOM:13mm)

Tension Test

30N(Use high-strength welding accessories and coating for clamping)

Interface

GUI menu interface, easy for operation

Power Supply

Adaptor, input: AC100-240V(50/60HZ), output: DC11-13.5V

Electrode Life

>3000 times discharge (125um),>1000 times discharge (>125um)

Terminals

Micro-USB 2.0 port, for software upgrading, records exporting

Electrode Spacing

125µm:1.0mm, 250µm--500µm:3mm

Dimension/Weight

330*202*165mm/6.1kg (including battery)


Standard Package



Item
Qty
S-37LDF main machine
1 unit
Fiber Holders
3 pairs
Electrodes
2 pairs
Power Adapter
1 pc
Power Cord
1 pc
USB Manual
1 pc
Carrying Case
1 pc

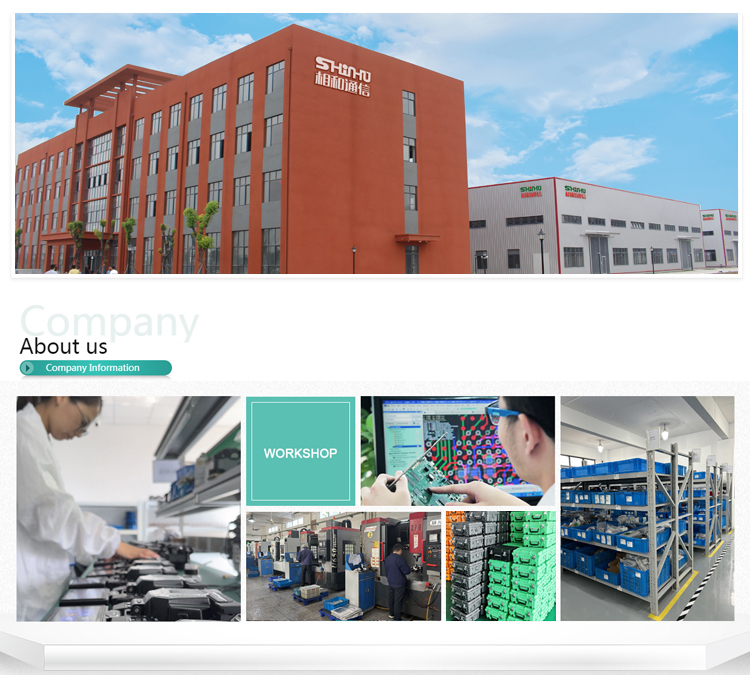

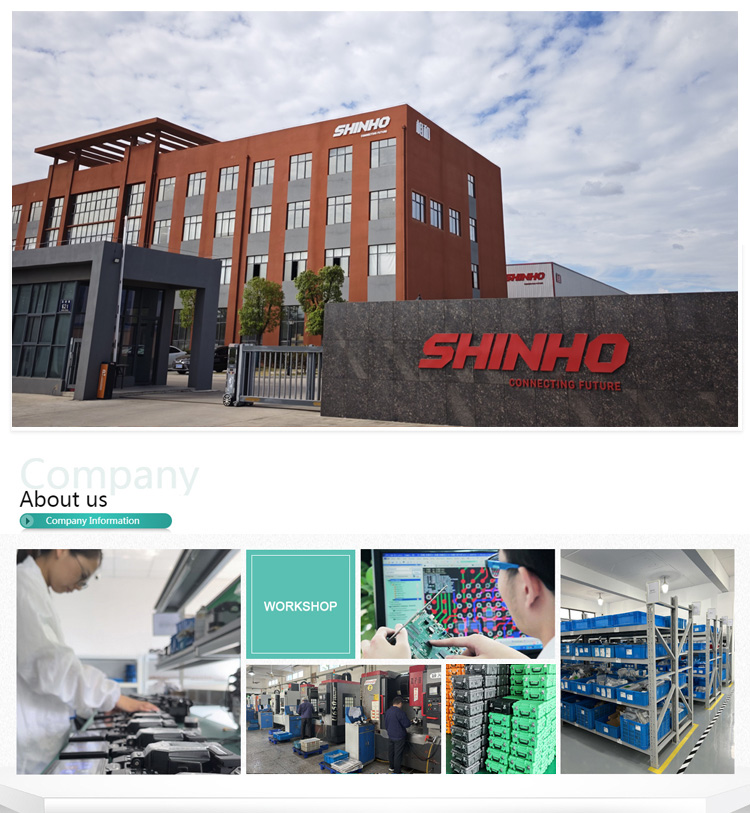

Company Information
