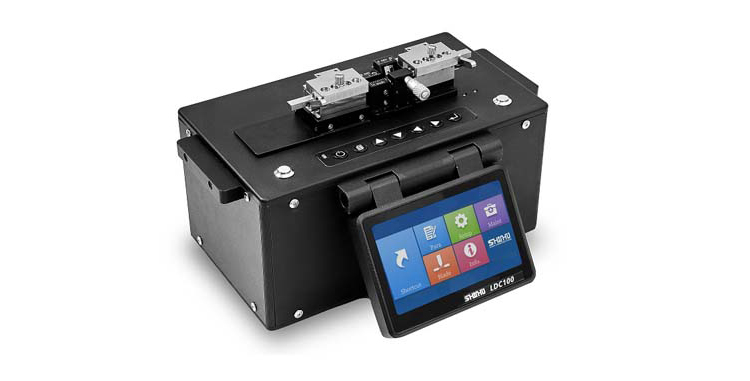

    LDC-100 Large Diameter Optical Fiber Cleaver * Applicable to cladding diameter 80μm~600μm fibers * Vacuum pump V-groove convenient to put fiber * Durable blade, lifetime more than 20000 times * Data storage 4000 groups * User friendly GUI menu, easy to operate more

  • Multi-Core Fiber Fusion Splicer

    S-22 Multi-Core Fiber Fusion Splicer The 1st Fully Automatic Multi-core Fiber Fusion Splicer in China more

  • PM fiber fusion splicer

    Polarization Maintaining (PM) Fiber Fusion Splicer S-12 * Core to core alignment, low splicing loss * Endview and Profile observation and alignment * Arc automatic calibration and splicing * PM fiber 45 and 90 degree alignment more

  • LDF Splicer S-37

    S-37 LDF Speialty Fiber Fusion Splicer SHINHO S-37 is the latest model we developed, it could splice fiber cladding diameter from 125 to 400μm with low splice loss. We equipped the machine with 3 different fiber holders, and 2 pairs of spare electrodes. more

  • ribbon fiber fusion splicer

    Ribbon Fiber Fusion Splicer X950 Ribbon fiber fusion splicer for single fiber and 2-12 cores fibers Accurate fiber alignment, low splicing loss Robust industrial design, easy to operate more

  • core alignment fusion splicer

    Core to Core Alignment Fiber Fusion Splicer X900 Six motors fusion splicer, real core to core alignment technology. 6s splicing, 18s heating, identify fiber types automatically. Used for WAN/ MAN/ Telecommunication projects. more

  • fiber optical splicing machine

    Robust Multi Function ARC Fusion Splicer S16 Robust industrial design, anti-shock, dust-proof and waterproof. Touch screen display, combined with keypad operation Multi function holder for bare fiber, patch cords, drop cable etc. Fast splicing and heating, automatic ARC calibration. more

  • Thermal stripper

    SHINHO X-18 Ribbon Fiber Thermal Stripper Shinho X-18 Thermal Stripper is a newly developed hand-held thermal stripper, specially designed for nondestructive thermal stripping of the jacket of ribbon cable up to 12 fibers. A good and reliable tool for ribbon fiber splicing work. more

LDC-100 Large Diameter Optical Fiber Cleaver

* Applicable to cladding diameter 80μm~600μm fibers

* Vacuum pump V-groove convenient to put fiber

* Durable blade, lifetime more than 20000 times

* Data storage 4000 groups

* User friendly GUI menu, easy to operate


  • Item NO.:

    LDC-100
  • Product Origin:

    CHINA
  • Color:

    Standard
  • Shipping Port:

    Shanghai/Shenzhen
  • Lead Time:

    15 working days
Product Details

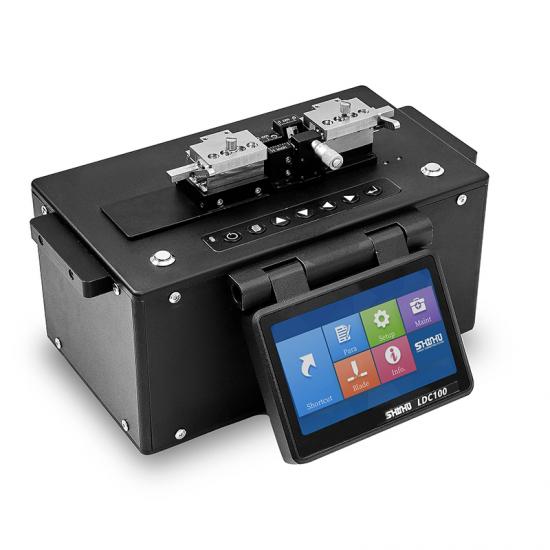

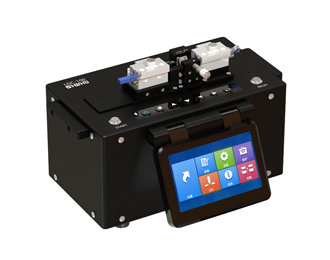

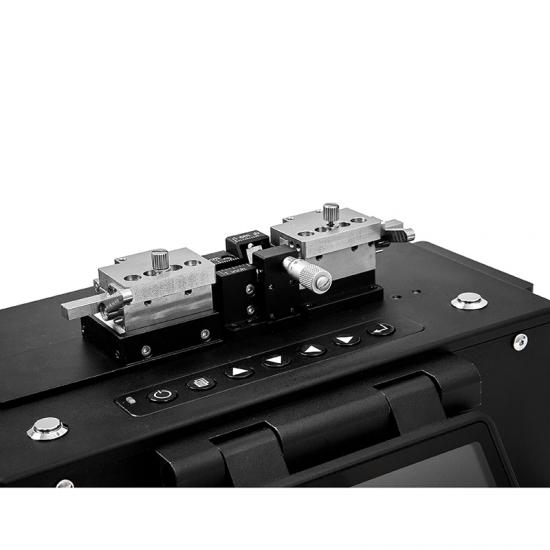

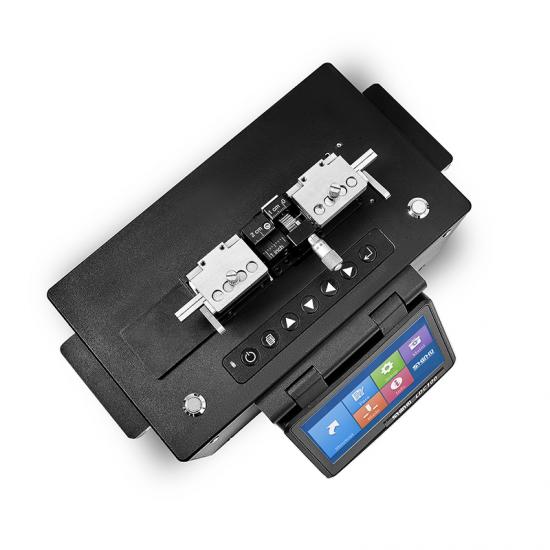

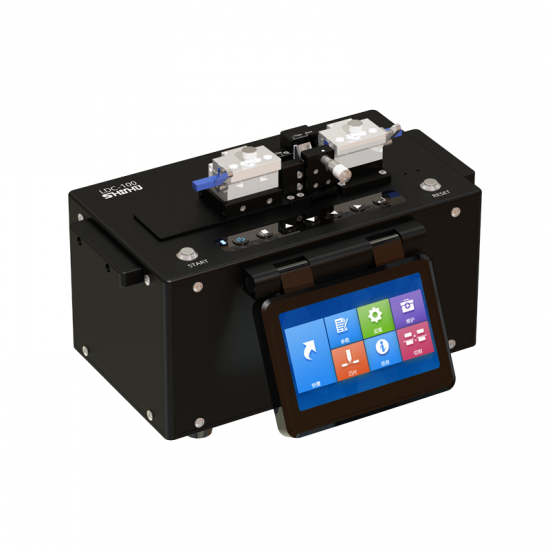

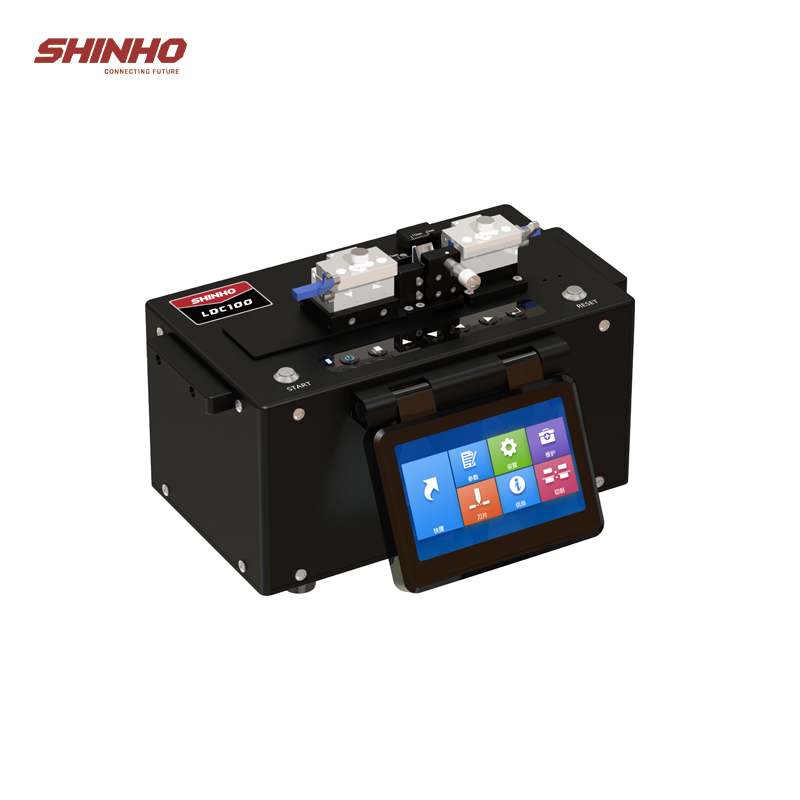

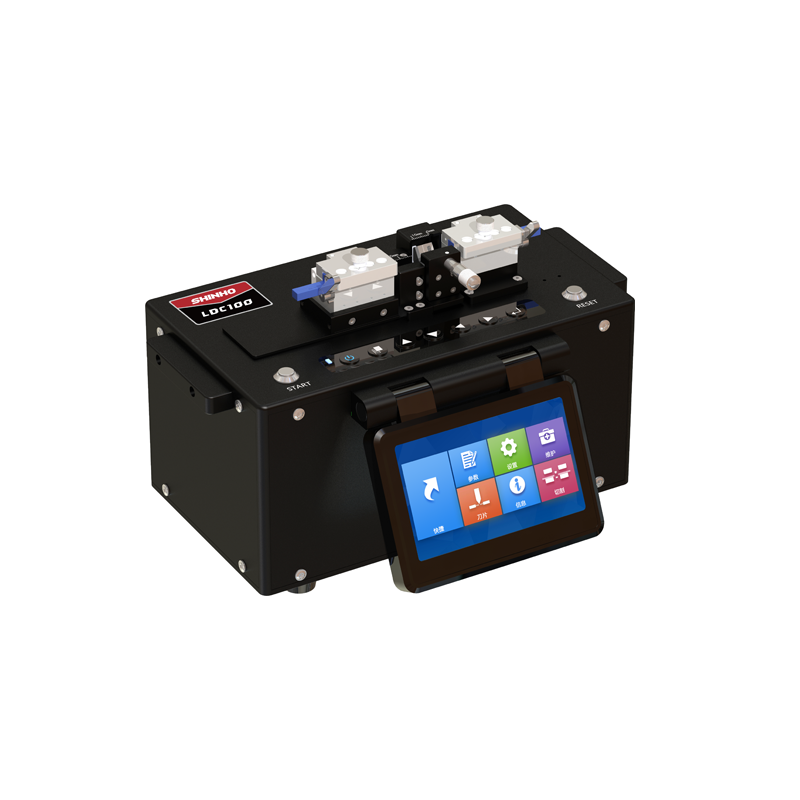

SHINHO LDC-100 Large Diameter Optical Fiber Cleaver


SHINHO LDC-100 Large Diameter Optical Fiber Cleaver is Specially designed for large diameter fibers.



Features

*Applicable to cladding diameter 80μm~600μm fibers

*Vacuum pump V-groove convenient to put fiber

*More than 20000 times blade cutting lifetime

*User friendly GUI menu, easy to operate

*Support parameter defining and software upgrading

*Applicable to variety fibers splicing, such as Panda ,bow-tie and elliptical fiber





Specifications


Applicable optical fiber

Glass optical fibers, capillary

Number of fibers

Single

Cladding

diameter

80~600μm

Coating diameter

160~2500μm

Fiber clamping

Vacuum pump assist to clamp

Cleaving length

5~40mm

Blade life

typical 20000 fibers (Cladding diameter 125 µm) totally

Number of modes

cleaving mode

20

Display

5.0 inches color LCD

Dimensions

270*155*165mm

Weight

4.40kg

Power supply

AC adapter: ADC-19 Input: AC100 to 240 V(50 to 60 Hz) (max.20 W)

Operation

condition

0 to 95% RH and -40 to 80

Terminal

USB2.0


Standard Packages:

Item

Quantity

Remark

LDC-100 main body



1unit

AC adapter



1pc

Power cord



1pc

User manual



1pc

Carrying box



1pc

Tools



1set

Microscope



1pc

Fiber holders (other optional need to buy separately)

Fiber holder-250

Up

1pc

Down

1pc

Fiber holder-400

Up

1pc

Down

1pc
