Robust Multi Function ARC Fusion Splicer S16

Robust industrial design, anti-shock, dust-proof and water resistant.

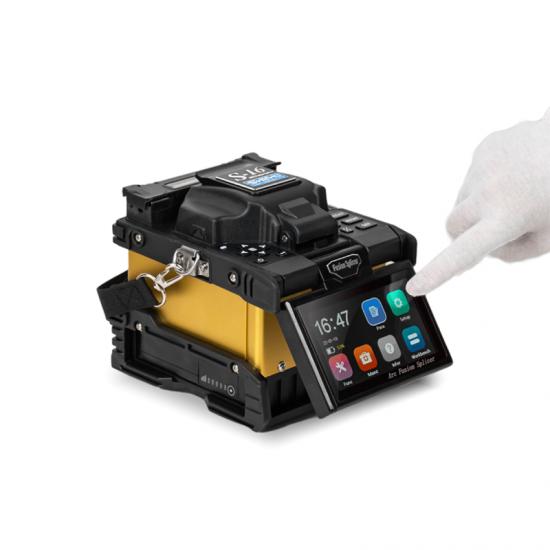

Touch screen display, combined with keypad operation

Multi function holder for bare fiber, patch cords, drop cable etc.

Fast splicing and heating, automatic ARC calibration.

  • Item NO.:

    S-16
  • Product Origin:

    CHINA
  • Color:

    Golden
  • Shipping Port:

    Shanghai/Shenzhen
  • Lead Time:

    3 Working Days
Product Details

Consult and place an order now, you can get a pair of Shinho original electrodes.We are sincerely looking forward to building a business relationship with you!

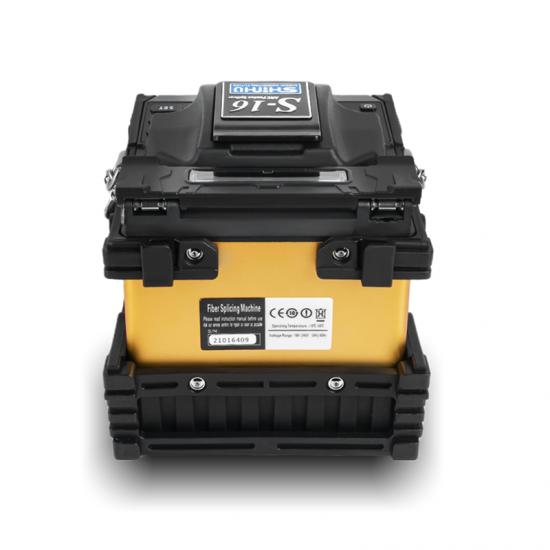

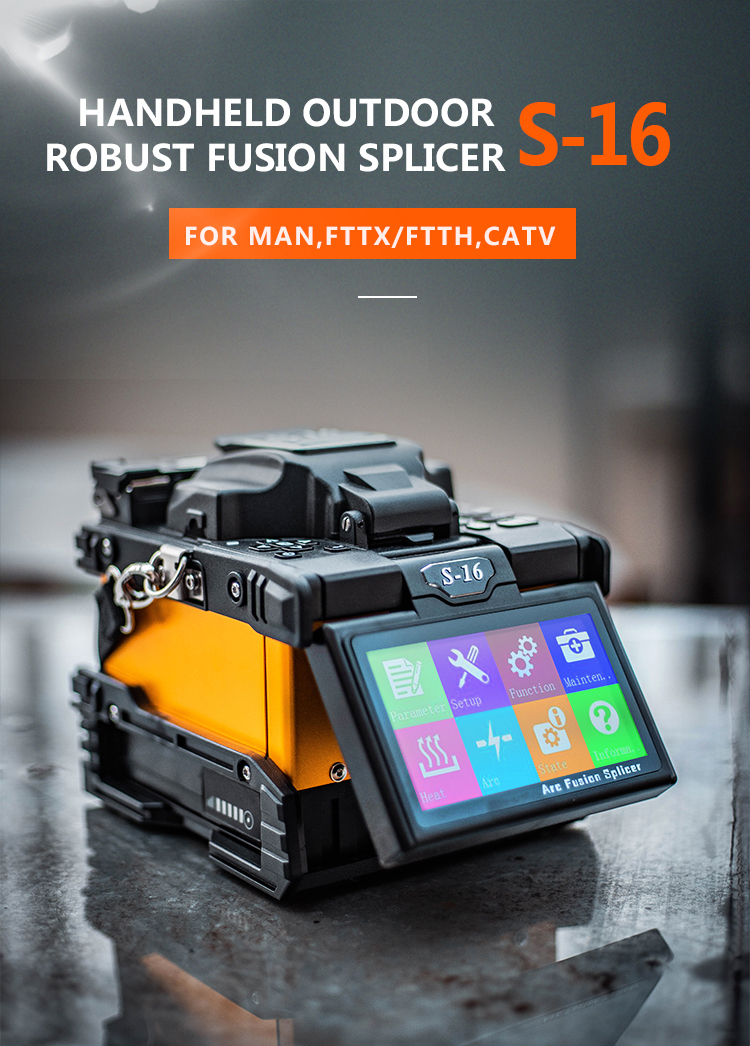

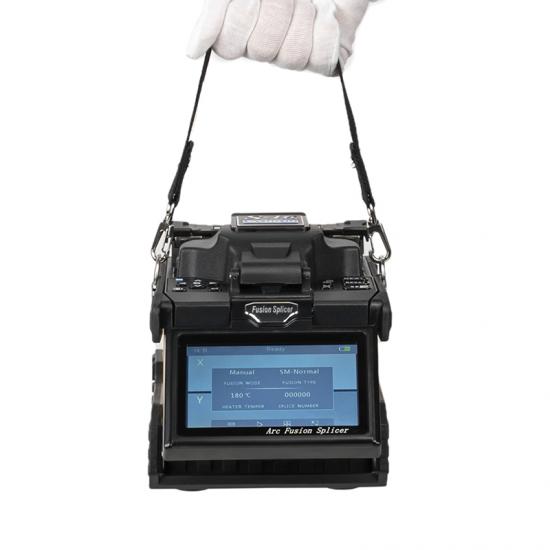

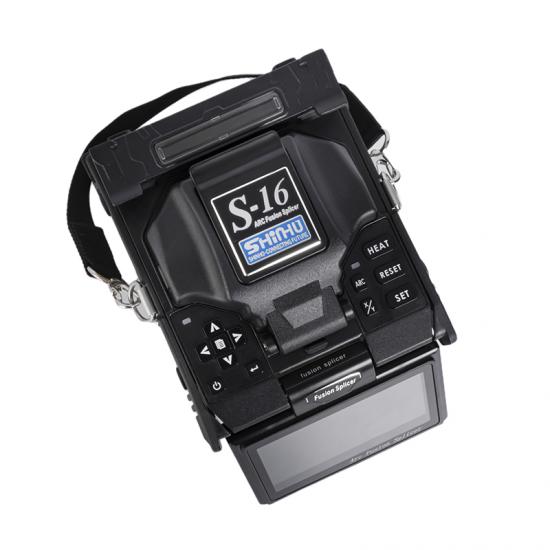

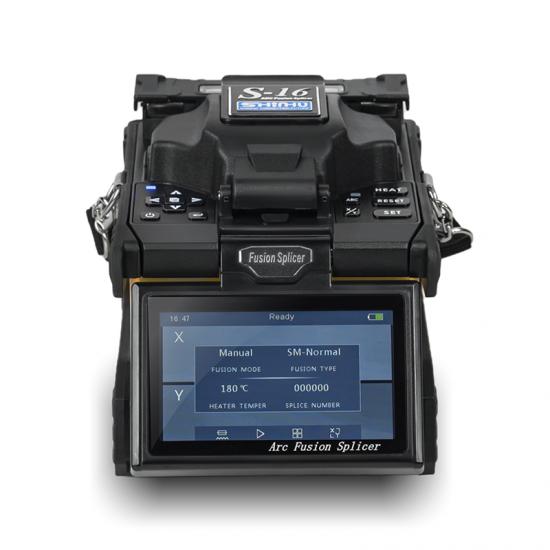

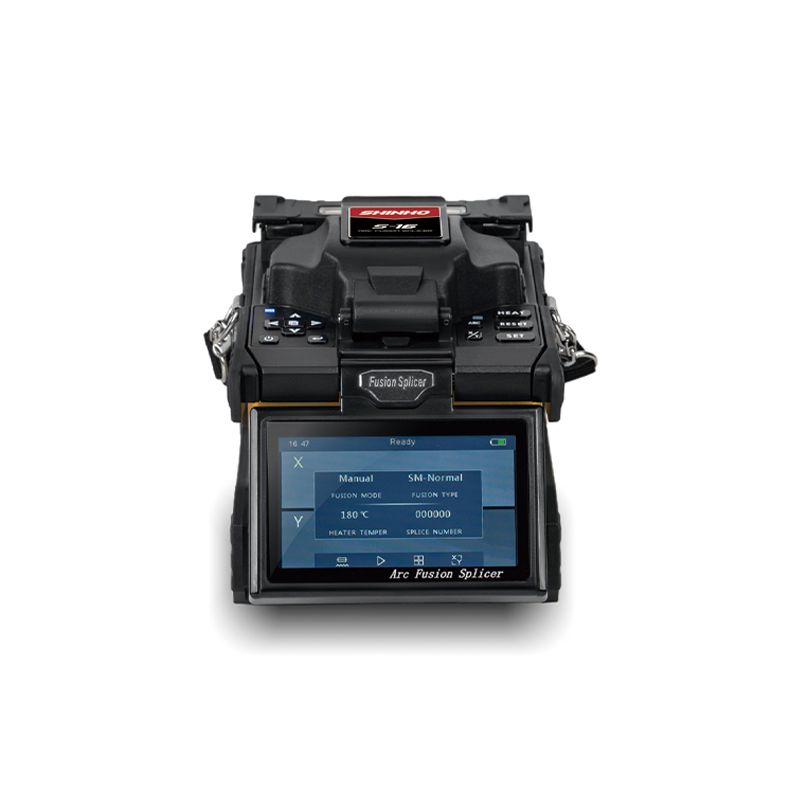

Robust Multi Function ARC Fiber Fusion Splicer S-16


S-16 Fiber fusion splicer is a robust and stable model, used for both indoor and outdoor projects. it is with the upgrade the CPU to get the faster operation speed. It is also with the latest fiber alignment technology to get the low fusion loss. It is suitable for MAN/Telecommunication/FTTx and other related fiber optical projects.

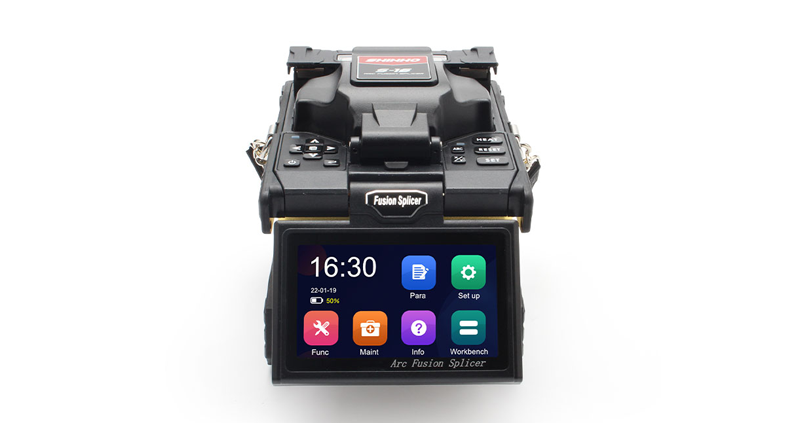

fiber fusion splicer



Multi-Language Sites

fiber fusion splicer


Features


  • 1s boot up, 6s splicing, 18s heating

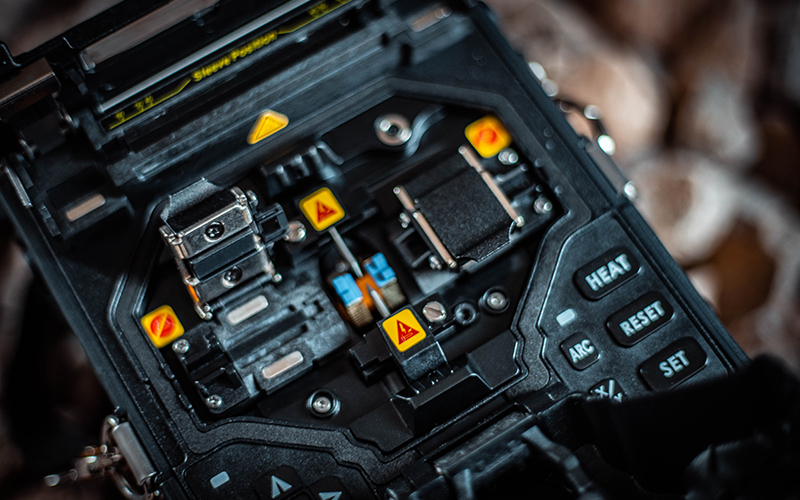

  • 4 motors accurate fiber alignment technology
  • Fast splicing and heating, automatic ARC calibration
  • Inductive automatic heater, upgraded quad-core CPU
  • 76cm dropping anti-shock, IP5X dustproof and IPX2 water resistant


Specifications



Applicable fiber

SM(ITU-T G.652),MM(ITU-T G.651),DS(ITU-T G.653),NZDS(ITU-T G.655)

Diameter of cladding

80 -150μm

Diameter of coating

160-3000μm

Typical splice loss SM: 0.02dB, MM: 0.01dB, DS: 0.04dB, NZDS: 0.04dB
Return loss > 60dB
Fibe cleaved length 5-16mm ( coating diameter < 250um), 16mm (coating diameter:250-1000um)
Splicing program 40 groups
Operate mode Automatic/Manual
Auto-heating Available
Typical splicing time 6 seconds
Typical heating time 18 seconds
Fiber magnification 320X (X or Y view), 160X (X and Y view)
Display screen 4.3 inch color LCD monitor
Records storage 8000 results
Loss evaluation Available
Tension test 1.8-2.2 N
Interface GUI menu interface, easy for operation
Battery 5200mAh Li-battery, typical 250 cycles splicing and heating, support separating charging
Power supply Adapter, input: AC 100-240 V(50/60HZ), output: 11-13.5V
Electrodes life More than 4000 ARC discharges, can be replaced conveniently
Ternimal USB2.0 port, for software upgrading and records exporting
Operating conditions Altitude: 0-5000m, Humidity: 0-95%, Temperature: -10℃~+50℃, Wind speed: Max 15m/s
Dimension 160mm(L) * 136mm(W) * 140mm(H) (with rubber armor)
Weight 2.20kg (including battery)

fusion splicer manufacturer

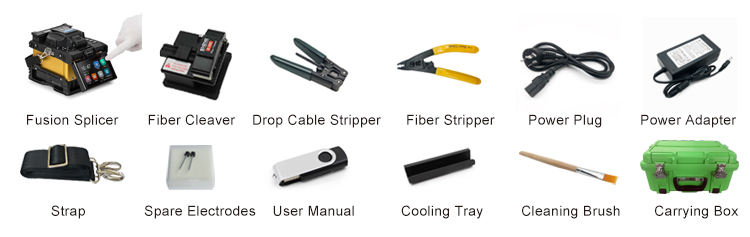

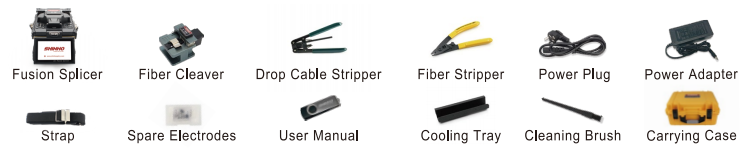

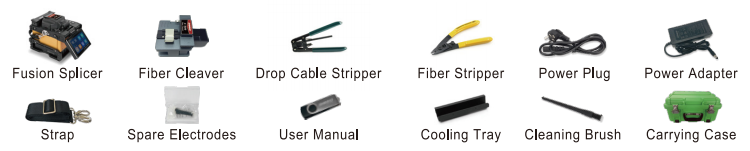

Standard  Accessories



NO. ITEM
1 Carrying box
2 Fiber cleaver
3 Fiber stripper
4 Drop cable stripper
5 Power cord
6 Adapter
7 Cooling tray
8 User manual (USB)
9 Spare electrodes
10 Cleaning tool kit
11

Strap



Shinho S-16 Fiber Fusion Splicer Operation Video

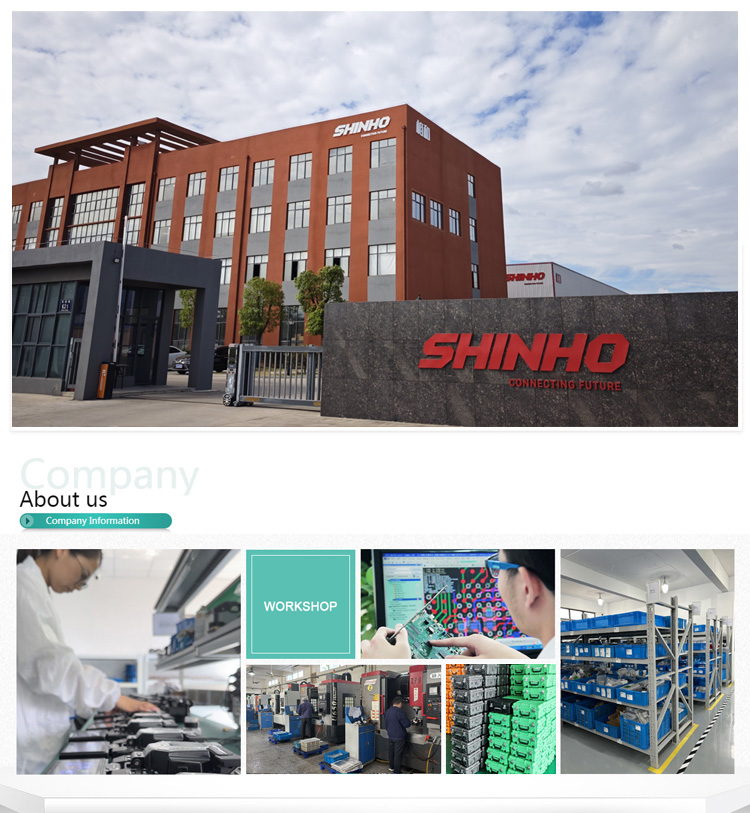

Why Choose Us


1. Reliable product quality

1) Factory with ISO9001:2015 quality management system.

2) Strict quality control process from materials to finished products and package.

3) Vibration testing for every fusion splicer (3 hours).

4) Splicing loss testing by OTDR for every fusion splicer (50 times).

5) Low/high temperature (-20~+50 C) testing for every fusion splicer (both 3 hours).


2. Satisfying after-sales service

1) Lifelong technical support. Any problem during using, we will offer guidance to solve the problem.

2) Quick feedback. Usually customers can get our reply within 1 hour, latest will be not over 10 hours.

3) 24 months warranty period. Within warranty period, all repair and replacement are for free.

4) Reasonable cost for repair & replacement. According to our experience, most problems could be solved by machine menu operation via our remote guidance, do not need repairing or replacement.


3. Industry technology leader

1) More than 20 years experience in the field. Keep developing & upgrading new technology.

2) The latest fiber core to core alignment technology, high level industrial standard design.

3) Different kinds fusion splicers cover all fiber splicing applications.


4. Strong production capacity

1) More than 10,000 units machines are produced every year.

2) Supply fusion splicers to more than 50 countries and zones in the world.

3) OEM/ODM is available.


Request a Free Quote

Now Shinho's products and services are widely applied to communication engineering, home network, optical device production, scientific research,etc. They are exported to Europe, North America, Africa, South America and other Asian countries. Any inquiry, please feel free to contact us!

Related Product
core alignment fusion splicer
Core to Core Alignment Fiber Fusion Splicer X900

Six motors fusion splicer, real core to core alignment technology. 6s splicing, 18s heating, identify fiber types automatically. Used for WAN/ MAN/ Telecommunication projects.

FTTH fusion splicer
Handheld FTTx Fiber Fusion Splicer X500

Most Economical Fiber Fusion Splicer Small, light and handheld. Touch screen display Stable performance and low fusion splicer. Used for FTTx/FTTH/Security/ Monitoring projects.

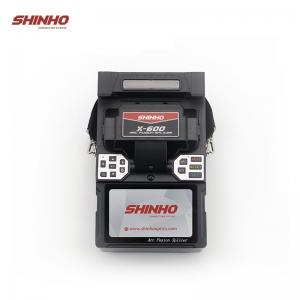

FTTH fusion splicer X 600
