Most Economical Fiber Fusion Splicer
Small, light and handheld.
Touch screen display
Stable performance and low fusion splicer.
Used for FTTx/FTTH/Security/ Monitoring projects.
Item NO.:
X-500Product Origin:
CHINAColor:
StandardShipping Port:
Shanghai/ShenzhenLead Time:
3 working daysConsult and place an order now, you can get a pair of Shinho original electrodes.We are sincerely looking forward to building a business relationship with you!
Shinho X-500 Fiber fusion splicer testing video

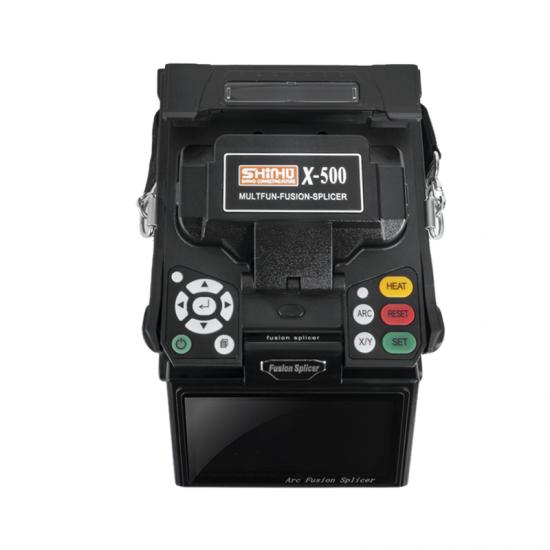

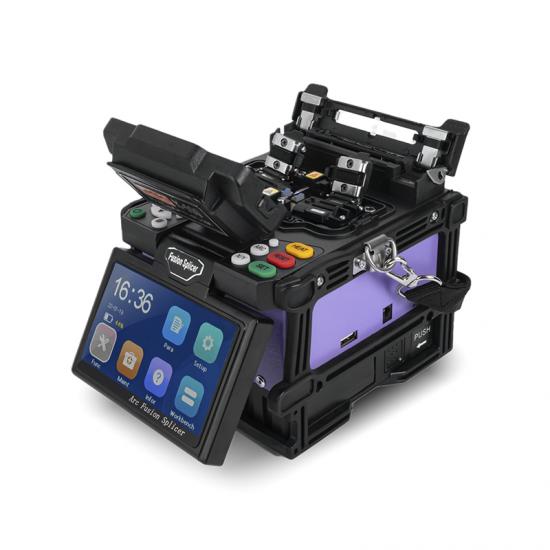

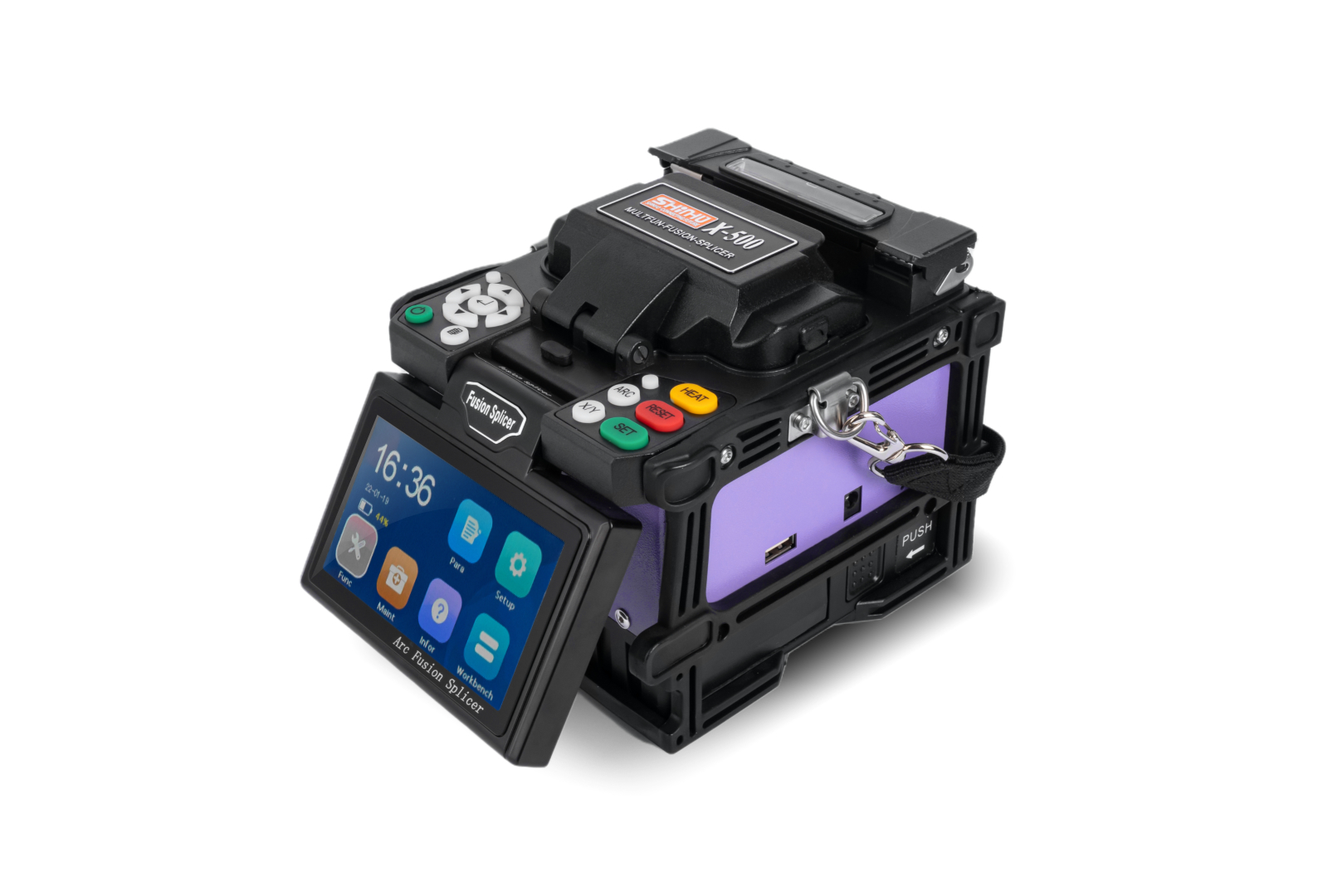

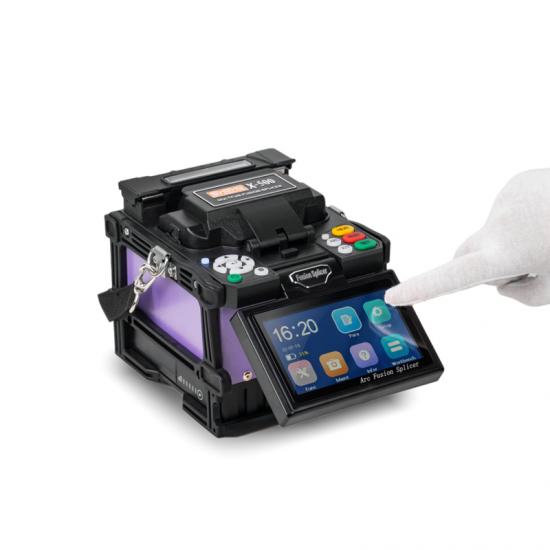

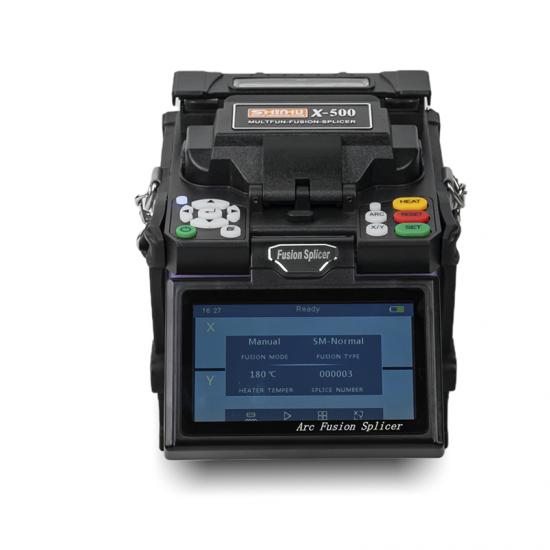

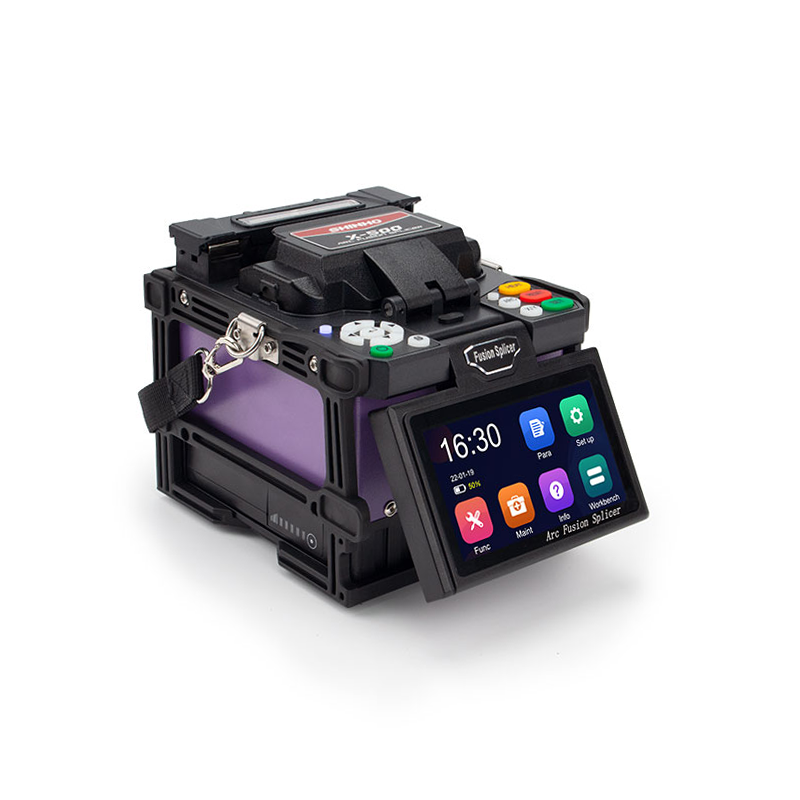

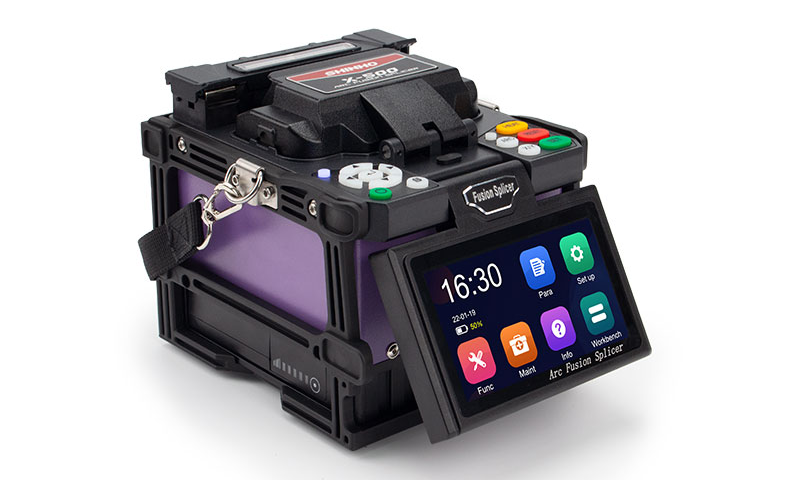

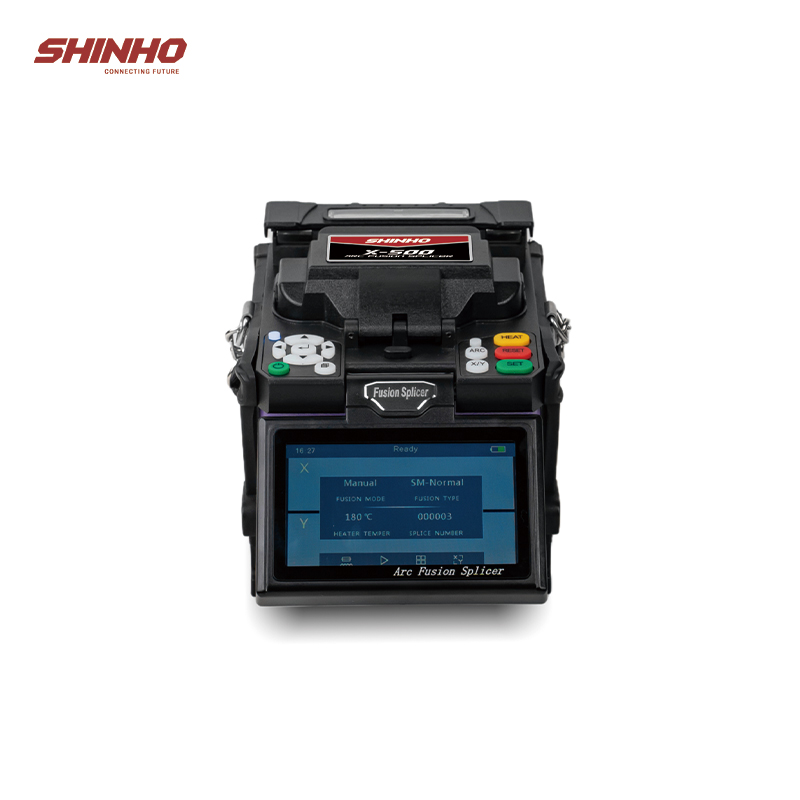

Handhled FTTx Fiber Fusion Splicer X-500
X-500 Fiber fusion splicer is a 4-motor fusion splicer with the latest fiber alignment technology, GUI menu design, upgraded CPU. It has very stable performance and low fusion loss (average loss lower than 0.03dB), it is a very economical fusion splicer and suitable for FTTx/ FTTH/ Security/ Monitoring etc. projects.
Features
Specifications
|
Applicable fiber |
SM(ITU-T G.652),MM(ITU-T G.651),DS(ITU-T G.653),NZDS(ITU-T G.655) |
|
Diameter of cladding |
80 -150μm |
|
Diameter of coating |
160-3000μm |
| Typical splice loss | SM: 0.02dB, MM: 0.01dB, DS: 0.04dB, NZDS: 0.04dB |
| Return loss | ＞ 60dB |
| Fibe cleaved length | 5-16mm ( coating diameter ＜ 250um), 16mm (coating diameter:250-1000um) |
| Splicing program | 40 groups |
| Operate mode | Automatic/Manual |
| Auto-heating | Available |
| Typical splicing time | 7 seconds |
| Typical heating time | 26 seconds |
| Fiber magnification | 320X (X or Y view), 160X (X and Y view) |
| Display screen | 4.3 inch color LCD monitor, Touch screen |
| Records storage | 8000 results |
| Loss evaluation | Available |
| Tension test | 1.8-2.2N |
| Interface | GUI menu interface, easy for operation |
| Battery | 5200mAh Li-battery, typical 250 cycles splicing and heating |
| Power supply | Adapter, input: AC 100-240V(50/50HZ), output: 11-13.5V |
| Electrodes life | More than 4000 ARC discharges, can be replaced vonveniently |
| Ternimal | USB2.0 port, for software upgrading and records exporting |
| Operating conditions | Altituede: 0-5000m, Humidity: 0-95%, Temperature: -10℃~+50℃, Wind speed: Max 15m/s |
| Dimension | 149mm(L) * 120mm(W) * 127mm(H) |
| Weight | 1.90kg (including battery) |

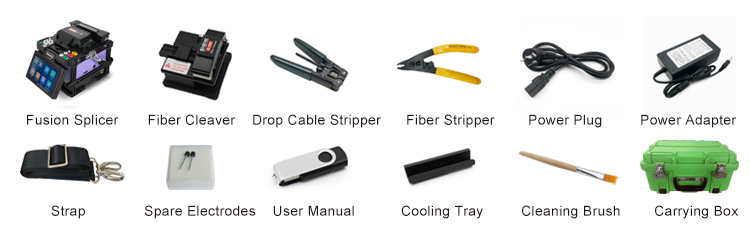

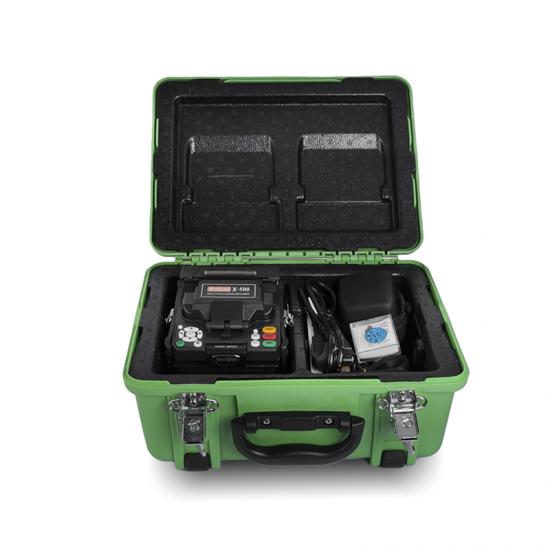

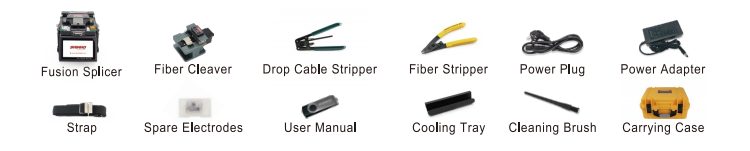

Standard Accessories
| NO. | ITEM |
| 1 | Carrying box |
| 2 | Fiber cleaver |
| 3 | Fiber stripper |
| 4 | Drop cable stripper |
| 5 | Power cord |
| 6 | Adapter |
| 7 | Cooling tray |
| 8 | User manual (USB) |
| 9 | Spare electrodes |
| 10 | Cleaning tool kit |
| 11 |
Strap |

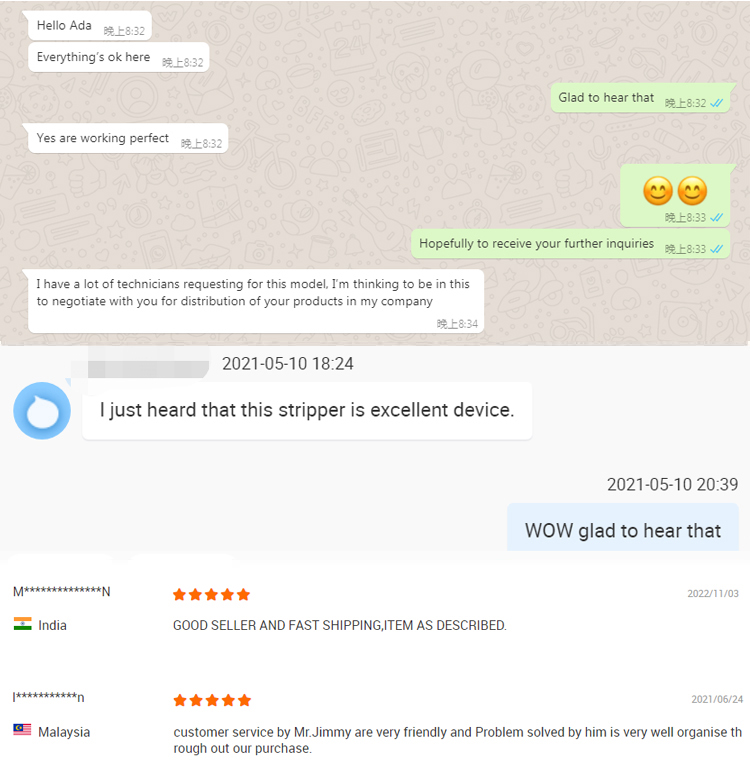

Feedback

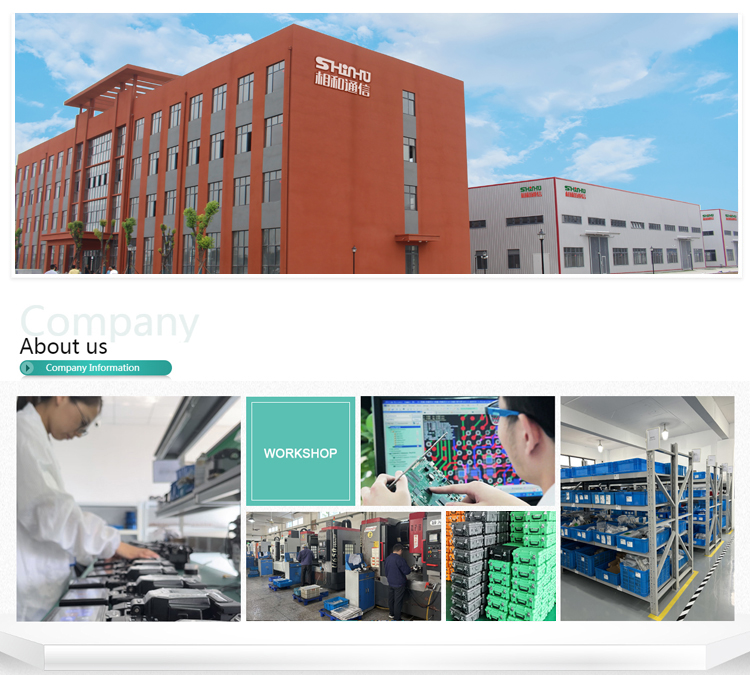

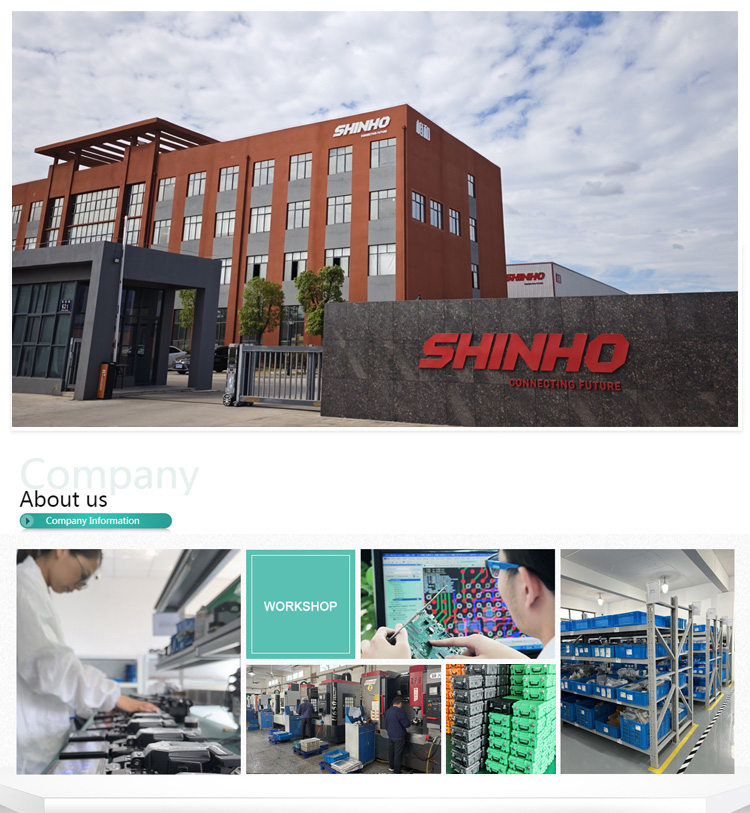

Company Information
Certifications
Exhibition
Why Choose us
1) Factory with ISO9001:2015 quality management system.
2) Strict quality control process from materials to finished products and package.
3) Vibration testing for every fusion splicer (3 hours).
4) Splicing loss testing by OTDR for every fusion splicer (50 times).
5) Low/high temperature (-20~+50 C) testing for every fusion splicer (both 3 hours).
2. Satisfying after-sales service
1) Lifelong technical support. Any problem during using, we will offer guidance to solve the problem.
2) Quick feedback. Usually customers can get our reply within 1 hour, latest will be not over 10 hours.
3) 24 months warranty period. Within warranty period, all repair and replacement are for free.
4) Reasonable cost for repair & replacement. According to our experience, most problems could be solved by machine menu operation via our remote guidance, do not need repairing or replacement.
3. Industry technology leader
1) More than 20 years experience in the field. Keep developing & upgrading new technology.
2) The latest fiber core to core alignment technology, high level industrial standard design.
3) Different kinds fusion splicers cover all fiber splicing applications.
4. Strong production capacity
1) More than 10,000 units machines are produced every year.
2) Supply fusion splicers to more than 50 countries and zones in the world.
3) OEM/ODM is available.
