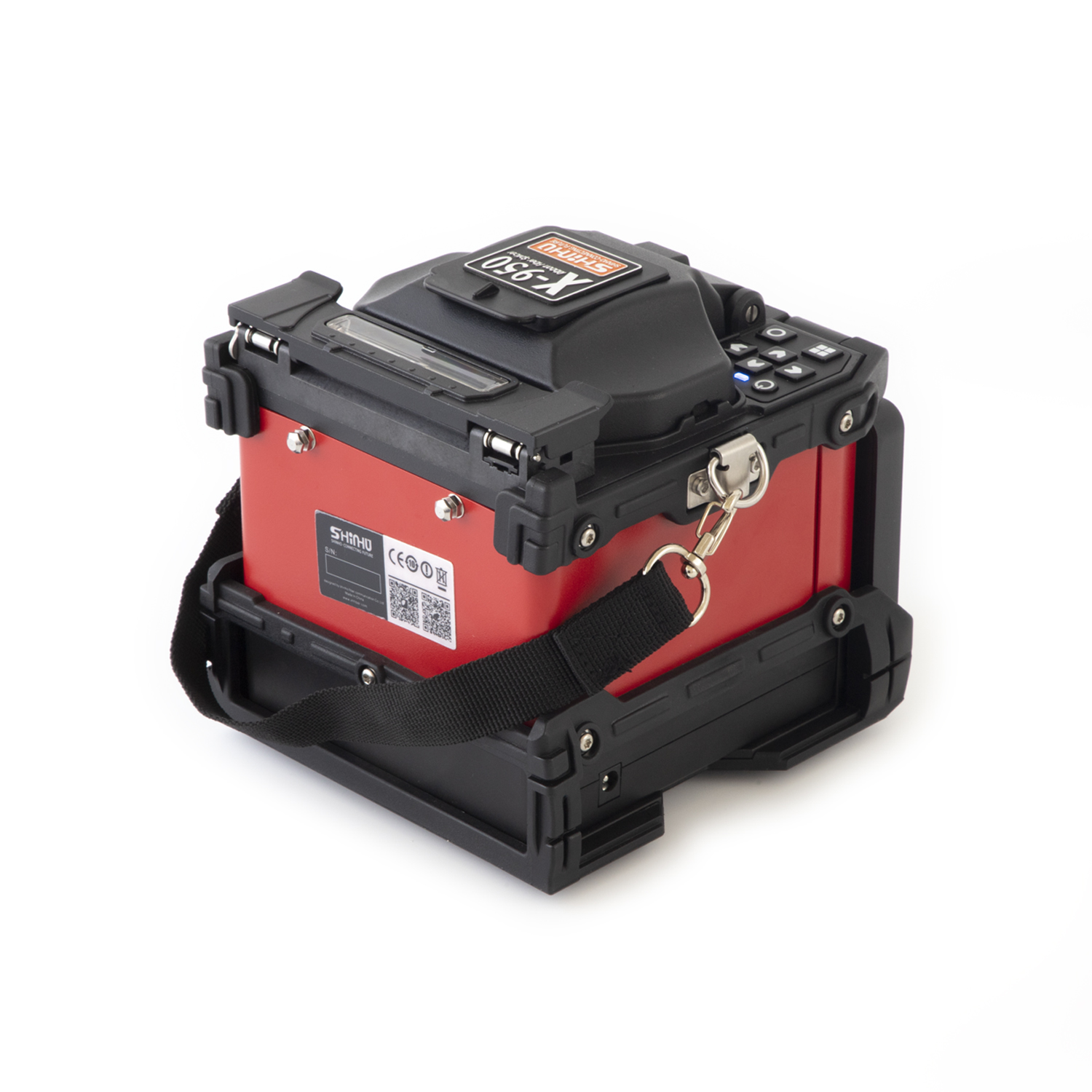

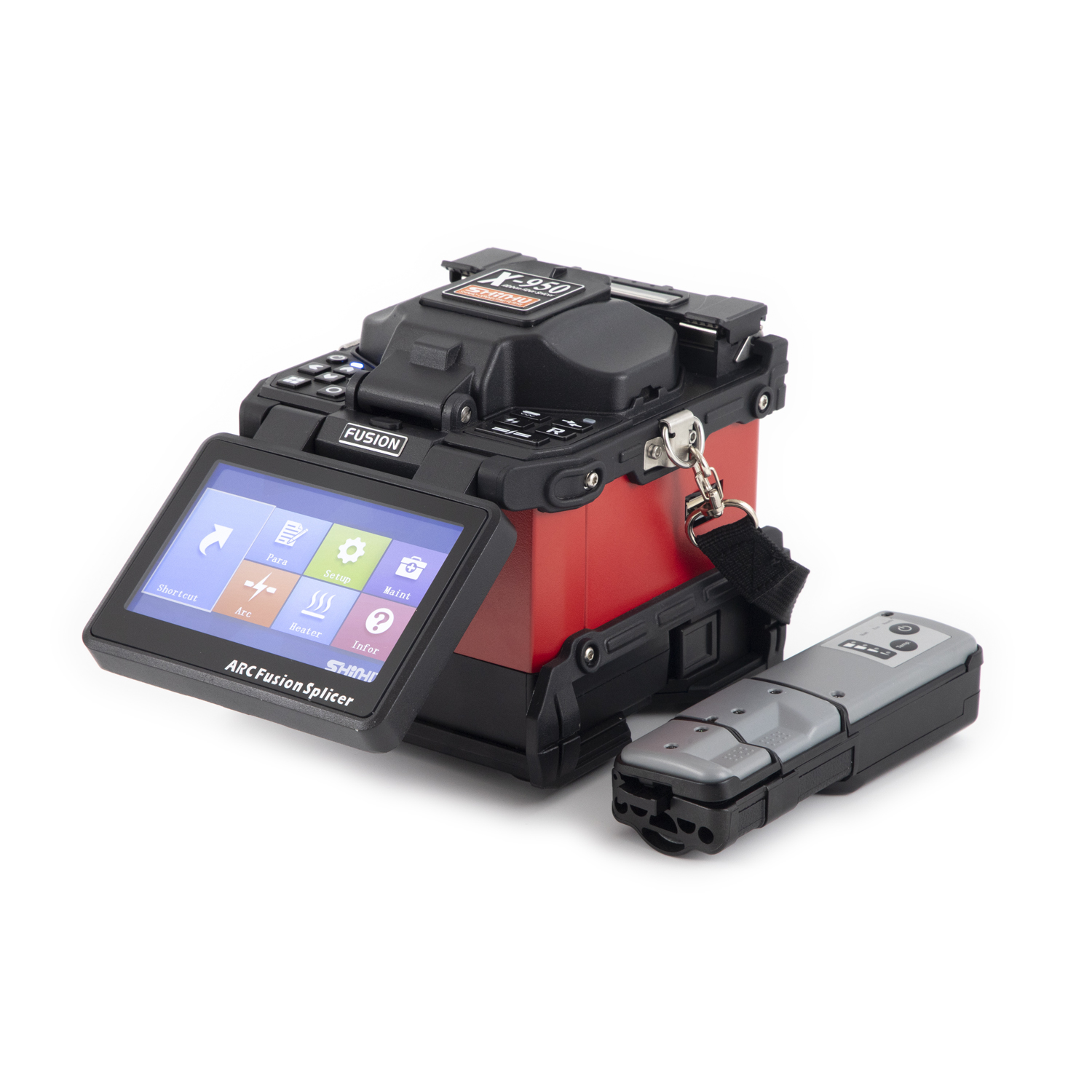

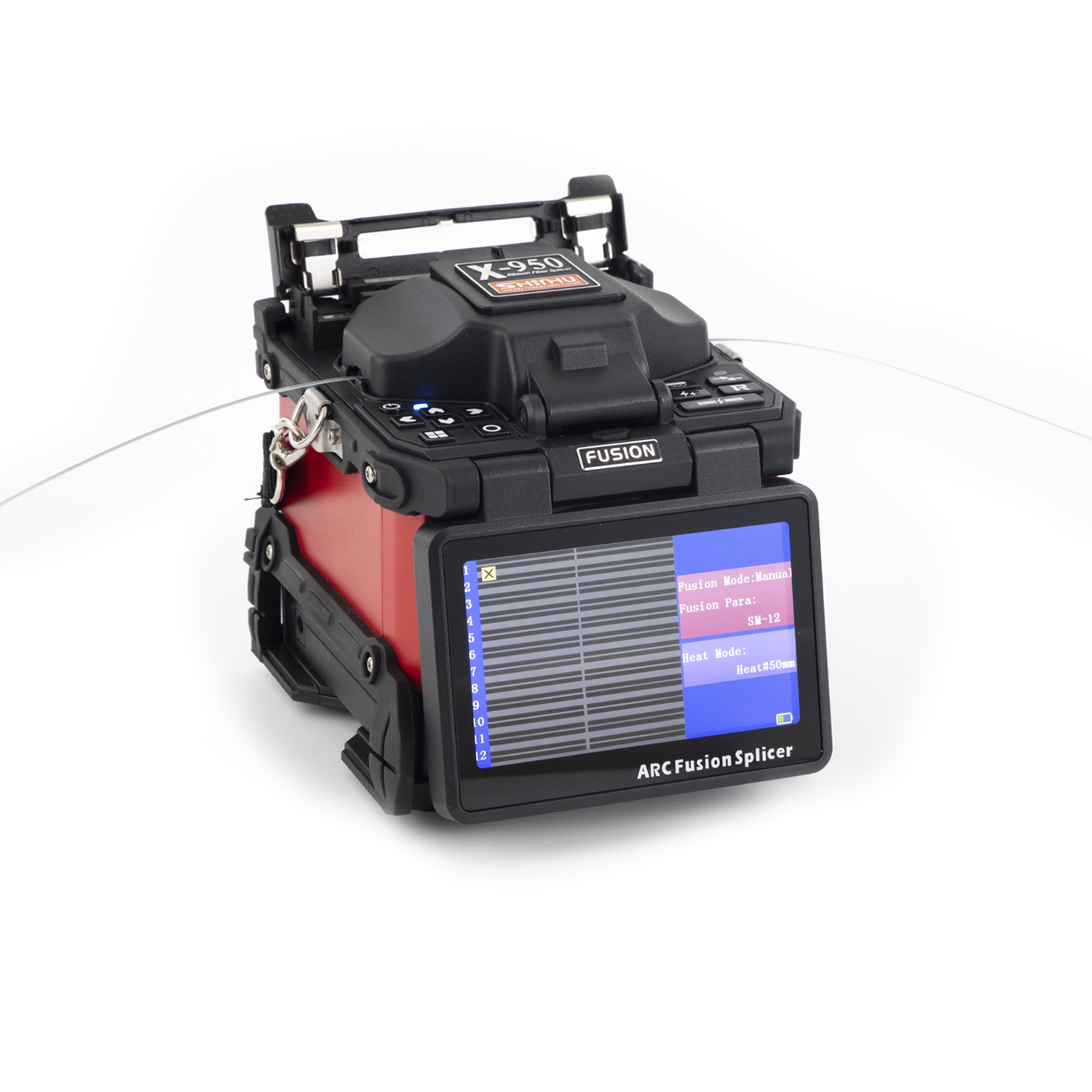

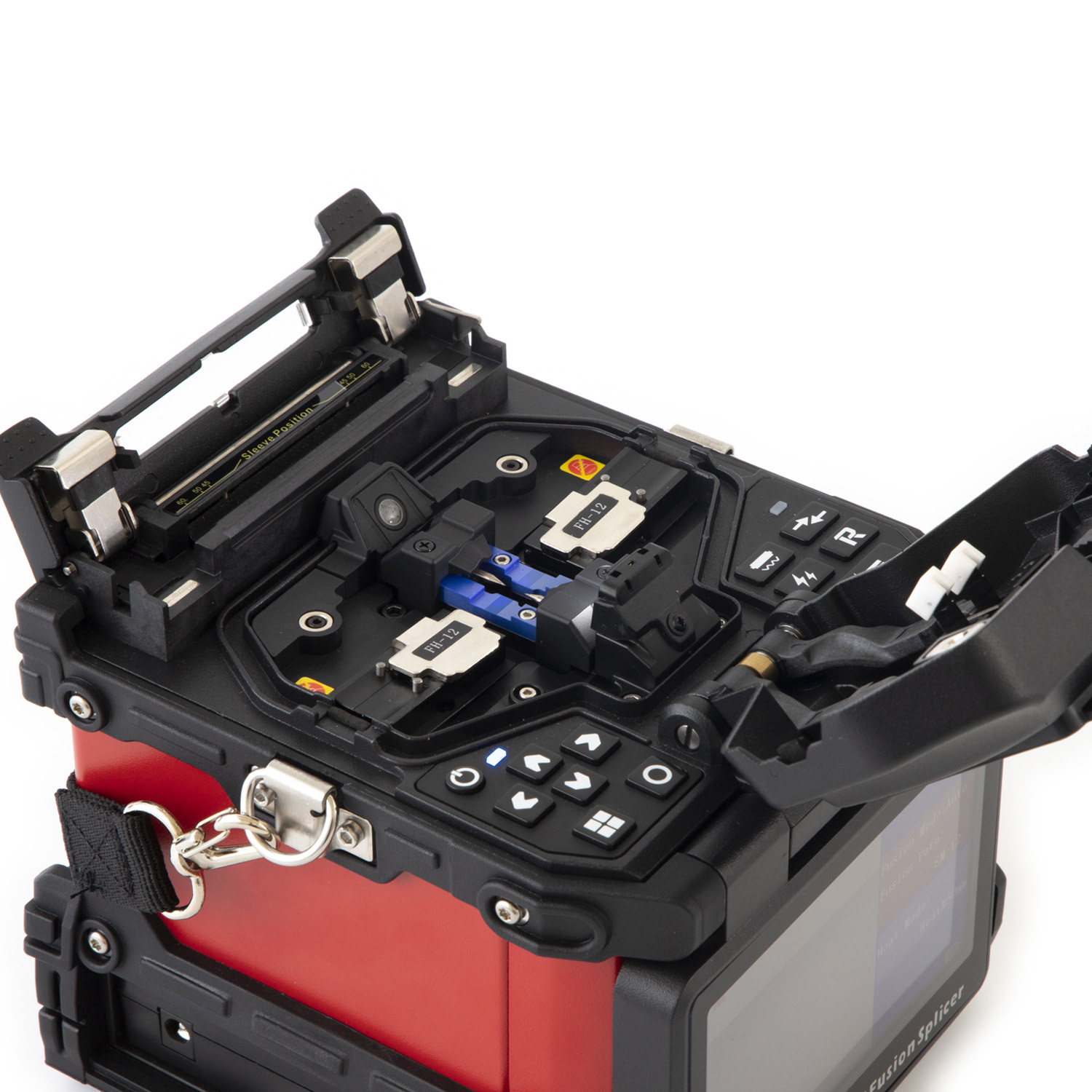

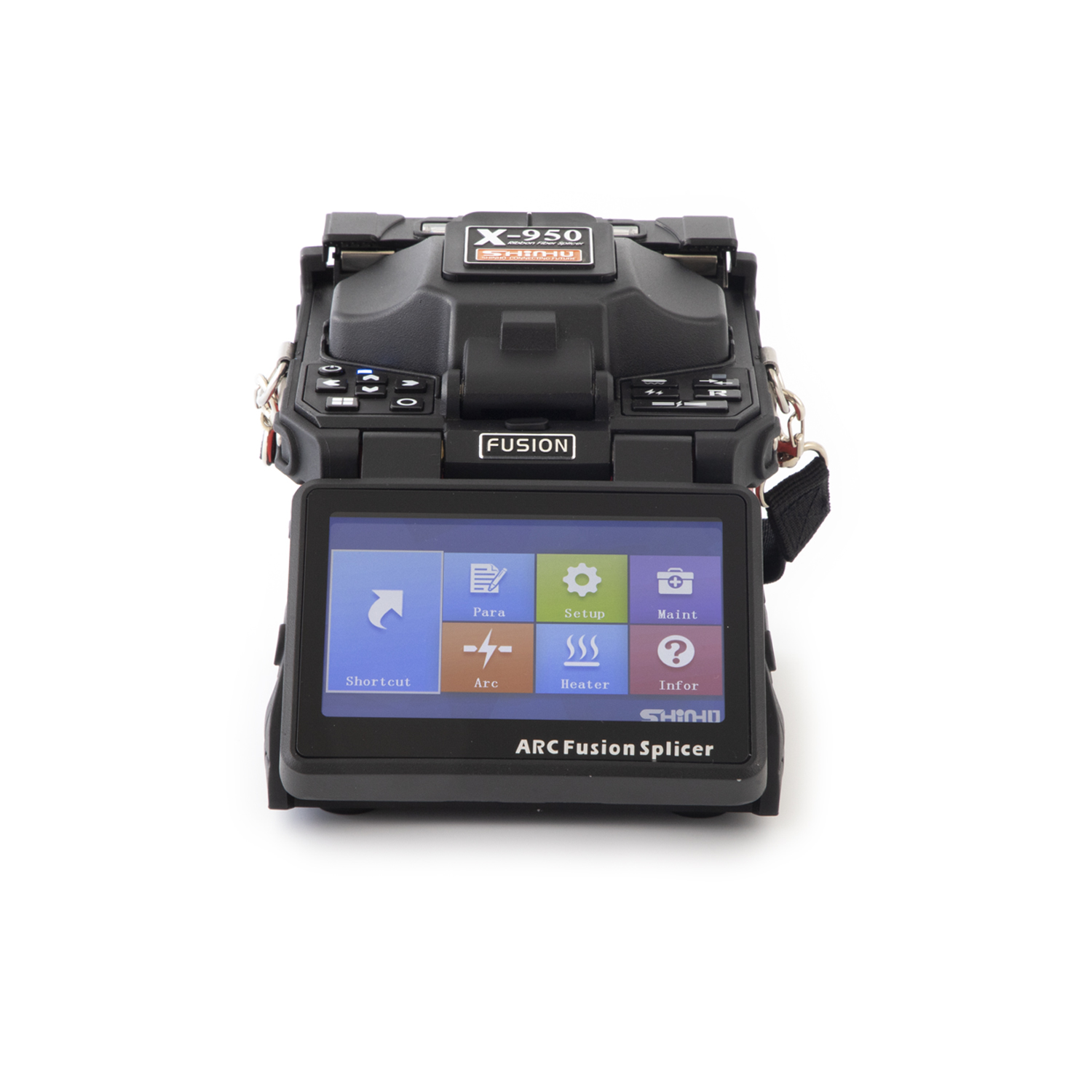

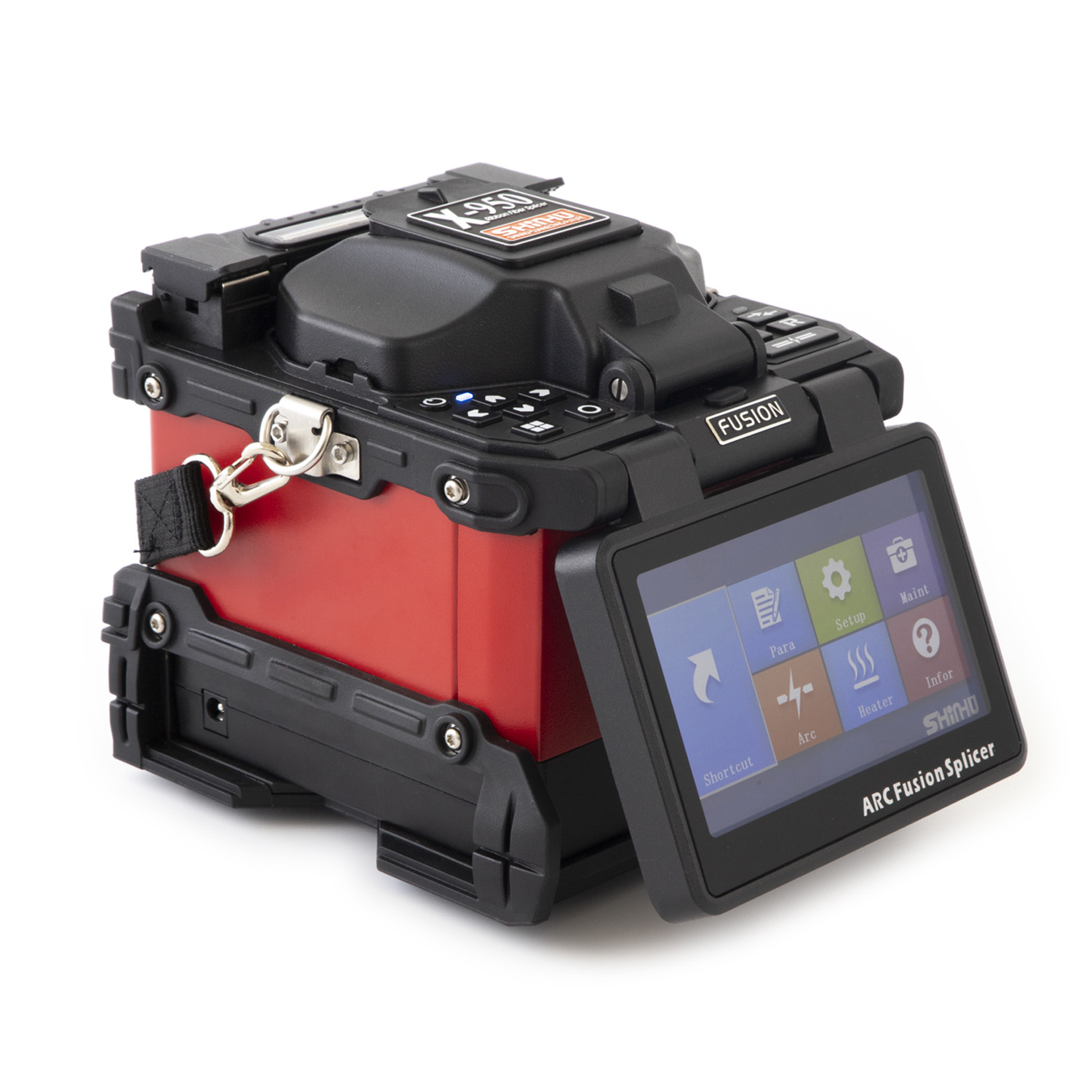

Ribbon Fiber Fusion Splicer X950

Ribbon fiber fusion splicer for single fiber and 2-12 cores fibers

Accurate fiber alignment, low splicing loss

Robust industrial design, easy to operate

  • Item NO.:

    X-950
  • Product Origin:

    CHINA
  • Color:

    Standard
  • Shipping Port:

    Shanghai/Shenzhen
  • Lead Time:

    3 working days
Product Details

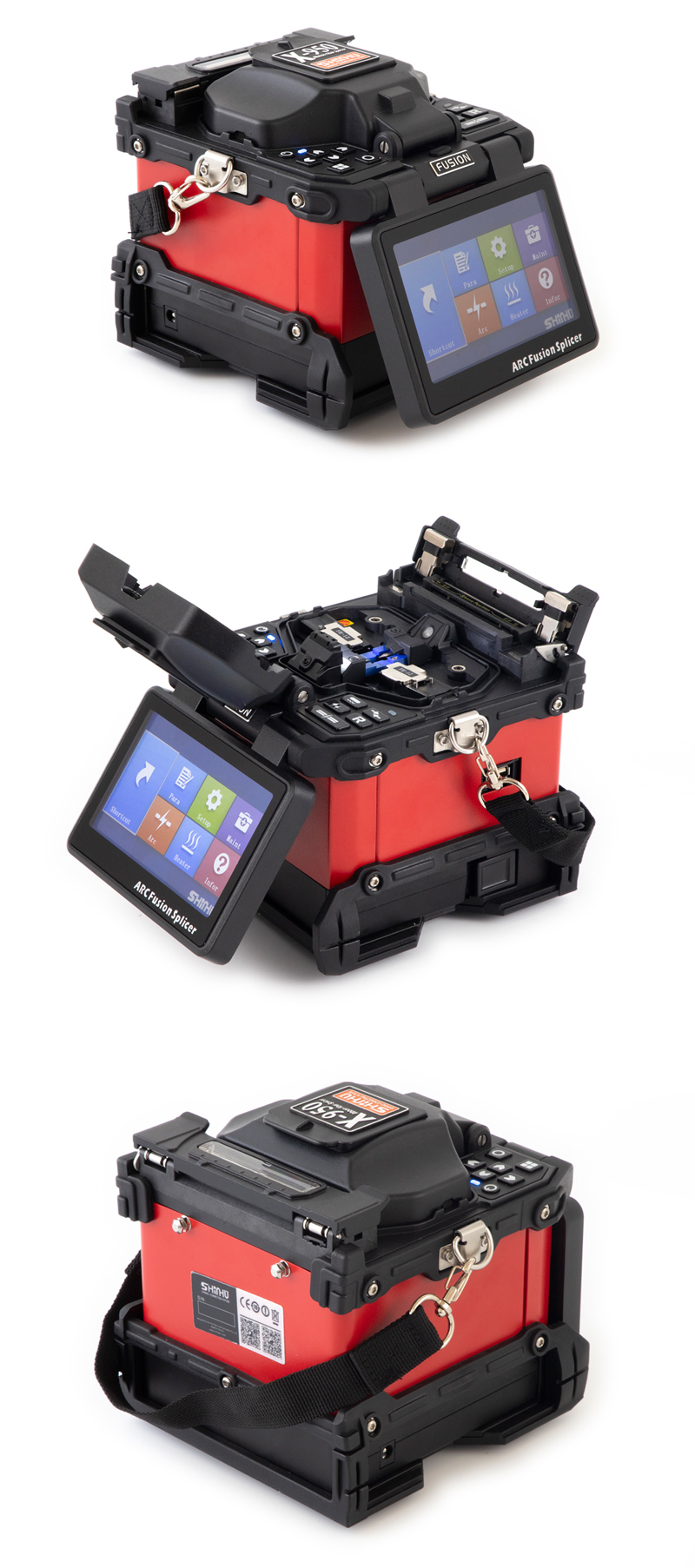

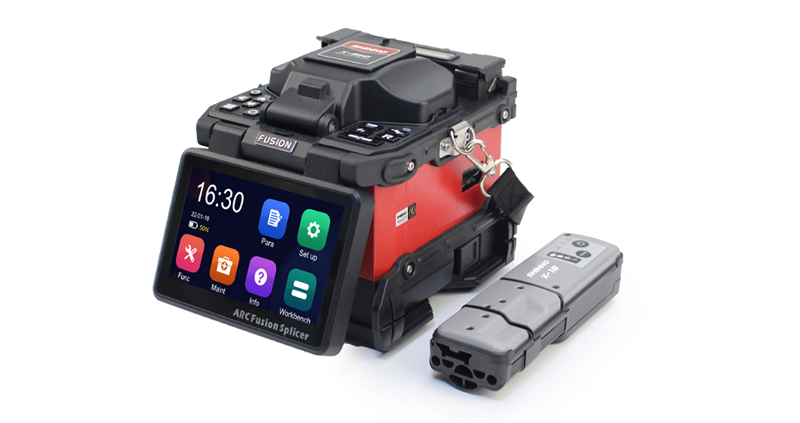

New Model Ribbon Fiber Fusion Splicer X 950


X-950 Ribbon fiber fusion splicer is with the latest accurate fiber alignment technology, it has very stable performance and low fusion loss, it is suitable for different fiber optical projects and various environmental conditions.


ribbon fusion splicer

Features


Applicable to 2-12 ribbon fiber splicing
※ Accurate alignment, world standard fusion loss
※ 20s splicing time, heating 1-2/4-12 fiber ribbon 26s/40s
※ Applicable to different types fibers (SM/MM/DS/NZDS)

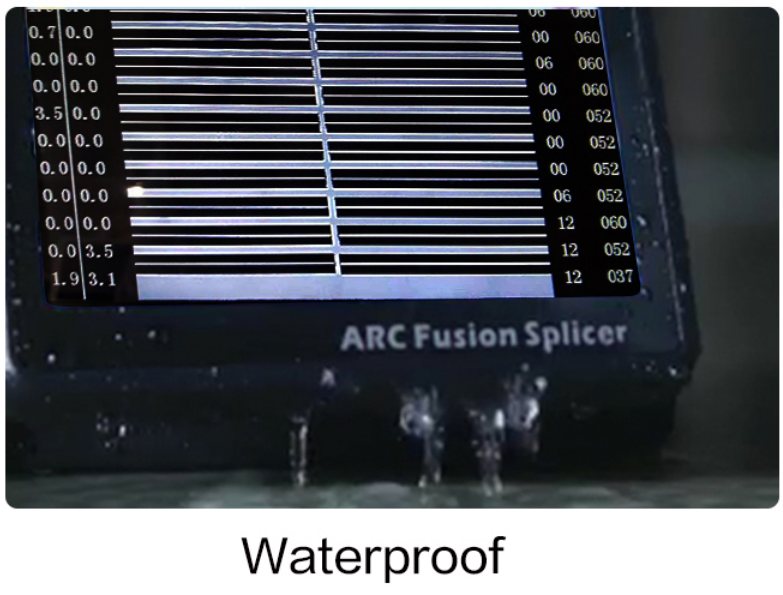

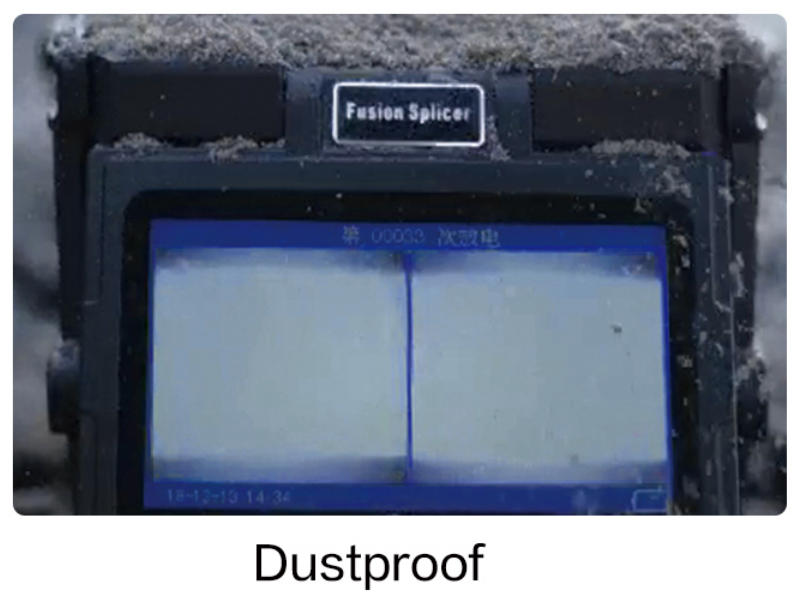

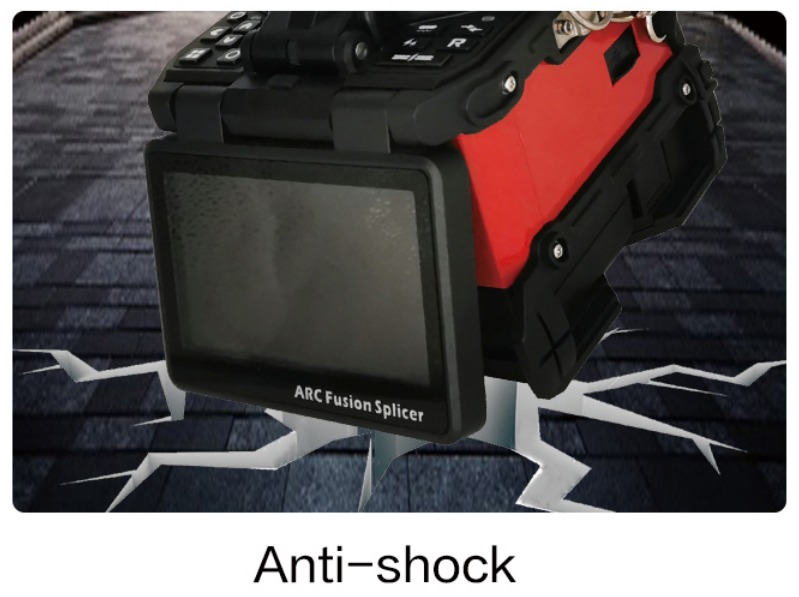

※ Ruggedized body, water resistant, anti-dust, anti-shock
※ Pluggable Li-battery, support separate charging
※ Easy to maintenance, easy to replace the electrodes
※ USB port for software upgrading, records exporting
※ Support 4000/100 groups fusion records/fusion images

※ Comply with CE/Rohs international standard

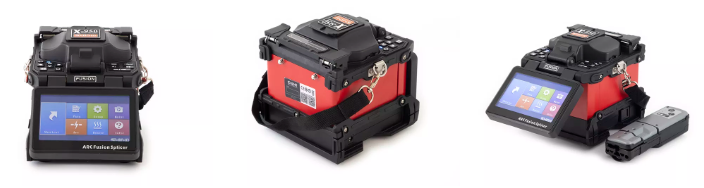

Suitable for various indoor and outdoor environment.

ribbon fusion spliceribbon fusion machine

ribbon fusion splicing

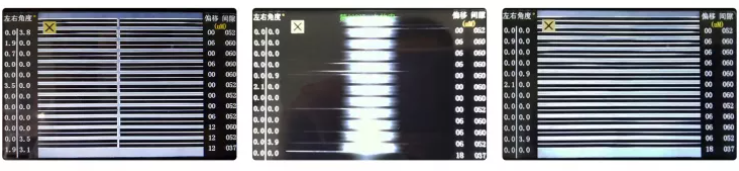

Real time ARC calibration technology

Real time automatic ARC value and position calibration,stable splicing,low fusion loss.

ribbon fiber splicer fusion splicing machine


User friendly engineering design

proper size suitable for all current using scenarios,easy to operate and maintain.

  ribbon fiber splicer fusion splicing

Multi-Language Sites

ribbon fiber splicer fusion splicer

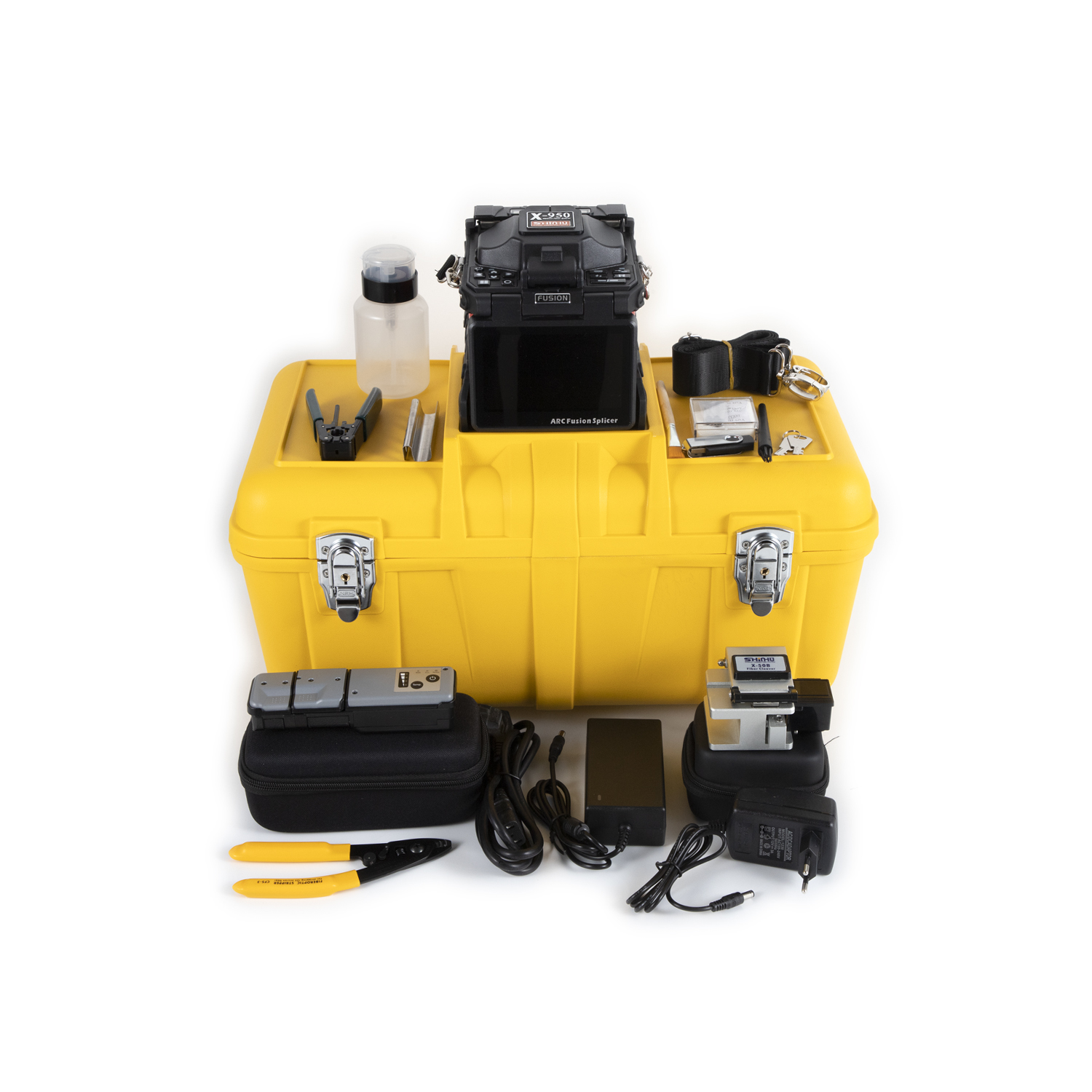

Standard  Accessories

NO. ITEM
1 Carrying box
2 Fiber cleaver
3 Heating fiber stripper
4 Fiber holder R-12
5 Power cord
6 Adapter
7 Cooling tray
8 User manual (USB)
9 Spare electrodes
10 Cleaning tool kit
11

Strap


Why Choose us


1. Reliable product quality

1) Factory with ISO9001:2015 quality management system.

2) Strict quality control process from materials to finished products and package.

3) Vibration testing for every fusion splicer (3 hours).

4) Splicing loss testing by OTDR for every fusion splicer (50 times).

5) Low/high temperature (-20~+50 C) testing for every fusion splicer (both 3 hours).


2. Satisfying after-sales service

1) Lifelong technical support. Any problem during using, we will offer guidance to solve the problem.

2) Quick feedback. Usually customers can get our reply within 1 hour, latest will be not over 10 hours.

3) 24 months warranty period. Within warranty period, all repair and replacement are for free.

4) Reasonable cost for repair & replacement. According to our experience, most problems could be solved by machine menu operation via our remote guidance, do not need repairing or replacement.


3. Industry technology leader

1) More than 20 years experience in the field. Keep developing & upgrading new technology.

2) The latest fiber core to core alignment technology, high level industrial standard design.

3) Different kinds fusion splicers cover all fiber splicing applications.


4. Strong production capacity

1) More than 10,000 units machines are produced every year.

2) Supply fusion splicers to more than 50 countries and zones in the world.

3) OEM/ODM is available.


Request a Free Quote

Now Shinho's products and services are widely applied to communication engineering, home network, optical device production, scientific research,etc. They are exported to Europe, North America, Africa, South America and other Asian countries. Any inquiry, please feel free to contact us!
