Handheld FTTH Fiber Fusion Splicer X600

Four motors active V-groove design.

Best choice for FTTx/FTTH projects.

Handheld type, touch screen and keypad dual operation

Small and light,easy for carrying and operating.

Dual operation system, touch screen and keypad

Item NO.:
X-600
Product Origin:
CHINA
Color:
Standard
Shipping Port:
Shanghai/Shenzhen
Lead Time:
3 working days

Product Details

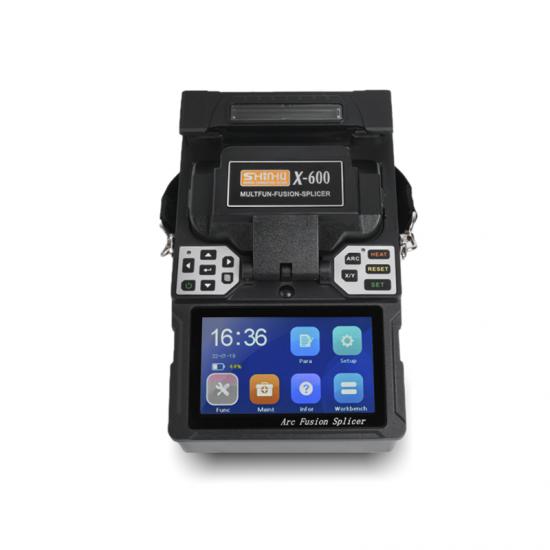

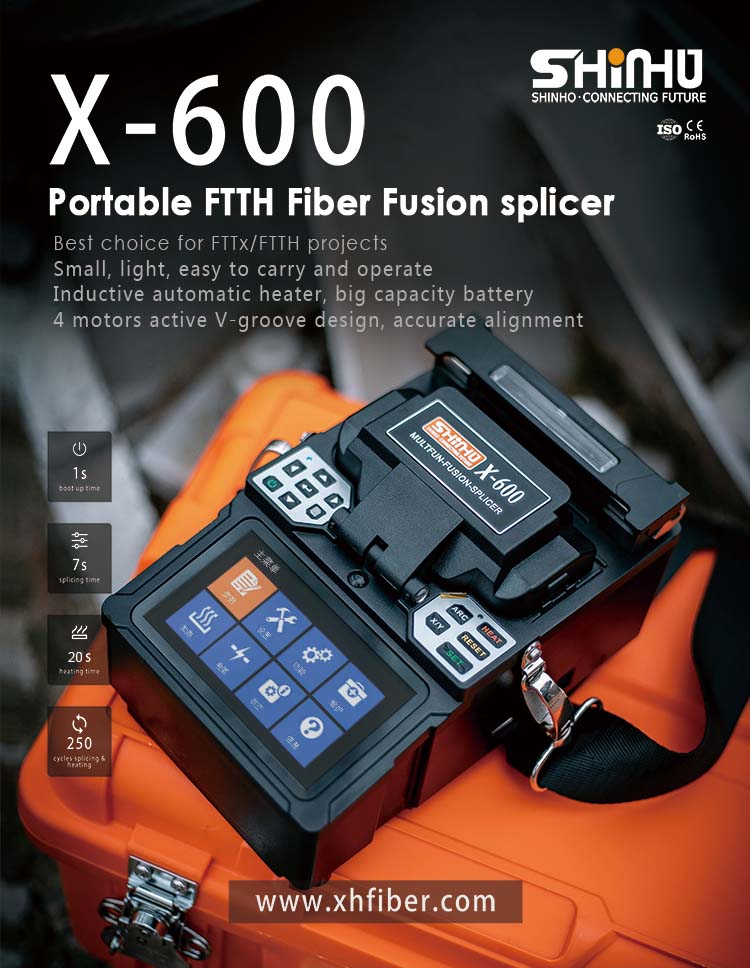

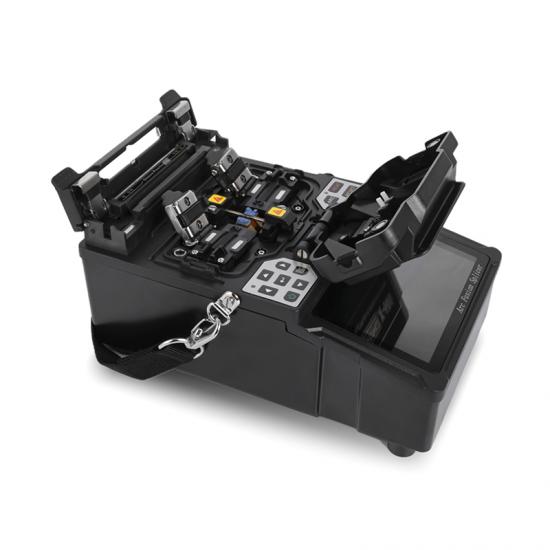

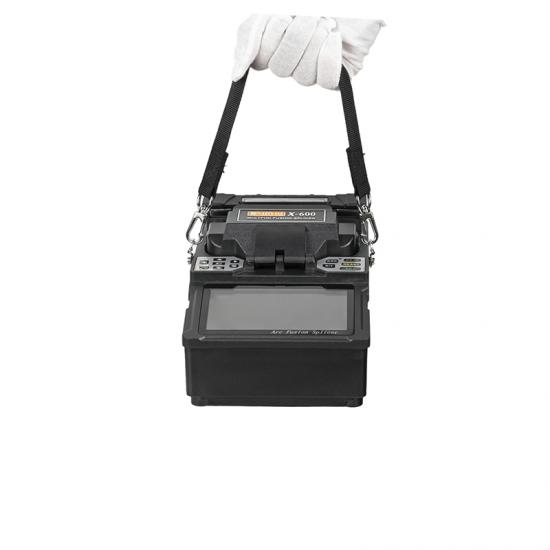

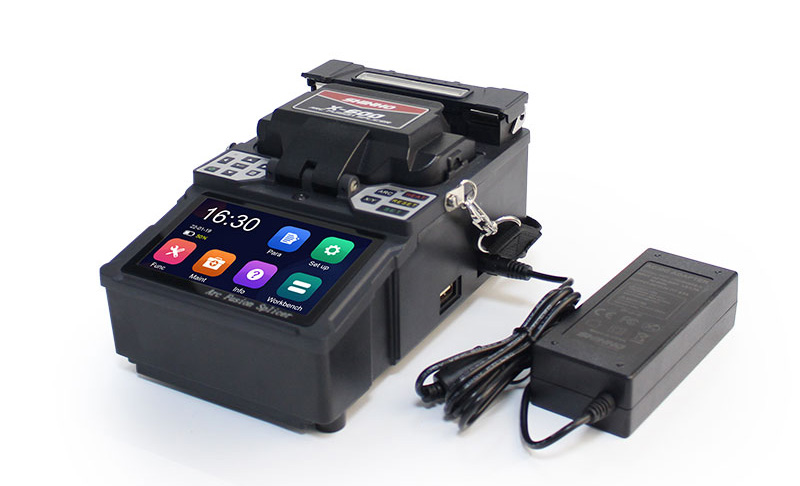

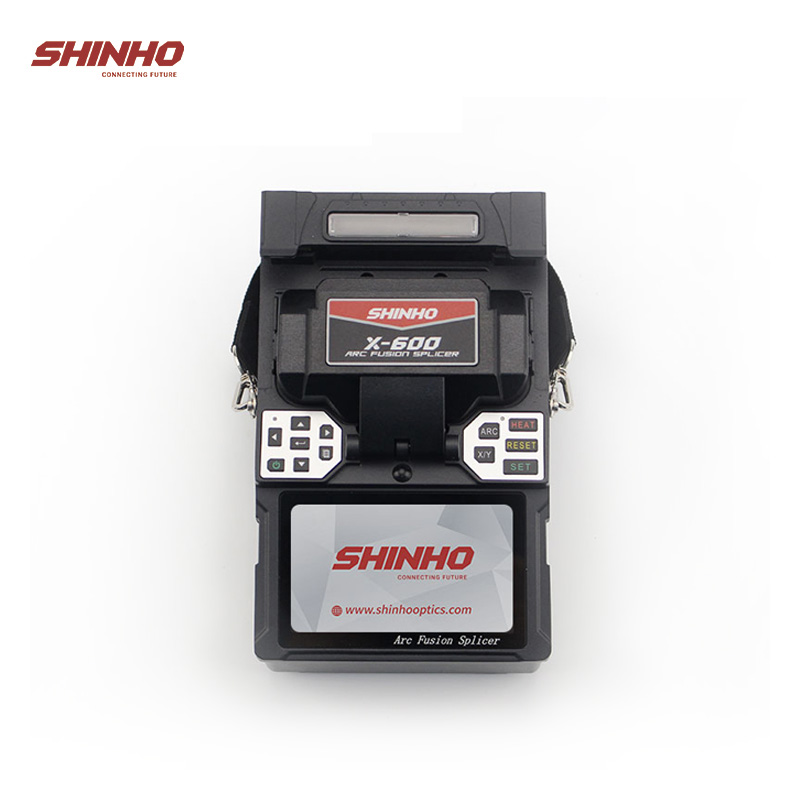

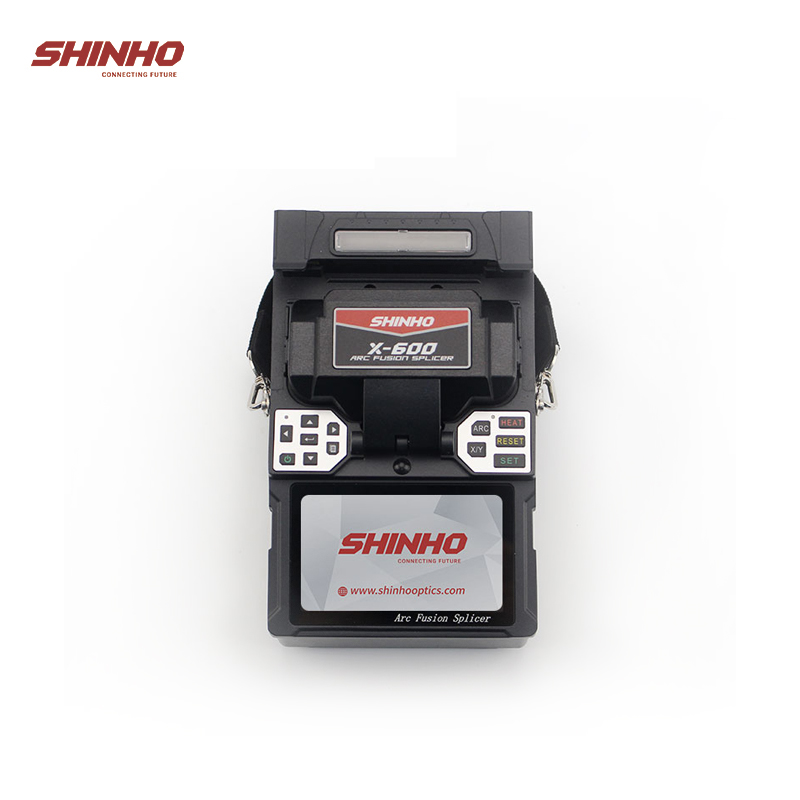

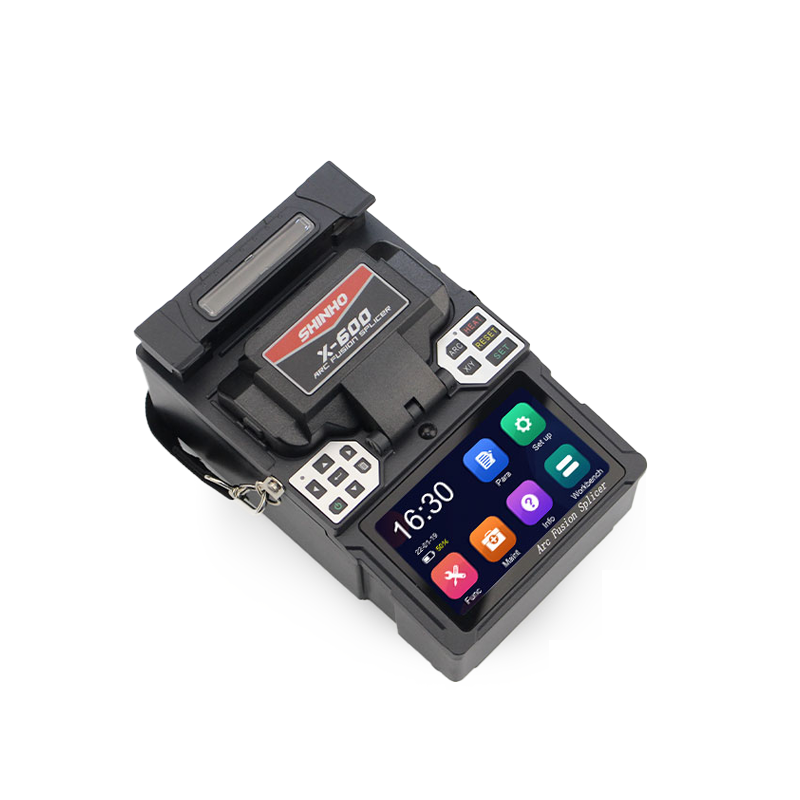

Handheld FTTH Fiber Fusion Splicer X-600

X-600 Fiber fusion splicer is a 4-motor fusion splicer with active V-groove design, it could adjust the fiber position more flexible and accurate, and it has very stable performance even in harsh environment. It is specially designed for FTTx/FTTH projects, it could also be used in heights conveniently.

Features

1s boot up, 7s splicing, 18s heating
Specially designed for FTTH projects
4 motors active V-groove design
Small size and light weight, easy to carry

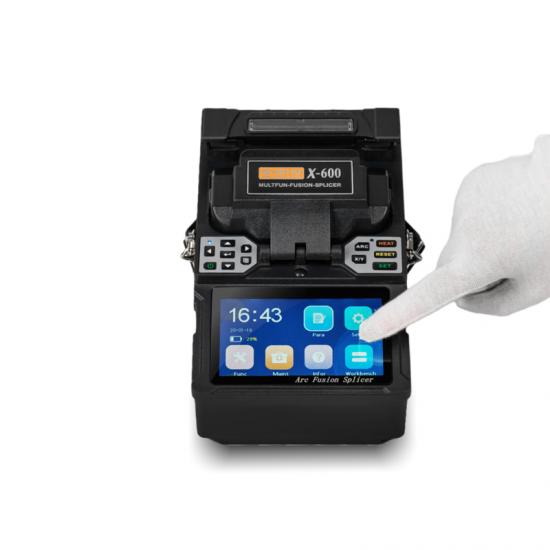

Touch screen display

Specifications

Applicable fiber	G651/G652/G653/G655/G657 etc.
Diameter of cladding	80 -150μm
Diameter of coating	160-3000μm
Typical splice loss	G651: 0.01dB; G652: 0.02dB; G653: 0.04dB; G655: 0.04dB; G657: 0.02dB
Return loss	＞ 60dB
Fibe cleaved length	10-16mm ( coating diameter ＜ 250um), 16mm (coating diameter:250-1000um)
Program	80 groups splicing ,25 groups heating
Operate mode	Automatic/Manual
Auto-heating	Available
Typical splicing time	7~12 seconds
Typical heating time	20~26 seconds for 40mm and 60mm shrinkable sleeves
Fiber magnification	320X (X or Y view), 160X (X and Y view)
Display screen	2 CMOS cameras, 4.3 inch color LCD monitor, Touch sreen display
Records storage	8000 groups data
Loss evaluation	Available
Tension test	＞2.2N
Interface	GUI menu interface, easy for operation
Battery	5200mAh Li-battery, typical 250 cycles splicing and heating
Power supply	Adapter, input: AC 220±30V(50/60HZ), output:DC 12±2V
Electrodes life	More than 5000 ARC discharges, can be replaced conveniently
Ternimal	USB2.0 port, for uploading splicer results and upgrading software
Operating conditions	Altitude: 0-5000m, Humidity: 0-95%, Operating Temperature: -25℃~+50℃, Storage Temperature: -40℃~+80℃,Wind speed: Max 15m/s
Dimension	200mm(L) * 123mm(W) * 95mm(H)
Weight	1.66kg (including battery)

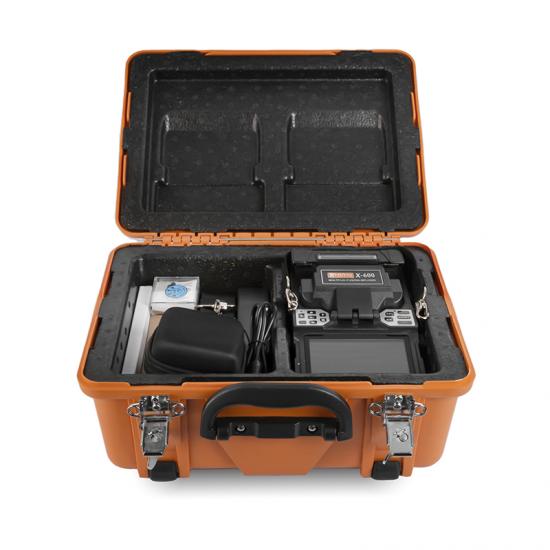

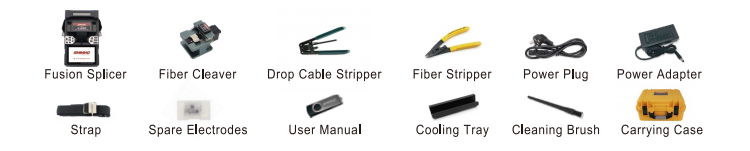

Standard Accessories

NO.	ITEM
1	Carrying box
2	Fiber cleaver
3	Fiber stripper
4	Drop cable stripper
5	Power cord
6	Adapter
7	Cooling tray
8	User manual (USB)
9	Spare electrodes
10	Cleaning brush
11	Strap

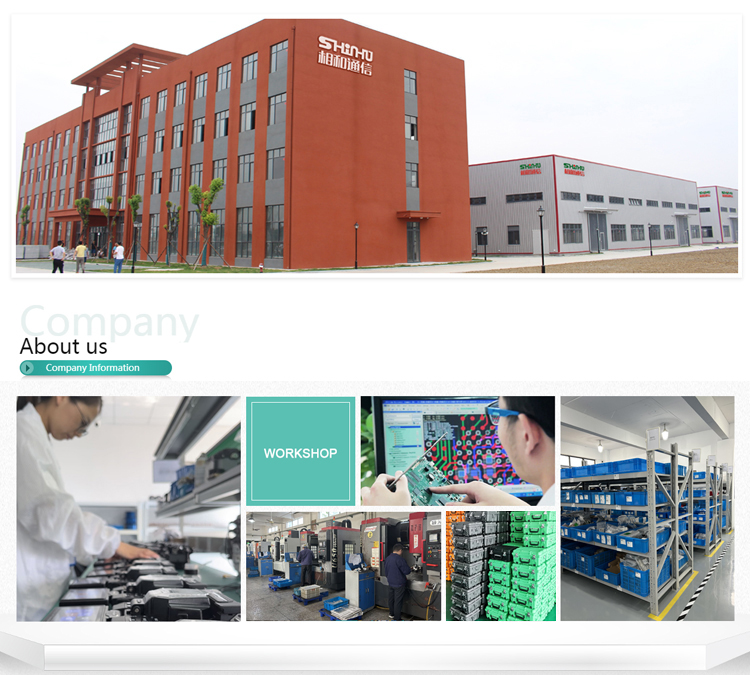

Company Information

Certifications

Exhibition

Shinho X-600 Fiber fusion splicer operation Video

Why Choose us

1. Reliable product quality

1) Factory with ISO9001:2015 quality management system.

2) Strict quality control process from materials to finished products and package.

3) Vibration testing for every fusion splicer (3 hours).

4) Splicing loss testing by OTDR for every fusion splicer (50 times).

5) Low/high temperature (-20~+50 C) testing for every fusion splicer (both 3 hours).

2. Satisfying after-sales service

1) Lifelong technical support. Any problem during using, we will offer guidance to solve the problem.

2) Quick feedback. Usually customers can get our reply within 1 hour, latest will be not over 10 hours.

3) 24 months warranty period. Within warranty period, all repair and replacement are for free.

4) Reasonable cost for repair & replacement. According to our experience, most problems could be solved by machine menu operation via our remote guidance, do not need repairing or replacement.

3. Industry technology leader

1) More than 20 years experience in the field. Keep developing & upgrading new technology.

2) The latest fiber core to core alignment technology, high level industrial standard design.

3) Different kinds fusion splicers cover all fiber splicing applications.

4. Strong production capacity

1) More than 10,000 units machines are produced every year.

2) Supply fusion splicers to more than 50 countries and zones in the world.

3) OEM/ODM is available.

Consult and place an order now, you can get a pair of Shinho original electrodes.We are sincerely looking forward to building a business relationship with you!
