Automatic splicing and heating, without mirror design.
Used for MAN/Telecommunication/FTTx projects.
Multi function holders for different types fiber cables.
Modern design, easy to operate
Touch screen display
Item NO.:
X-700Product Origin:
CHINAColor:
StandardShipping Port:
Shanghai/ShenzhenLead Time:
3 working days

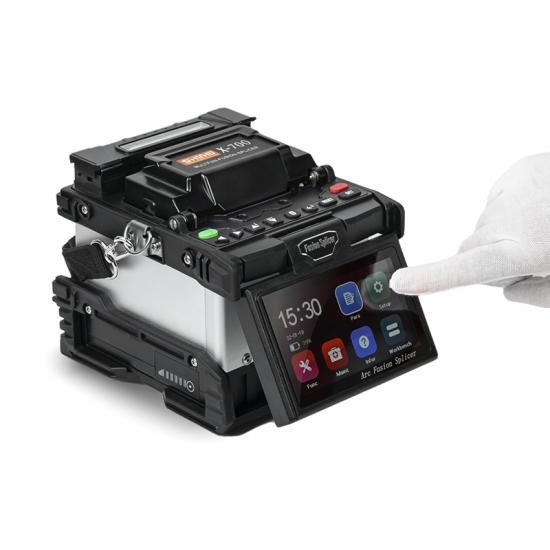

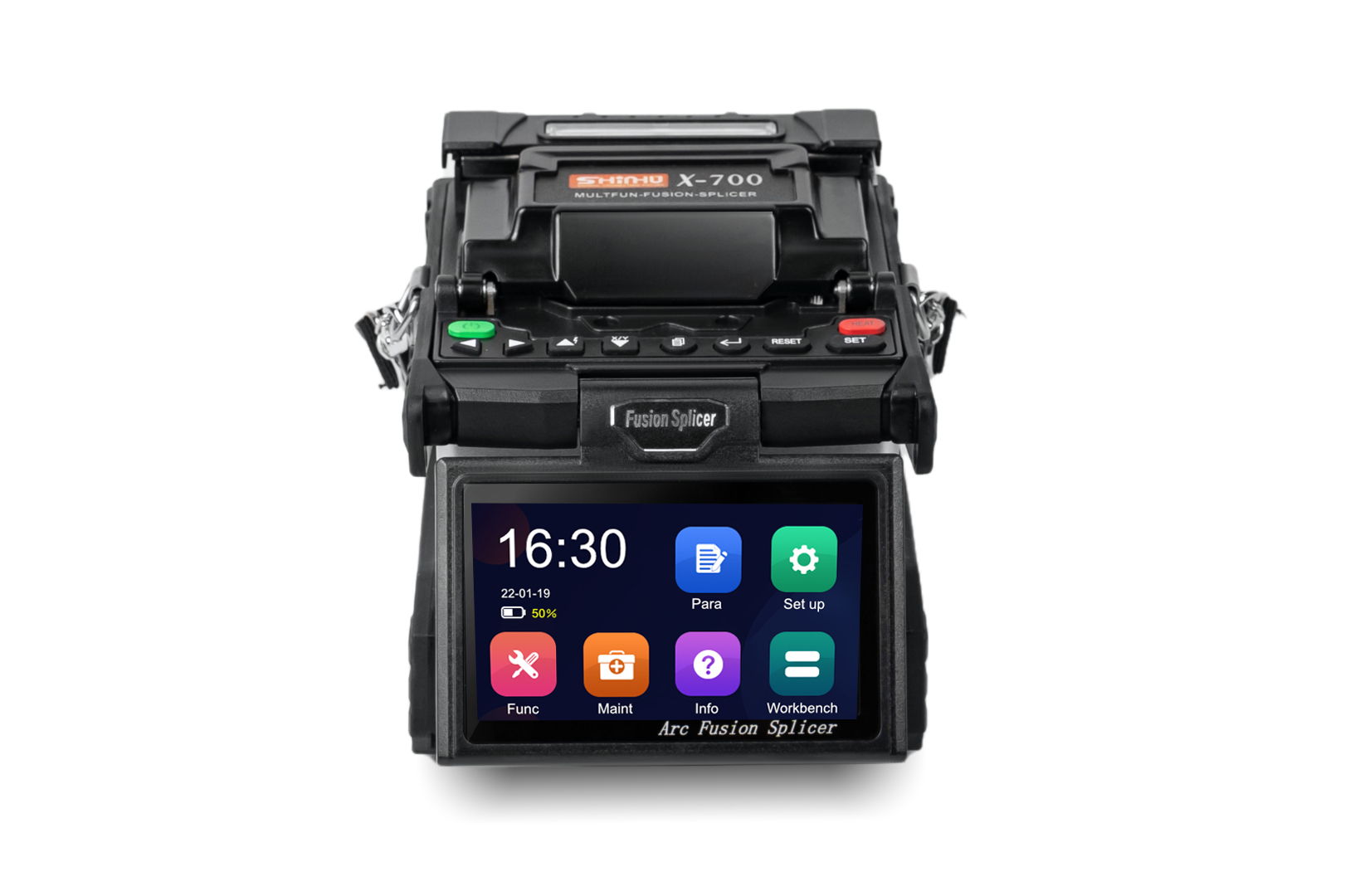

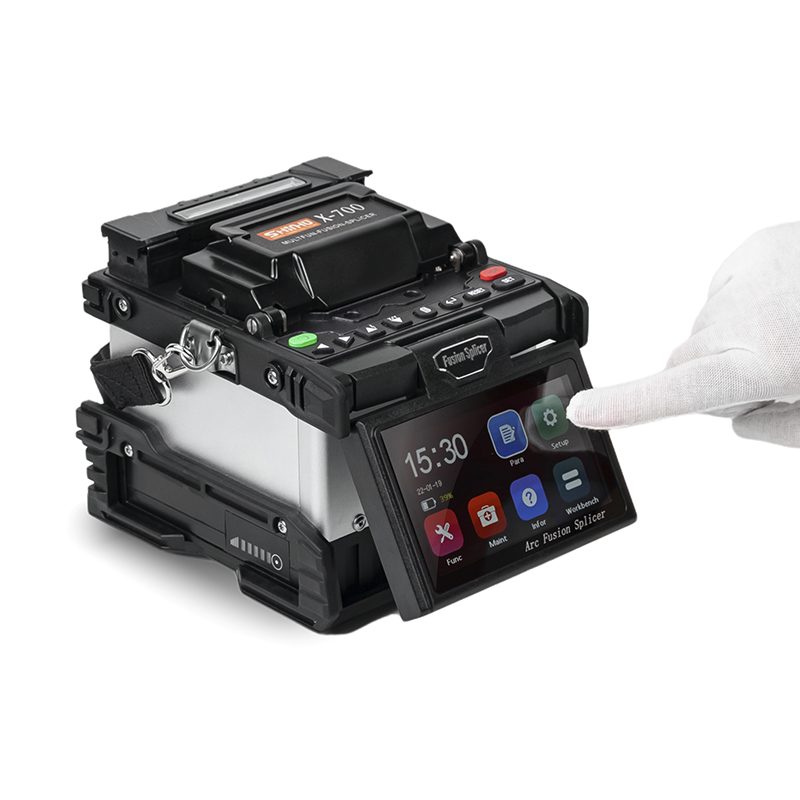

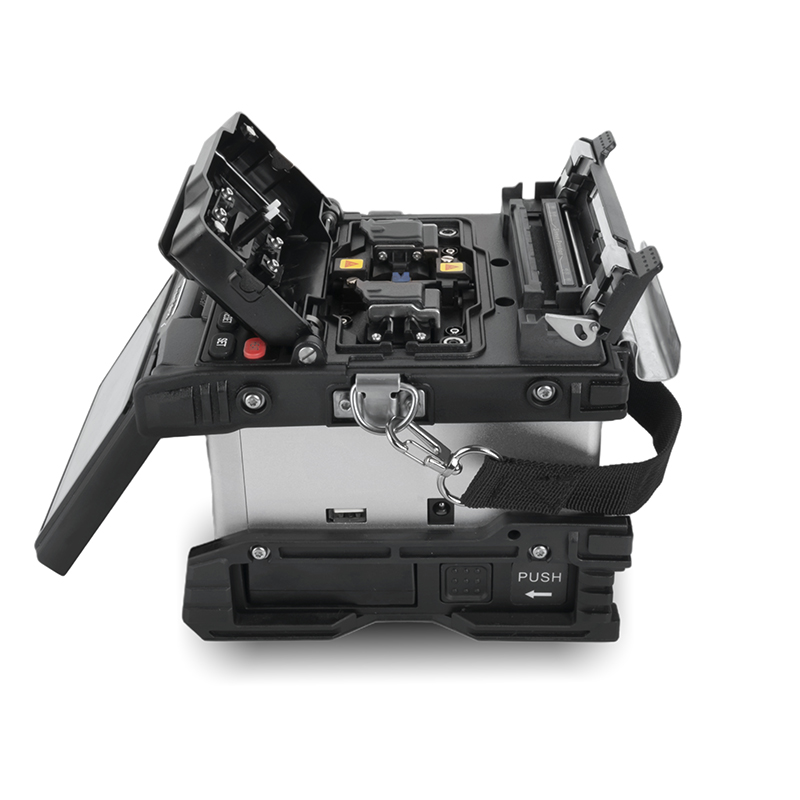

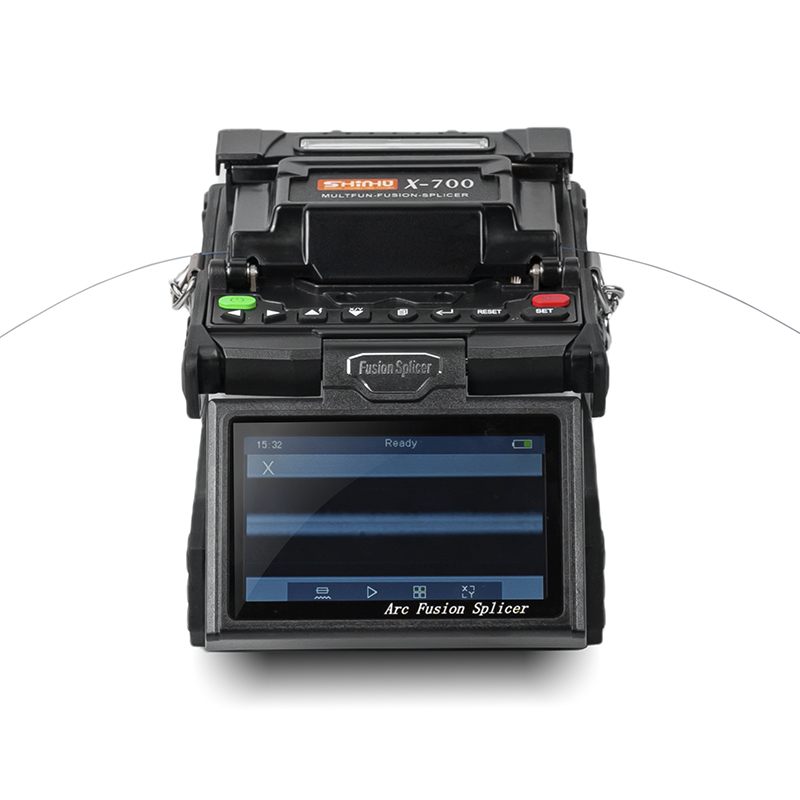

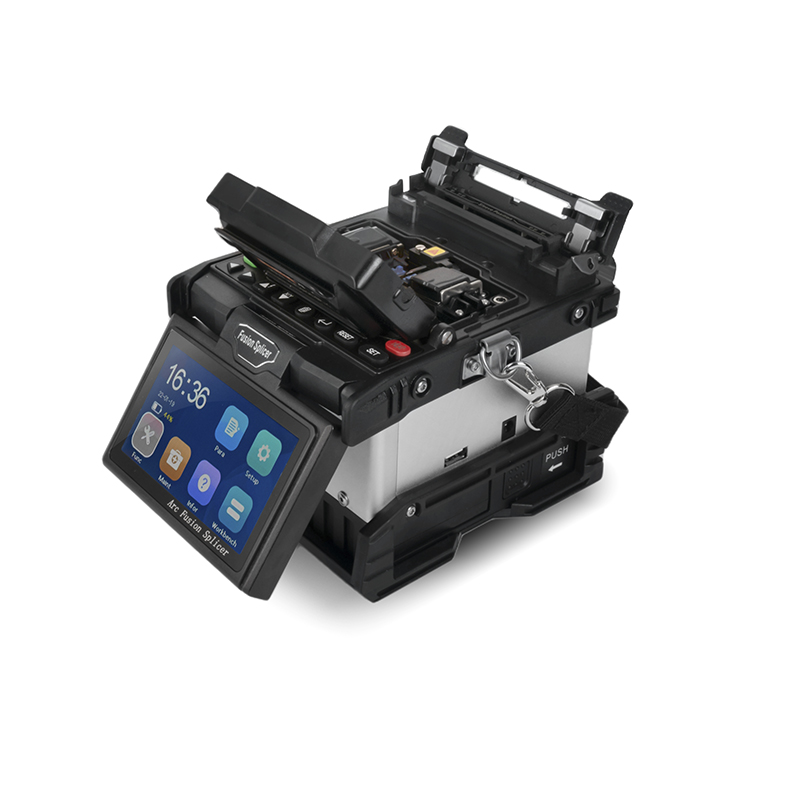

Multi Function Automatic Fiber Fusion Splicer X 700
X-700 Fiber fusion splicer is with active V-groove and no-mirror design, it has flexible and stable performance when aligning fibers. It is with classic industrial design, user-friendly size and weight, easy operating GUI menu, convenient ARC automatic calibration function and high quality components. It is suitable for both indoor and outdoor fiber splicing projects.
Features
Specifications
|
Applicable fiber |
G651/G652/G653/G655/G657 etc. |
|
Diameter of cladding |
80 -150μm |
|
Diameter of coating |
160-3000μm |
| Typical splice loss | G651: 0.01dB; G652: 0.02dB; G653: 0.04dB; G655: 0.04dB; G657: 0.02dB |
| Return loss | ＞ 60dB |
| Fibe cleaved length | 10-16mm ( coating diameter ＜ 250um), 16mm (coating diameter:250-1000um) |
| Splicing program | 40 groups |
| Operate mode | Automatic/Manual |
| Auto-heating | Available |
| Typical splicing time | 6~12 seconds |
| Typical heating time | 20~26 seconds for 40mm and 60mm shrinkable sleeves |
| Fiber magnification | 320X (X or Y view), 160X (X and Y view) |
| Display screen | 4.3 inch color LCD monitor, touch screen display |
| Records storage | 8000 results |
| Loss evaluation | Available |
| Tension test | 1.8-2.2N |
| Interface | GUI menu interface, easy for operation |
| Battery | 5200mAh Li-battery, typical 250 cycles splicing and heating, support separating charging |
| Power supply | Adapter, input: AC 100-240V(50/50HZ), output: 11-13.5V |
| Electrodes life | More than 4000 ARC discharges, can be replaced conveniently |
| Ternimal | USB2.0 port, for software upgrading and records exporting |
| Operating conditions | Altituede: 0-5000m, Humidity: 0-95%, Temperature: -10℃~+50℃, Wind speed: Max 15m/s |
| Dimension | 160mm(L) * 136mm(W) * 140mm(H) (including rubber armor) |
| Weight | 2.10kg (including battery) |

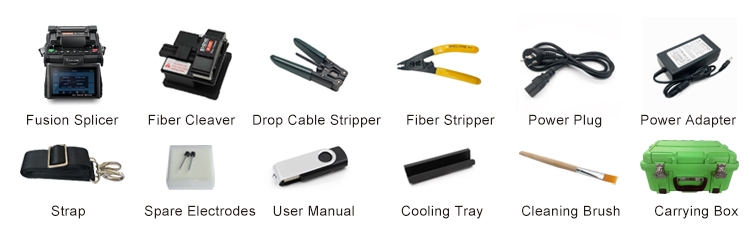

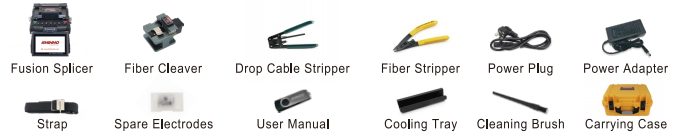

Standard Accessories
| NO. | ITEM |

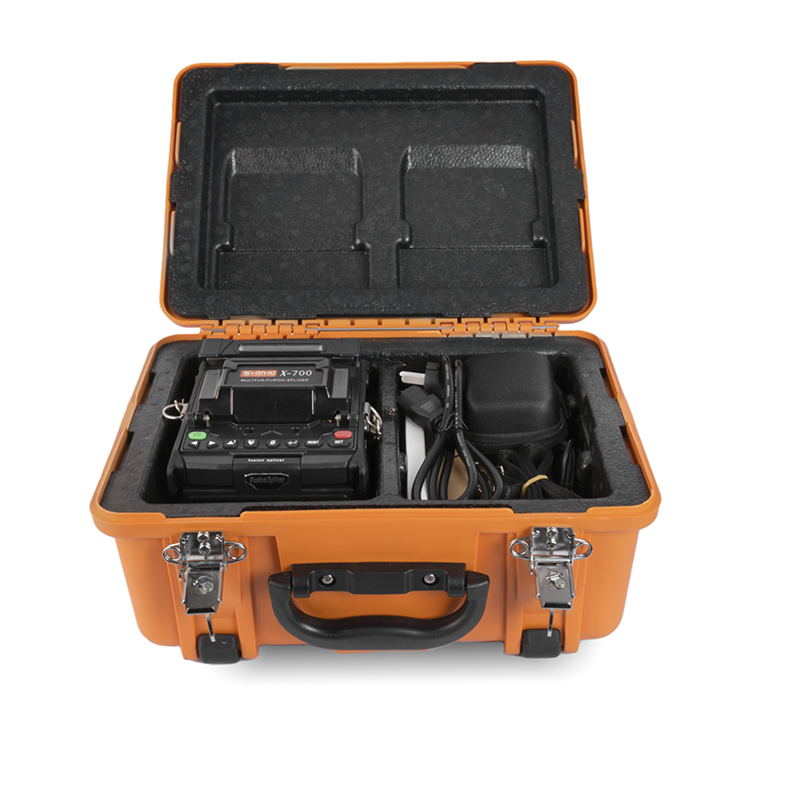

| 1 | Carrying box |
| 2 | Fiber cleaver |
| 3 | Fiber stripper |
| 4 | Drop cable stripper |
| 5 | Power cord |
| 6 | Adapter |
| 7 | Cooling tray |
| 8 | User manual (USB) |
| 9 | Spare electrodes |
| 10 | Cleaning tool kit |
| 11 |
Strap |

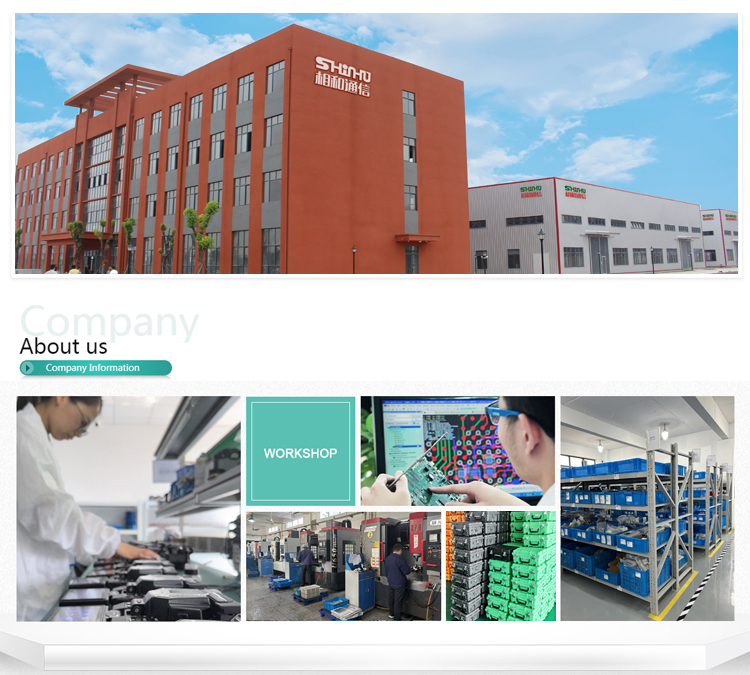

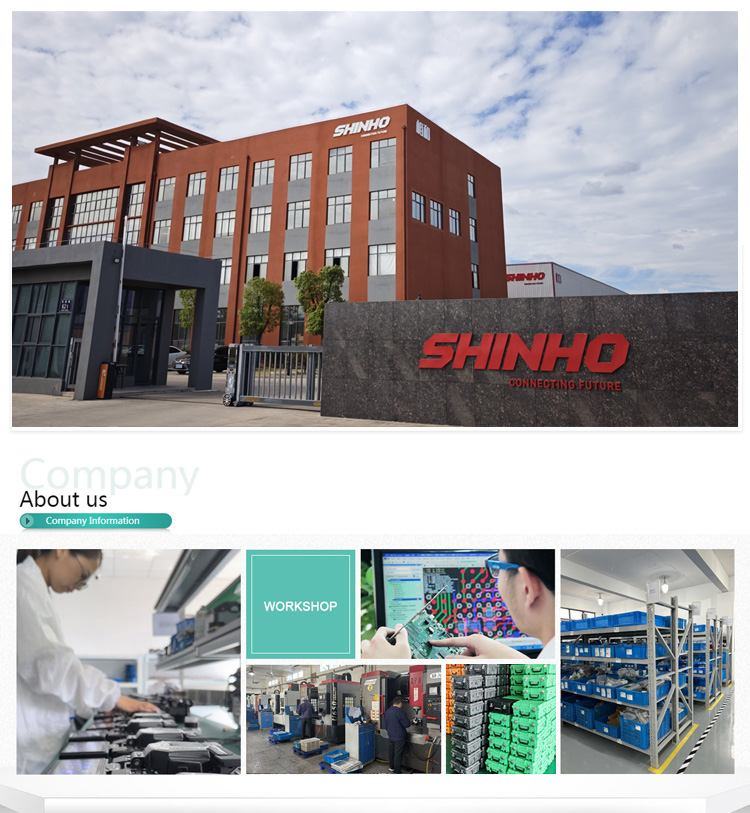

Company Information
Certifications
Exhibition
Why Choose us
1) Factory with ISO9001:2015 quality management system.
2) Strict quality control process from materials to finished products and package.
3) Vibration testing for every fusion splicer (3 hours).
4) Splicing loss testing by OTDR for every fusion splicer (50 times).
5) Low/high temperature (-20~+50 C) testing for every fusion splicer (both 3 hours).
2. Satisfying after-sales service
1) Lifelong technical support. Any problem during using, we will offer guidance to solve the problem.
2) Quick feedback. Usually customers can get our reply within 1 hour, latest will be not over 10 hours.
3) 24 months warranty period. Within warranty period, all repair and replacement are for free.
4) Reasonable cost for repair & replacement. According to our experience, most problems could be solved by machine menu operation via our remote guidance, do not need repairing or replacement.
3. Industry technology leader
1) More than 20 years experience in the field. Keep developing & upgrading new technology.
2) The latest fiber core to core alignment technology, high level industrial standard design.
3) Different kinds fusion splicers cover all fiber splicing applications.
4. Strong production capacity
1) More than 10,000 units machines are produced every year.
2) Supply fusion splicers to more than 50 countries and zones in the world.
3) OEM/ODM is available.
We are sincerely looking forward to building a business relationship with you!
