Classic model with stable performance
Small, light and handheld.
Stable performance and low fusion splicer.
Used for FTTx/FTTH/Security/ Monitoring projects.
Item NO.:
X-97Product Origin:
CHINAColor:
StandardShipping Port:
Shanghai/ShenzhenLead Time:
3 working days

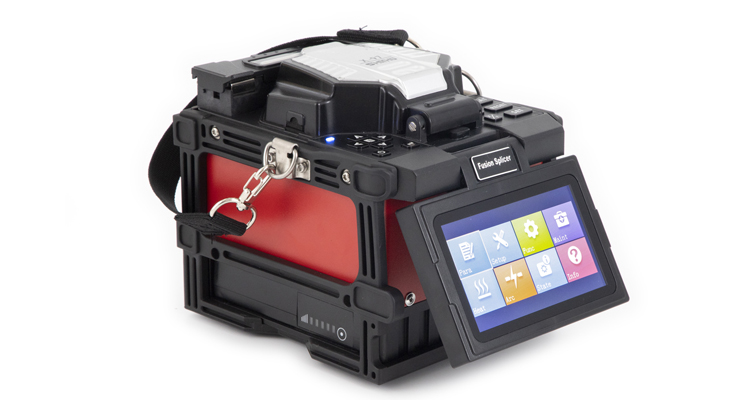

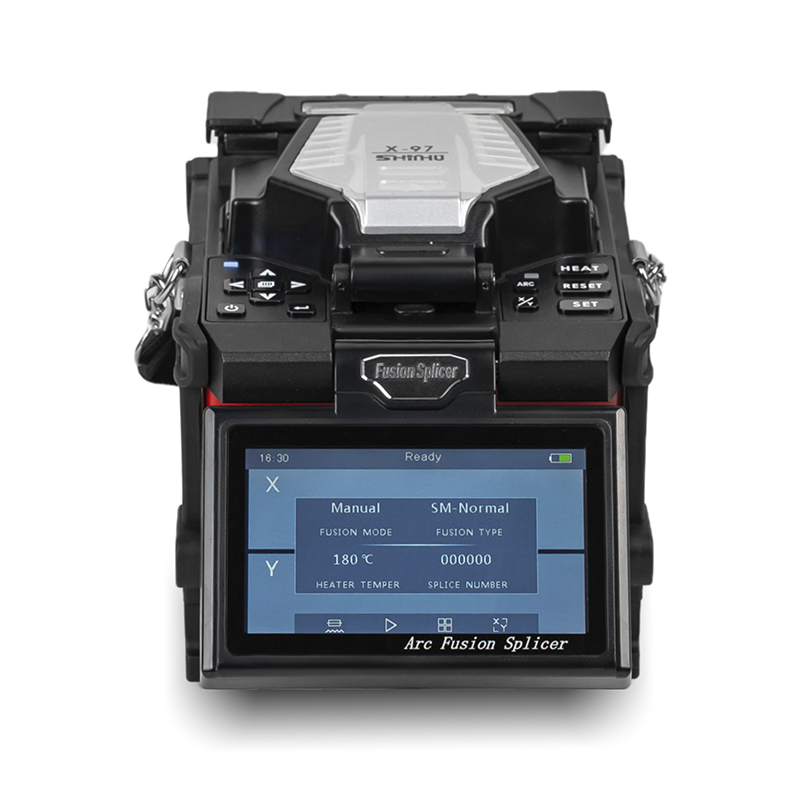

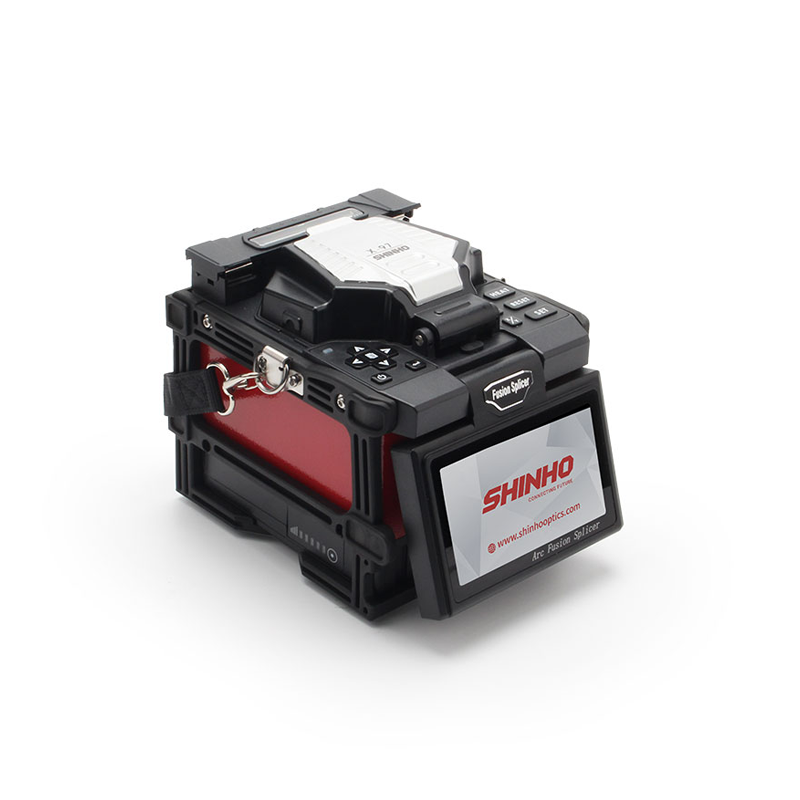

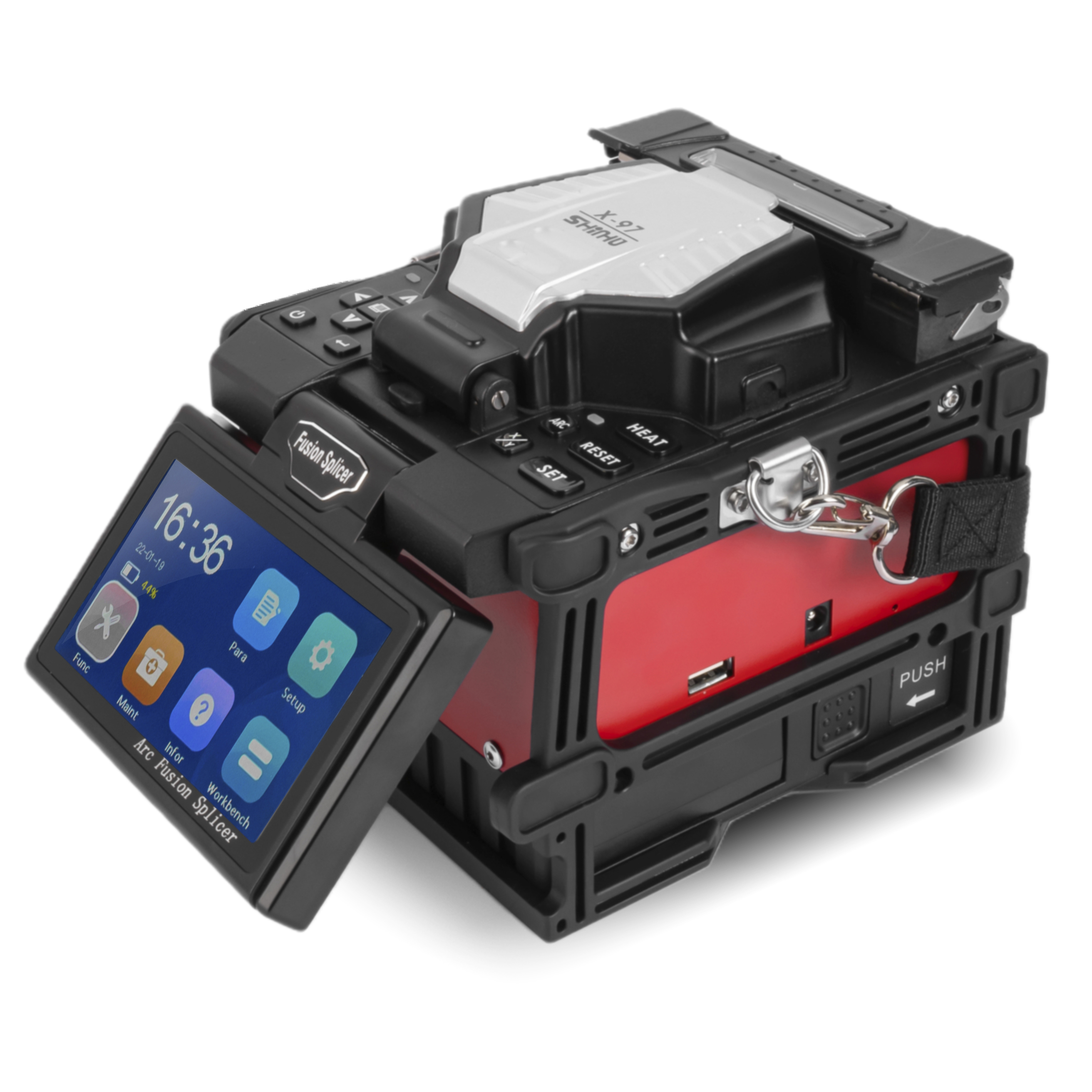

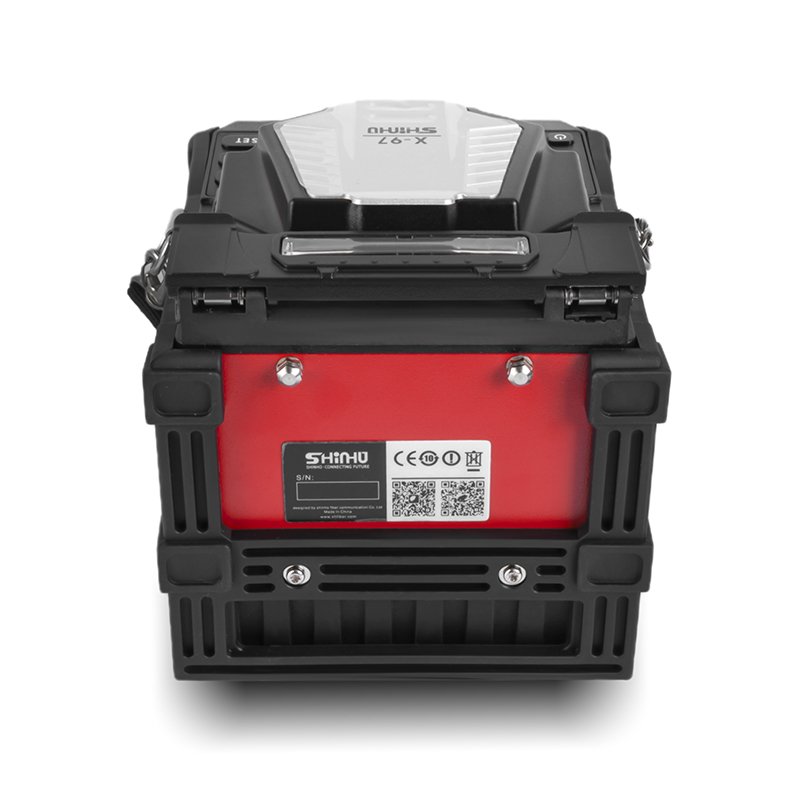

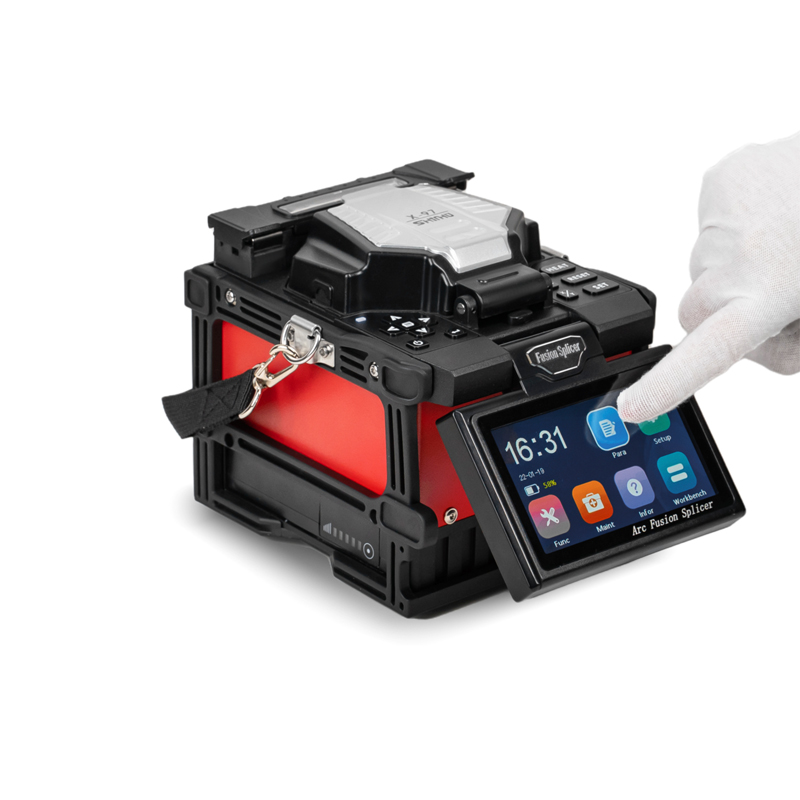

Handhled FTTx Fiber Fusion Splicer X-97
X-97 Fiber fusion splicer is a 4-motor fusion splicer with fiber core alignment technology, GUI menu design, upgraded CPU. It has very stable performance and low fusion loss (average loss lower than 0.03dB), it is a very economical fusion splicer and suitable for FTTx/ FTTH/ Security/ Monitoring etc. projects.
Features
Specifications
|
Applicable fiber |
G651/G652/G653/G655/G657 etc.
|
|
Diameter of cladding |
80 -150μm |
|
Diameter of coating |
160-3000μm |
| Typical splice loss | G651: 0.01dB; G652: 0.02dB; G653: 0.04dB; G655: 0.04dB; G657: 0.02dB |
| Return loss | ＞ 60dB |
| Fibe cleaved length | 10-16mm ( coating diameter ＜ 250um), 16mm (coating diameter:250-1000um) |
| Splicing program | 40 groups |
| Operate mode | Automatic/Manual |
| Auto-heating | Available |
| Typical splicing time | 6~12 seconds |
| Typical heating time | 20~26 seconds for 40mm and 60mm shrinkable sleeves |
| Fiber magnification | 320X (X or Y view), 160X (X and Y view) |
| Display screen | 4.3 inch color LCD monitor |
| Records storage | 8000 results |
| Loss evaluation | Available |
| Tension test | 1.8-2.2N |
| Interface | GUI menu interface, easy for operation |
| Battery | 5200mAh Li-battery, typical 250 cycles splicing and heating |
| Power supply | Adapter, input: AC 100-240V(50/50HZ), output: 11-13.5V |
| Electrodes life | More than 4000 ARC discharges, can be replaced vonveniently |
| Ternimal | USB2.0 port, for software upgrading and records exporting |
| Operating conditions | Altituede: 0-5000m, Humidity: 0-95%, Temperature: -10℃~+50℃, Wind speed: Max 15m/s |
| Dimension | 149mm(L) * 120mm(W) * 127mm(H) |
| Weight | 1.90kg (including battery) |

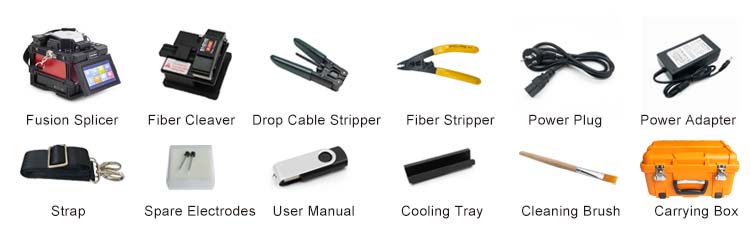

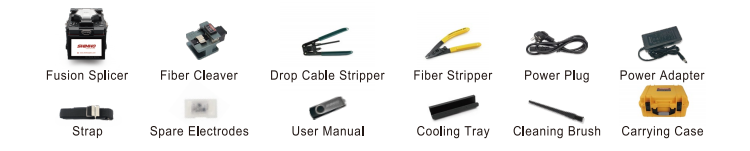

Standard Accessories
| NO. | ITEM |

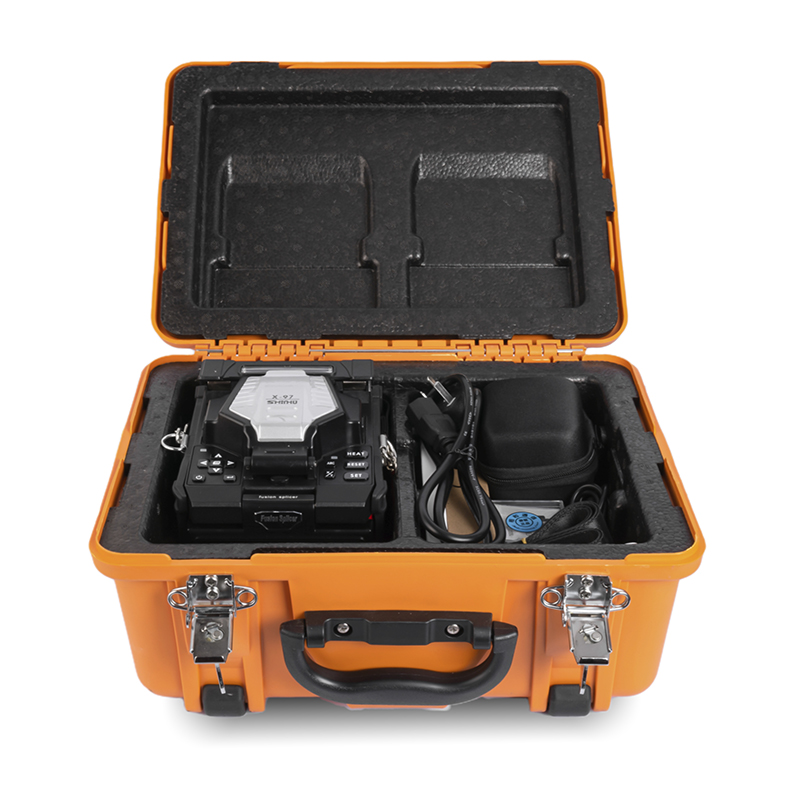

| 1 | Carrying box |
| 2 | Fiber cleaver |
| 3 | Fiber stripper |
| 4 | Drop cable stripper |
| 5 | Power cord |
| 6 | Adapter |
| 7 | Cooling tray |
| 8 | User manual (USB) |
| 9 | Spare electrodes |
| 10 | Cleaning tool kit |
| 11 |
Strap |

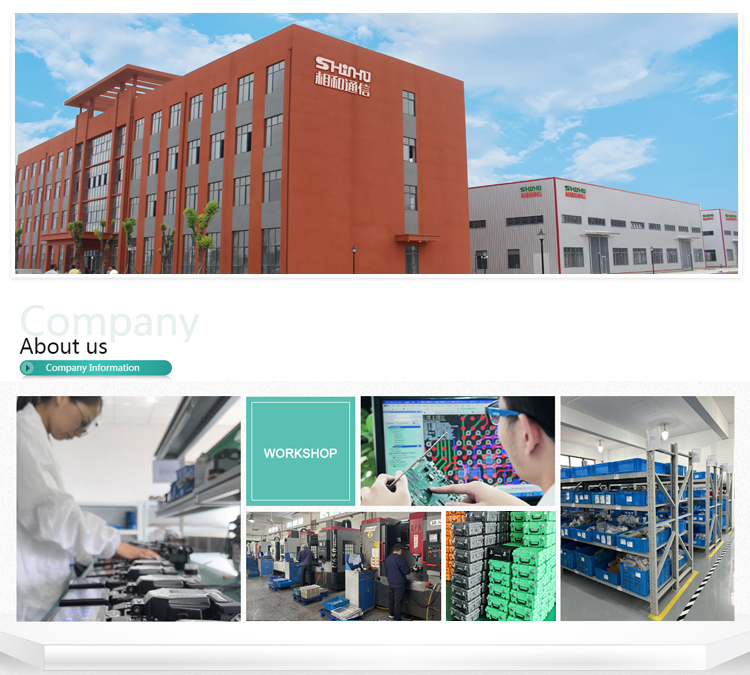

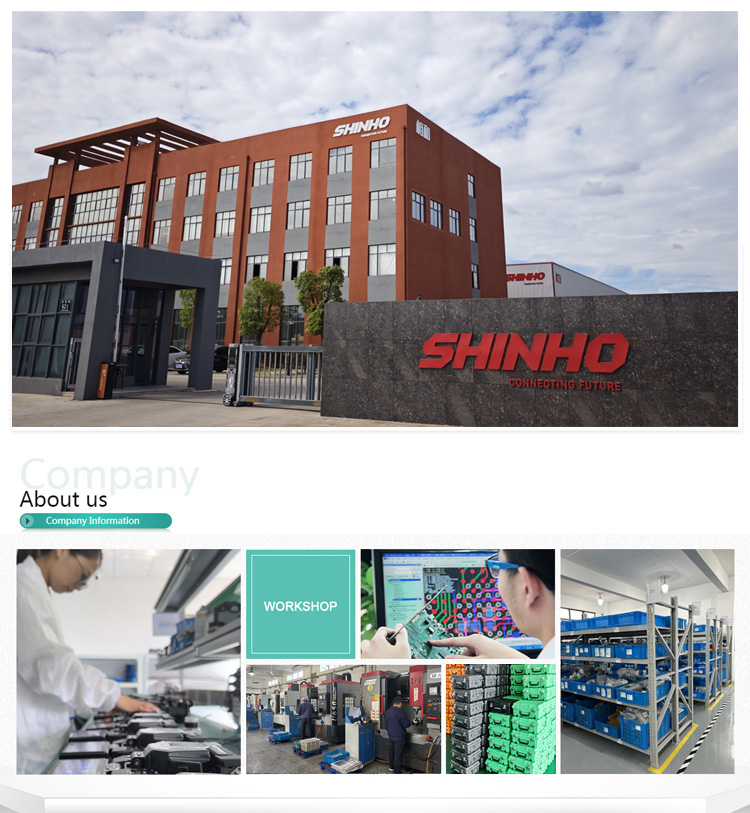

Company Information
Shanghai Xianghe Fiber Communication Co., Ltd. was founded in 2012, it has dozens of national patents. The core technical team has more than 20 years experience in the field . Now Shanghai is our operation headquarter, and we built a modern factory of 20,000 square meters in Bengbu High-tech Zone, Anhui Province. The factory has passed ISO9001, Our products are certified with CE and ROHS. We supply FTTx fiber fusion splicer, trunk line fiber fusion splicer, ribbon fiber fusion splicer, PM fiber fusion splicer, multicore fiber fusion splicer, LDF fusion splicer, LDF cleaver, OTDR, optical power meter, light source etc., the performance has reached international level.
Certifications
Exhibition
Why Choose us
1) Factory with ISO9001:2015 quality management system.
2) Strict quality control process from materials to finished products and package.
3) Vibration testing for every fusion splicer (3 hours).
4) Splicing loss testing by OTDR for every fusion splicer (50 times).
5) Low/high temperature (-20~+50 C) testing for every fusion splicer (both 3 hours).
2. Satisfying after-sales service
1) Lifelong technical support. Any problem during using, we will offer guidance to solve the problem.
2) Quick feedback. Usually customers can get our reply within 1 hour, latest will be not over 10 hours.
3) 24 months warranty period. Within warranty period, all repair and replacement are for free.
4) Reasonable cost for repair & replacement. According to our experience, most problems could be solved by machine menu operation via our remote guidance, do not need repairing or replacement.
3. Industry technology leader
1) More than 20 years experience in the field. Keep developing & upgrading new technology.
2) The latest fiber core to core alignment technology, high level industrial standard design.
3) Different kinds fusion splicers cover all fiber splicing applications.
4. Strong production capacity
1) More than 10,000 units machines are produced every year.
2) Supply fusion splicers to more than 50 countries and zones in the world.
3) OEM/ODM is available.
Consult and place an order now, you can get a pair of Shinho original electrodes.We are sincerely looking forward to building a business relationship with you!
Shinho X-97 Fiber Fusion Splicer Operation Video
