S-22 Multi-Core Fiber Fusion Splicer


The 1st Fully Automatic Multi-core Fiber Fusion Splicer in China


  • Item NO.:

    S-22
  • Product Origin:

    CHINA
  • Color:

    Standard
  • Shipping Port:

    Shanghai/Shenzhen
  • Lead Time:

    upon request
Product Details

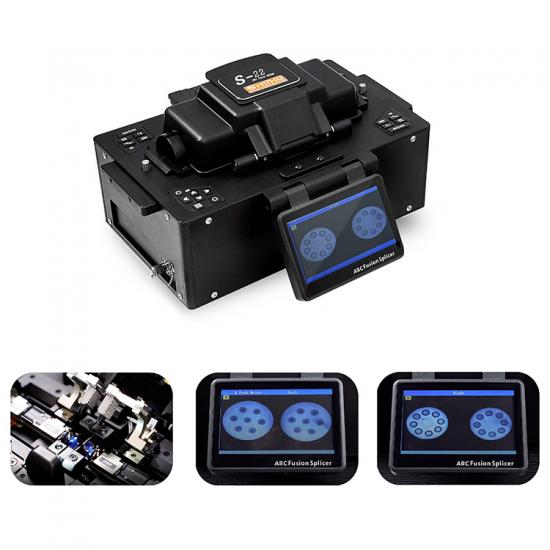

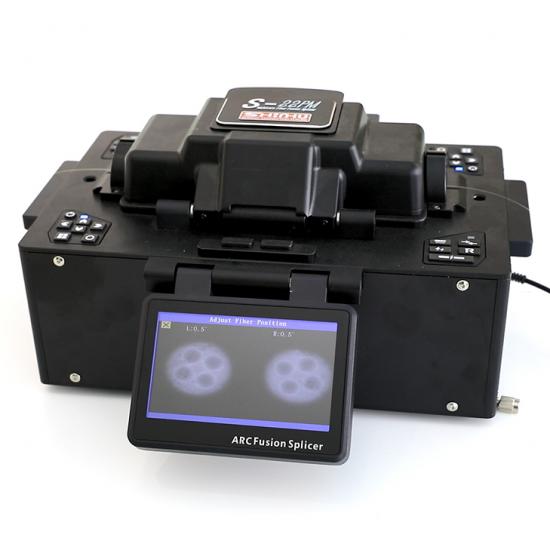

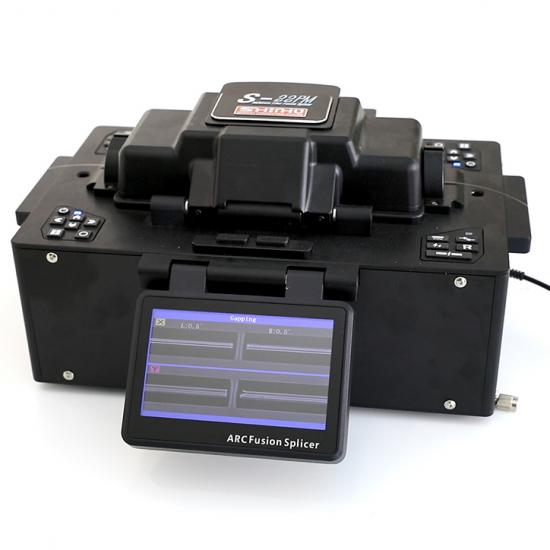

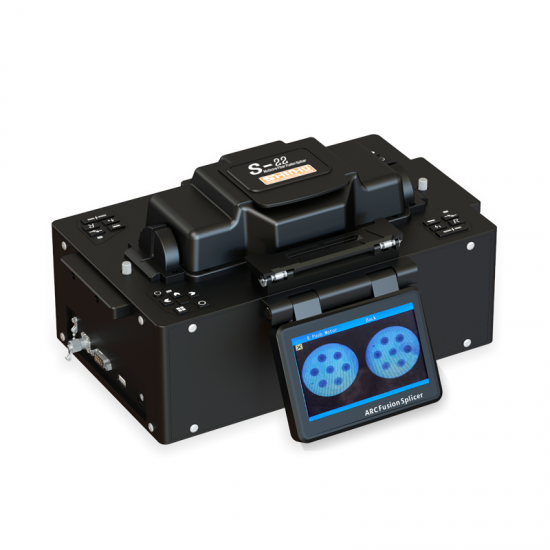

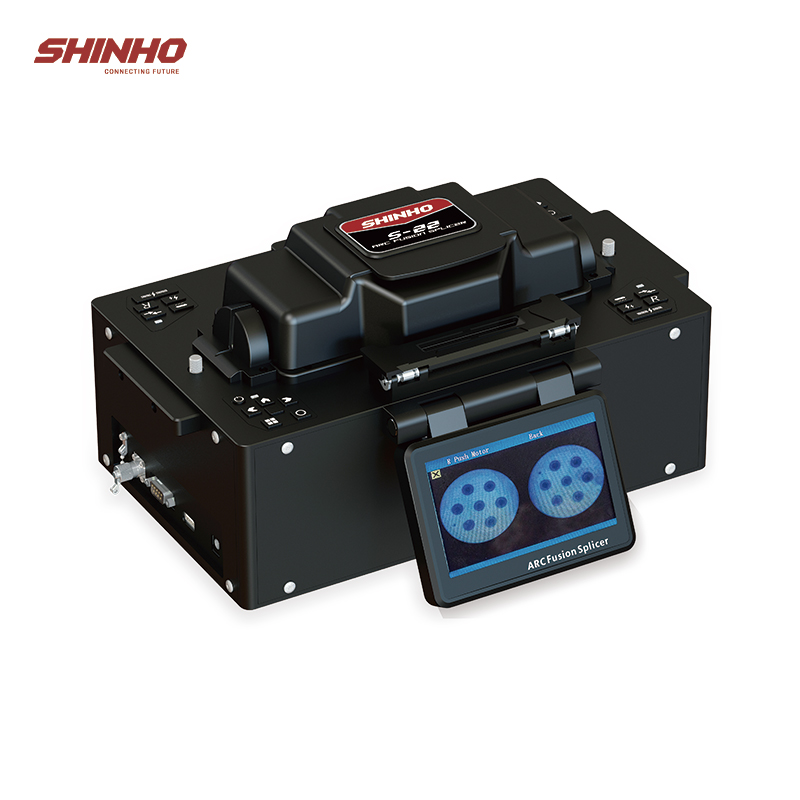

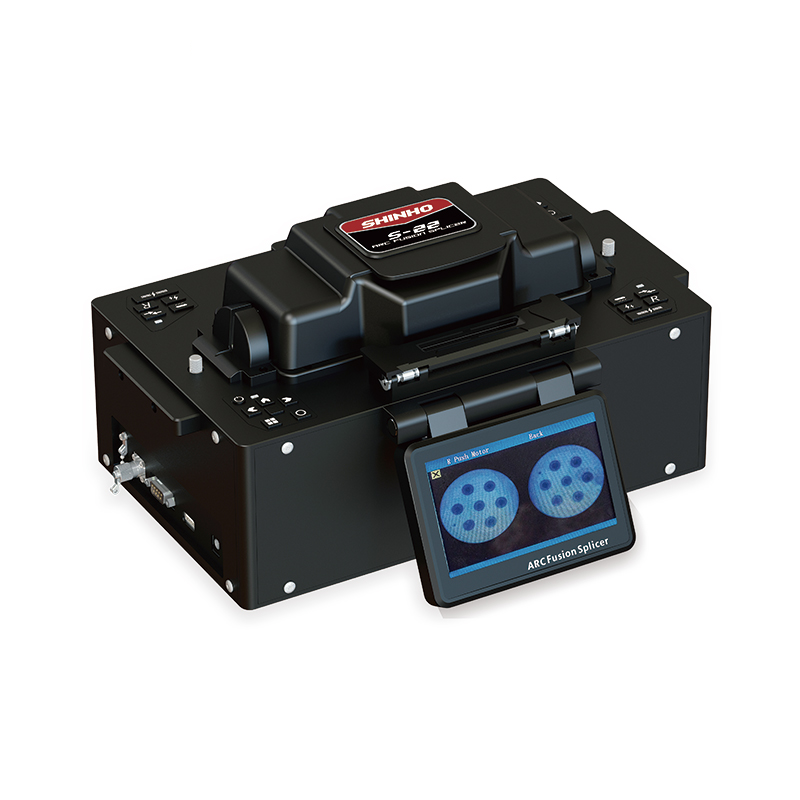

SHINHO S-22 Multi-Core Fiber Fusion Splicer

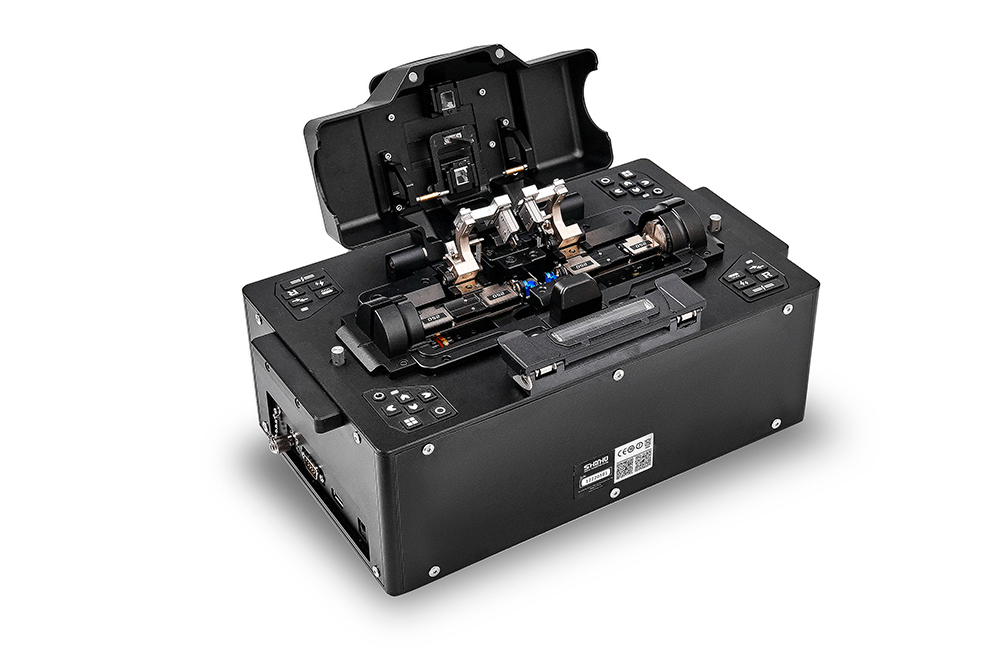

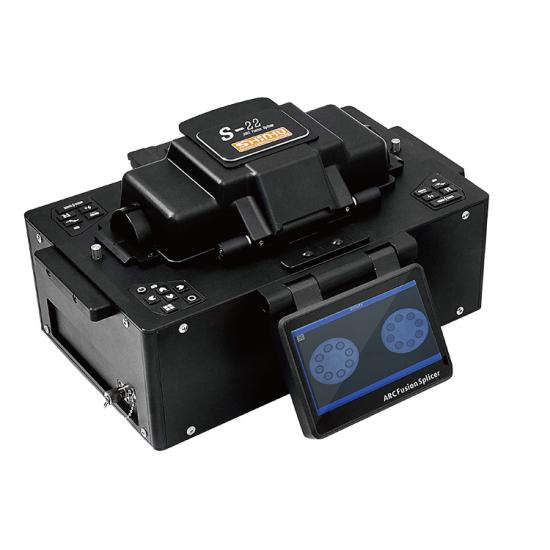

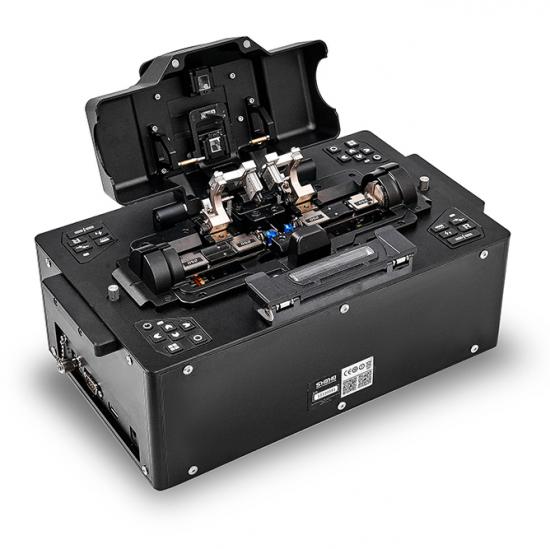

SHINHO S-22 Multi-Core Fiber Fusion Splicer is designed to splice the multi-core fibers, it is the first fully automatic multi-core fiber fusion splicer made in China.

multi-core splicer


Features

※ Suitable for 125~250μm multi-core fiber fusion splicing

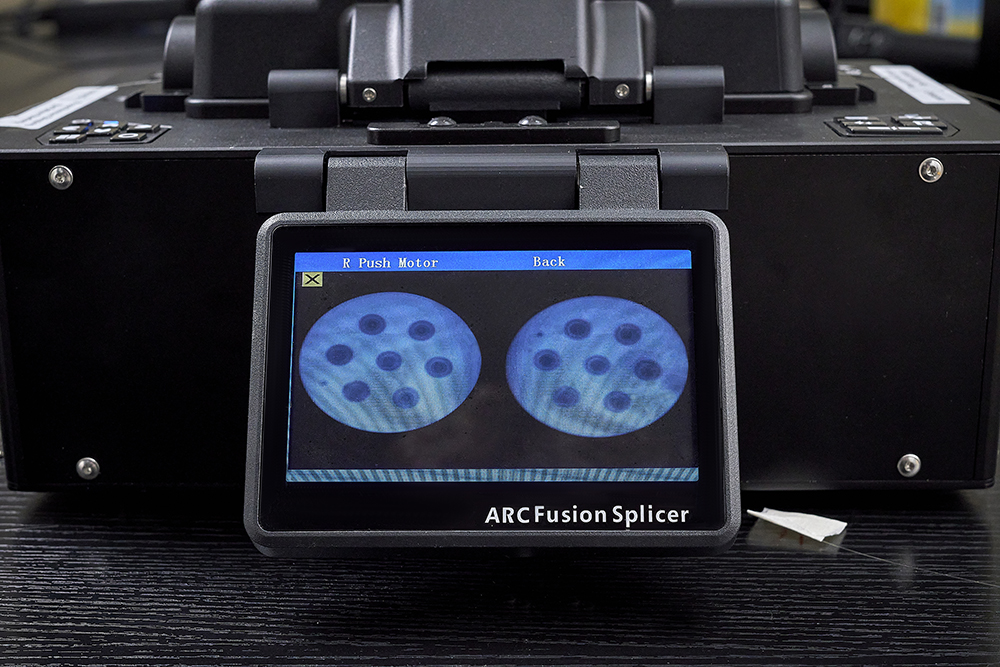

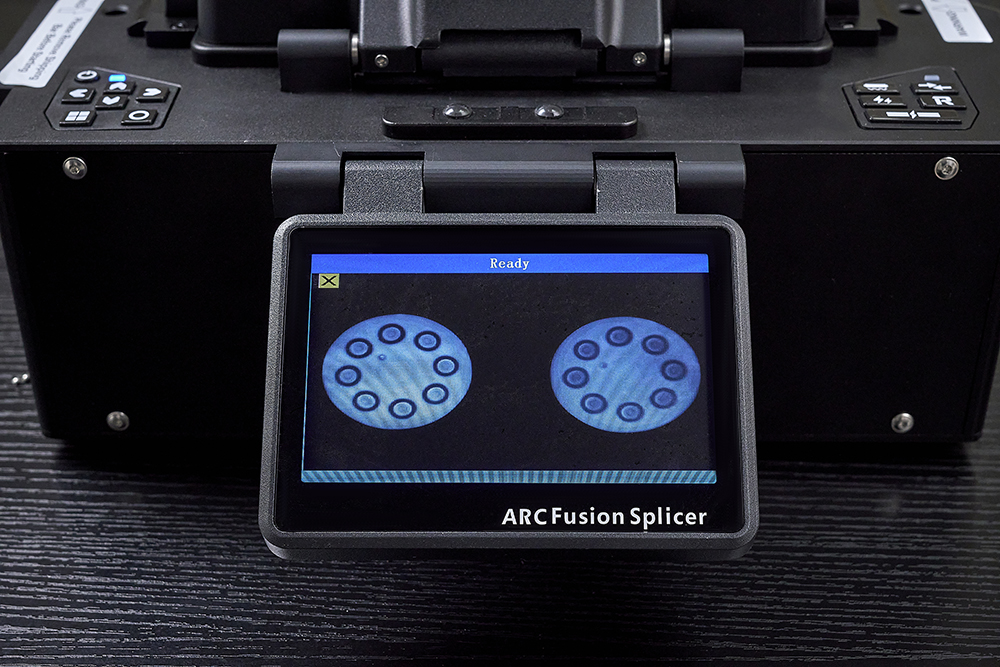

※ Dual fiber end imaging patent, direct fiber end face view, more accurate alignment

※ Fiber outline/end face dual mode aligning technology. Different types of fibers can be spliced each other

※ Precision integrated propulsion and new focusing design ensure accurate core alignment

※ Real-time ARC calibration,  arc position adjustable

※ Support different angle fiber alignment

※ Support wind-proof cover open and close to work automatically

※ Support software upgrade, splice data and image export

※ Humanized engineering design, simple operation and easy maintenance





Specifications



Communication Fiber

SMF(ITU-G652)、MMF( ITU-G651)、DS( ITU-G653) NZ-DS ( ITU-G655)、EDF



Multi-core Fiber

2,4,6,7, 8 Cores Fiber

Cladding Diameter

125-250um

Coating  Diameter

<900um

Cleave Length

8~10mm(standard)

End Face Direct View

PAS and Fiber End Face Direct View Available

Typical Splicing Loss

SMF:0.02dB , Multi-core Fiber0.15dB

Typical Splicing Time

45 Seconds

Operation Mode

Manual/Auto

Heating Mode

Manual/Auto

Heating Time

Typical 30 seconds,  Customizable

Tension Test

1.96(+0%-+20%)

Splicing Program

40 Groups

Data Storage

4000 Splicing Records

Display

5.0 inch Colorful LCD Display

Terminals

USB2.0 Interface for Data Export, Software Upgrade, Customizable Output Signal

Dimension

260mm*201mm*172mm(L*W*H)

Weight

4.5kg

Working Temperature

-10~50℃

Storage  Temperature

-20~60℃

Power Supply

External Adapter, Input: AC100-240V (50/60HZ), Output: DC 11-13.5V 5A

Why Choose us

1. Reliable product quality

1) Factory with ISO9001:2015 quality management system.

2) Strict quality control process from materials to finished products and package.

3) Vibration testing for every fusion splicer (3 hours).

4) Splicing loss testing by OTDR for every fusion splicer (50 times).

5) Low/high temperature (-20~+50 C) testing for every fusion splicer (both 3 hours).


2. Satisfying after-sales service

1) Lifelong technical support. Any problem during using, we will offer guidance to solve the problem.

2) Quick feedback. Usually customers can get our reply within 1 hour, latest will be not over 10 hours.

3) 24 months warranty period. Within warranty period, all repair and replacement are for free.

4) Reasonable cost for repair & replacement. According to our experience, most problems could be solved by machine menu operation via our remote guidance, do not need repairing or replacement.


3. Industry technology leader

1) More than 20 years experience in the field. Keep developing & upgrading new technology.

2) The latest fiber core to core alignment technology, high level industrial standard design.

3) Different kinds fusion splicers cover all fiber splicing applications.


4. Strong production capacity

1) More than 10,000 units machines are produced every year.

2) Supply fusion splicers to more than 50 countries and zones in the world.

3) OEM/ODM is available.


We are sincerely looking forward to building a business relationship with you!
