Large Diameter Fiber Specialty Fiber Fusion Splicer S27

LDF (Large Diameter Fiber) splicing capability

Accurate alignment, world standard fusion loss

Ruggedized body, water resistant, anti-dust, anti-shock

  • Item NO.:

    S-27
  • Product Origin:

    CHINA
  • Color:

    Standard
  • Shipping Port:

    Shanghai/Shenzhen
  • Lead Time:

    3 working days
Product Details

Consult and place an order now, you can get a pair of Shinho original electrodes.We are sincerely looking forward to building a business relationship with you!

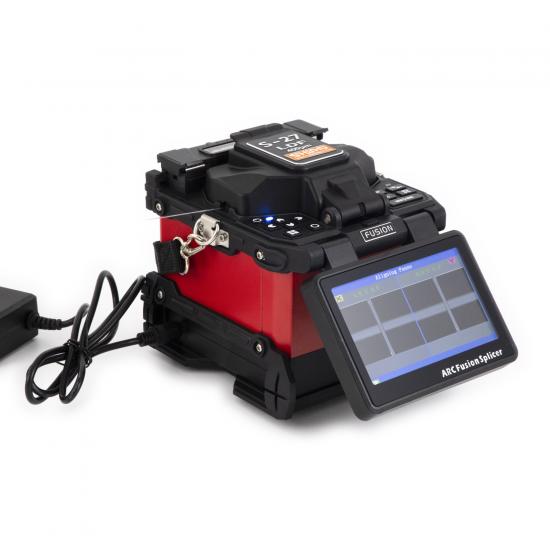

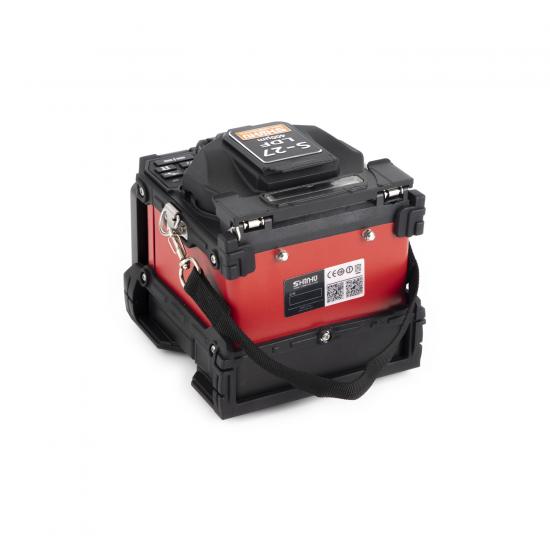

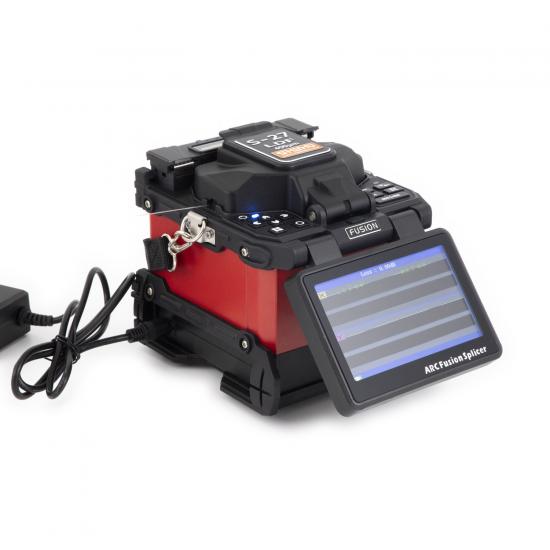

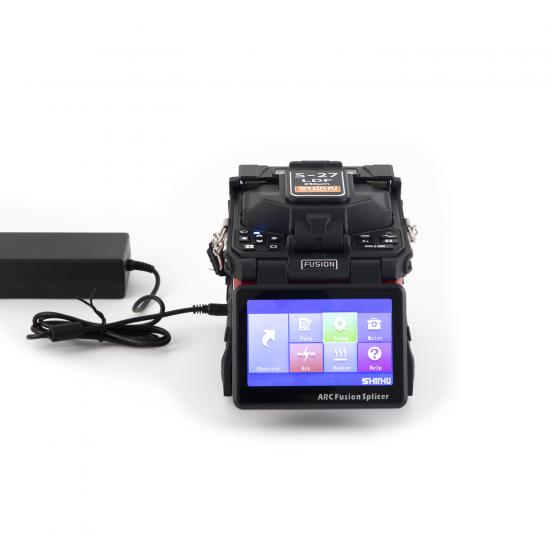

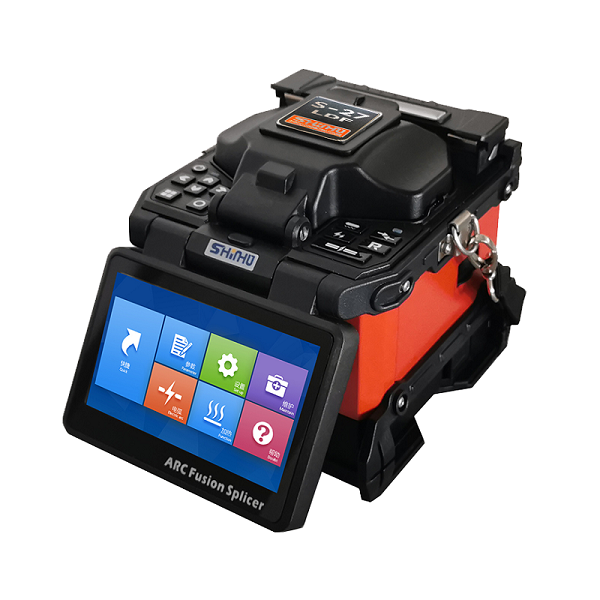

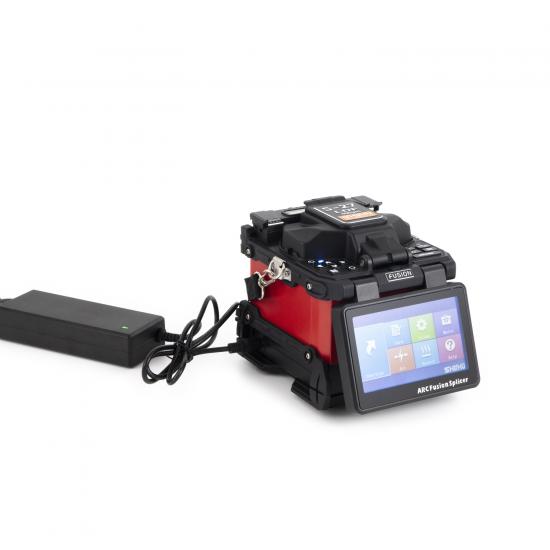

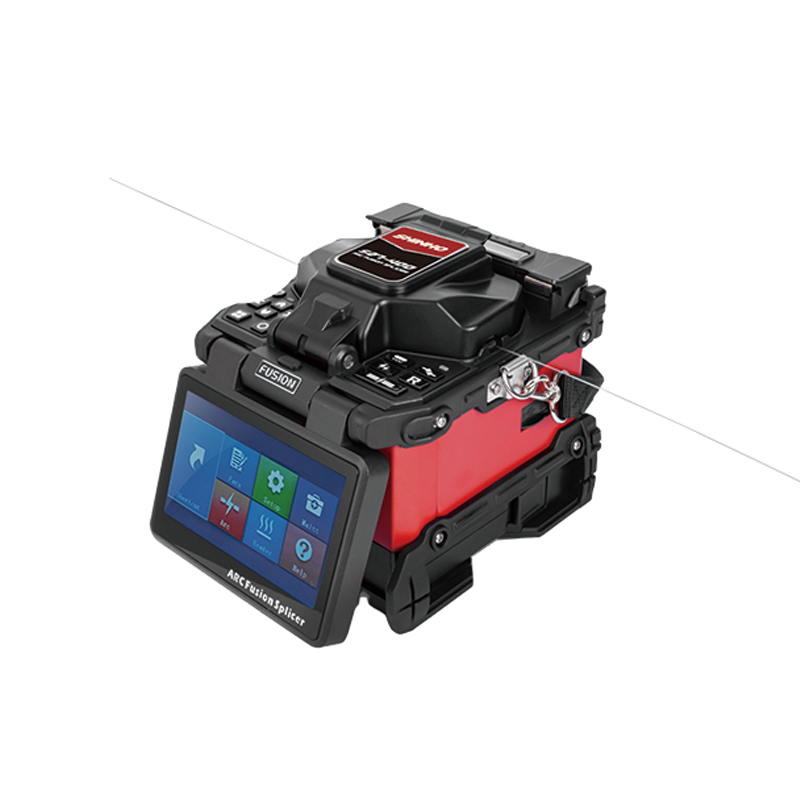

Large Diameter Fiber (LDF) Specialty Fiber Fusion Splicer S 27


S-27 LDF specialty fusion splicer is a new model with innovative technologies to reach the special splicing needs of factory, manufacturing, laboratory and R&D applications. Users can splice the large diameter fibers (125~400um) with S-27 Specialty Fiber Fusion Splicer.

specialty fiber fusion splicer

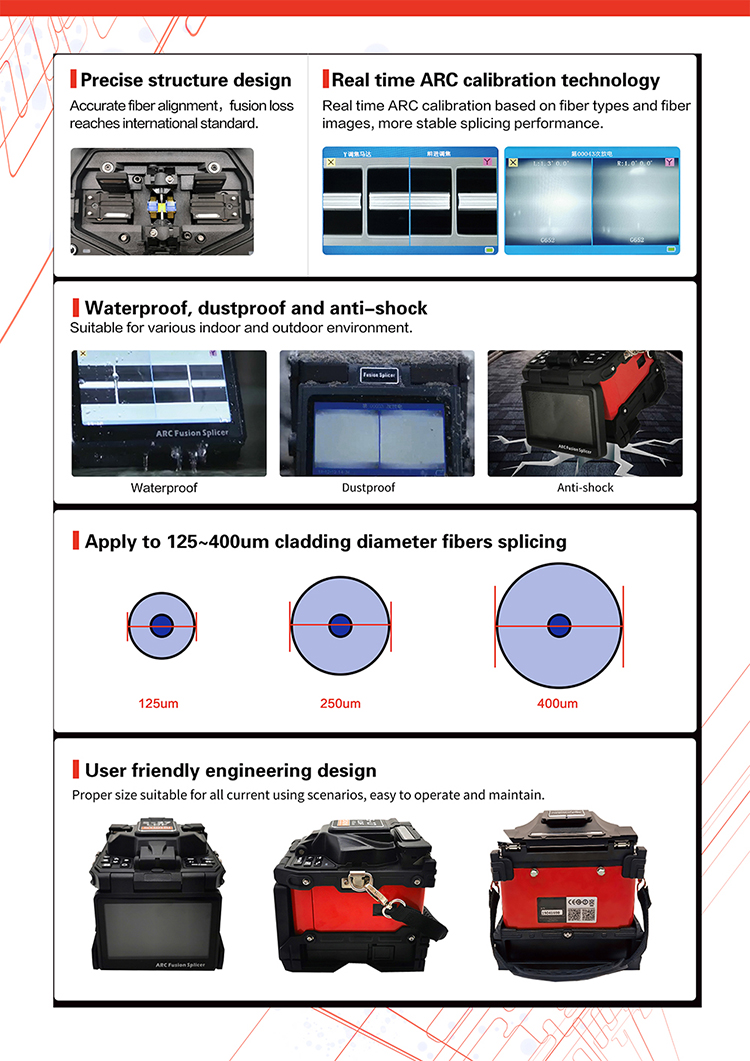

Features


※ Applicable to cladding diameter 125~400μm fiber

※ Accurate alignment, world standard fusion loss

※ 14s splicing time, 24s heating time for 40/60mm tube

※ Applicable to different types fibers (SM/MM/DS/NZDS)

※  Ruggedized body, water resistant, anti-dust, anti-shock

※ Easy to maintenance, easy to replace the electrodes

※ USB port for software upgrading, records exporting

※ Support 4000/100 groups fusion records/fusion images

※ Comply with CE/Rohs international standard


Specifications



Alignment method

Clad to clad

Applicable fiber

SM(G.652),MM(G.651),DS(G.653),NZDS(G.655)

Cladding diameter

S-27-250: 125~250µm; S-27-400: 250~400µm

Coating diameter

250~1000µm

Typical splice loss

SM: 0.02dB; MM: 0.01dB; DS: 0.04dB; NZDS: 0.04dB

Return loss

>60dB

Splicing program

40 groups

Operation mode

Manual/ Automatic

Auto- heating

Available

Typical splice time

14seconds

Typical heating time

24 seconds for60mm/40mm heating tube

Fiber magnification

X orY single fiber image120X,X andY double image 60X

Viewing display

Dualhighsensitivitycamera,5 inch 800*480 LCD Monitor

Data storage

4000 groups data records and 100 group images

Loss evaluation

Available

Tension test

1.8~2.2N

Interface

GUI menu interface, easy for operation

Power supply

Adaptor, input: AC100-240V(50/60HZ),output: DC11-13.5V

Electrode life

>3000 times discharge (125um),>1000 times discharge (>125um)

Terminals

Micro-USB 2.0 port, forsoftwareupgrading, records exporting

Operating condition

Altitude:0-5000m,Humidity:0-95%,Temperature:-10℃~+50℃;Wind:max 15m/s

Dimension

155mm (L)×144mm (W)×155mm (H)

Weight

 2.3kg (incuding battery)

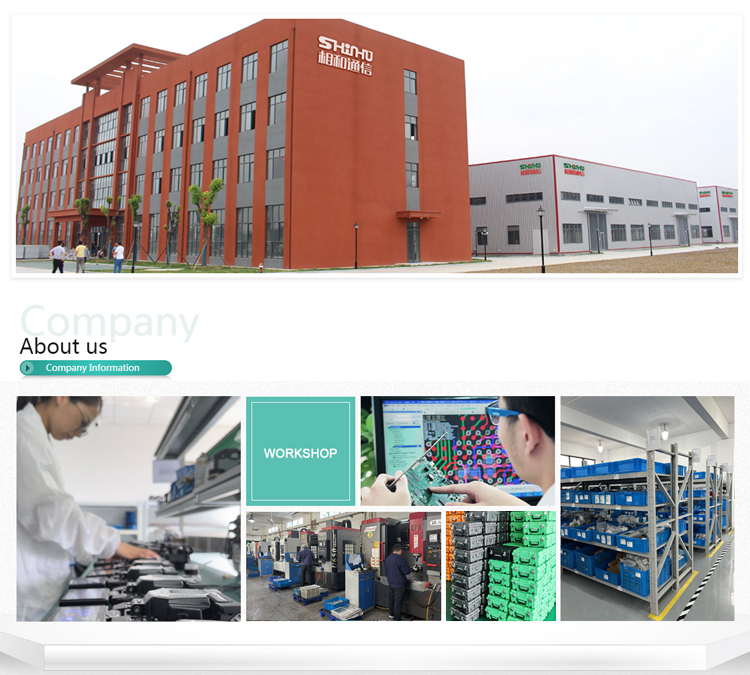

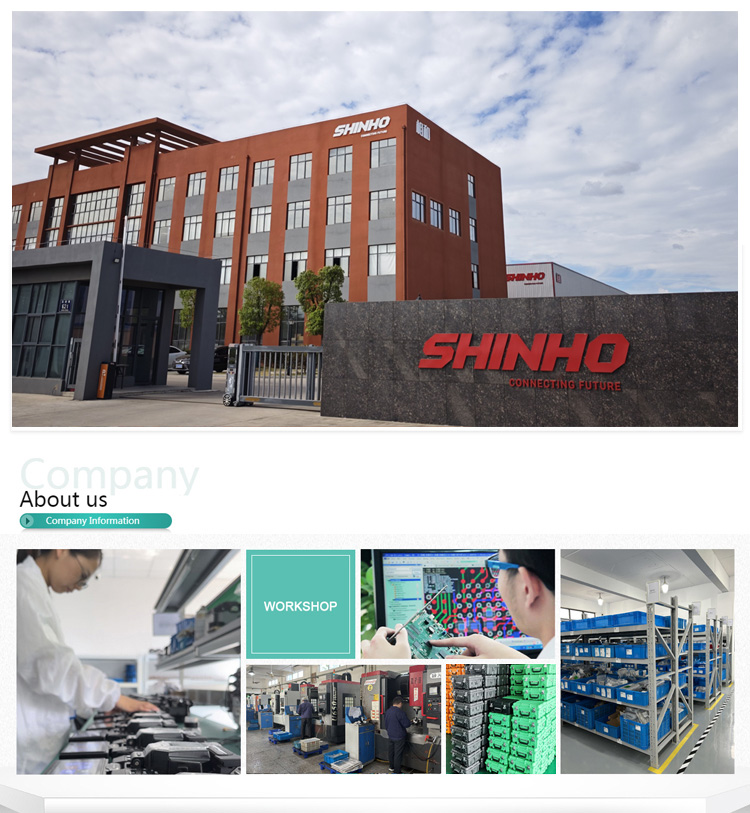

Company Information
