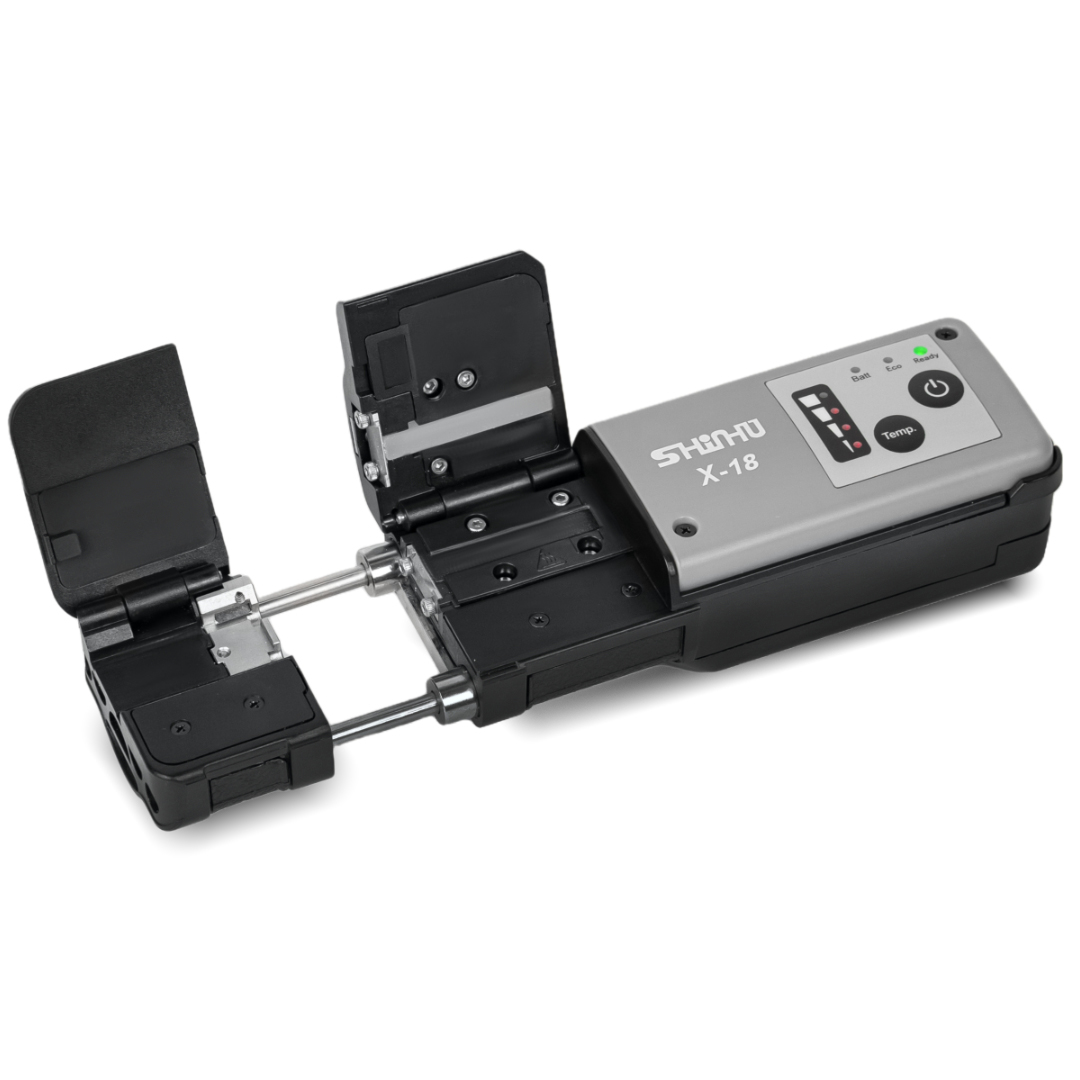

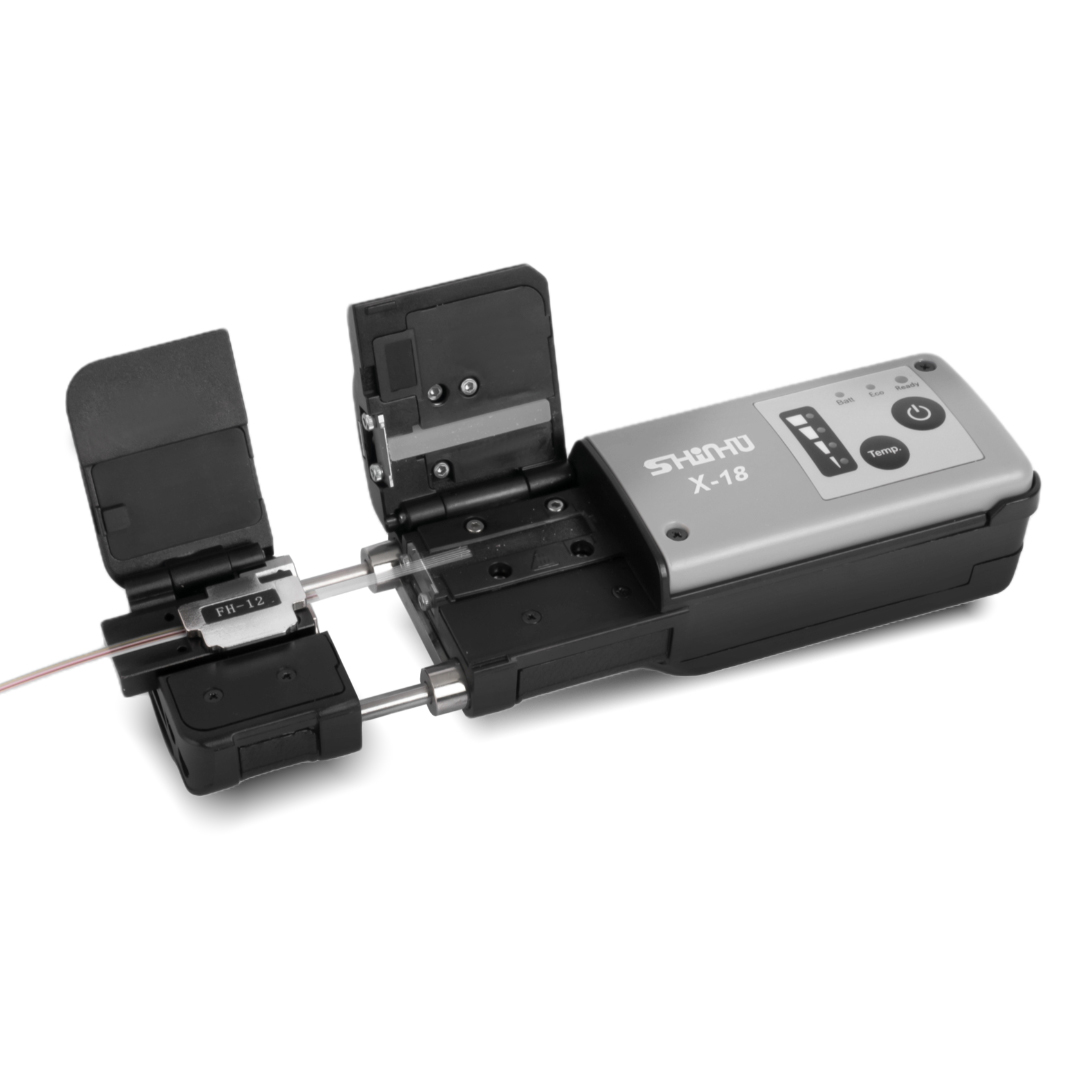

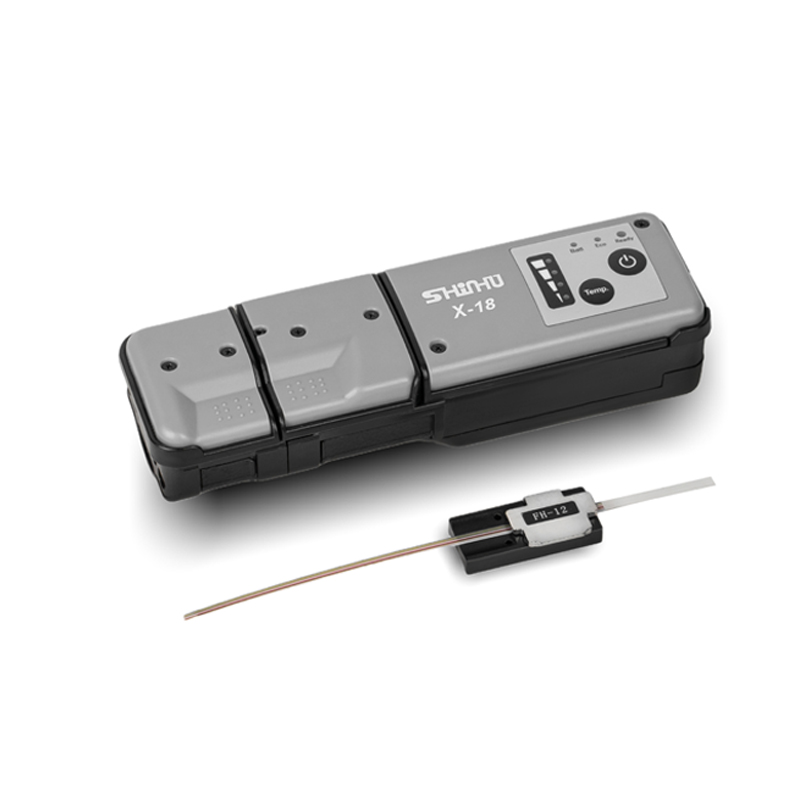

SHINHO X-18 Ribbon Fiber Thermal Stripper

Shinho X-18 Thermal Stripper is a newly developed hand-held thermal stripper, specially designed for nondestructive thermal stripping of the jacket of ribbon cable up to 12 fibers. A good and reliable tool for ribbon fiber splicing work.



  • Item NO.:

    X-18
  • Product Origin:

    CHINA
  • Color:

    Standard
  • Shipping Port:

    Shanghai/Shenzhen
  • Lead Time:

    3 working days
Product Details



Thermal Stripper  X-18for Ribbon Fiber


Features

  • Apply to single and ribbon (up to 12 cores) fibers
  • 10 seconds fast heating, 4 levels temperature optional
  • Requires less force for the stripping process
  • Easy to operate and maintain, near zero failure.
  • Rugged and durable for any tough environment
  • Small size and light weight, convenient to carry
  • A larger battery,2000mAh
  • Ergonomic design
  • Reach CE, ROHS international standards


Specifications


Applicable Fiber

Glass optical fibers, capillary

Coating material

UV curable resin

Coating diameter

Single core: 0.25~0.4mm; 2~12 ribbon fiber: 0.3~0.4mm

Cladding diameter

125µm

Coating stripping length

Max 30mm

Fiber types

Single fiber, ribbon fiber

Fiber holder type

FH-2,FH-4,FH-6,FH-8,FH-10,FH-12

Heating mode

Normal mode, Eco mode

Temperature setting

Default: 80°C.

Normal mode: 60, 80100, 120.

Typical heating time

Normal mode: 10 seconds for first stripping

Power saving mode: 12~13secs

Battery capacity

2000mAh Li-battery. Full charge time: 3 hours. Support approx. 600 cycles continuous stripping once fully charged at default temperature.

Power supply

AC adapter, input: AC100-240V(50/60HZ), output: DC12V-1A

Operation environment

Altitude: 0-5000m, Relative humidity: 0-95%, Temperature: 0 ~ +40 , Wind speed: 15m/s maximum

Dimension/Weight

155mm (L)×50mm (W)×40mm (H) /NW:267gincluding battery

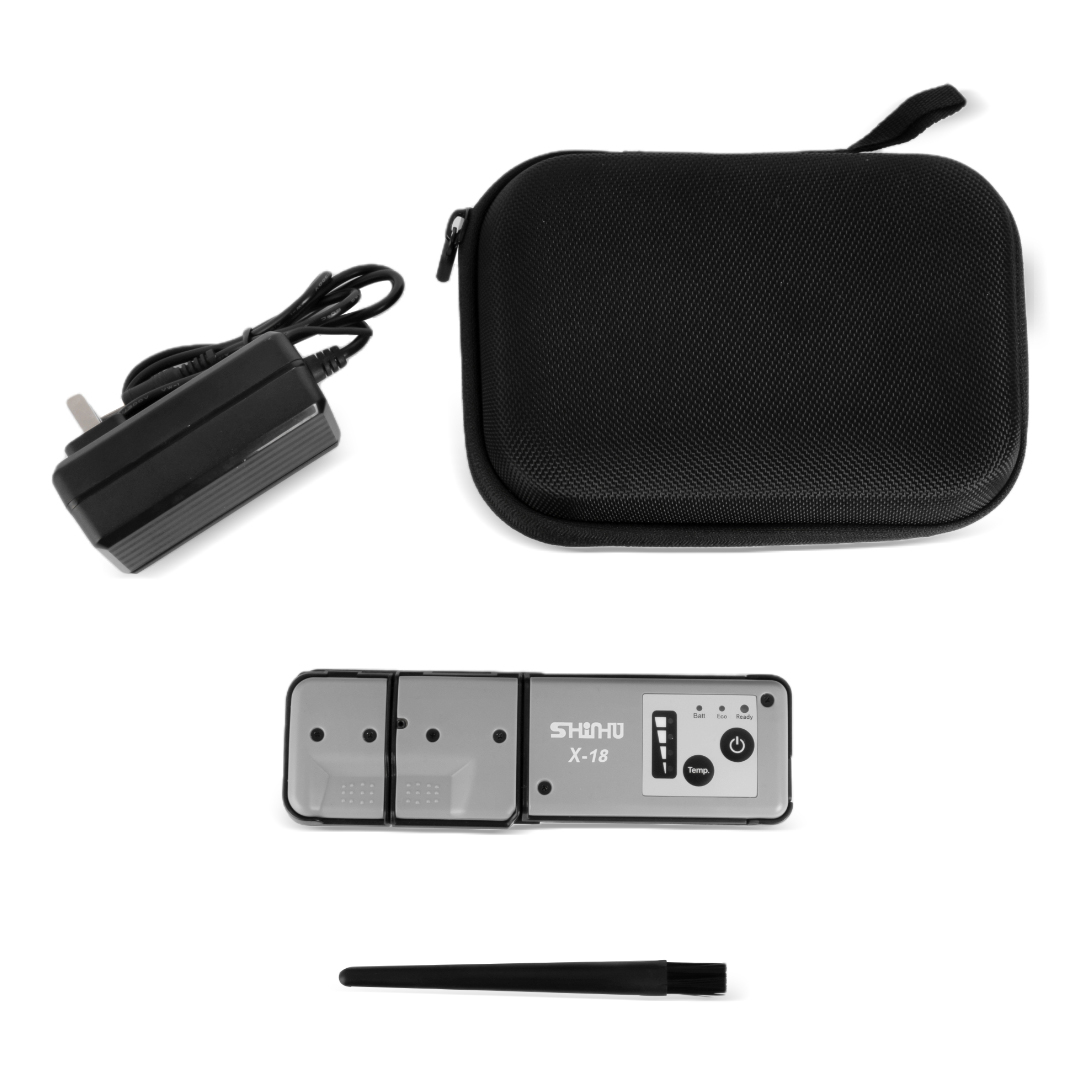

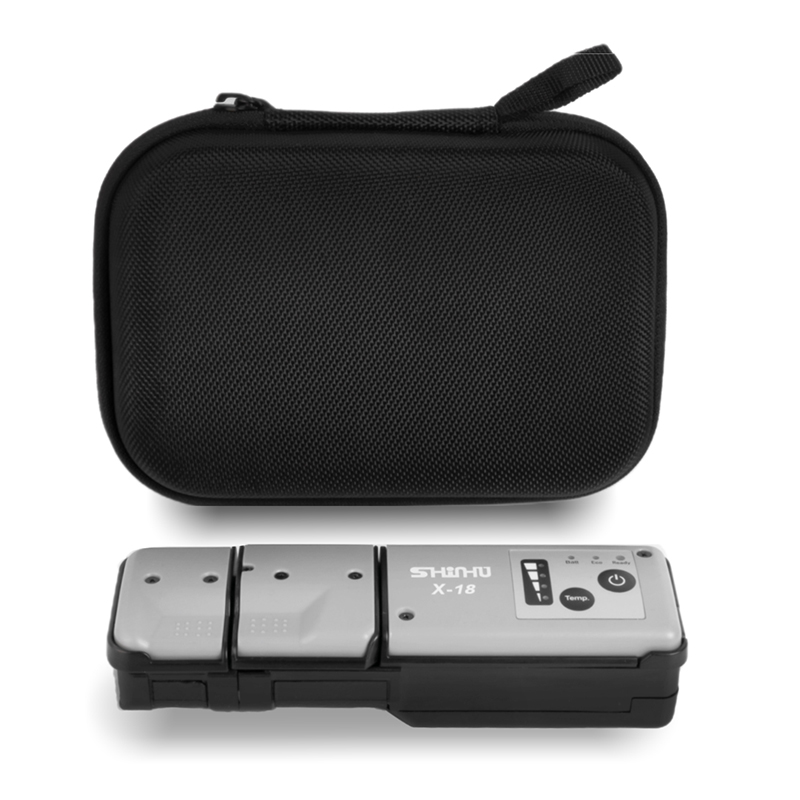

Standard  Accessories

① Thermal stripper

② AC adapter

③ Cleaning brush

④ Carrying case





Why Choose us

1. Reliable product quality

1) Factory with ISO9001:2015 quality management system.

2) Strict quality control process from materials to finished products and package.

3) Vibration testing for every fusion splicer (3 hours).

4) Splicing loss testing by OTDR for every fusion splicer (50 times).

5) Low/high temperature (-20~+50 C) testing for every fusion splicer (both 3 hours).


2. Satisfying after-sales service

1) Lifelong technical support. Any problem during using, we will offer guidance to solve the problem.

2) Quick feedback. Usually customers can get our reply within 1 hour, latest will be not over 10 hours.

3) 24 months warranty period. Within warranty period, all repair and replacement are for free.

4) Reasonable cost for repair & replacement. According to our experience, most problems could be solved by machine menu operation via our remote guidance, do not need repairing or replacement.


3. Industry technology leader

1) More than 20 years experience in the field. Keep developing & upgrading new technology.

2) The latest fiber core to core alignment technology, high level industrial standard design.

3) Different kinds fusion splicers cover all fiber splicing applications.


4. Strong production capacity

1) More than 10,000 units machines are produced every year.

2) Supply fusion splicers to more than 50 countries and zones in the world.

3) OEM/ODM is available.


We are sincerely looking forward to building a business relationship with you!
