Polarization Maintaining (PM) Fiber Fusion Splicer S-12

*Suitable for SM/MM/PM fibers splicing

* Core to core alignment, low splicing loss

* Endview and Profile observation and alignment

* Arc automatic calibration and splicing

* PM fiber  45 and 90 degree alignment

* Applicable to variety fibers splicing, such as Panda ,bow-tie and elliptical fiber

  • Item NO.:

    S-12
Product Details

Consult and place an order now, you can get a pair of Shinho original electrodes.We are sincerely looking forward to building a business relationship with you!

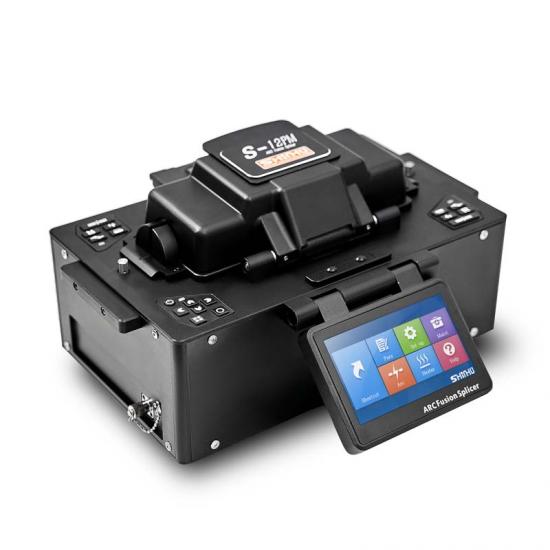

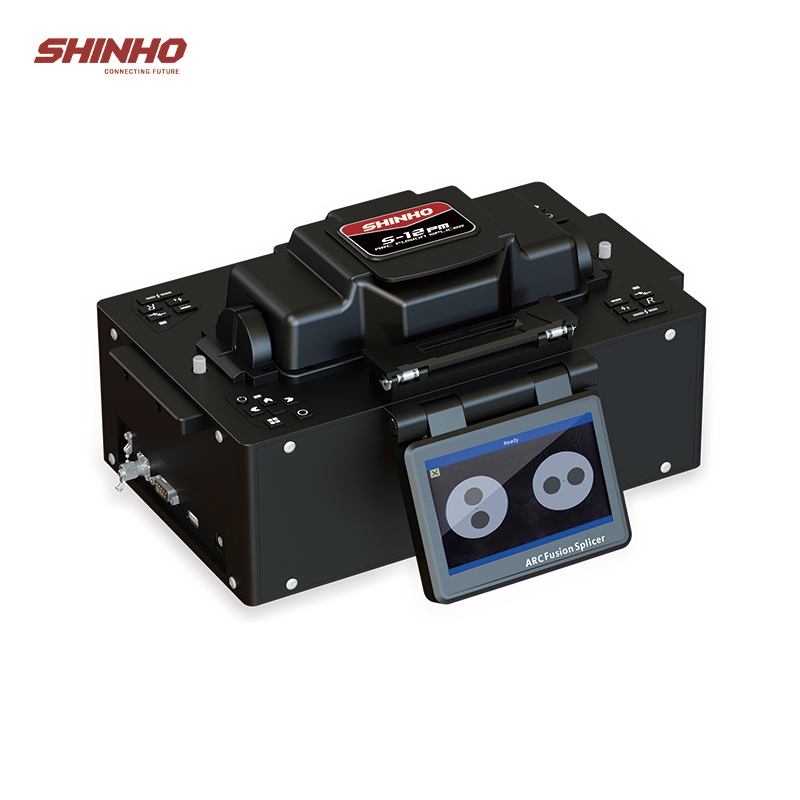

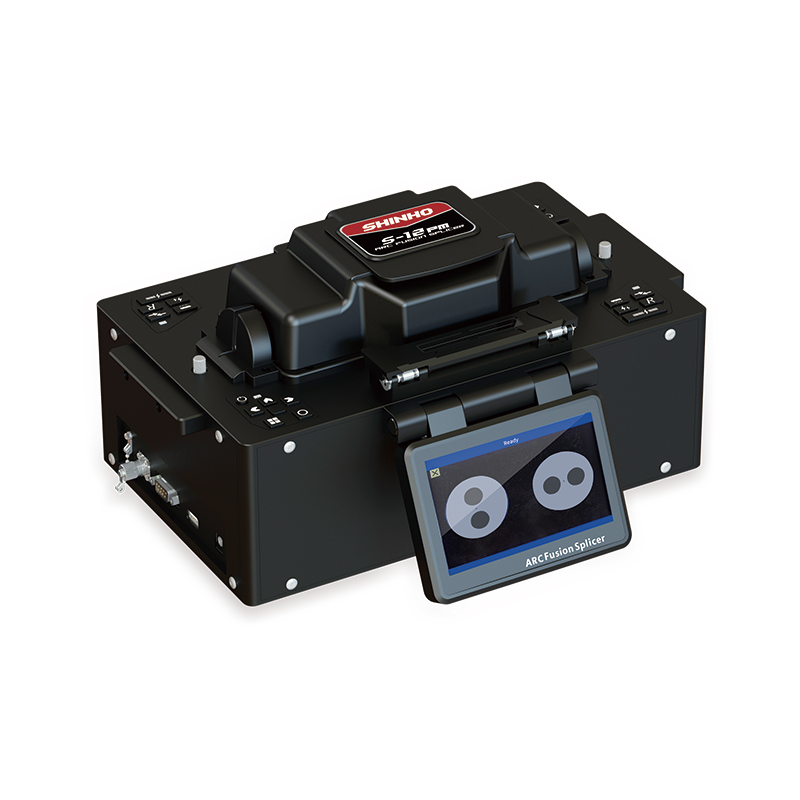

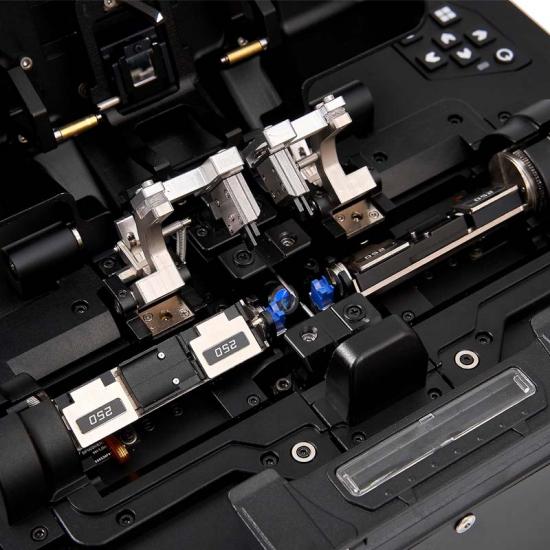

SHINHO Polarization Maintaining (PM) Fiber Fusion Splicer S-12

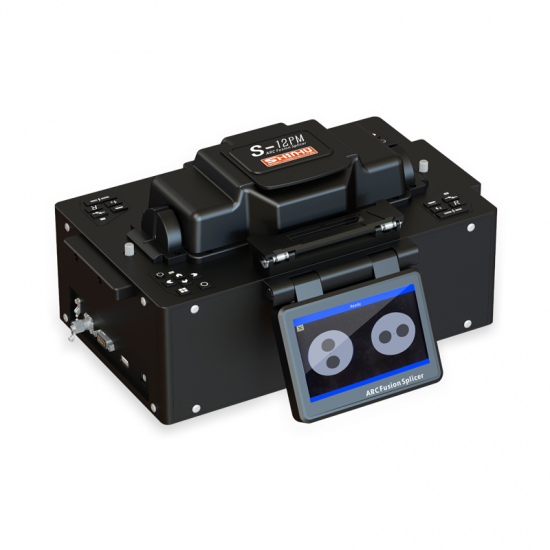

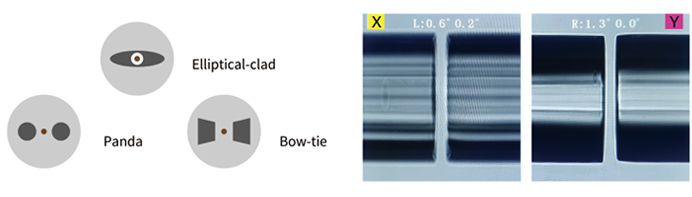

SHINHO S-12 Polarization Maintaining (PM) fiber fusion splicer is with the latest accurate fiber alignment technology, it has very stable performance and low fusion loss, it is specially designed for  Panda ,bow-tie and elliptical fibers.




Features


*Suitable for SM/MM/PM fibers splicing

* Core to core alignment, low splicing loss

* Endview and Profile observation and alignment

* Arc automatic calibration and splicing

* PM fiber  45 and 90 degree alignment

* Applicable to variety fibers splicing, such as Panda ,bow-tie and elliptical fiber


Daul fiber end face imaging patent

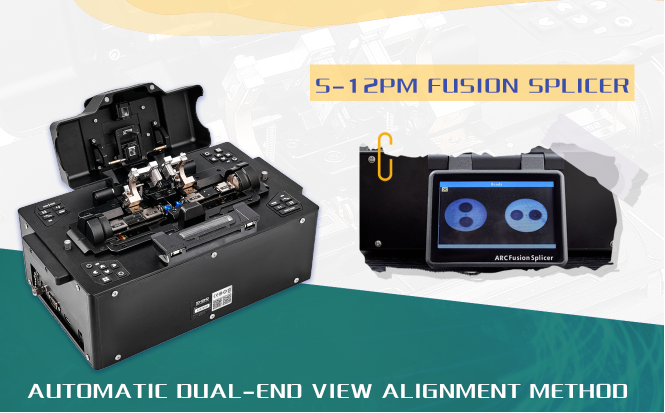

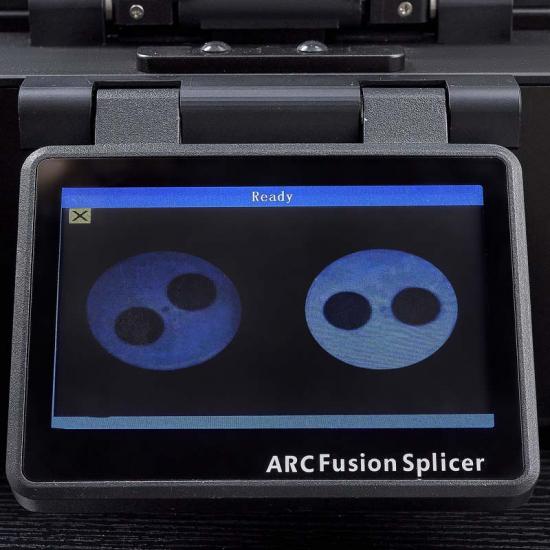

Dual fiber end face imaging,direct fiber end face view,more accurate alignment.

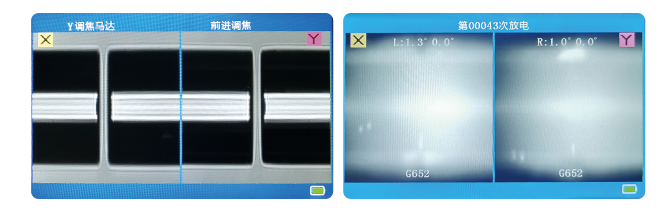

Real time ARC calibration technology

Real time ARC calibration based on fiber types and fiber images,more stable splicing performace.

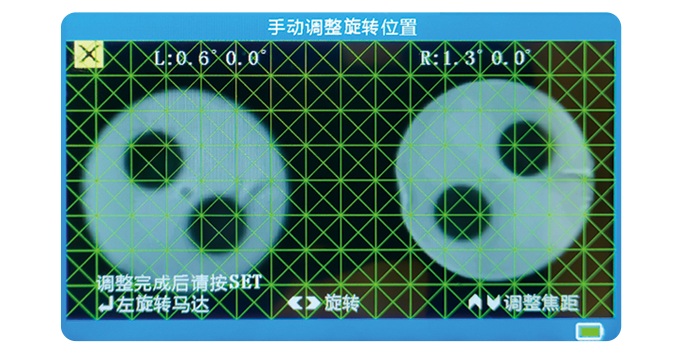

Fiber outline/end face dual mode alignment technology

Alignment between different types fibers could also be very accurate.

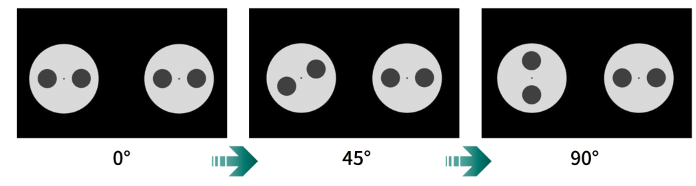

Apply to different angles fiber alignment

Support 0°,45°,90° automatic alignment.


User friendly engineering design

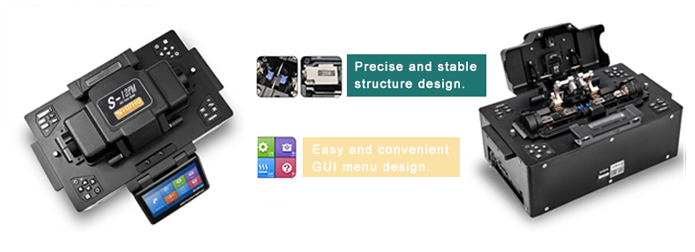

Proper size suitable for all current using scenarios,easy to operate and maintain.



Specificattions


Model Number



S-12PMS



S-12PM



S-12PM+



Applicable Fiber

Telecommunication Fibers: SM/MM/DS/NZDS/EDF



PM Fibers: Panda fiber, Bow-tie and Elliptical fiber



Cladding Diameter

60~80µm

80~125µm

125~400µm

Coating Diameter

135~900μm

Cleaved Length



9~10mm(standard)



Alignment Method



Profile and fiber end-view available

Typical Splice Loss



SMF: 0.03dB; MMF: 0.02dB; NZDS:0.05dB;PMF 0.06dB

Typical Splice Time

SMF/MMF: 20 seconds; PM: <60 seconds

Return Loss

>60dB

Operation Mode

Manual/Auto

Heating Mode

Manual/Auto

Splicing Program

40 modes

Typical Heating Time

Typical 25s, could customize

Extinction Ratio

36.8dB(PANDA)

Tension Test

1.96N(+0%~+20%)

PM Splicing Function

Support splicing at 0, 45 degree and 90 degree

Electrode Life

>2000 times, easy to replace the electrodes

Data Storage

10000 groups fusion records, 100 groups images

Viewing Display

5” HD color LCD Monitor

Terminal

USB 2.0 port, for software upgrading, records exporting, RS232 port,   output signal customizable

Dimension

330mm(L)x205mm(W)x172mm(H)

Weight

6.3kg

Operating Condition

-10°C~+50°C

Storage Condition

-20°C~+60°C

Power Supply

Adaptor, input: AC100~240V(50/60Hz), output: DC12.0v10.0A

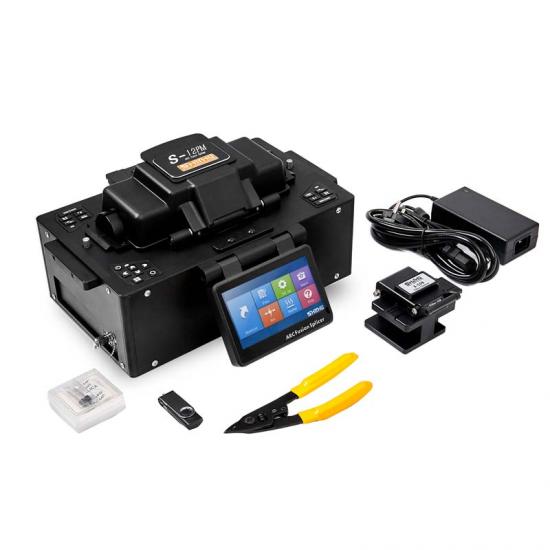

Package


Item

Quantity

Item

Quantity

Item

Quantity

S-12PMS

1pc

S-12PM

1pc

S-12PM+

1pc

X-53D Fiber Cleaver

1pc

X-50F Fiber Cleaver

1pc

Fiber Stripper

1pc

Fiber Stripper

1pc

Fiber Stripper

1pc

Fiber Holders

1pair

Fiber Holders

2pair

Fiber Holders

3pair

Electrodes

1pair

Electrodes

1pair

Electrodes

1pair

Fiber Adapter

1pair

Fiber Adapter

1pair

Fiber Adapter

1pair

User Manual

(USB driver)

1pc

User Manual

(USB driver)

1pc

User Manual

(USB driver)

1pc

Power Adapter

1pc

Power Adapter

1pc

Power Adapter

1pc

Power Cord

1pc

Power Cord

1pc

Power Cord

1pc

Carring Case

1pc

Carring Case

1pc

Carring Case

1pc
