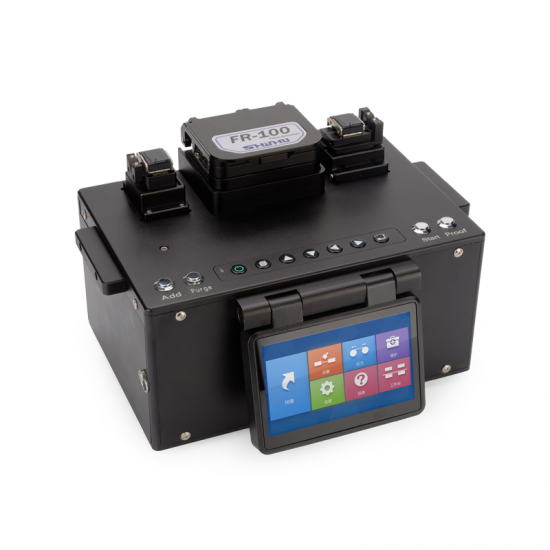

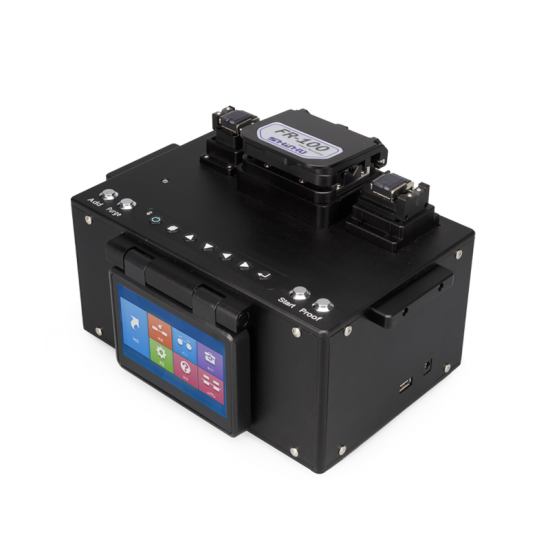

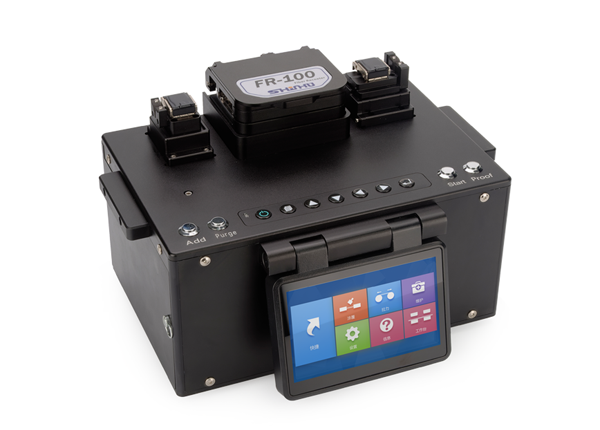

FR-100 Optical Fiber Recoater

· Automatic operation with various sizes of quartz molds available

· UV curing LEDs provide fast curing times and long lifetimes

· Easily exchangeable molds, resin bottle and pump assemblies

· Exact volume of resin to the mold cavity to ensure consistent recoat performance.

· Designed for Acrylate-Coated Fibers

Contact Us
Product Details

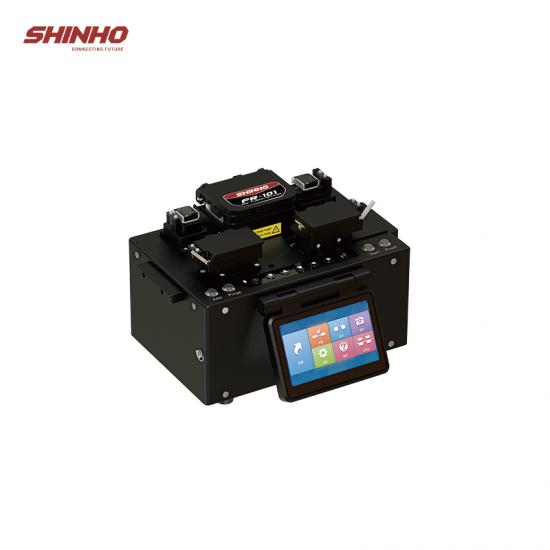

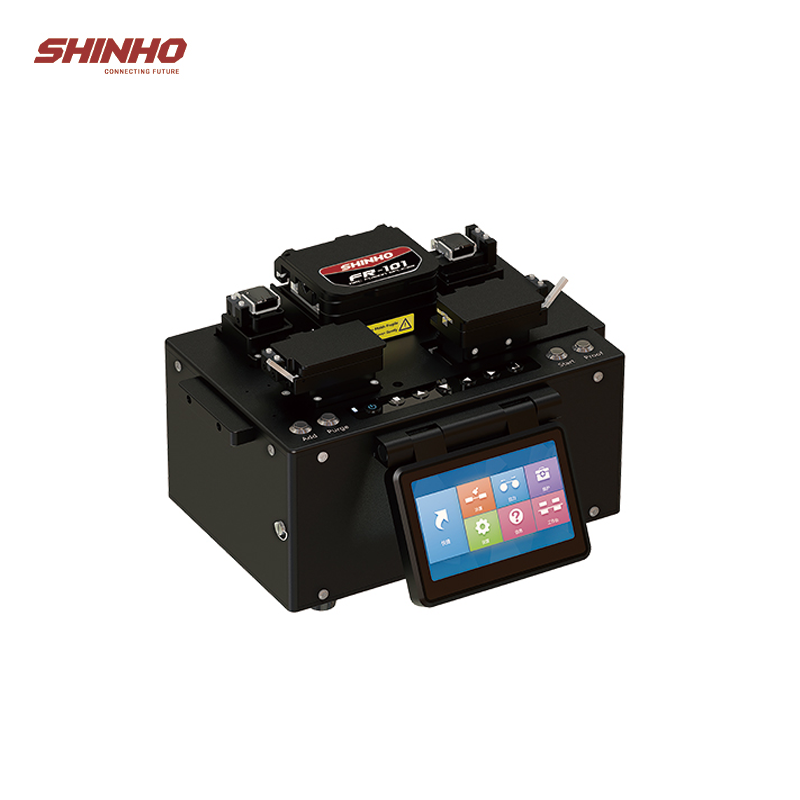

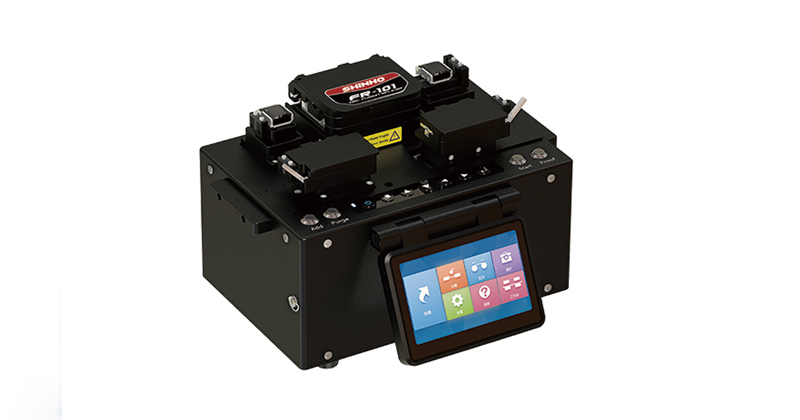

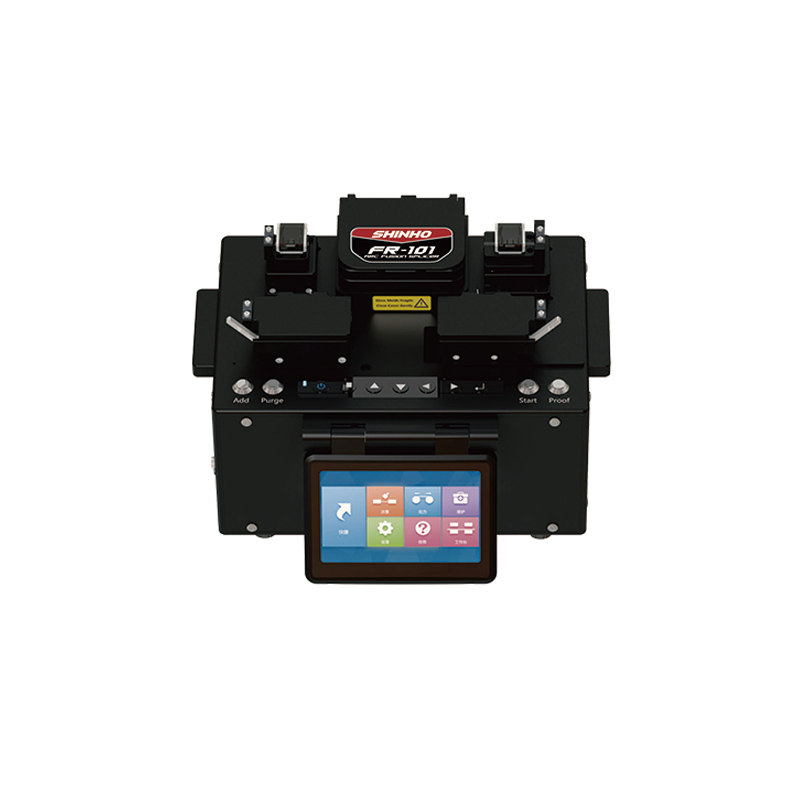

Shinho FR-100 Optical Fiber Recoater


Features

· Automatic operation with various sizes of quartz molds available

· UV curing LEDs provide fast curing times and long lifetimes

· Easily exchangeable molds, resin bottle and pump assemblies

· Exact volume of resin to the mold cavity to ensure consistent recoat performance.

· Designed for Acrylate-Coated Fibers


Specifications


Model Number

FR-100

FR-101

Applicable Fiber Count

Single fiber

Mold Material

Quartz glass

Recoat Diameters

195μm,255μm,280μm,450μm,600μm,670μm,850μm,1000μm

Recoat Length

4 - 50mm , accuracy ± 20%

Applied UV Resin

Acrylate

Curing Lamp

Up and down 2 directions, Irradiation position, irradiation time

UV Light Curing Time

UV resin injecting time: 20s; Curing time: 4s(DSM950-200)

Coating Program

50 modes



Proof Program

40 modes



Operating/ Storage Condition

Altitude: 0~5000m; Humidity: 0~95%  No condensation; Operation Temperature: 10℃~30℃; Storage Temperature:-40℃~80℃

Data Storage

2000 records in total

Proof - tester

-

0.2~2.0kgf

Dimension/Weight

250(W)*170(L)*176(H)/4.3kg

250(W)*170(L)*170(H)/4.8Kg



Accessories

Description

Model Number

Quantities

Fiber recoater mainbody

FR-100/FR-101

1 pc

Mold

FR100-MOLD-280

1 set

Rubber tube

-

1 pc(8cm length)

Power cord

ACC-97

1 pc

AC adapter

ADC-97

1 pc

USB manual

-

1 pc

Tools

HEX-01/02/03

1 set（M3/M2.5/M2）

Instruction

FR100-QRG-100

1 pc

Carton

X41F

1 pc (440x380x270mm)

Foam liner

-

1 pc


Optional Modes


Description

Model Number

Remarks

195μm mode

FR100-MOLD-195

Recoat diameter: 195μm

255μm mode

FR100-MOLD-255

Recoat diameter: 255μm

280μm mode

FR100-MOLD-280

Recoat diameter: 280μm

320μm mode

FR100-MOLD-320

Recoat diameter: 320μm

450μm mode

FR100-MOLD-450

Recoat diameter: 450μm

600μm mode

FR100-MOLD-600

Recoat diameter: 600μm

670μm mode

FR100-MOLD-670

Recoat diameter: 670μm

850μm mode

FR100-MOLD-850

Recoat diameter: 850μm

1000μm mode

FR100-MOLD-1000

Recoat diameter: 1000μm

UV resin bottle

FR100-BTL-01

Why Choose us

1. Reliable product quality

1) Factory with ISO9001:2015 quality management system.

2) Strict quality control process from materials to finished products and package.

3) Vibration testing for every fusion splicer (3 hours).

4) Splicing loss testing by OTDR for every fusion splicer (50 times).

5) Low/high temperature (-20~+50 C) testing for every fusion splicer (both 3 hours).


2. Satisfying after-sales service

1) Lifelong technical support. Any problem during using, we will offer guidance to solve the problem.

2) Quick feedback. Usually customers can get our reply within 1 hour, latest will be not over 10 hours.

3) 24 months warranty period. Within warranty period, all repair and replacement are for free.

4) Reasonable cost for repair & replacement. According to our experience, most problems could be solved by machine menu operation via our remote guidance, do not need repairing or replacement.


3. Industry technology leader

1) More than 20 years experience in the field. Keep developing & upgrading new technology.

2) The latest fiber core to core alignment technology, high level industrial standard design.

3) Different kinds fusion splicers cover all fiber splicing applications.


4. Strong production capacity

1) More than 10,000 units machines are produced every year.

2) Supply fusion splicers to more than 50 countries and zones in the world.

3) OEM/ODM is available.
