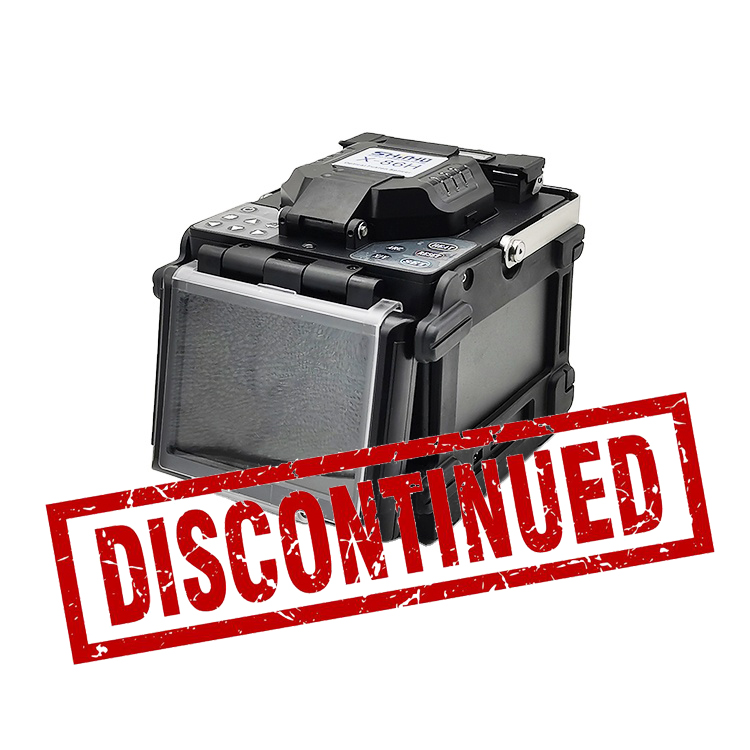

Outdoor Multi Function Fiber Fusion Splicer X86H

Used for MAN/ Telecommunication/ FTTx projects.

Automatic splicing and heating, active V-groove design

Big battery capacity, robust industrial protection design for outdoor projects

  • Item NO.:

    X-86H
  • Product Origin:

    CHINA
  • Color:

    Standard
  • Shipping Port:

    Shanghai/Shenzhen
  • Lead Time:

    3 working days
Product Details

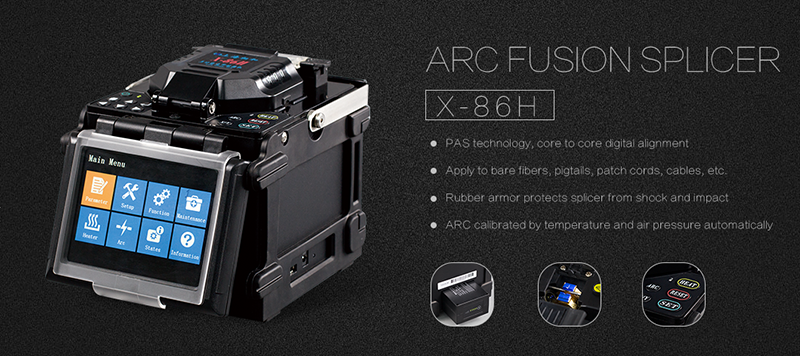

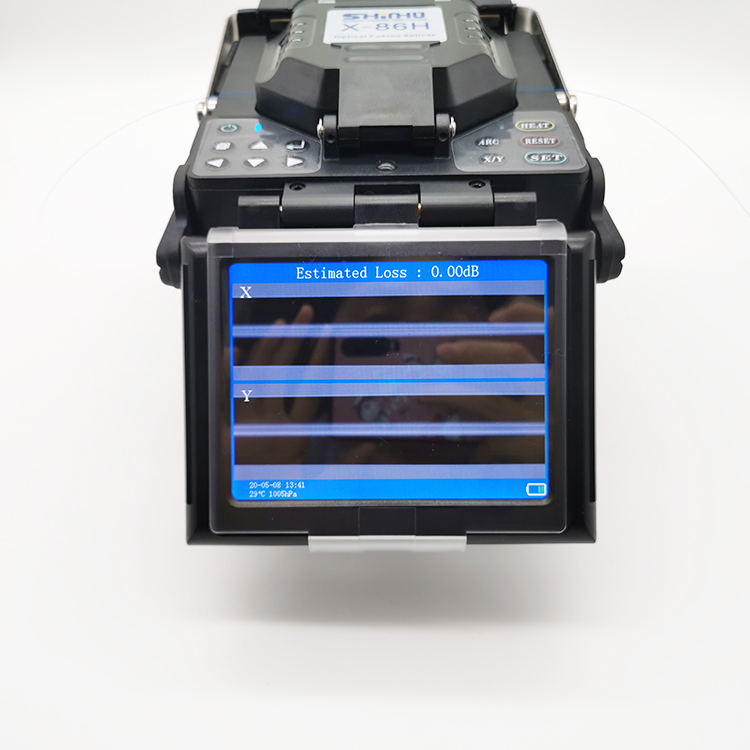

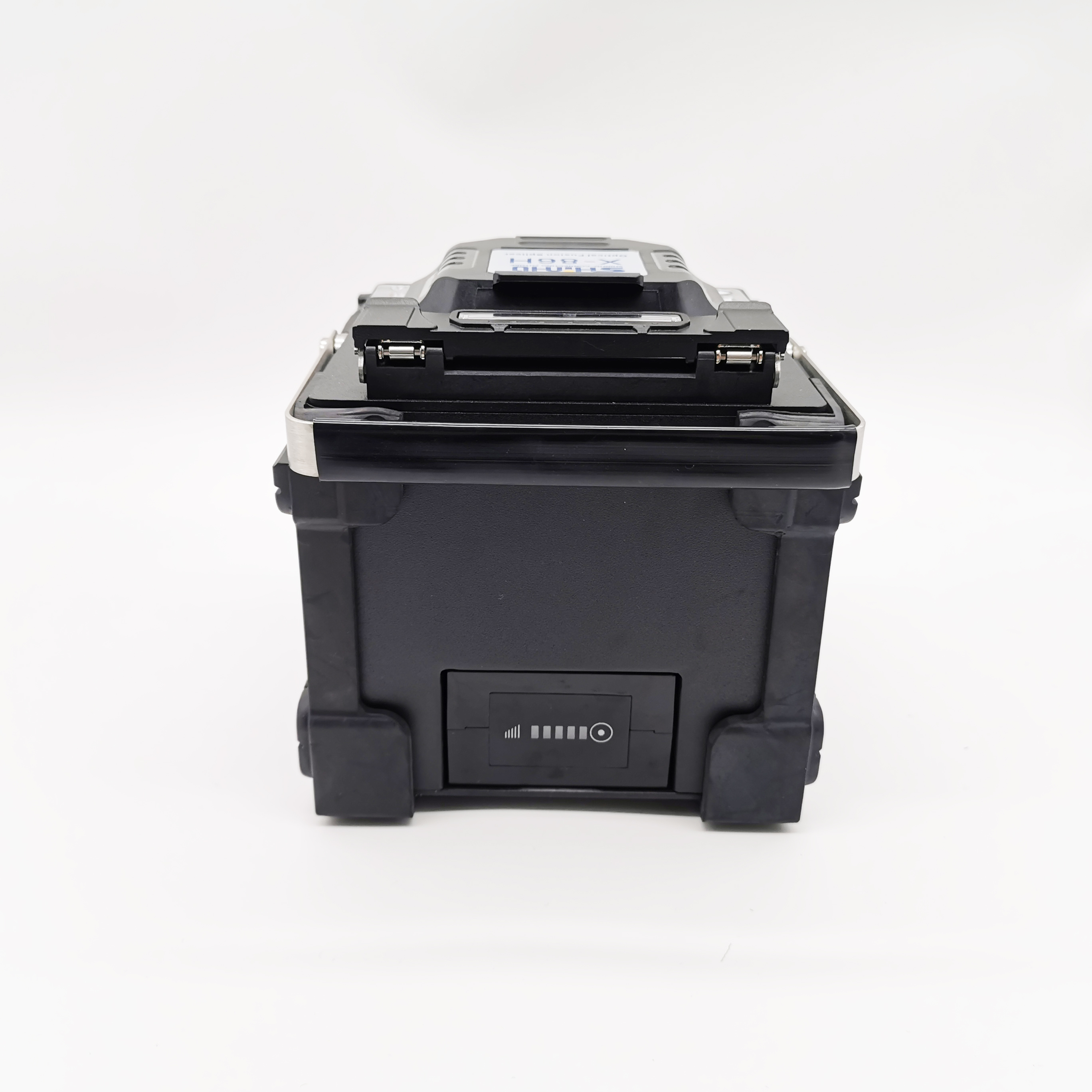

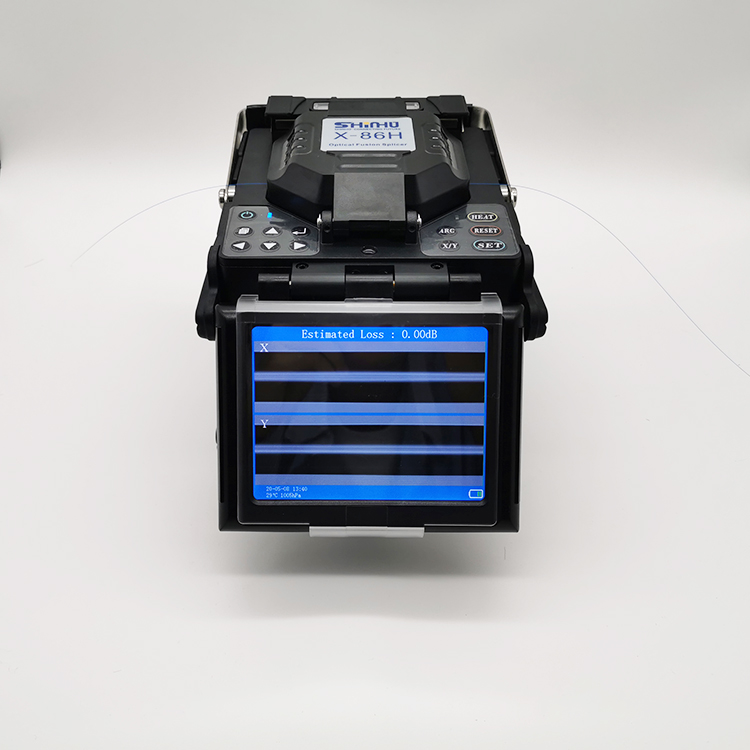

Outdoor Multi Function Fiber Fusion Splicer X-86H


X-86H Fiber fusion splicer is specially designed for outdoor projects, it has big battery capacity and robust rubber armor protection, which has long time and stable performance even in harsh environment.


outdoor fusion splicer


Features

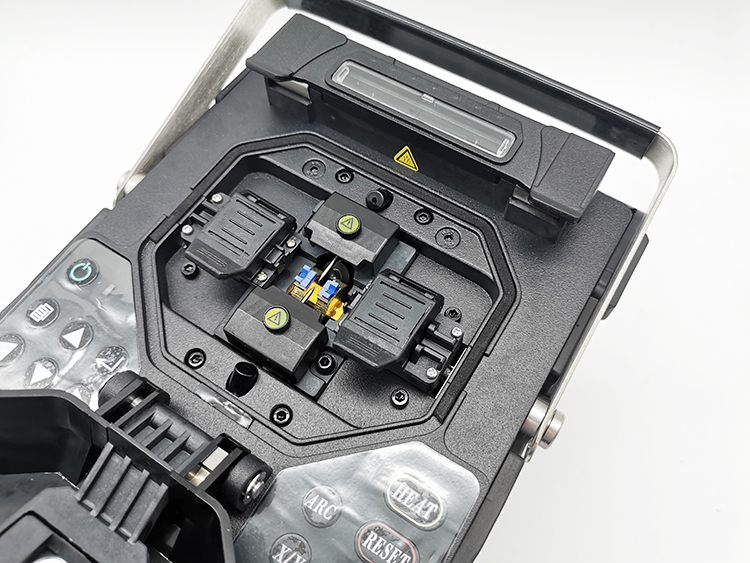

  • PAS technology, core to core alignment
  • Automatic ARC calibration, splciing and heating
  • Rubber armor protection from shock,drop etc.
  • Big capacity Li-battery, more than 300 cycles splicing and heating


Specifications

Applicable fiber

SM(ITU-T G.652),MM(ITU-T G.651),DS(ITU-T G.653),NZDS(ITU-T G.655)

Diameter of cladding

80 -150μm

Diameter of coating

160-900μm

Typical splice loss SM: 0.02dB, MM: 0.01dB, DS: 0.04dB, NZDS: 0.04dB
Return loss > 60dB
Fibe cleaved length 10-16mm ( coating diameter < 250um), 16mm (coating diameter:250-1000um)
Splicing program 40 groups
Operate mode Automatic/Manual
Auto-heating Available
Typical splicing time 8 seconds
Typical heating time 26 seconds
Fiber magnification 300X (X or Y view), 150X (X and Y view)
Display screen 5.7 inch color LCD monitor
Records storage 4000 results
Loss evaluation Available
Tension test 1.8-2.2N
Interface GUI menu interface, easy for operation
Battery 8800mAh Li-battery, typical 300 cycles splicing and heating, support separating charging
Power supply Adapter, input: AC 100-240V(50/50HZ), output: 11-13.5V
Electrodes life More than 4000 ARC discharges, can be replaced conveniently
Ternimal USB2.0 port, for software upgrading and records exporting
Operating conditions Altituede: 0-5000m, Humidity: 0-95%, Temperature: -10℃~+50℃, Wind speed: Max 15m/s
Dimension 160mm(L) * 150mm(W) * 145mm(H)
Weight 2.75kg (including battery)


Standard  Accessories

NO. ITEM
1 Carrying box
2 Fiber cleaver
3 Fiber stripper
4 Drop cable stripper
5 Power cord
6 Adapter
7 Cooling tray
8 User manual (USB)
9 Spare electrodes
10 Cleaning tool kit
11

Strap


Shinho X-86H Fiber Fusion Splicer Operation Video
