XFC-01 Large Diameter Optical Fiber Cleaver

* Small and light

* Pluggable battery, support separate charge

* Easy to move and carry

* Normal 700 cuts on a full charge

* Adapt to a variety of complex work environments

* High working efficiency

Item NO.:
XFC-01

Product Details

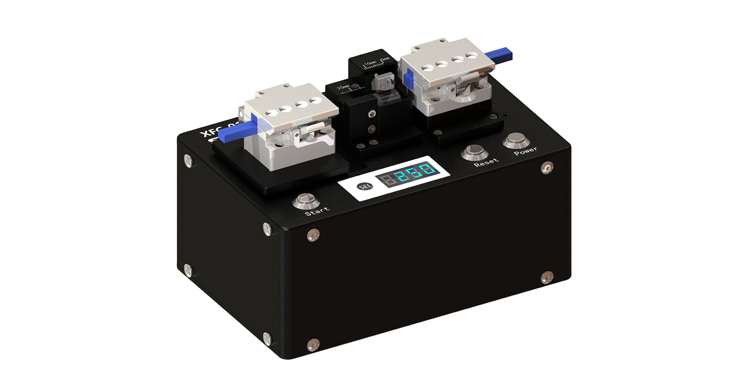

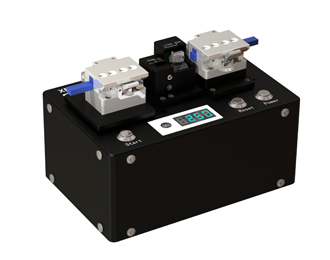

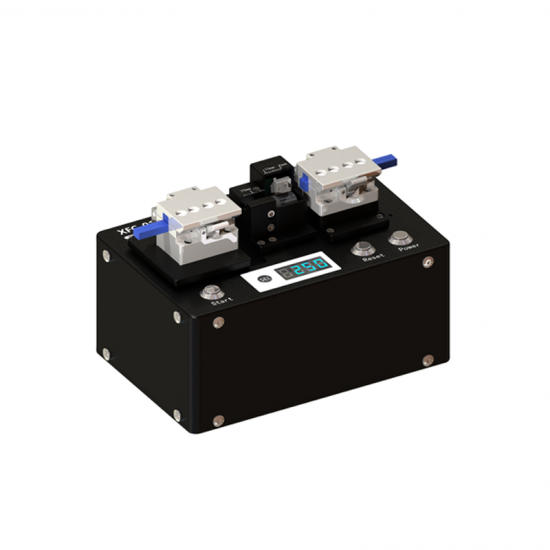

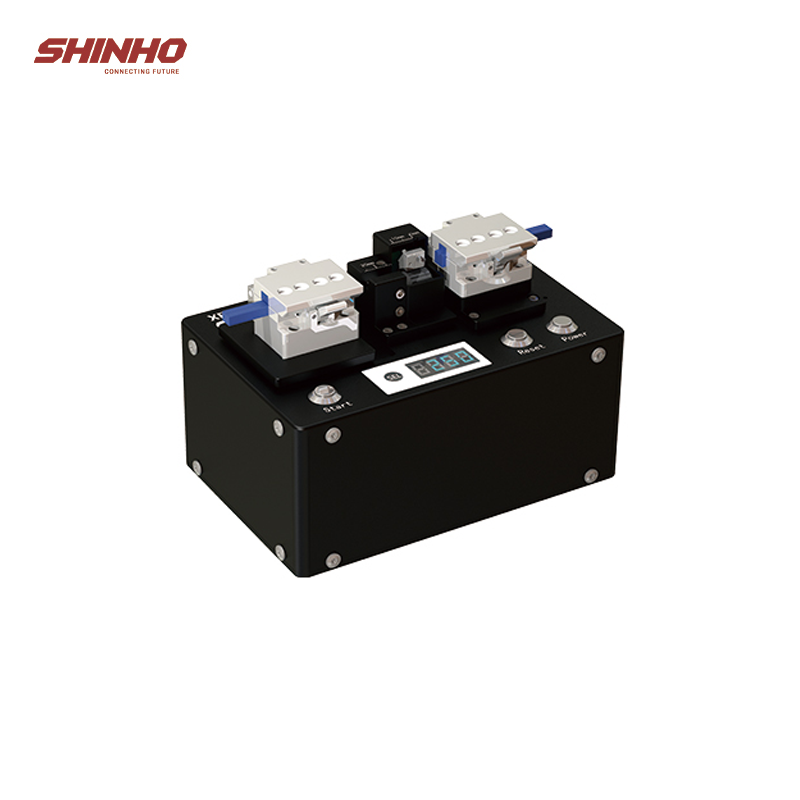

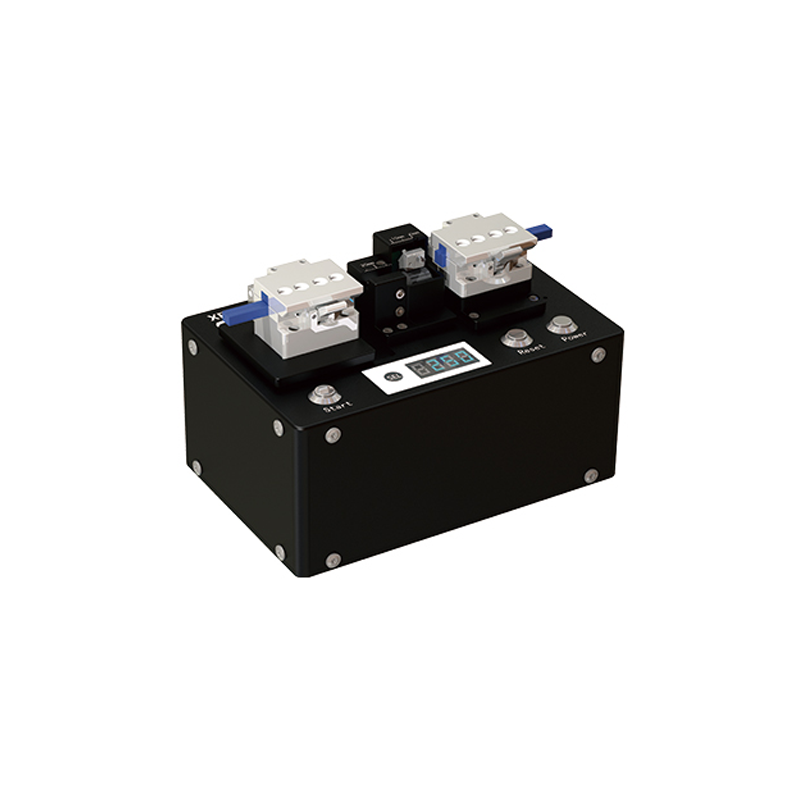

SHINHO XFC-01 Large Diameter Optical Fiber Cleaver

SHINHO XFC-01 Large Diameter Optical Fiber Cleaver is Specially Designed for Cladding Diameter 200-300μm fiber

Features

* Small and light

* Pluggable battery, support separate charge

* Easy to move and carry

* Normal 700 cuts on a full charge

* Adapt to a variety of complex work environments

* High working efficiency

Specifications

Cladding Diameter	200μm~300μm
Coating Diameter	300μm~400μm
Cleaved Length	2~30μm
Cleaved Angle	Typical value 0.5°
Cleaved Method	Applying tension and blade scoring
Blade and Life	5~40mm
Blade life	Diamond blades, 10 cutting positions, single cutting point life 2000 times
Power Supply	Adaptor，input: AC100-240V(50/60Hz)， output：DC11~13.5V 5A
Battery	3400mAh
Dimensions168	168111116mm
Weight	1.97kg
Operation condition	Humidity: 0~95%，Temperature:0~+40℃（no condensation）
Storage Condition	Humidity: 0~95%，Temperature:-40~+80℃（no condensation）

Standard Packages:

Item	Remark
XFC-01 Main Machine	1unit
Power Adapter	1pc
1.5 Hex Key	1pc
1.27 Hex Key	1pc
Certificate of Conformity	1pc
User Manual	1pc
