Thermal Stripper--- Ideal tool for ribbon fiber splicing work

Optical fiber is a light transmission tool based on the principle of total reflection of light in the fiber made of glass or plastic. It is widely used in the field of communication. During the construction and maintenance of optical fiber laying, it is often necessary to fuse the optical fiber, so optical fiber fusion splicer is an essential equipment in optical communication engineering. Fusion splicing operation is to melt the two ends of the optical fiber by releasing an arc and advance the two ends smoothly by using the collimation principle to realize the coupling of optical fiber mode field.

Before the fusion splicing operation, optical fiber needs to be cut and stripped of the coating layer, so a fiber stripping tool is needed. The traditional fiber stripping tool uses a cleaver and miller plier to cut and strip the protective layer of the optical fiber, which has a good effect in stripping single-core optical fiber. However, the stripping effect of ribbon fiber is not ideal. Due to the structural design defects, the coating layer of the ribbon fiber cannot be completely stripped. Therefore, a new fiber stripping tool is needed that can treat single-core fibers and ribbon fibers. All stripping operations have a good stripping effect.

Ribbon fiber thermal stripper, including a fiber clamp part and a cutting heating part that are slidingly connected by a linear bearing. The cutting operation adopts the design of parallel cutting of the upper and lower blades, and the stripping operation of single-core fiber and ribbon fiber are all applicable, the heating operation has an intelligent heating system, which softens the optical fiber coating and be beneficial to the fiber stripping operation; the linear bearing design has low stripping force and the fiber is pulled after the fiber protective layer is cut. It can ensure the safety and stability of the operation and complete it at one time; the middle heating part adopts the magnet clamping method, which is conducive to the reliable bonding of the fiber stripping blade, and can better strip the coating layer of the optical fiber, and it doesn't require high skill of the operator and greatly increase the popularization rate of this tool.

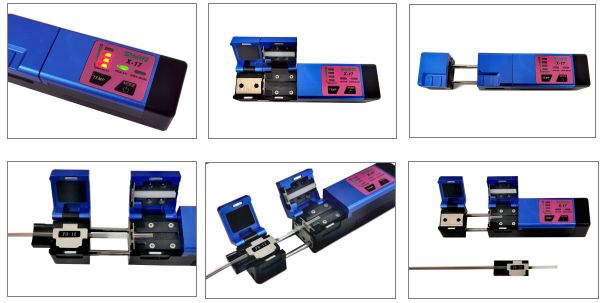

Fiber Optic Thermal Stripper For Ribbon Fiber X17

Shinho X-17 Thermal Stripper is a newly developed hand-held thermal stripper, specially designed for nondestructive thermal stripping of the jacket of single fiber and ribbon cable up to 12 fibers. 4 seconds fast heating, 4 levels temperature optional. A good and reliable tool for ribbon fiber splicing work. (Shinho X-950 Ribbon Fiber Fusion Splicer is suitable for multi cores fibers with low splicer loss and stable performance).

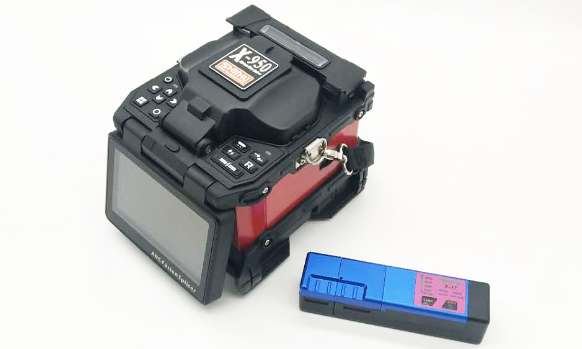

Ribbon Fiber Fusion Splicer X950
