How to Repair Fiber Laser Source: A Comprehensive Guide

2025-03-21

How to Repair Fiber Laser Source: A Comprehensive Guide

Fiber laser sources are critical components in various industries, including manufacturing, telecommunications, and medical devices. However, like any sophisticated equipment, they can encounter issues over time. Knowing how to repair a fiber laser source can save you time, money, and downtime. In this guide, we’ll walk you through the steps to diagnose and repair common fiber laser source problems.

1. Understanding Fiber Laser Source Components

Before diving into repairs, it’s essential to understand the key components of a fiber laser source:
Laser Diode: The core component that generates the laser beam.
Fiber Optic Cable: Transmits the laser beam.
Optical Isolator: Protects the laser diode from back reflections.
Cooling System: Maintains optimal operating temperatures.
Control Electronics: Manages power and operational parameters.

2. Common Fiber Laser Source Issues

Here are some common problems you might encounter:
No Laser Output: The laser fails to produce any beam,it's probably caused by a broken fiber.
Reduced Power Output: The laser beam is weaker than expected,it's probably caused by a broken fiber.
Overheating: The laser source becomes excessively hot.
Beam Instability: The laser beam fluctuates or drifts.
Error Codes: The control system displays error messages.

3. Step-by-Step Repair Guide

Step 1: Diagnose the Problem

Check Power Supply: Ensure the laser source is receiving adequate power.
Inspect Connections: Verify that all cables and connectors are securely attached.
Monitor Temperature: Use a thermal camera or thermometer to check for overheating.
Step 2: Inspect the Laser Diode
Visual Inspection: Look for signs of damage or wear on the laser diode.If the fiber is broken,repair it by LDF fusion splicer.
Test Output: Use a power meter to measure the laser diode’s output.
Replace if Necessary: If the diode is faulty, replace it with a compatible model.

Step 3: Examine the Fiber Optic Cable

Check for Damage: Inspect the cable for cracks, bends, or breaks.

Clean Connectors: Use a fiber optic cleaning kit to remove dust and debris.
Realign Fibers: Ensure the fibers are properly aligned for optimal transmission.

Step 4: Evaluate the Cooling System

Clean Cooling Fans: Remove dust and debris from fans and heat sinks.

Check Coolant Levels: If your system uses liquid cooling, ensure the coolant is at the correct level.
Inspect Pumps: Verify that the cooling pump is functioning correctly.

Step 5: Review Control Electronics

Reset the System: Power cycle the laser source to reset the control electronics.
Update Firmware: Ensure the control system is running the latest firmware.
Check Sensors: Test temperature and power sensors for accuracy.

4. Preventive Maintenance Tips

Regular Cleaning: Keep the laser source and its components clean.
Routine Inspections: Schedule regular inspections to catch issues early.
Proper Storage: Store the laser source in a cool, dry place when not in use.
Training: Ensure operators are trained in basic troubleshooting and maintenance.

5. When to Seek Professional Help

While many issues can be resolved with basic repairs, some problems require professional expertise. If you encounter the following, consider contacting a specialist:

Complex Error Codes: Persistent or unclear error messages.
Internal Damage: Damage to internal components like the laser diode or control board.

Conclusion

Repairing a fiber laser source can be a straightforward process if you understand the components and common issues.

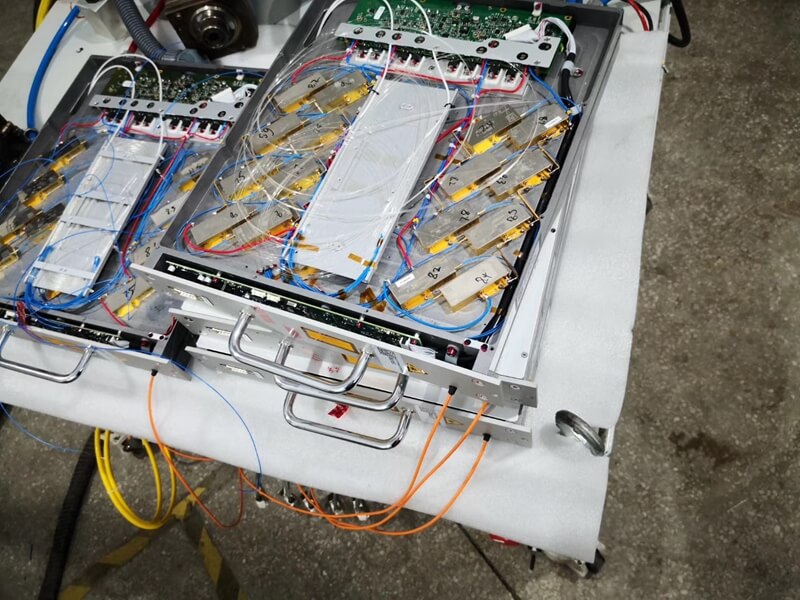

Fiber Laser Sources are full of optical fibers, and fiber breakage is the most common and frequent problem.

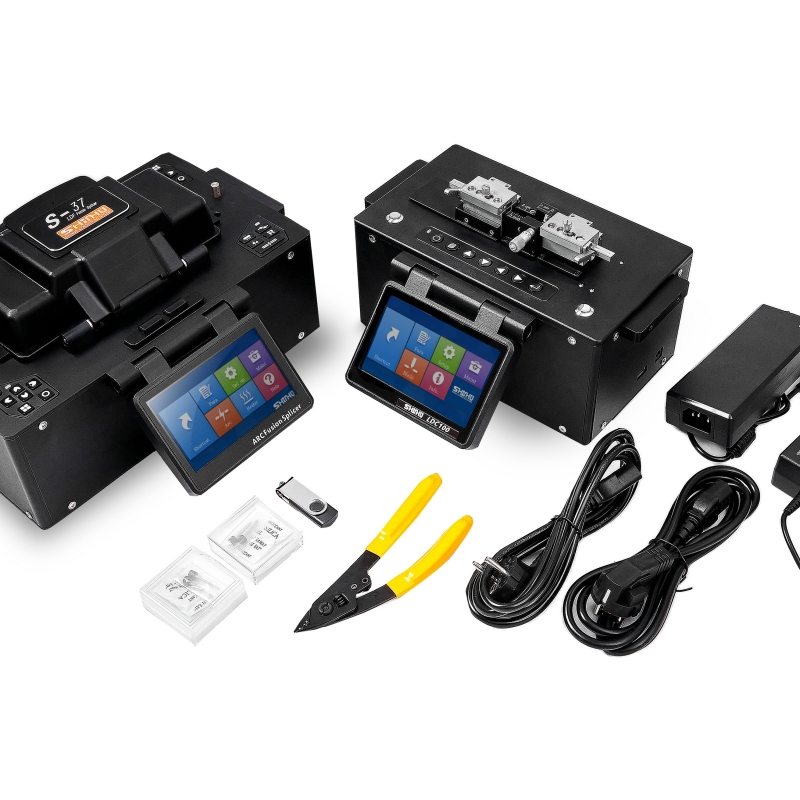

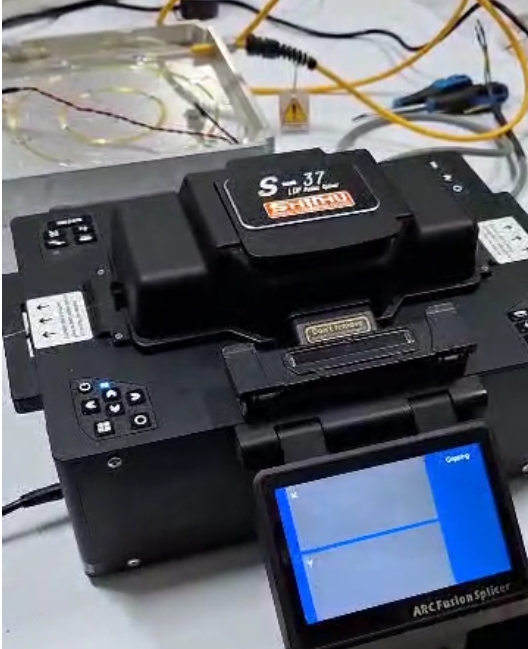

SHINHO S-37 fiber fusion splicer and SHINHO LDC100 fiber cleaver are widely used in fiber laser source repair industries.
S-37 with accurate alignment, world standard fusion loss,high precision splicing performance,price of this machine is very attractive.
It can repair these problems : * Fiber Replacement
* QBH cable replacement
* Fiber Optic Repair
* Laser Source Repair .

Major brands covered: IPG, RAYCUS, MAX PHOTONICS, RECI, JPT, NLIGHT, etc.

If you need further assistance or high-quality replacement parts, don’t hesitate to reach out to our team of experts. We’re here to help you keep your fiber laser source in top condition!

Contact Us Today for Expert Support and Quality Parts!
