One Click Fiber Optic Cleaner Pen for LC 1.25mm

Disposable with 800+ cleanings per unit

Made from anti static resin

LC Cleaner Pen, universal 1.25 mm


  • Item NO.:

    X-2005
  • Product Origin:

    CHINA
  • Color:

    Standard
  • Shipping Port:

    Shanghai/Shenzhen
  • Lead Time:

    3 Working Days
Product Details

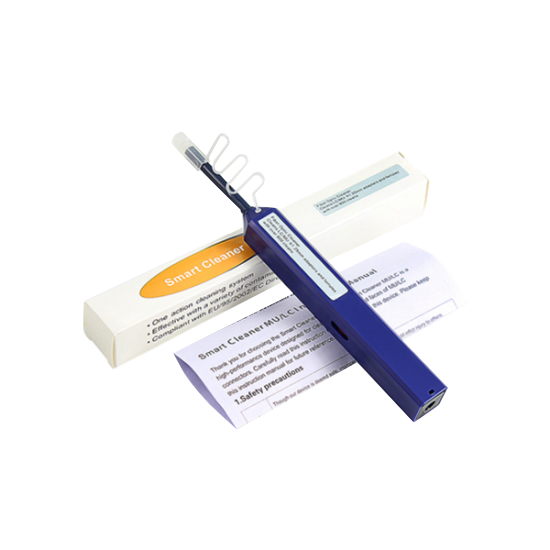

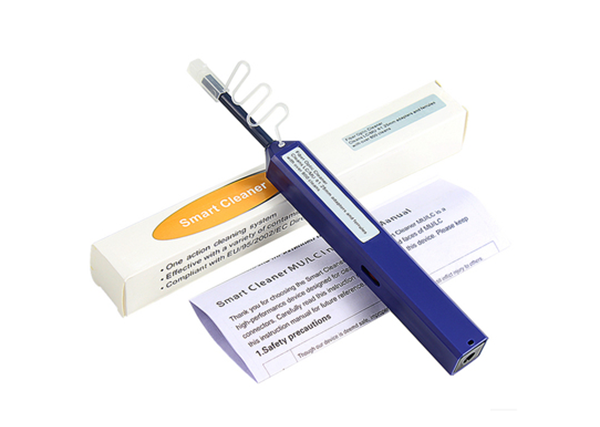

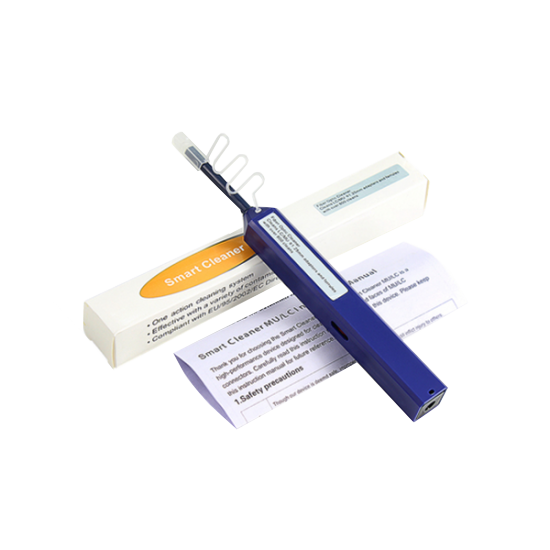

One Click Fiber Optic Cleaner Pen for 1.25mm LC


The 1.25mm One-Click Cleaner is an easy-to-use option for cleaning connectors in adapters. Simply insert the One-Click Cleaner into an adapter and push until an audible "click" is heard. The Fiber Optic Cleaner Pen used the mechanical push action to advance an optical grade cleaning tape while the cleaning tip is rotated to ensure the fiber end-face is effectively, but gently, cleaned.


Feature
· Disposable with 800+ cleanings per unit
· Made from anti static resin
· Cleaning micro fibers are densely standed and debris free
· Cleaning system rotates 180 for a full sweep
· Audible click when engaged
· Suitable for LC/MU, universal 1.25 mm.




Applicable Fiber Optic Connector & Adaptor

LC/MU,1.25mm

Dimensions(mm)

179*18mm

Function/Handling type

One-Push

No. of Cleanings

>800times

 Cleaning Method

Dry (Cleaning the Zirconia ferrule endface with cleaning cloth, with no chemical or solvent)


Request a Free Quote

Now Shinho's products and services are widely applied to communication engineering, home network, optical device production, scientific research,etc. They are exported to Europe, North America, Africa, South America and other Asian countries. Any inquiry, please feel free to contact us!
