With the rapid development of 5G, data centers, and FTTH networks, ribbon fiber has become increasingly popular in backbone and metropolitan area networks due to its high density and improved construction efficiency. Compared with traditional single-fiber splicing, ribbon fiber allows multiple fibers (typically 4, 8, 12, or more) to be spliced simultaneously, greatly increasing productivity. However, it also requires higher precision and stricter operational control.

1. Basic Principles and Advantages of Ribbon Fiber Splicing

Ribbon fiber arranges multiple optical fibers side by side in a flat ribbon structure, usually with a pitch of 200 μm or 250 μm. Splicing is performed with a dedicated ribbon fusion splicer that uses V-grooves to hold and align multiple fibers for simultaneous fusion.

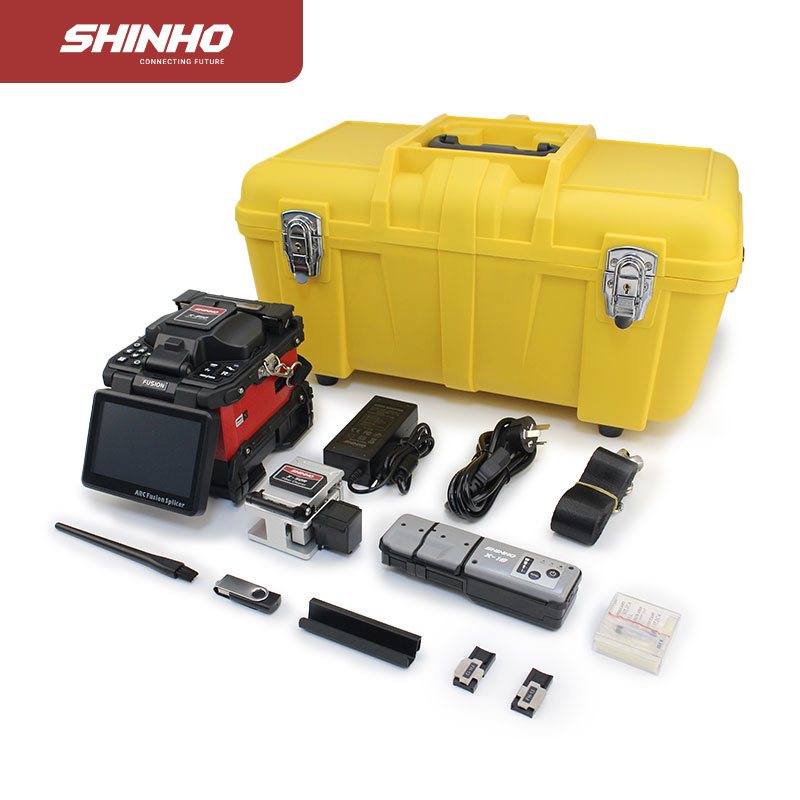

A representative example is the Shinho X950 fusion splicer, which supports splicing of 2–16 fibers and is supplied with a thermal stripper, cleaver, and other preparation tools. Its low splice loss makes it a dependable option for high-density optical network construction.

The main advantages of ribbon fiber splicing include significantly faster splicing through simultaneous multi-fiber processing, low average splice loss (typically below 0.1 dB per fiber), and suitability for high-density cable deployment. At the same time, inadequate preparation or incorrect operation can result in inconsistent loss among fibers, end-face contamination, or fiber breakage.

2. Pre-Splicing Preparation

Preparation is the most critical stage because it directly affects the splice success rate.

Environmental Control

Choose a clean, wind-free, dust-free environment with relative humidity below 70%, such as an indoor workspace or dedicated splicing tent. Dust and airflow can easily contaminate fiber end-faces and lead to splicing failures. Keep the workstation organized and have alcohol, lint-free wipes, and cleaning brushes ready before starting.

Tools and Materials

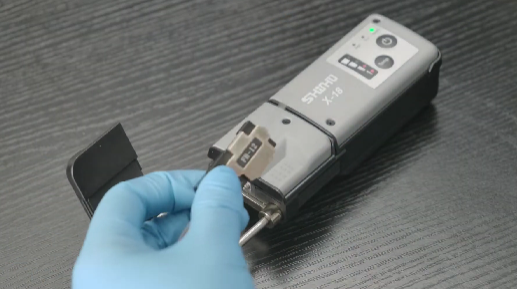

Prepare a ribbon fusion splicer with the appropriate ribbon holders or clamps, a thermal stripper to minimize mechanical damage during coating removal, a ribbon-specific precision cleaver, properly sized heat-shrink sleeves, high-purity isopropyl alcohol (99% or higher), fiber cleaning solution, and testing instruments such as an optical power meter or OTDR.

Fiber Pre-Treatment

Expose roughly one meter of ribbon fiber from the cable by removing loose tubes and filling compounds. Use the thermal stripper to remove the coating uniformly, typically over a length of 30–40 mm. Clean the fibers thoroughly with alcohol until all coating residue, dust, and oil are removed. Because the fibers are connected in a ribbon structure, contamination on a single fiber can affect the entire ribbon. Finally, use a fiber arranging tool to ensure consistent spacing between fibers and to eliminate twisting or crossing.

3. Key Operational Considerations During Splicing

End-Face Quality Control

The fiber end-face must be flat, perpendicular, and free from cracks, burrs, or lip defects. A ribbon-specific cleaver should be used to cleave all fibers simultaneously, producing consistent bare fiber lengths of approximately 10–15 mm. After cleaving, place the fibers into the splicer immediately to avoid secondary contamination.

Clamp Installation and Alignment

Select the correct V-groove according to the ribbon pitch (200 μm or 250 μm). Insert the ribbon so that it lies flat and is not reversed. Modern fusion splicers, including models such as the Shinho X950, generally provide automatic alignment, but operators should still verify alignment visually through the microscope. Close the clamps gently to avoid crushing the fibers.

Splice Parameter Settings

Adjust parameters such as pre-arc current, splice current, and feed amount according to the fiber type (for example, G.652 or G.657) and the ambient temperature. Many advanced splicers include intelligent optimization features, but following the manufacturer's preset recommendations is advisable during initial operation. During fusion, observe the splice image to confirm that the splice point appears round, symmetrical, and free from bubbles or deformation.

Heat-Shrink Protection

Immediately position the heat-shrink sleeve over the splice and place it in the heater. Some splicers provide dual heaters to improve efficiency. Allow the sleeve to cool naturally after heating and verify that it has shrunk evenly, contains no bubbles, and provides secure mechanical protection.

Color Sequence and Labeling

Follow the standard fiber color code sequence carefully to avoid misconnection. Apply clear labels or color identification after splicing to simplify future maintenance and troubleshooting.

4. Common Issues and Troubleshooting

High splice loss is often caused by contaminated end-faces, poor cleaving, alignment errors, or incorrect splice parameters. The recommended corrective action is to clean, recleave, and re-splice the fibers. Fiber breakage commonly results from stripping damage, excessively small bending radii, or excessive clamp pressure. Inconsistent loss across multiple fibers is usually associated with pitch mismatch or uneven fiber arrangement; pitch-conversion holders can help address this issue. Equipment alarms may indicate contamination in the V-grooves, on the electrodes, or on the lenses, so regular cleaning and monitoring of blade and electrode life are essential. After each ribbon splice, perform bidirectional OTDR testing and re-splice any fiber whose loss exceeds 0.3 dB.

5. Equipment Maintenance

Daily maintenance should include cleaning the V-grooves, electrodes, and observation lenses, as well as replacing consumable parts at the recommended intervals.

Conclusion

Successful ribbon fiber splicing depends on four fundamentals: cleaning, cleaving, alignment, and protection. By following standardized procedures and maintaining proper equipment, technicians can achieve efficient, low-loss splicing that improves network performance and reduces long-term maintenance costs. In practical projects, targeted practice with the specific fusion splicer model and fiber type being used, along with careful reference to the manufacturer's technical documentation, will help ensure consistent, high-quality results.
