Type introduction of Fusion Splicer--Shanghai Shinho Communication

2023-08-04

What is fiber splicing machine?

The fiber splicing machine is a special design for the installation, operation and maintenance of optical fiber as a precision, durable, convenient optical fiber construction instrument.

What does a fiber splicing machine do?

fiber splicing machine is used for combining or splicing two optical fibers end-to-end via fusion. The objective here is to fuse the fibers together in such a way that no light is reflected or refracted, and having the spliced fiber be as strong as the regular fibers.

Types of optical fiber fusion splicers:

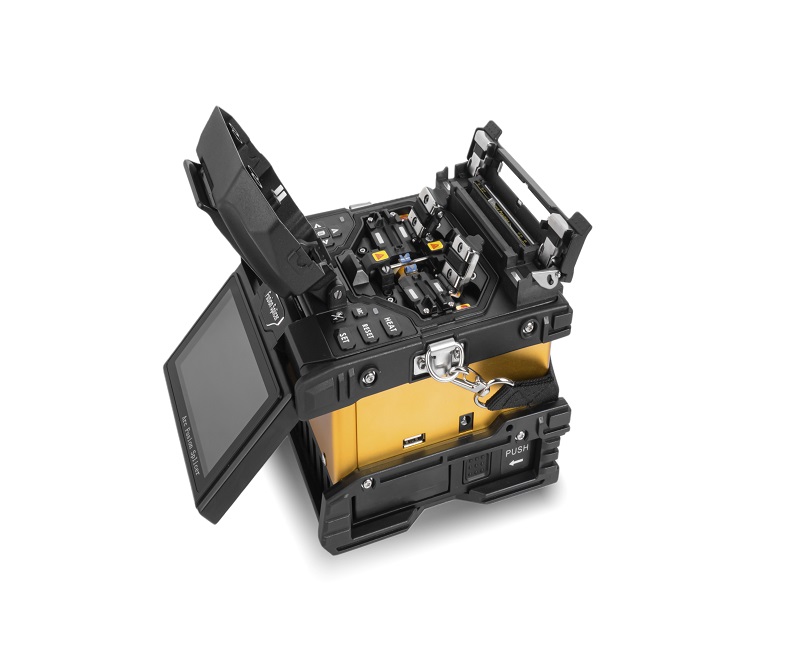

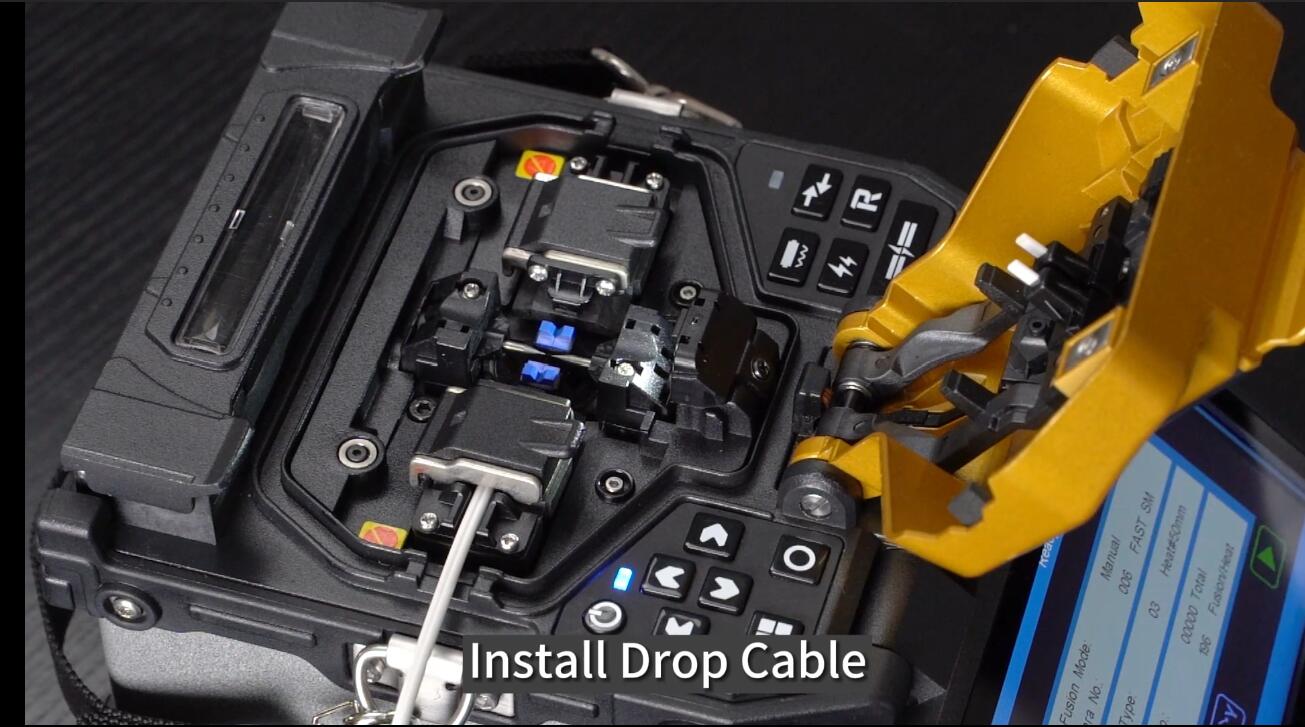

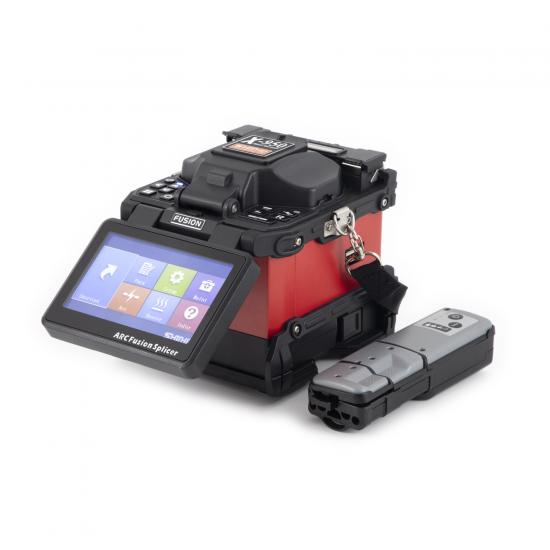

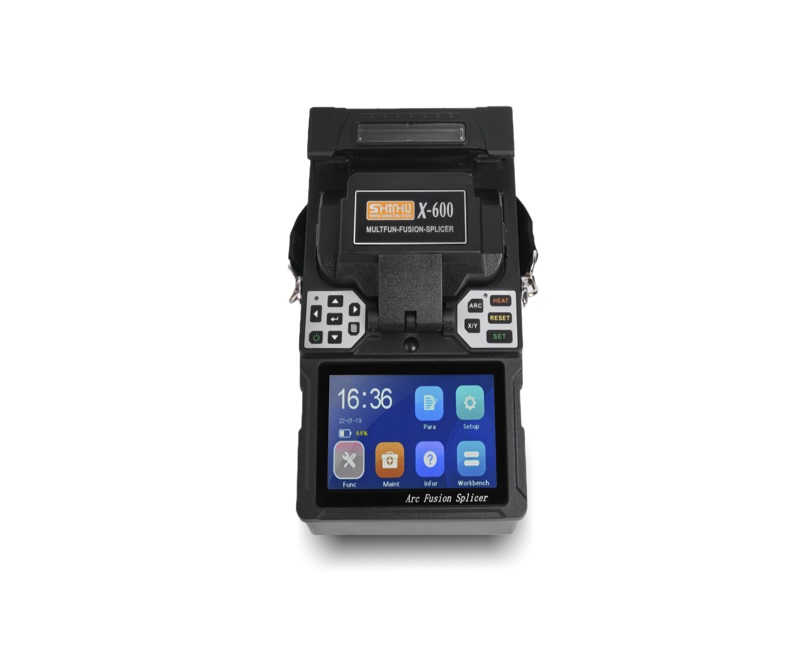

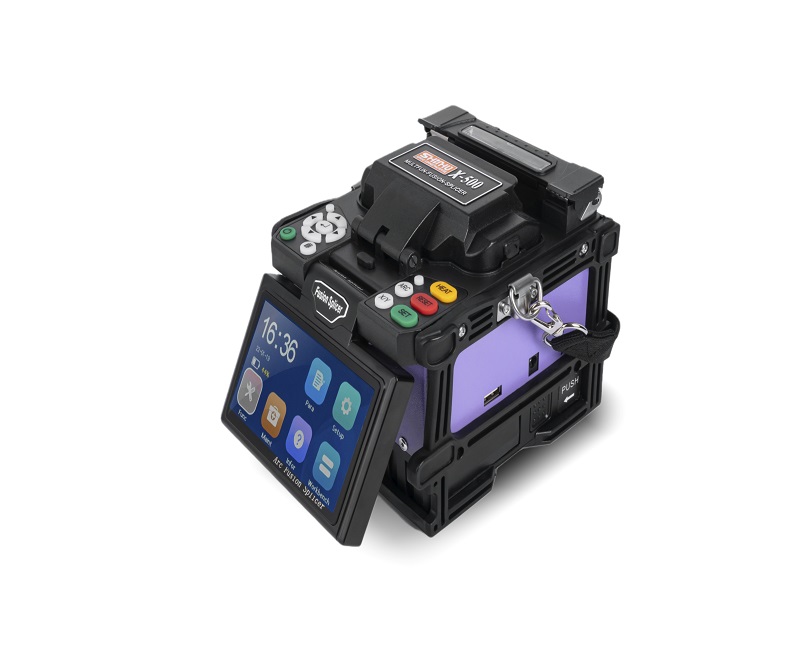

Single Fusion Splicer: These can only split two fibers at a time One fiber is stripped and cleaned and inserted into the machine. The same process is used for the second fiber. The splicer can take up to 10 seconds to cut the fibers and will also give an estimate of the loss of light. Single fiber splicers can splice fibers between 250 and 900-Micron, flat drop cables and splice on connectors.

Mass Fusion Splicer（Ribbon Fusion Splicer）: Mass Fusion Splicers can Splice 1 To 12 Fibers At A Time. They are not as popular as single fiber Splicers, but if you need to split more than one fiber at a time, they can be very efficient.

Polarization Maintaining (PM) Fiber Fusion Splicer : is specially designed for Panda ,bow-tie and elliptical fibers.Used in Optical fiber communication, optical fiber sensing, optical fiber laser and other fields .

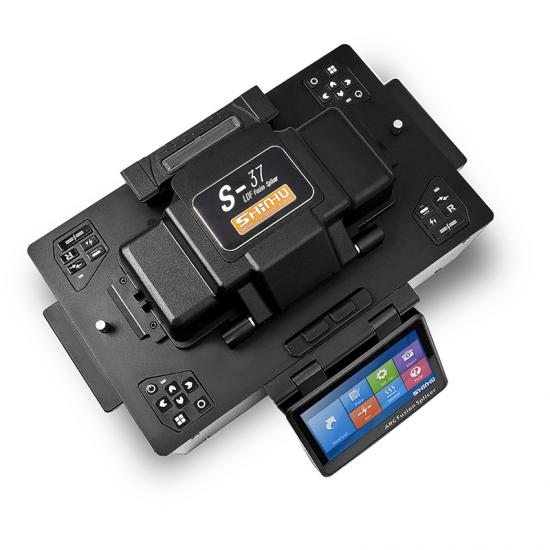

Large Diameter Fusion Splicer LDF Speialty Fiber Fusion Splicer:is designed for cladding diameter above 125μm fibers.

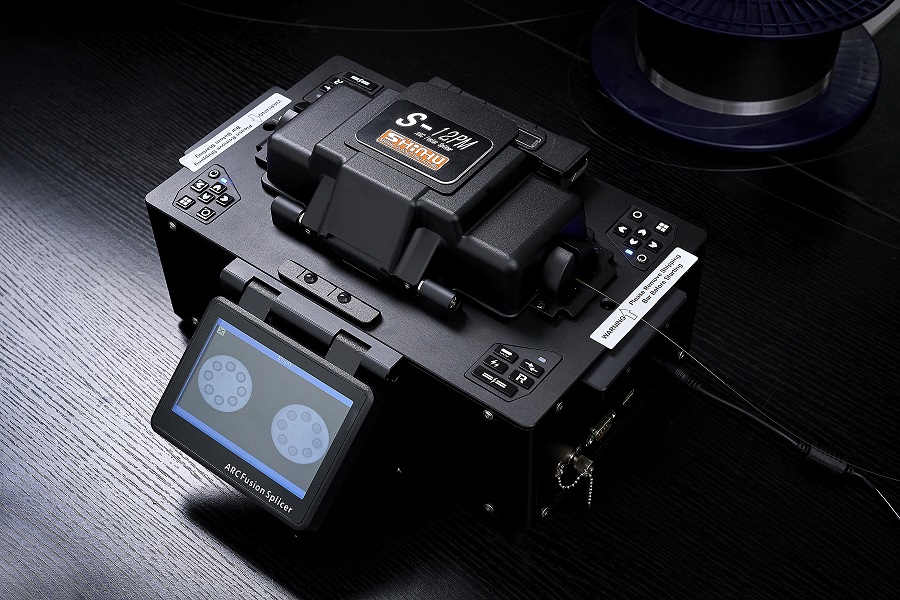

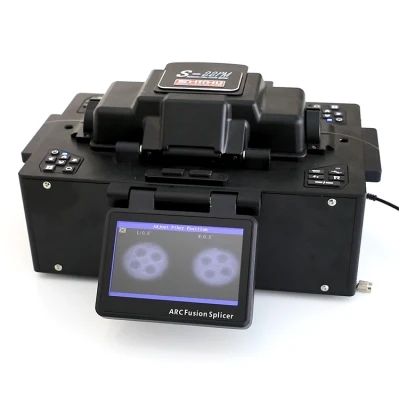

Multi-Core Fiber Fusion Splicer:is designed to splice the multi-core fibers,applicable for 1,2,4,6,7,8 Cores Fiber.

Core Alignment Fusion Splicer:

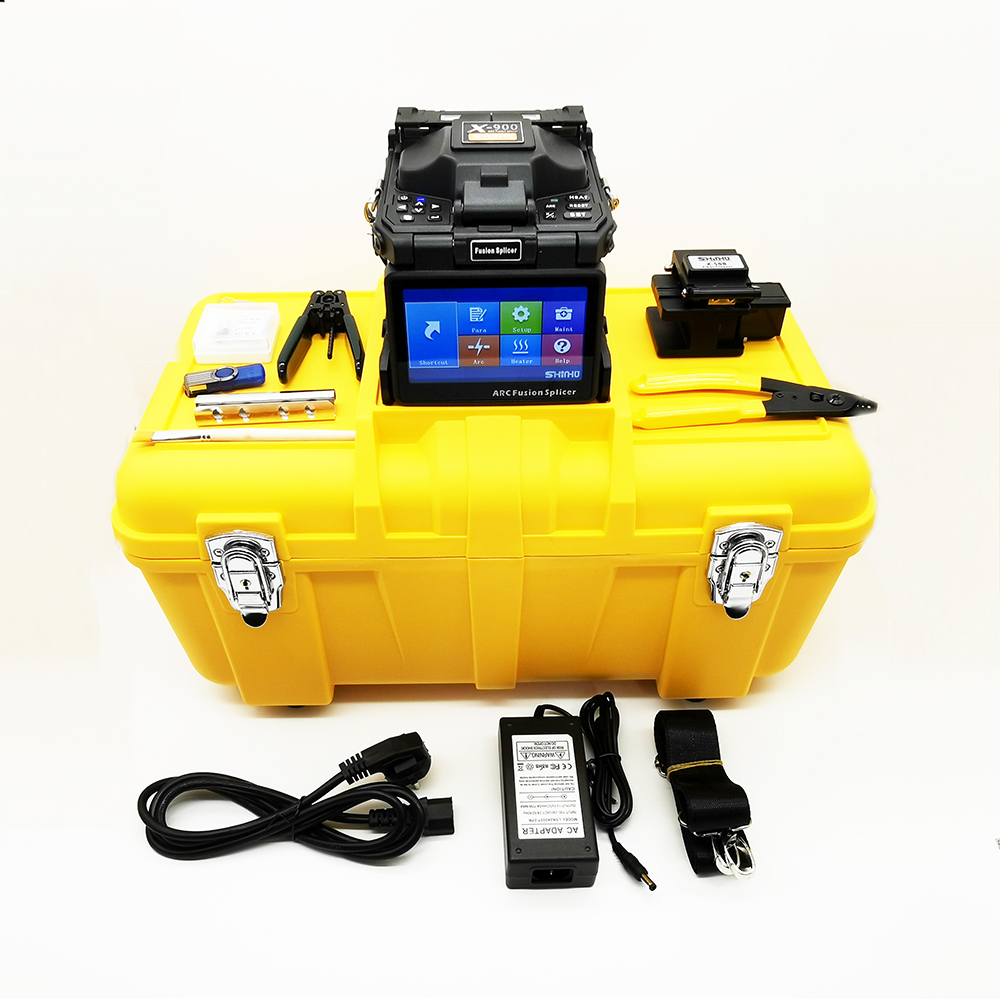

This is the most commonly used Fusion Splicer technology. It uses light and image detection to look at the fiber cores to measure and monitor the core position while aligning the fiber cores. This gives a precise fiber alignment, with a typical loss of only 0. 02db. Although this technology is expensive, it is also powerful, flexible, and efficient.

Cladding Alignment Fusion Splicer

Basic Fusion Splicers use Cladding Alignments to Line The Fibers. They sit in a V-groove and are lined up based on the outer diameter. This is a fast method of splicing and it is low cost, which is why it is usually used on low cost Fusion Splicers. Even if the outer diameters are aligned, it does not mean that the fibers are perfectly aligned, which leads to higher losses. Being a low-cost solution also means that it lacks the features of a higher-end splicer.
