Key application areas of Polarization-Maintaining Fiber (PMF)

2025-07-18

1. Fiber Optic Sensing:

Interferometric Sensors: Used in Sagnac, Mach-Zehnder, and Michelson interferometers for measuring rotation (gyroscopes), strain, pressure, temperature, acoustic waves, and magnetic/electric fields. PMF ensures stable interference patterns by preserving the polarization state of the light.

Current Sensors (Fiber Optic Current Transformers - FOCTs): Measures electric current based on the Faraday effect. PMF is crucial for maintaining the linear polarization required for accurate measurement.

Distributed Acoustic Sensing (DAS) / Distributed Temperature Sensing (DTS): Certain advanced configurations use PMF to improve signal-to-noise ratio and polarization stability over long distances.

Polarimetric Sensors: Directly measure changes in the polarization state induced by external parameters (strain, temperature, pressure) on the PMF itself.

2. Fiber Optic Gyroscopes (FOGs): This is a major application. PMF is used in the sensing coil (Sagnac interferometer) of high-performance FOGs (especially navigation and tactical grade) to minimize polarization-induced signal drift and noise, significantly improving bias stability and accuracy.

3. Quantum Communications & Quantum Key Distribution (QKD): Transmitting photonic qubits often requires maintaining specific polarization states (e.g., in BB84 protocol). PMF links are essential for connecting components within QKD systems and for deployed quantum communication channels to preserve the quantum state of photons over distance.

4. Coherent Optical Communications: In advanced modulation formats (like DP-QPSK), PMF is used internally within terminal equipment (transmitters, receivers, amplifiers) to connect components like modulators, local oscillator lasers, and polarization beam splitters/combiners where precise polarization control is critical. It's generally not used for the long-haul transmission fiber itself.

5. Pump Combiners for High-Power Fiber Lasers/Amplifiers: Combining pump laser diodes efficiently often requires maintaining the polarization of the pump light. PMF pigtails are used on pump diodes and within pump combiners.

6. Polarization-Sensitive Components Interfacing: Connecting devices like integrated optic modulators (LiNbO₃ modulators), polarizers, polarization beam splitters/combiners, and certain types of detectors often requires PMF pigtails to ensure the input/output light has the correct, stable polarization state.

7. Test & Measurement Equipment: PMF is extensively used within optical test instruments (e.g., optical component analyzers, tunable lasers, power meters with polarization sensitivity) to ensure stable and defined polarization conditions for accurate measurements.

8. Medical Devices (Specialized): Certain fiber-based medical imaging and sensing techniques (e.g., polarization-sensitive optical coherence tomography - PS-OCT) may utilize PMF to deliver and collect light with controlled polarization states.

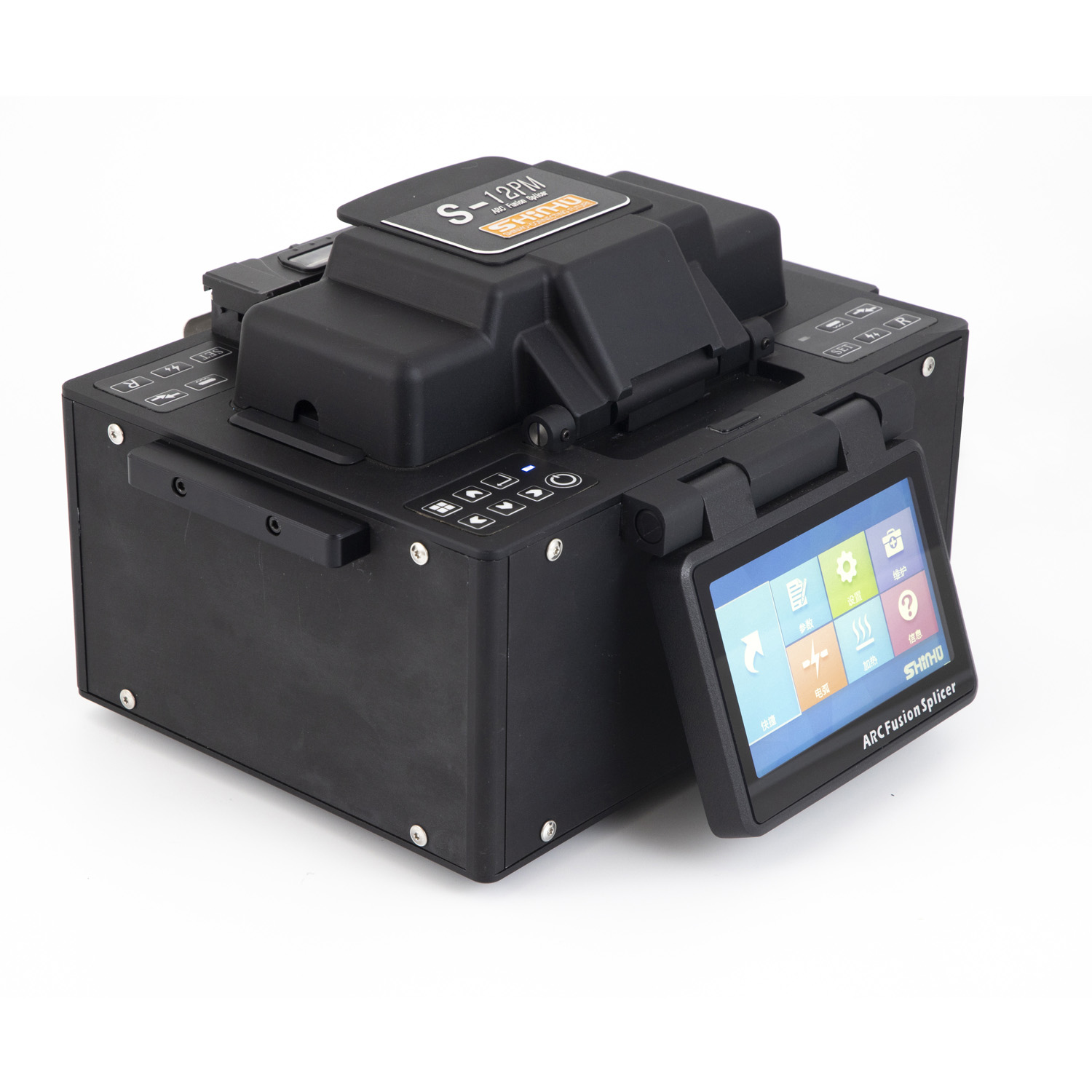

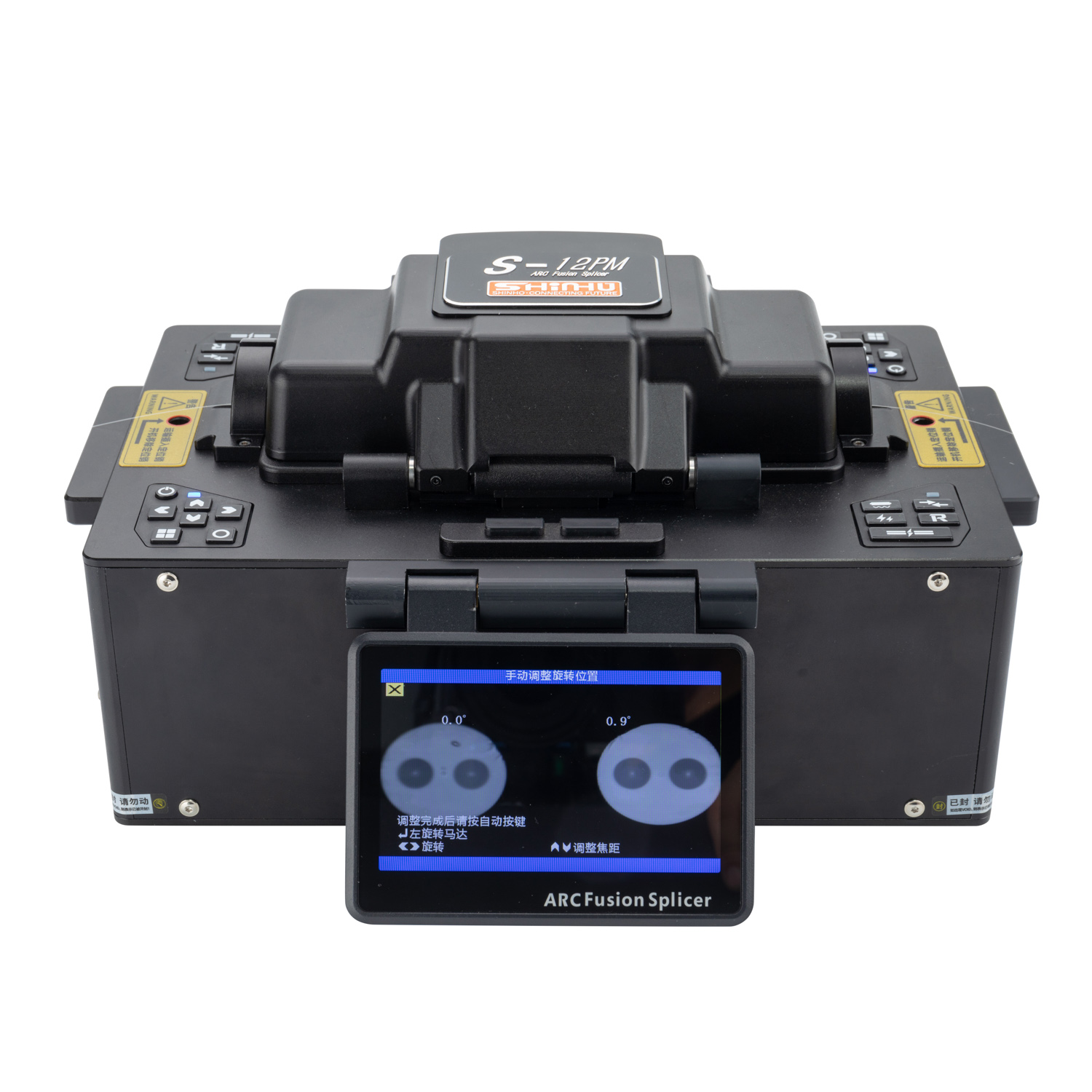

Shinho S-12PM Fiber Fusion Splicer,Endview and Profile observation and alignment,it has very stable performance and low fusion loss, it is specially designed for Panda ,bow-tie and elliptical fibers.
