Large Diameter Splicing System

2024-03-01

The rapid development of photonic technologies has created the need for sophisticated optical products well outside the "telecom standards." User requirements and specifications for these photonic components are both increasingly diverse and technically challenging. Large diameter fibers (> 125 µm standard telecom fibers) are used in a variety of applications such as laser systems, medical devices and sensors.

Designed for reproducibility, precision, and user-friendly operation, the Large Diameter Splicing provides the user a manufacturing approach to optical component product development. Its extreme flexibility will enable customers to realize current and future glass processing and fusion splicing needs. Currently for large diameter splicing there are mainly: Fitel S178LDF, FSM100M, Shinho S-37.

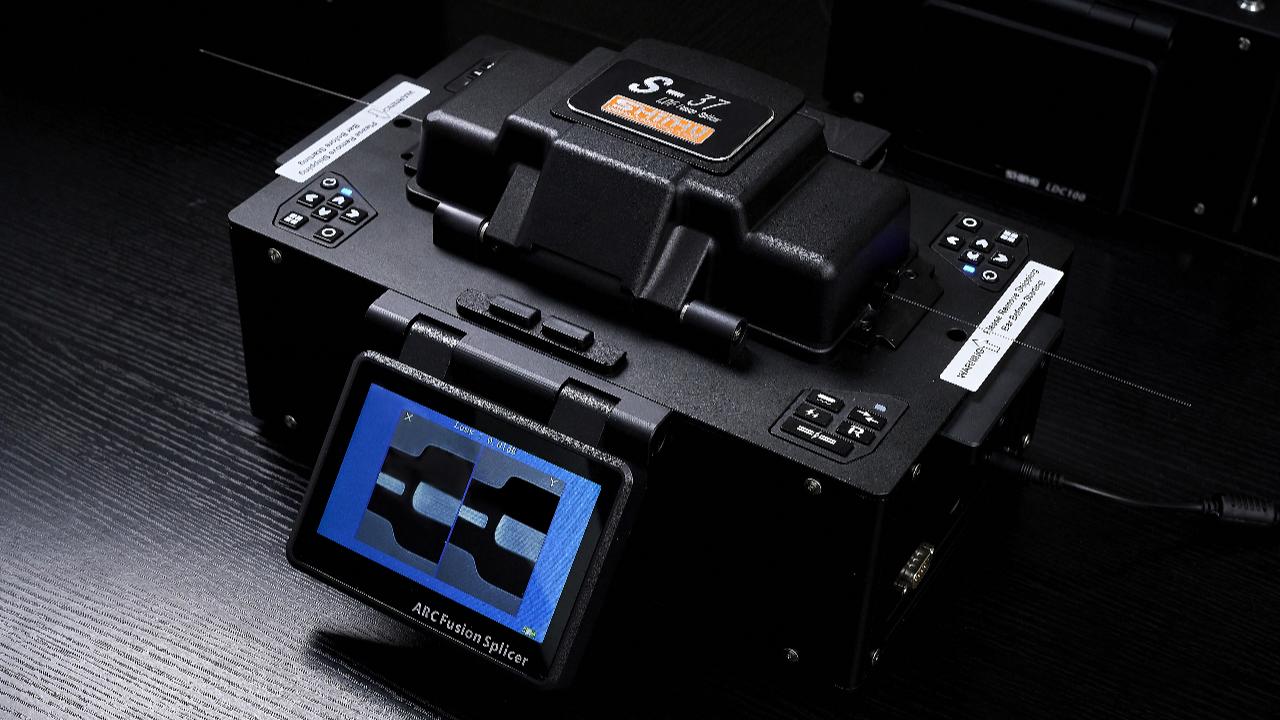

Precision mechanical design, coupled with powerful, high contrast optics makes Shinho S-37 quite different. It is robust and compact; S-37 machine handles fiber diameters from 125 µm to 500µm, as well as optics such as prisms and lenses, with alignment and fusion of unsurpassed quality;it can splice large-diameter fibers with only 30 seconds for one splicing(testing of 400μm cladding diameter) and can be used for the production of kilowatt-level fiber lasers.

Shinho S-37 device is particularly advantageous for service teams that travel worldwide for laser manufacturers. Combined with SHINHO LDF cleaver LDC100, it is the perfect splicing equipment.

Following is the datasheet of Shinho S-37 LDF splicing machine, If you have any demand, welcome to contact us.

Alignment Method	Core to core
Applicable Fiber	SM/MM/DS/NZDS/EDF/DCF/LDF
Typical Splicing Loss	SM: 0.03dB; MM: 0.02dB; DS:0.05dB
Cladding Diameter	125~ 500µm
Coating Diameter	250~800µm
Return Loss	>60dB
Splicing Program	40 modes
Operation Mode	Manual/ Auto
Heating Mode	Manual/Auto
Typical Splice Time	30 seconds(Tested of cladding diameter 400µm)cladding
Typical Heating Time	Typical 30s, could customize
Fiber Magnification	100~200X adjustable
Viewing Display	Dual high sensitivity camera,5”HD color LCD Monitor
Data Storage	8000 groups fusion records and 100 groups fusion images
Cleaved Length	13~15mm (standard:13mm)
Tension Test	30N( Use high-strength welding accessories and coating for clamping)
Interface	GUI menu interface, easy for operation
Power Supply	Adaptor, input: AC100-240V(50/60Hz), output: DC11-13.5V,10A
Electrode Life	125µm: 3000 arcs; 250µm: 1000 arcs
Terminal	USB 2.0 port, for software upgrading, records exporting, RS232 port, output signal customizable
Operating Condition	-10℃ ~+50℃
Storage Condition	-20°C~+60°C
Dimension/Weight	330mm(L)×205mm(W)×170mm(H) /6.1kg
