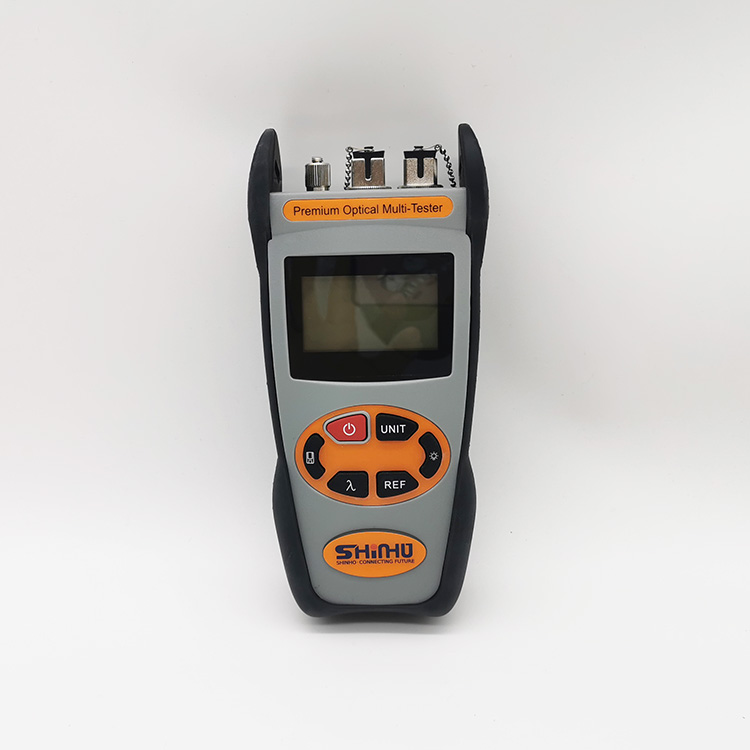

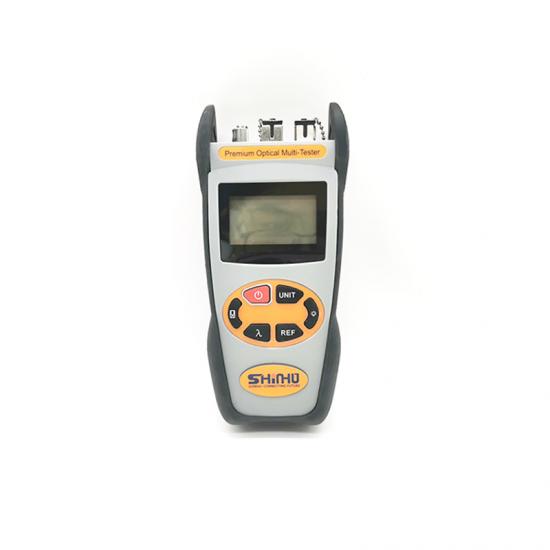

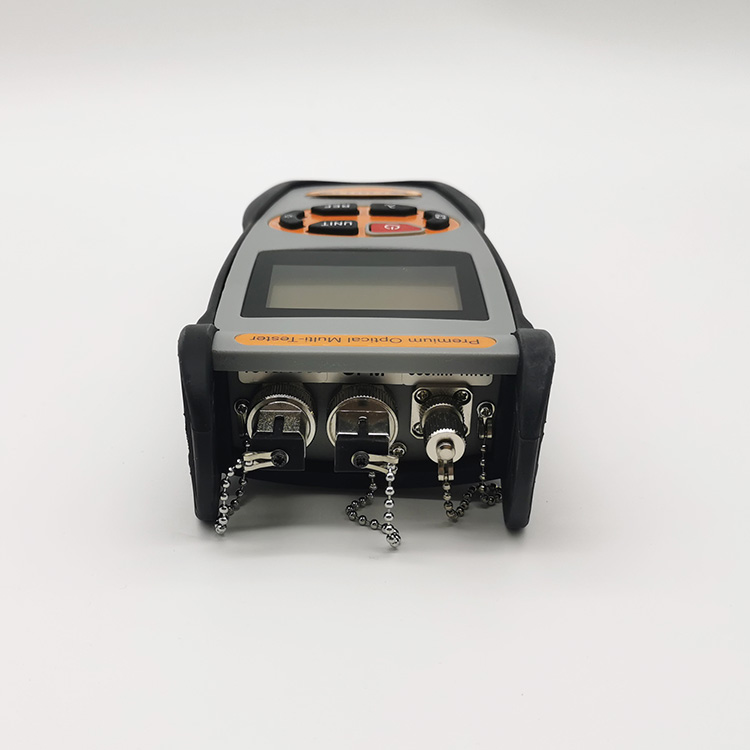

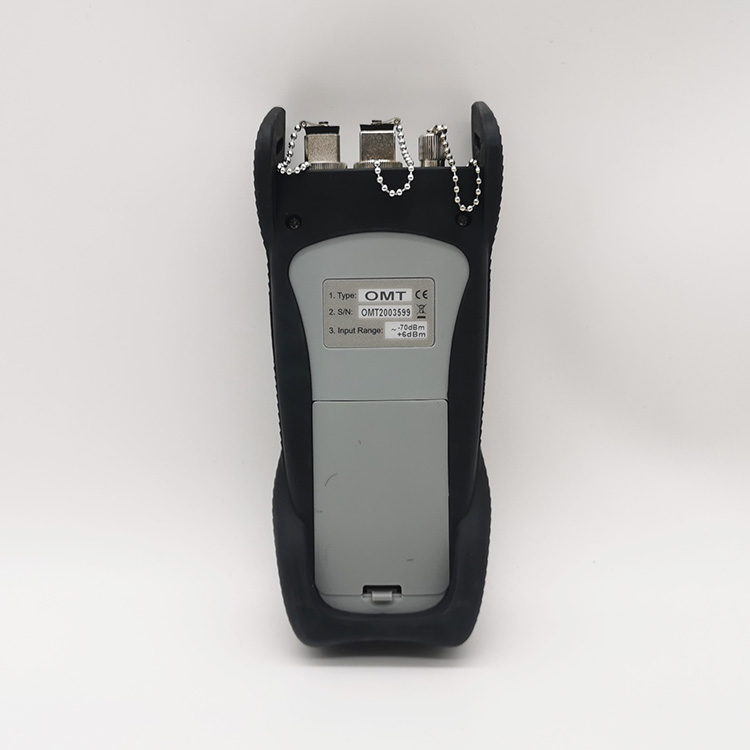

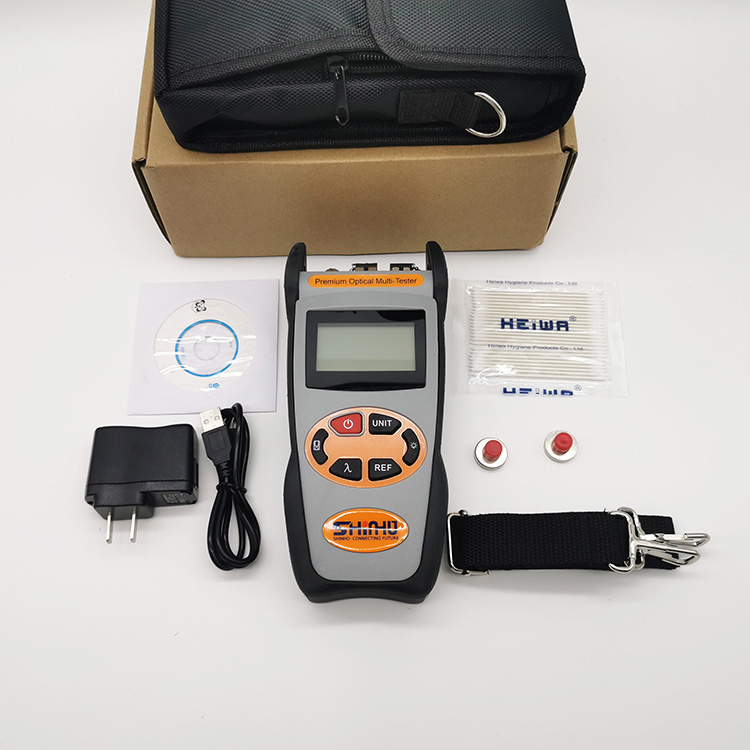

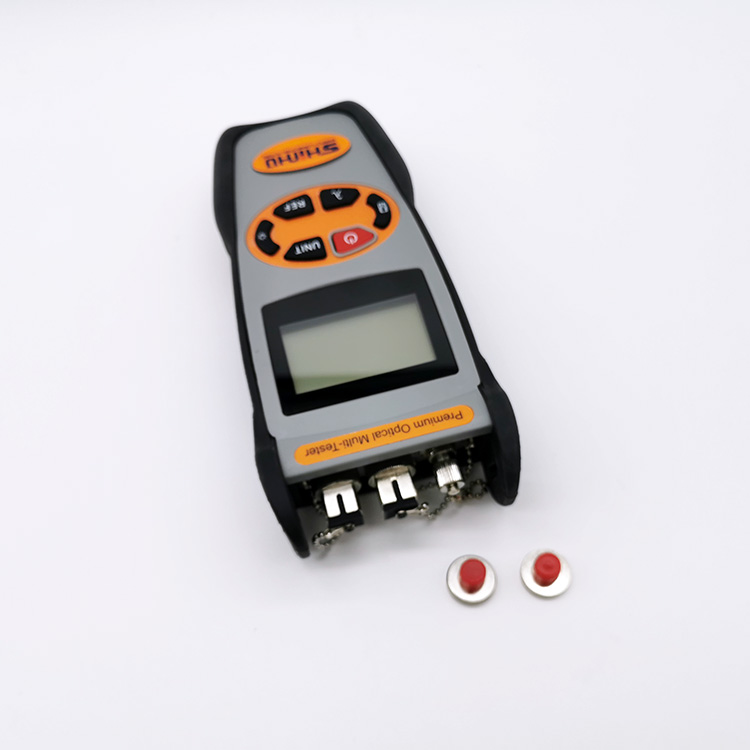

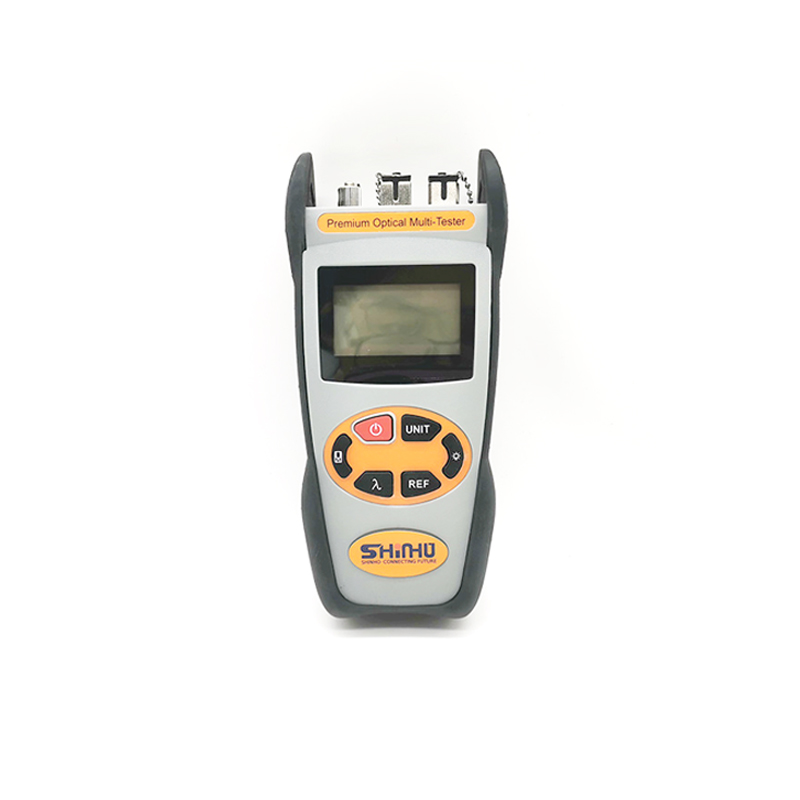

Handheld Optical Multi-tester X5011

This series Optical Multi Tester is built Optical Power meter, Optical Light Source and Visual Fault Locator these three functions into one tester, very convenient for the users.


Power measurements in dBm or mw and insertion loss in dB

More than 240 hours continual operation time

Apply to maintenance in Telecom & CATV, Fiber Optic Lab Testing etec.


  • Item NO.:

    X-5011
  • Product Origin:

    CHINA
  • Color:

    Standard
  • Shipping Port:

    Shanghai/Shenzhen/Guangzhou
  • Lead Time:

    in 3 working days
Product Details


Optical Power Meter X-5011


SHINHO X-0511 Optical Multi Meter is a handheld and intelligent instrument, which can be used as optical power meter and stabilized light source, and can constitute integral test system. It is an updated version of a popular in the industry optical power meter.It is specifically designed for technical support personnel to take a variety of instruments with a single meter.This series Optical Multi Tester is built Optical Power meter, Optical Light Source and Visual Fault Locator these three functions into one tester, very convenient for the users.

Features

  • OPM/OLS/VFL three functions built into one tester
  • OPM can identify the wavelength of the OLS automatically

  • OLS Frequency:270Hz,1000Hz,2000Hz

  • Low battery consumption, more than 240 hours continual operation time;
  • Data storage function, up to 1000 test records

  • Applications: Maintenance in Telecom/ Maintenance in CATV/ Fiber Optic Lab Testing/ Other Fiber Optic Measurements
  • Operator easy


Specifications

Type

 X-5011-A

X-5011-C

Optical Power Meter Module

Detector Type

InGaAs

Measurement Range(dBm)

-70~+6

-50~+26

Uncertainty

5%

Calibrated wavelengths(nm)

 850,1300,1310,1490,1550,1625

Resolution(dB)

0.01

Date storage capacity

1000

Optical Connector

FC/SC/2.5mm universal, for LC we provide FC-LC Hybrid adaptor

Optical Light Source Module (Optional)

Emitter Type

FP-LD

Wavelengths(nm)

1310/1550

850/1300

Ouput Power(dBm)

≥-7

Spectral Width

≤10nm

Output Stability

±0.05dB/15mins;  ±0.1dB/ 8hours

Optical Connector

FC/ SC, for LC we provide FC-LC Hybrid adaptor

Visual Fault Locator (Optional)

Wavelength(nm)

650±10

Output power(mW)

1

10

General Specifications of Multi Tester

Power Supply

Alkaline Battery(3 AA 1.5V batteries)

Auto-off time

10mins

Operating Temperature(℃)

-10~+60

Storage Temperature(℃)

-25~+70
