Easy to identify the faults location.
Up to 8 fiber faults can be detected in each measurement.Automatic Pulse Width Control design to ensure a convenient operation.
Item NO.:
X-5005Price:
$500Product Origin:
CHINAColor:
StandardShipping Port:
Shanghai/ShenzhenLead Time:

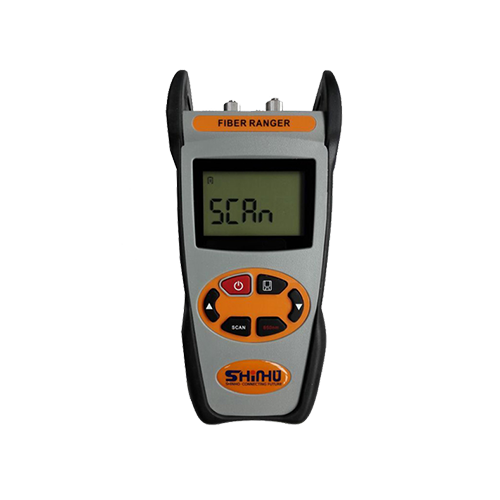

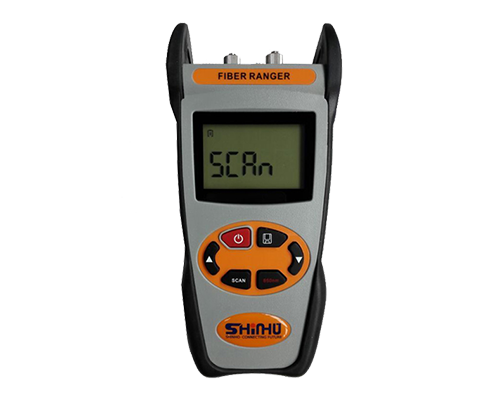

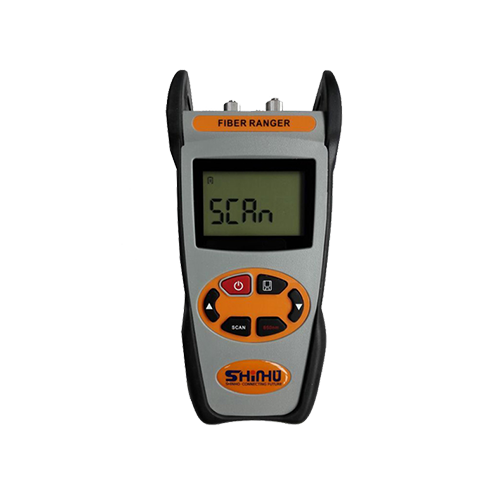

3 working daysOptical Fiber Ranger X-5005
Fiber Ranger X-5005 is the most portable test instrument in the industry. It adopts the OTDR technical principles and integrates the powerful analysis software, which enables the fiber ranger to detect fiber faults location more accurate and easy.
Features
Specifications
|
Operating Wavelength |
1550nm（1310nm Optional） |
|
|
Fiber Type |
9/125um SM Fiber |
|
|
Optical Connector Type |
FC/PC |
|
|
Detector Type |
InGaAs |
|
|
Peak Power of laser(mW) |
≥60 |
|
|
Max. Displaying Distance |
Reflection Event(km) |
60 (≥1dB) |
|
Non-reflection Event(km) |
20 (≥2.5dB) |
|
|
Measurement Unit |
M |
|
|
Reflection Event Dead Zone |
15m |
|
|
Distance Accuracy（Reflection Event） |
±（2m+2*10（-4）XDistance） |
|
|
Wavelength of VFL Option(nm) |
650 |
|
|
Output Power of VFL Option(mW) |
≥1mW |
|
|
Date storage capacity |
200 |
|
|
Communication Port |
USB |
|
|
Power Supply |
Alkaline Battery (3pcs AA 4.5V Batteries) |
|
|
Battery Operating Time |
≥5000 measurements |
|
|
Working Temperature(℃) |
-5~40 |
|
|
Storage Temperature(℃) |
-10~60 |
|
|
Humidity |
0~85%（Non-condensation） |
|
|
Dimensions(mm) |
200 X90 X50 |
|
|
Weight（g） |
320 |
|
Standard Accessories
| NO. | ITEM |
| 1 | PON power meter |
| 2 | Manual |
| 3 | Soft carrying case |
| 4 | 1.5V AA batteries |
| 5 | USB data line |
| 6 | Cotton swabs |
