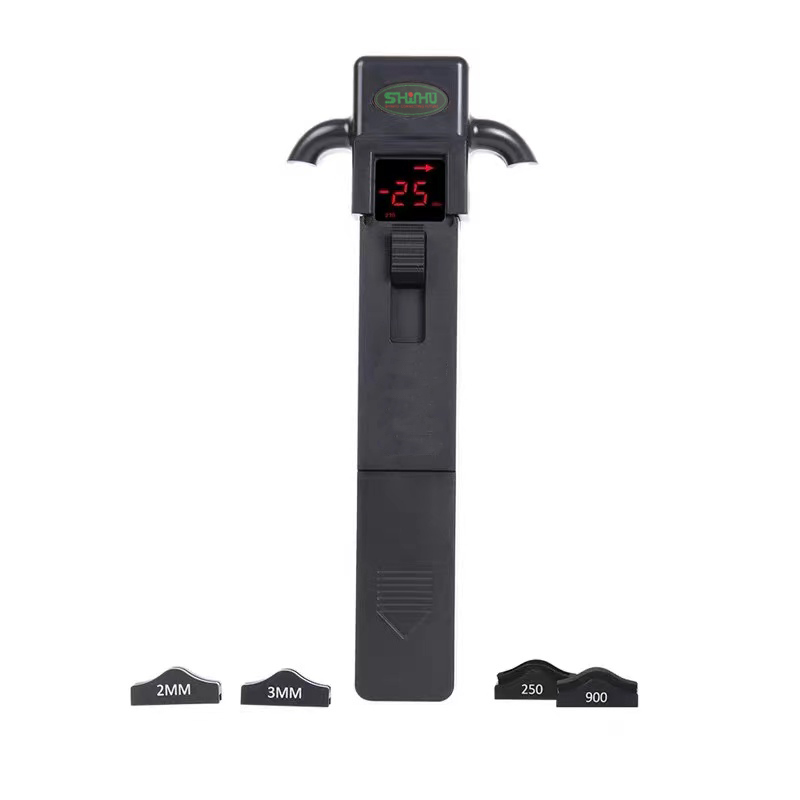

Optical Fiber Identifier X5004

Easy-to-replace adaptors

Durable metal housing and quality construction

Efficiently identifies the fiber transmission direction and frequency tone (270Hz, 1 KHz, 2 KHz) with audible warning





  • Item NO.:

    X-5004
  • Product Origin:

    CHINA
  • Color:

    Standard
  • Shipping Port:

    Shanghai/Shenzhen
  • Lead Time:

    3 working days
Product Details

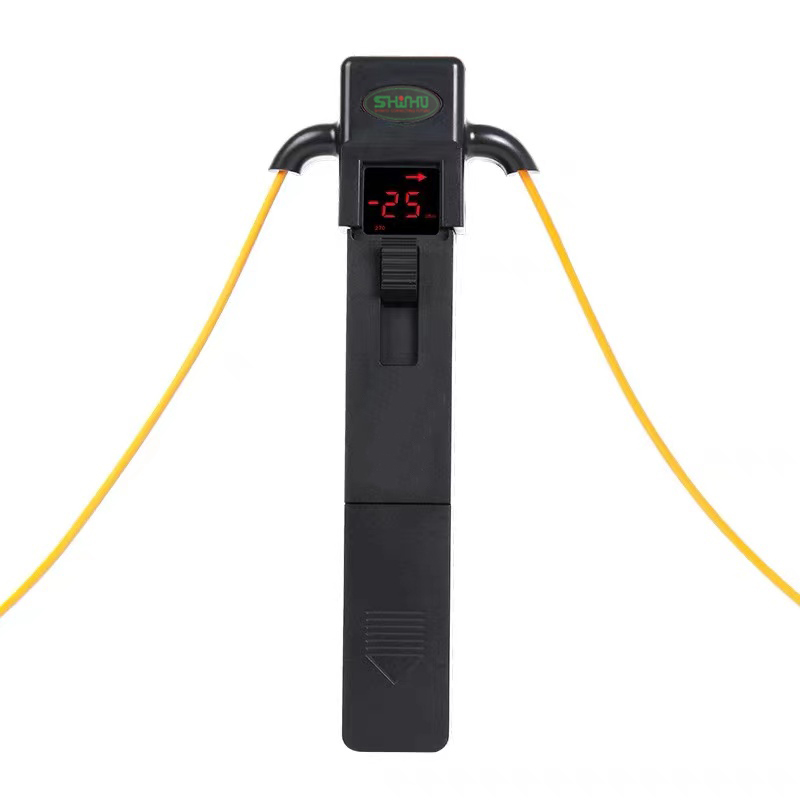

Optical Fiber Identifier X-5004



Features

  • Lower power indication

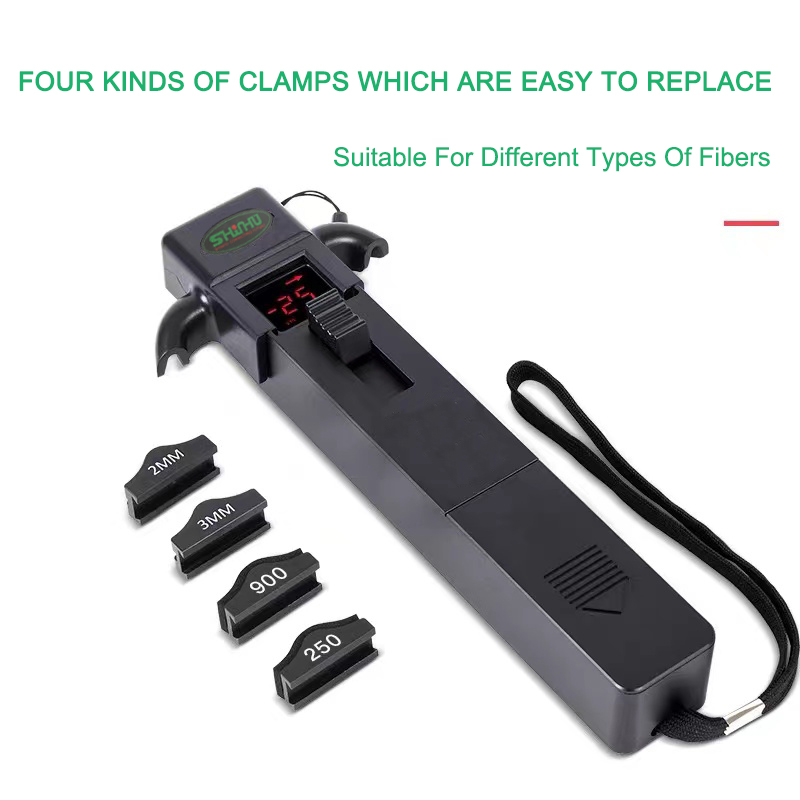

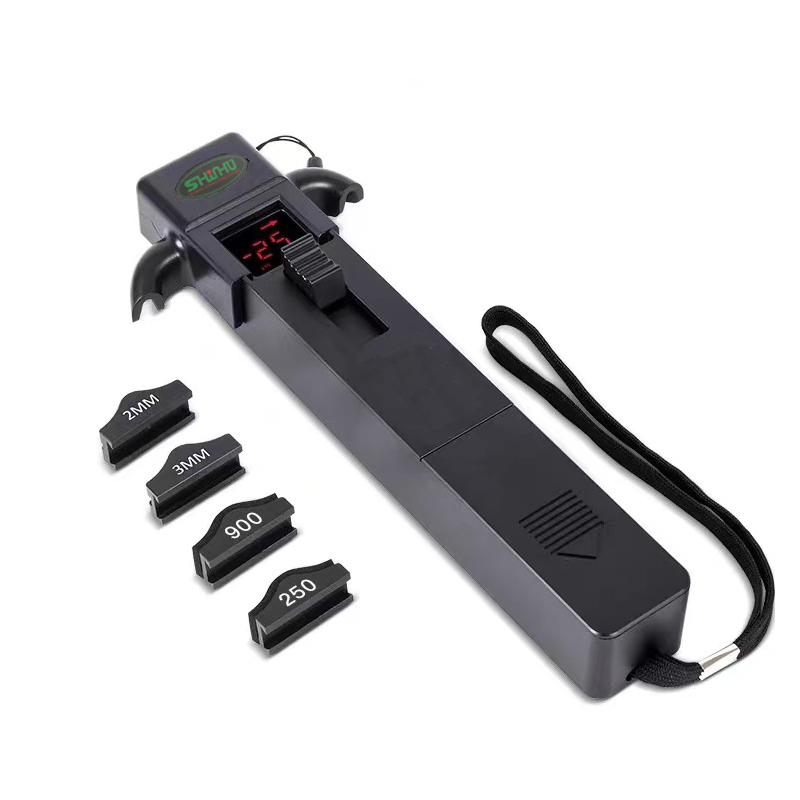

  • Easy-to-replace adapters

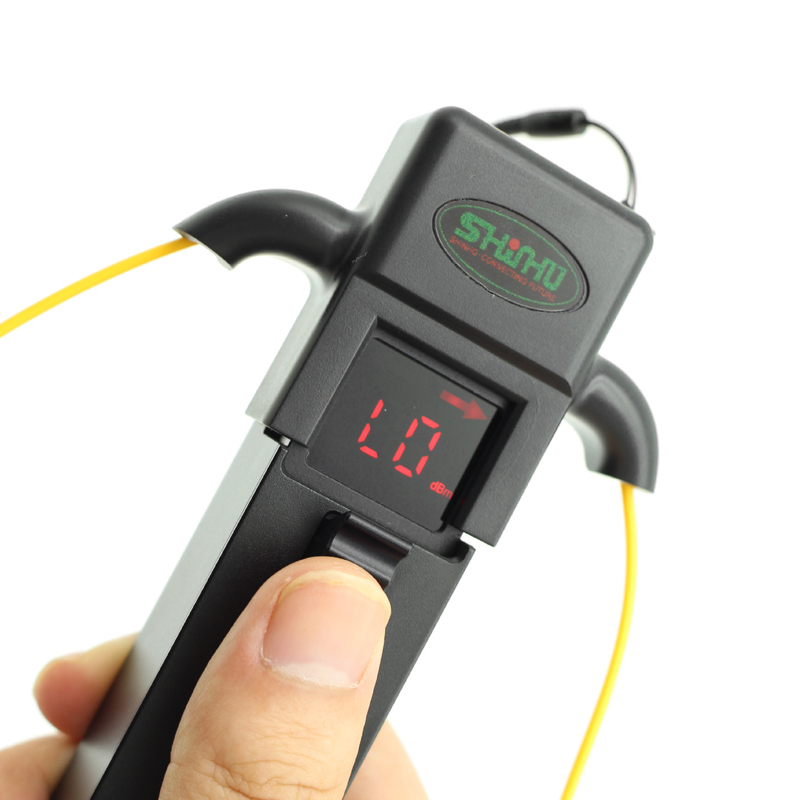

  • Easy-to-use with "ONE KEY" operation
  • Displays the relative core power
  • Durable metal housing and quality construction
  • Efficiently identifies the fiber transmission direction and frequency tone (270Hz, 1 KHz, 2 KHz) with audible warning



fiber identifier

Specifications

Identified Wavelength Range

800-1700 nm

Identified Signal Type

CW, 270Hz±5%1kHz±5%2kHz±5%

Detector Type

Ø1mm InGaAs 2pcs

Adapter Type

Ø0.25 , Ø0.9, Ø2.0, Ø3.0

Signal Direction

Left & Right LED

Singe Direction Test Range

(dBm, CW/0.9mm bare fiber)

-46~10(1310nm)

-50~10(1550nm)

Signal Power Test Range

(dBm, CW/0.9mm bare fiber)

-50~+10

Signal Frequency Display (Hz)

270, 1k, 2k

Frequency Test Range

(dBm, Average Value)

Ø0.9, Ø2.0, Ø3.0

-30~0 (270Hz,1KHz)

-25~0 (2KHz)

0.25

-25~0 (1KHz,2KHz)

-20~0 (2KHz)

Insertion Loss

(dB, Typical Value)

0.8 (1310nm)

2.5 (1550nm)

Alkaline Battery(V)

2pcs AAA batteries

Operating Temperature(℃)

-70

Storage Temperature(℃)

-95

Dimension (mm)

196X30.5X27

Weight (g)

195

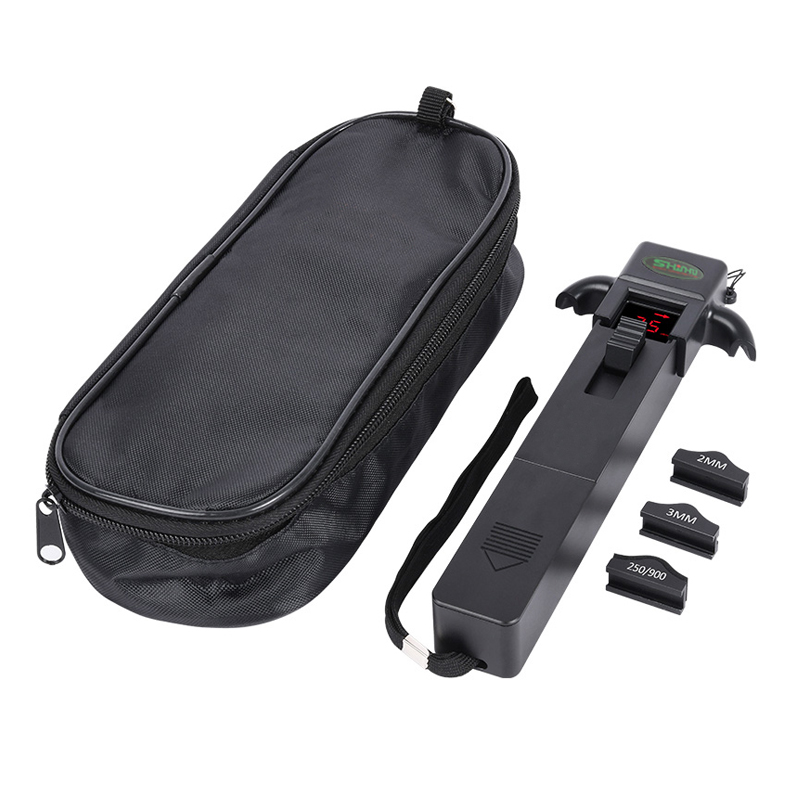

Standard Accessories

NO. ITEM
1 Fiber identifier
2 User manual
3 Soft carrying case
4 1.5V AA batteries


Why Choose us

1. Reliable product quality

1) Factory with ISO9001:2015 quality management system.

2) Strict quality control process from materials to finished products and package.

3) 100% testing and checking of products performance and package before delivery.


2. Satisfying after-sales service

1) Lifelong technical support. Any problem during using, we will offer guidance to solve the problem.

2) Quick feedback. Usually customers can get our reply within 1 hour, latest will be not over 10 hours.

3) 24 months warranty period. Within warranty period, all repair and replacement are for free.

4) Reasonable cost for repair & replacement. According to our experience, most problems could be solved by machine menu operation via our remote guidance, do not need repairing or replacement.


3. Industry technology leader

1) More than 20 years experience in the field. Keep developing & upgrading new technology.

2) The latest fiber core to core alignment technology, high level industrial standard design.

3) Different kinds fusion splicers cover all fiber splicing applications.


4. Strong production capacity

1) More than 10,000 units machines are produced every year.

2) Supply products to more than 50 countries and zones in the world.

3) OEM/ODM is available.


We are sincerely looking forward to building a business relationship with you!


Request a Free Quote

Now Shinho's products and services are widely applied to communication engineering, home network, optical device production, scientific research,etc. They are exported to Europe, North America, Africa, South America and other Asian countries. Any inquiry, please feel free to contact us!

Related Product
OTDR
Handheld Singlemode Multimode OTDR X60

Able to meet FTTx testing needs. Several wavelengths can be chosen. Large touch screen + shortcut keys, easy to operate Solid casing design, dustproof and shockproof.

power meter

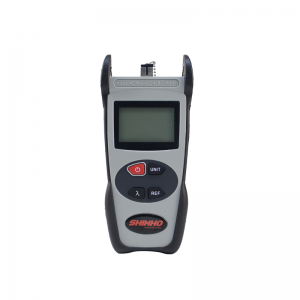

Handheld Optical Power Meter X5001

Power measurements in dBm or mw and insertion loss in dB More than 240 hours continual operation time Apply to maintenance in Telecom & CATV, Fiber Optic Lab Testing etec.

Optical fiber light source

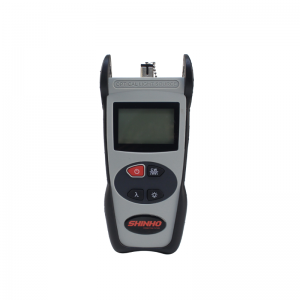

Handheld Optical Light Source X5002

850/1300nm, 1310/1550nm wavelength optional. Tone generation, 270HZ, 1KHZ, 2KHZ. Output power value is shown on LCD display.

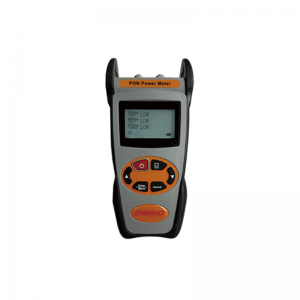

PON power meter
