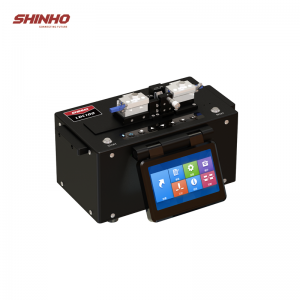

    LDC-100 Large Diameter Optical Fiber Cleaver * Applicable to cladding diameter 80μm~600μm fibers * Vacuum pump V-groove convenient to put fiber * Durable blade, lifetime more than 20000 times * Data storage 4000 groups * User friendly GUI menu, easy to operate more

  • Multi-Core Fiber Fusion Splicer

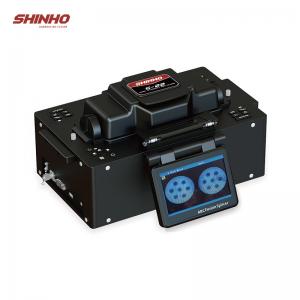

    S-22 Multi-Core Fiber Fusion Splicer The 1st Fully Automatic Multi-core Fiber Fusion Splicer in China more

  • PM fiber fusion splicer

    Polarization Maintaining (PM) Fiber Fusion Splicer S-12 * Core to core alignment, low splicing loss * Endview and Profile observation and alignment * Arc automatic calibration and splicing * PM fiber 45 and 90 degree alignment more

  • LDF Splicer S-37

    S-37 LDF Speialty Fiber Fusion Splicer SHINHO S-37 is the latest model we developed, it could splice fiber cladding diameter from 125 to 400μm with low splice loss. We equipped the machine with 3 different fiber holders, and 2 pairs of spare electrodes. more

  • ribbon fiber fusion splicer

    Ribbon Fiber Fusion Splicer X950 Ribbon fiber fusion splicer for single fiber and 2-12 cores fibers Accurate fiber alignment, low splicing loss Robust industrial design, easy to operate more

  • core alignment fusion splicer

    Core to Core Alignment Fiber Fusion Splicer X900 Six motors fusion splicer, real core to core alignment technology. 6s splicing, 18s heating, identify fiber types automatically. Used for WAN/ MAN/ Telecommunication projects. more

  • fiber optical splicing machine

    Robust Multi Function ARC Fusion Splicer S16 Robust industrial design, anti-shock, dust-proof and waterproof. Touch screen display, combined with keypad operation Multi function holder for bare fiber, patch cords, drop cable etc. Fast splicing and heating, automatic ARC calibration. more

  • Thermal stripper

    SHINHO X-18 Ribbon Fiber Thermal Stripper Shinho X-18 Thermal Stripper is a newly developed hand-held thermal stripper, specially designed for nondestructive thermal stripping of the jacket of ribbon cable up to 12 fibers. A good and reliable tool for ribbon fiber splicing work. more

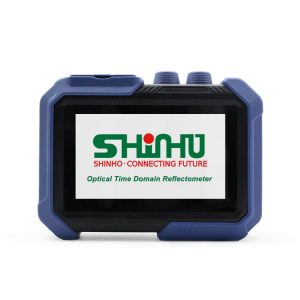

Handheld Singlemode Multimode OTDR X60

Able to meet FTTx testing needs.

Several wavelengths can be chosen.

Large touch screen + shortcut keys, easy to operate

Solid casing design, dustproof and shockproof.



  • Item NO.:

    X-60
  • Product Origin:

    CHINA
  • Color:

    Blue
  • Shipping Port:

    Shanghai/Shenzhen/Guangzhou
  • Lead Time:

    3 working days
Product Details

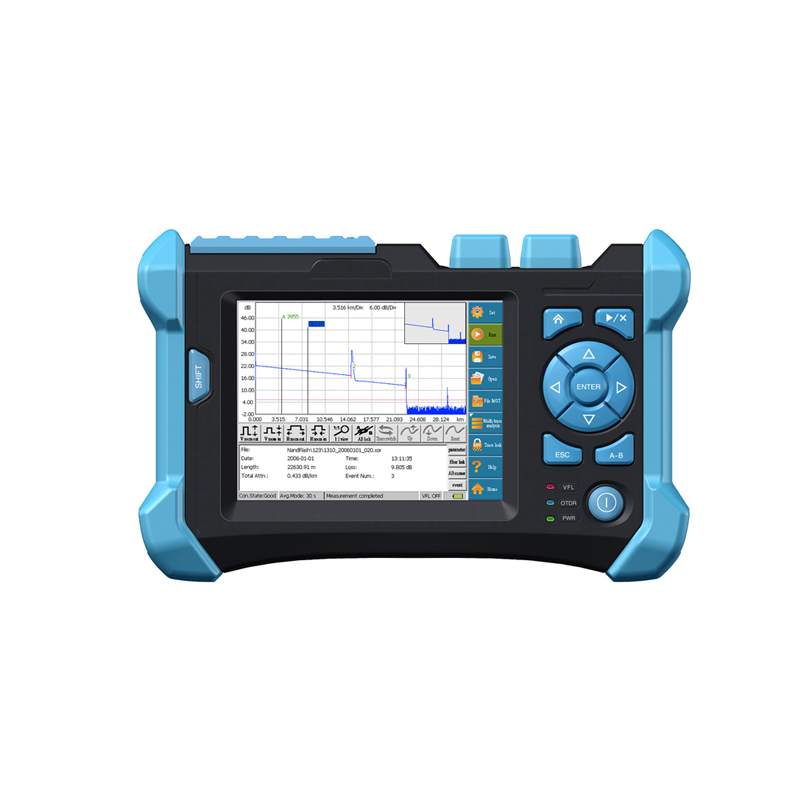

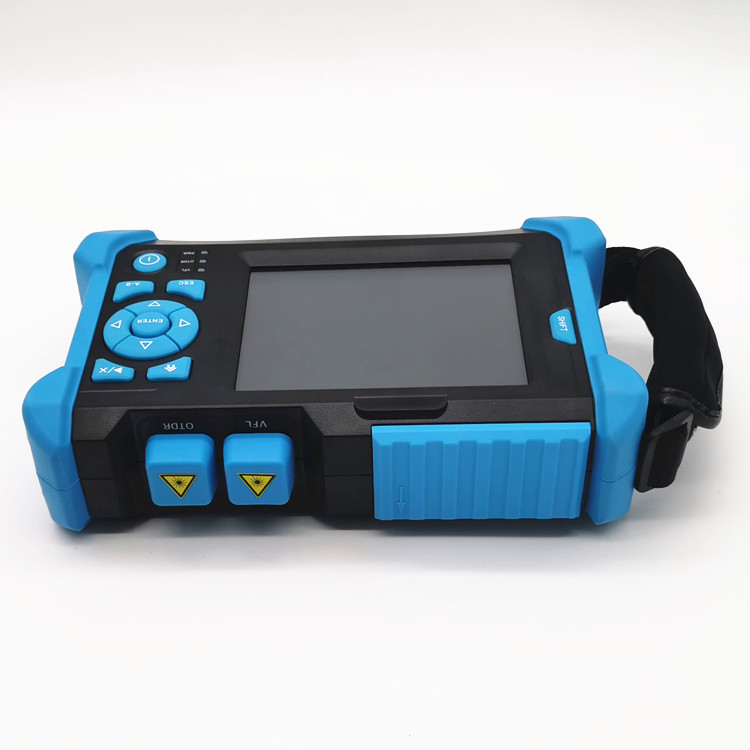

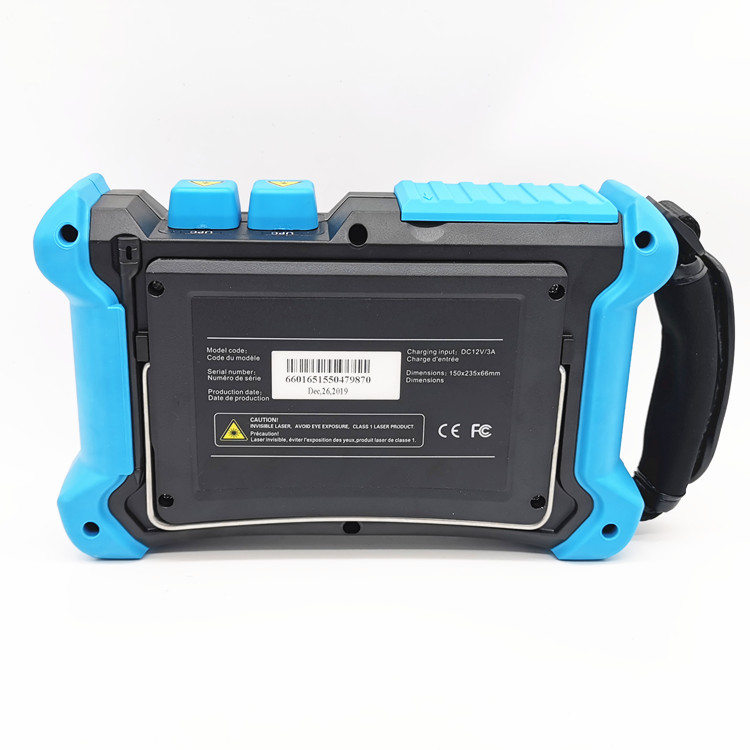

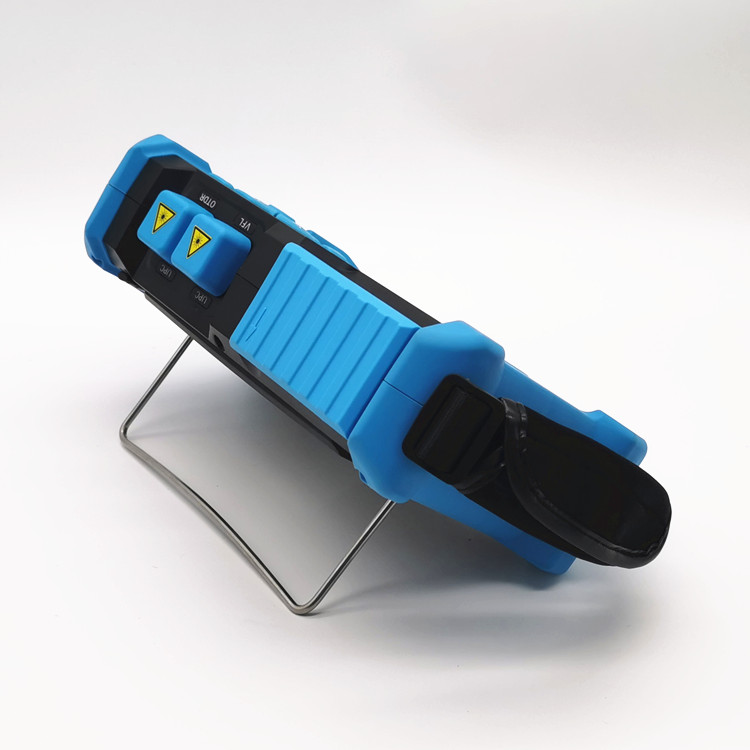

Palm OTDR X-60


Palm OTDR X-60 is a very reliable and good performance OTDR, it can measure the optical fiber length, transmission attenuation of optical fiber, attenuation of splice, and failure location, etc accurately. It is widely used in the maintenance, construction and monitoring of cable line.

OTDR exfo

Features

  • Large touch screen + shortcut keys, easy to operate.
  • Large-capacity polymer lithium battery, with super long working hours.
  • Intelligent testing, simple use, powerful function.
  • Media of Memory card and SD card, with super large storage capacity of traces.
  • Able to meet FTTx testing needs.
  • Several wavelengths can be chosen.
  • Solid casing design, dustproof and shockproof.


Specifications

Wavelength (nm)

850/1300

1310/1550

1310/1490/1550

1310/1550/1625

Dynamic range (dB)

32/30

32/30/30

32/30/30

32/30/28

Pulse width (ns)

5、20、40、80、160、320、640、1280

5、20、40、80、160、320、640、1280、2560、5120、10240、20480

Event blind zone (m)3

3m

Attenuation blind zone (m)3

13m

Linearity (dB/dB)

±0.05 dB/ dB

Loss threshold (dB)

0.05

Loss resolution ratio (dB)

0.01

Sampling resolution ratio (m)

0.125 to 8

Sampling point

32K

Distance uncertainty  (m)

±(1 m + 5×10-5× distance + sampling interval)

Distance scope (km)

0.3 to180

Typical real-time refreshing duration (s)

0.2

Memory capacity of trace

SD Card (4G), > 10000 pieces

Duration of measurement

Defined by user; 5sec, 10sec, 15sec, 30sec, 1min, 2min, and 3min areoptional.

Dimension

150(H)×235(W)×66(D)mm

Weight

1.5kg

Temperature

Running temperature -10℃ to 50℃

Memory temperature -40℃ to 70℃

Relative humidity

0% to 95% (non condensation)

Power supply

Lithium battery; continuing working duration ≥ 8 hours

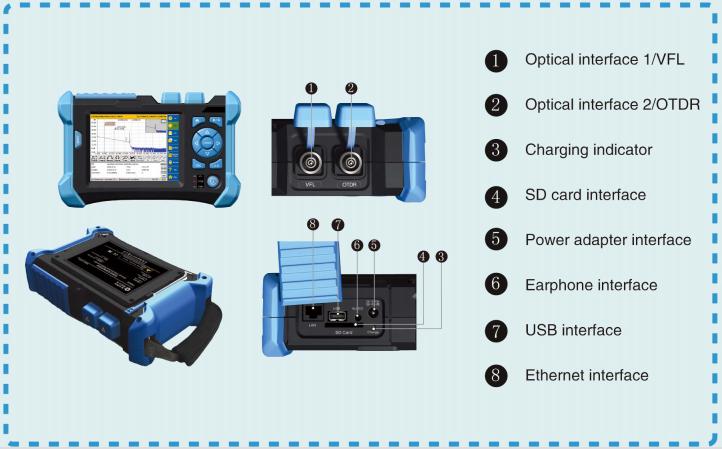

OpticalInterface

FC/UPC (FC/SC are optional, UPS/APC are optional)

Data interface

USB interface, SD card interface


OTDR


OTDR

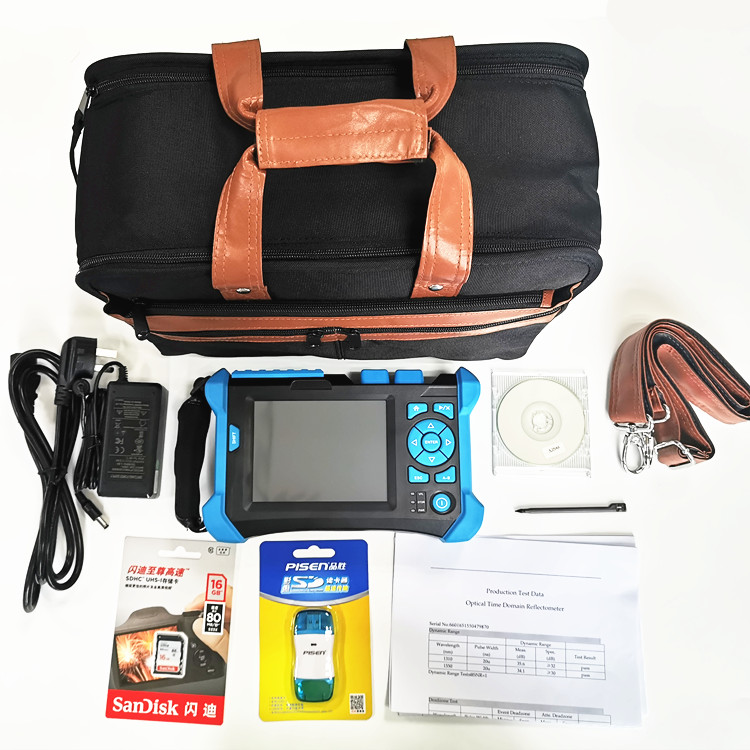

Standard Accessories

NO. ITEM
1 Carrying case
2 Power adapter
3 Power cord
4 Strap
5 Manual (CD)


Why Choose us

1. Reliable product quality

1) Factory with ISO9001:2015 quality management system.

2) Strict quality control process from materials to finished products and package.

3) 100% testing and checking of products performance and package before delivery.


2. Satisfying after-sales service

1) Lifelong technical support. Any problem during using, we will offer guidance to solve the problem.

2) Quick feedback. Usually customers can get our reply within 1 hour, latest will be not over 10 hours.

3) 24 months warranty period. Within warranty period, all repair and replacement are for free.

4) Reasonable cost for repair & replacement. According to our experience, most problems could be solved by machine menu operation via our remote guidance, do not need repairing or replacement.


3. Industry technology leader

1) More than 20 years experience in the field. Keep developing & upgrading new technology.

2) The latest fiber core to core alignment technology, high level industrial standard design.

3) Different kinds fusion splicers cover all fiber splicing applications.


4. Strong production capacity

1) More than 10,000 units machines are produced every year.

2) Supply products to more than 50 countries and zones in the world.

3) OEM/ODM is available.


We are sincerely looking forward to building a business relationship with you!


Request a Free Quote

Now Shinho's products and services are widely applied to communication engineering, home network, optical device production, scientific research,etc. They are exported to Europe, North America, Africa, South America and other Asian countries. Any inquiry, please feel free to contact us!

Related Product
OTDR

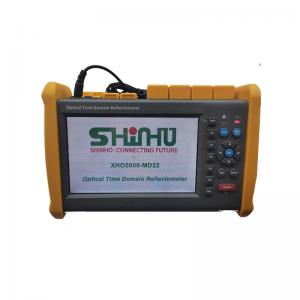

Handheld Singlemode Multimode OTDR XHO5000

Integrated design, smart and rugged IP65 protection level, outdoor enhanced 7-inch anti-reflection LCD screen PON online test module (1625nm) is optional MMF test module (850/1300nm) is optional Support multi-language display and input

Fiber optic fusion splicing tool kit

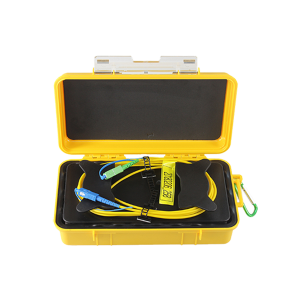

OTDR Launch Cable (500m/1km/2km/3km/5km)

Used to occupy OTDR“Dead Zones" High-quality armored fiber launch cables Make installers activity more comfortable and practical

OTDR
Mini OTDR Optical Time Domain Reflectometer X30

Small, light and portable One-click red-light switch-on function Large touch screen + shortcut keys, easy to operate Solid casing design, dustproof and shockproof

OTDR

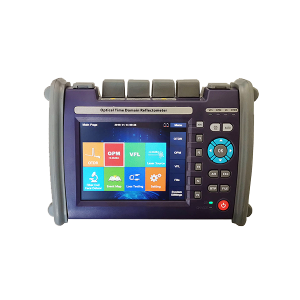

Multifunction Handheld SM MM OTDR X2100

Various wavelength and dynamic ranges are available Touch-sensitive and solid physical button, robust design Excellent for short-range measurement, Dead zone: 0.8m/4m Maximum sampling resolution:5cm VFL, power meter, laser source, GPS, Wifi/Bluetooth, IOT are optional

fiber optic mocroscope

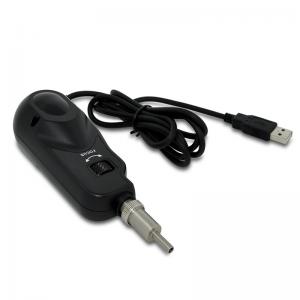

X-103U USB Hand-held Fiber Video Microscope
