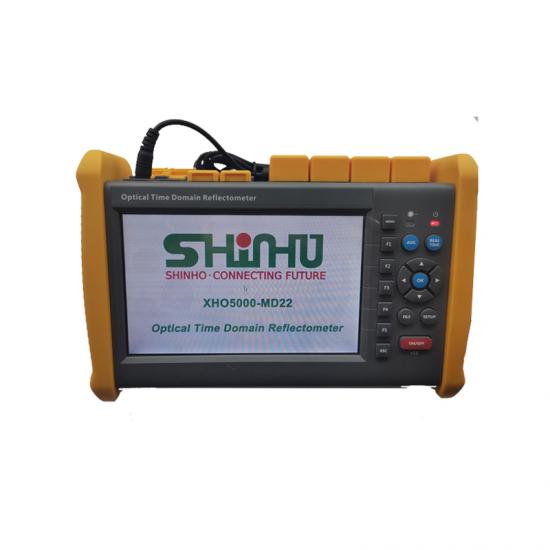

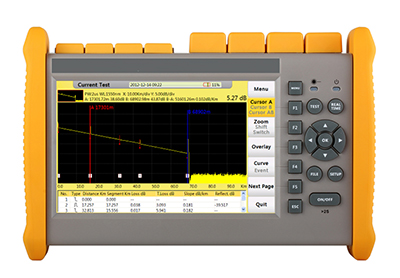

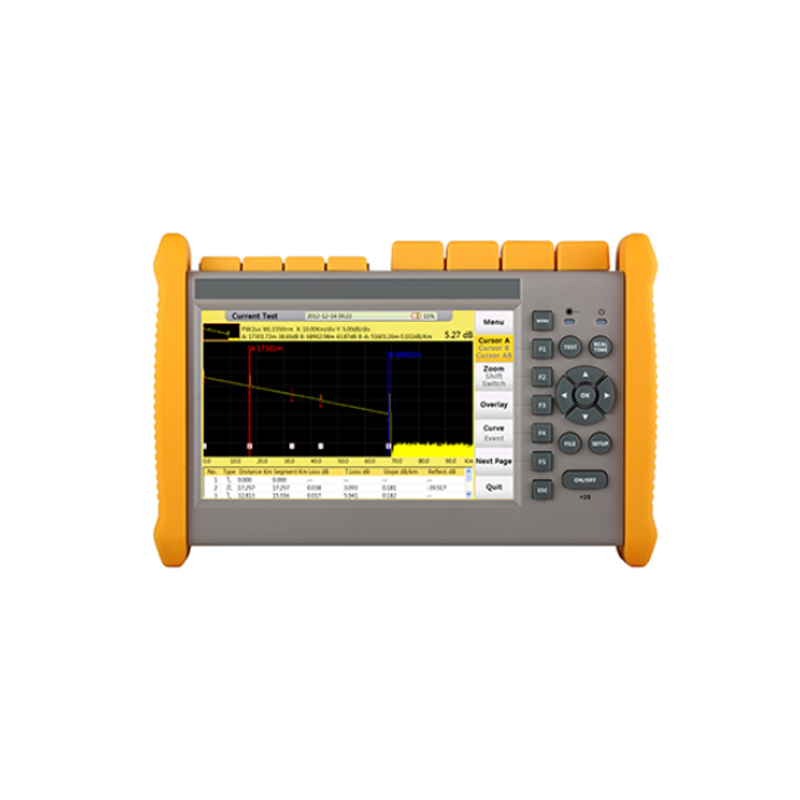

Handheld Singlemode Multimode OTDR XHO5000

Integrated design, smart and rugged

IP65 protection level, outdoor enhanced

7-inch anti-reflection LCD screen

PON online test module (1625nm) is optional

MMF test module (850/1300nm) is optional

Support multi-language display and input


  • Item NO.:

    XHO5000
  • Color:

    Yellow
Product Details

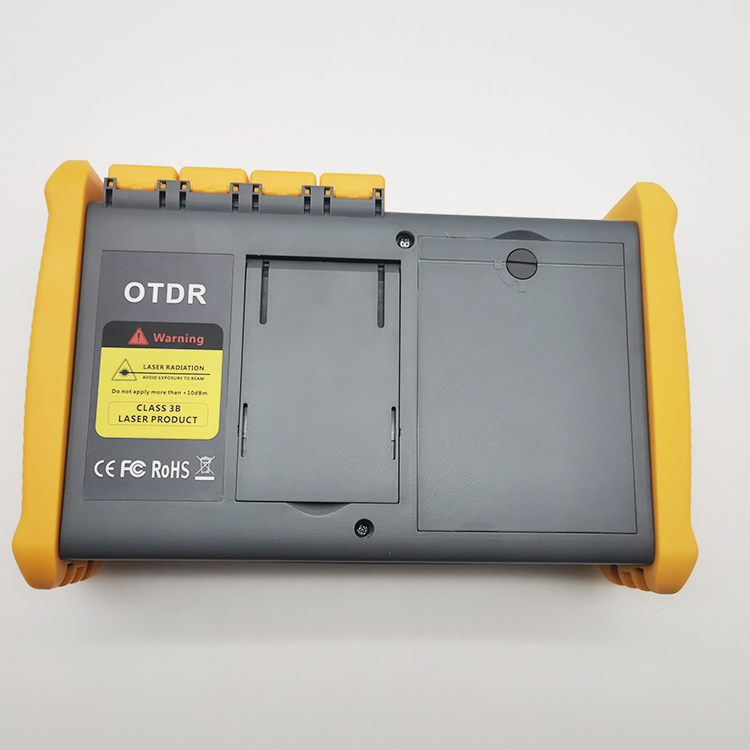

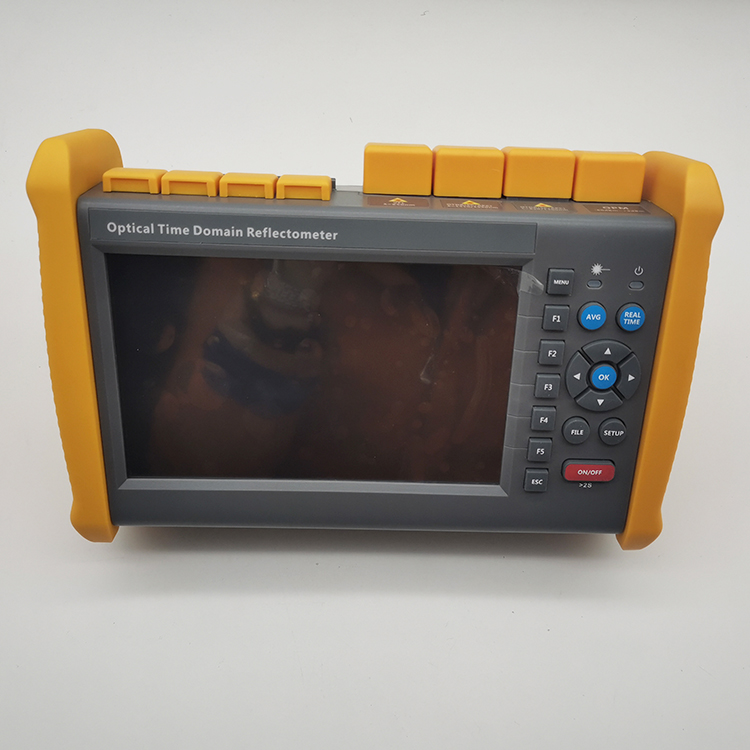

Handheld OTDR X-50


X-50 OTDR is manufactured with patience and carefulness, following the national standards to combine the rich experience and modern technology, subject to stringent mechanical, electronic and optical testing and quality assurance; in the other way, the new design makes X-50 more smart and compact and multi-purpose. Whether you want to detect link layer in the construction and installation of optical network or proceed efficient maintenance and trouble shooting, X-50 can be your best assistant.

Features

  • Integrated design, smart and rugged
  • IP65 protection level, outdoor enhanced
  • 7-inch anti-reflection LCD screen
  • PON online test module (1625nm) is optional
  • MMF test module (850/1300nm) is optional
  • Support multi-language display and input

Applications

  • FTTX test with PON networks
  • CATV network testing
  • Access network testing
  • LAN network testing
  • Metro network testing
  • Lab and Factory testing
  • Live fiber troubleshooting



Specifications


General specifications

Dimension

253×168×73.6mm
1.5kg (battery included)

Display

7 inch TFT-LCD with LED backlight (touch screen function is optional)

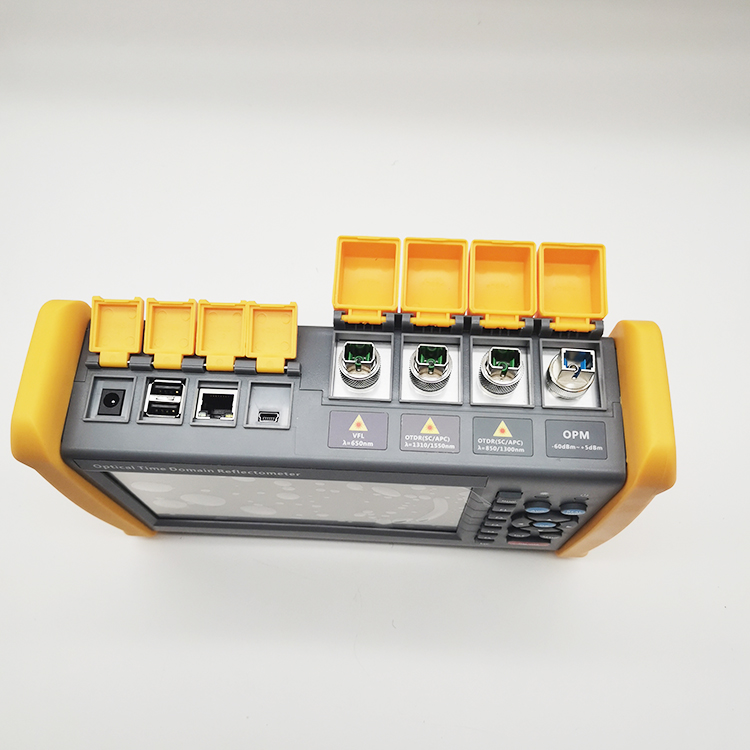

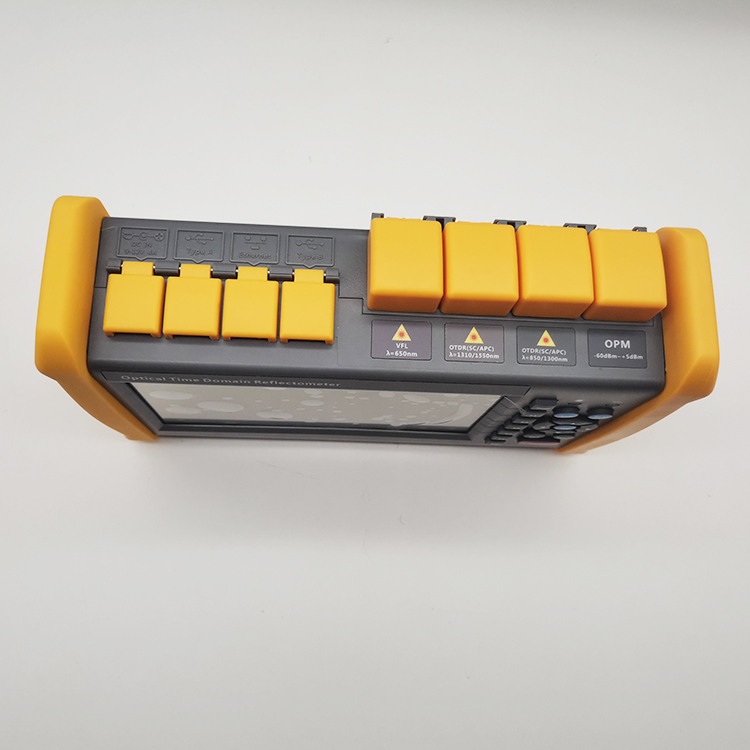

Interface

1×RJ45 port, 3×USB port (USB 2.0, Type A USB×2, Type B USB×1)

Power Supply

10V(dc), 100V(ac) to 240V(ac), 50~60Hz

Battery

7.4V(dc)/4.4Ah lithium battery (with air traffic certification)
Operating time: 12 hours [1], Telcordia GR-196-CORE
Charging time: <4 hours (power off)

Power Saving

Backlight off: Disable/1 to 99 minutes
Auto shutdown: Disable/1 to 99 minutes

Data Storage

Internal memory: 4GB (about 40,000 groups of curves)

Language

User selectable (English, Simplified Chinese, traditional Chinese, French, Korean, Russian, Spanish and Portuguese-contact us for availability of others)

Environmental

Conditions

Operating temperature and humidity: -10 ~+50 , ≤95% (non-condensation)
Storage temperature and humidity: -2 ~+70, ≤95% (non-condensation)
Proof: IP65 (IEC60529)

Accessories

Standard: Main unit, power adapter, Lithium battery, FC adapter, USB cord, User guide, CD disk, carrying case
Optional: SC/ST/LC adapter, Bare fiber adapter

Technical parameter

Type [2]

Testing Wavelength
(MM: ±20nm, SM: ±10nm)

Dynamic Range (dB)[3]

Event/Attenuation Dead-zone (m)[4]

X-50-M21

850/1300

19/21

0.8/4

X-50-MD21

850/1300
1310/1550

19/21
35/33

0.8/4
1/4

X-50-MD22

850/1300
1310/1550

19/21
40/38

0.8/4
1/4

X-50-D26

1310/1550

26/24

0.8/4

X-50-D32

1310/1550

32/30

0.8/4

X-50-D35

1310/1550

35/33

0.8/4

X-50-D40

1310/1550

40/38

1/4

X-50-D43

1310/1550

43/41

1/5

X-50-D45

1310/1550

45/43

1/5

X-50-T40F

1310/1550/1625

40/38/38

1/4

X-50-T43F

1310/1550/1625

43/41/41

1/5

X-50-T45F

1310/1550/1625

45/43/43

1/5

X-50-TC35F

1310/1550/1650

35/33/31

0.8/4

X-50-TP35

1310/1490/1550

35/33/33

0.8/4

Test parameter

Pulse Width

Single mode: 3ns, 5ns, 10ns, 20ns, 50ns, 100ns, 200ns, 500ns, 1μs, 2μs, 5μs, 10μs, 20μs
Multi-mode: 3ns, 5ns, 10ns, 20ns, 50ns, 100ns, 200ns, 500ns, 1μs, 2μs

Testing Distance

Single mode: 100m, 500m, 2km, 5km, 10km, 20km, 40km, 80km, 120km, 160km, 240km
Multi-mode: 500m, 2km, 5km, 10km, 20km, 40km

Sampling Resolution

Minimum 5cm

Sampling Point

Maximum 128,000 points

Linearity

≤0.05dB/dB

scale Indication

X axis: 4m~70m/div, Y axis: Minimum 0.09dB/div

Distance Resolution

0.01m

Distance Accuracy

±(1m+measuring distance×3×10-5+sampling resolution) (excluding IOR uncertainty)

Reflectance Accuracy

Single mode: ±2dB, multi-mode: ±4dB

IOR Setting

1.4000~1.7000, 0.0001 step

Units

Km, miles, feet

OTDR Trace Format

Telcordia universal, SOR, issue 2 (SR-4731)
OTDR: User selectable automatic or manual set-up

Testing Modes

Visual fault locator: Visible red light for fiber identification and troubleshooting
Light source: Stabilized Light Source (CW, 270Hz, 1kHz, 2kHz output)
Field microscope probe

Fiber Event Analysis

-Reflective and non-reflective events: 0.01 to 1.99dB (0.01dB steps)
-Reflective: 0.01 to 32dB (0.01dB steps)
-Fiber end/break: 3 to 20dB (1dB steps)

Other Functions

Real time sweep: 1Hz
Averaging modes: Timed (1 to 3600 sec.)
Live Fiber detect: Verifies presence communication light in optical fiber
Trace overlay and comparison

VFL Module (Visual Fault Locator, as standard function):

Wavelength (±20nm)

650nm

Power

10mw,CLASSIII B

Range

12km

Connector

FC/UPC

Launching Mode

CW/2Hz

PM Module (Power Meter, as optional function):

Wavelength Range (±20nm)

800~1700nm

Calibrated Wavelength

850/1300/1310/1490/1550/1625/1650nm

Test Range

Type A: -65~+5dBm (standard); Type B: -40~+23dBm (optional)

Resolution

0.01dB

Accuracy

±0.35dB±1nW

Modulation Identification

270/1k/2kHz,Pinput≥-40dBm

Connector

FC/UPC

LS Module (Laser Source, as optional function):

Working Wavelength (±20nm)

1310/1550/1625nm[5]

Output Power

Adjustable -25~0dBm

Accuracy

±0.5dB

Connector

FC/UPC

FM Module (Fiber Microscope, as optional function):

Magnification

400X

Resolution

1.0µm

View of Field

0.40×0.31mm

Storage/working Condition

-18 ~35

Dimension

235×95×30mm

Sensor

1/3 inch 2 million of pixel

Weight

150g

USB

1.1/2.0

Adapter [6]

SC-PC-F (For SC/PC adapter)
FC-PC-F (For FC/PC adapter)
LC-PC-F (For LC/PC adapter)
2.5PC-M (For 2.5mm connector, SC/PC, FC/PC, ST/PC)

Notes:

1 Typical, backlight off, sweeping halted at 25 degree, 12 hours typical continuous testing.
2 Model T40F/T43F/T45F are integrated with optical filter, which allow them to test PON network online (by using 1625nm wavelength) and will not interrupt the fiber signal.
3 Dynamic range is measured with maximum pulse width, averaging time is 3 minutes, SNR=1; The level difference between the RMS noise level and the level where near end back-scattering occurs.

4 Event dead zone is measured with pulse width of 3ns; attenuation dead zone is measured with pulse width of 5ns.

5 1310/1550nm laser source uses OTDR1 port, and 1625nm or 850/1300nm uses OTDR2 port.
6 For more adapters, please contact us.



Request a Free Quote

Now Shinho's products and services are widely applied to communication engineering, home network, optical device production, scientific research,etc. They are exported to Europe, North America, Africa, South America and other Asian countries. Any inquiry, please feel free to contact us!

Related Product
OTDR

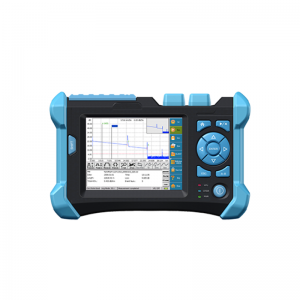

Handheld Singlemode Multimode OTDR X60
