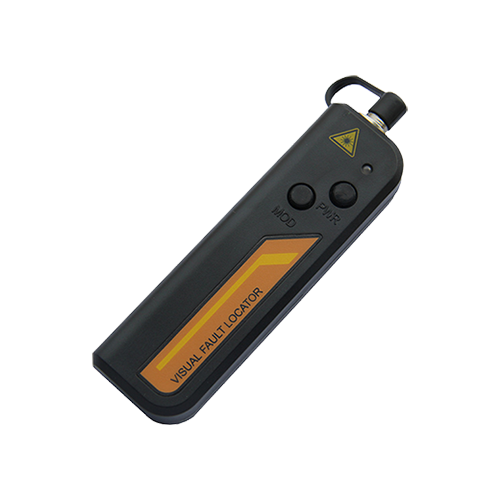

Visual Fault Locator VFL X5003

Constant & stable output power.

Pocket size and light weight, easy to use.

Low battery warning, reminds users to change the battery timely.

  • Item NO.:

    X-5003
  • Product Origin:

    CHINA
  • Color:

    Standard
  • Shipping Port:

    Shanghai/Shenzhen
  • Lead Time:

    3 working days
Product Details

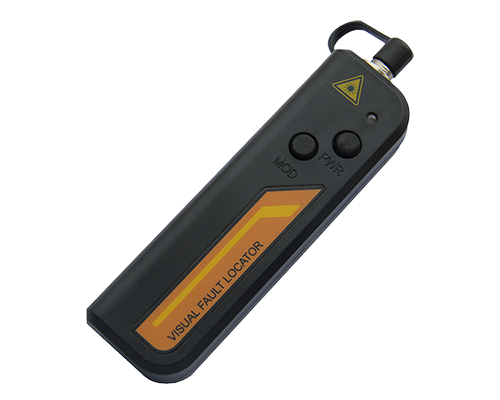

Mini Visual Fault Locator X-5003


Features

  • Constant & stable output power
  • Low battery warning, reminds users to change the battery timely.
  • Long battery life (up to 40 hours with AAA batteries)
  • Pocket size and light weight, easy to use.
  • Re-changeable ceramic tube, to avoid returning to manufacturer for this small fault.

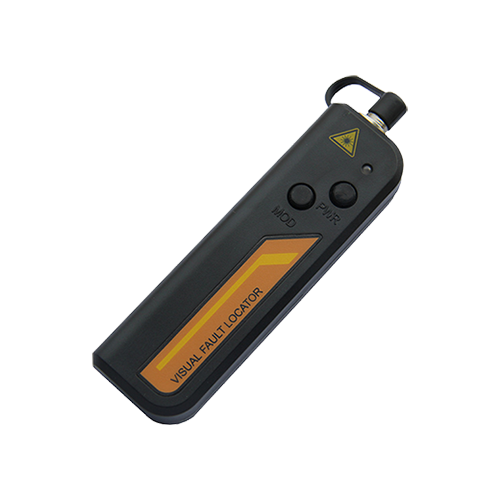

mini VFL 1mw

Specifications

Central Wavelength

650nm±10nm

Emitter Type

FP-LD

Output Power

1mw or 10mw

Optical Connector

2.5mm universal connector For 1.25mm connectors, FC-1.25mm Hybrid adaptor,can be optional on customer requests

Operating Model

Both CW and Pulse(2Hz) available

Power Supply

Two AAA alkaline batteries

Battery Operating Time

650nm@1mw ≥45hours;650nm@10mw≥15hoursTest with Panasonic LR6 AAA ALKALINE battery

Operating Temperature

-10~+60 (℃)

Storage Temperature

-25~+70 (℃)

Dimension (mm)

115*45*27

Weight

50g(Without Batteries)


Standard Accessories

NO. ITEM
1 VFL
2 User manual
3 Soft carrying case
4 1.5V AA batteries


Why Choose us

1. Reliable product quality

1) Factory with ISO9001:2015 quality management system.

2) Strict quality control process from materials to finished products and package.

3) 100% testing and checking of products performance and package before delivery.


2. Satisfying after-sales service

1) Lifelong technical support. Any problem during using, we will offer guidance to solve the problem.

2) Quick feedback. Usually customers can get our reply within 1 hour, latest will be not over 10 hours.

3) 24 months warranty period. Within warranty period, all repair and replacement are for free.

4) Reasonable cost for repair & replacement. According to our experience, most problems could be solved by machine menu operation via our remote guidance, do not need repairing or replacement.


3. Industry technology leader

1) More than 20 years experience in the field. Keep developing & upgrading new technology.

2) The latest fiber core to core alignment technology, high level industrial standard design.

3) Different kinds fusion splicers cover all fiber splicing applications.


4. Strong production capacity

1) More than 10,000 units machines are produced every year.

2) Supply products to more than 50 countries and zones in the world.

3) OEM/ODM is available.


We are sincerely looking forward to building a business relationship with you!


Request a Free Quote

Now Shinho's products and services are widely applied to communication engineering, home network, optical device production, scientific research,etc. They are exported to Europe, North America, Africa, South America and other Asian countries. Any inquiry, please feel free to contact us!
