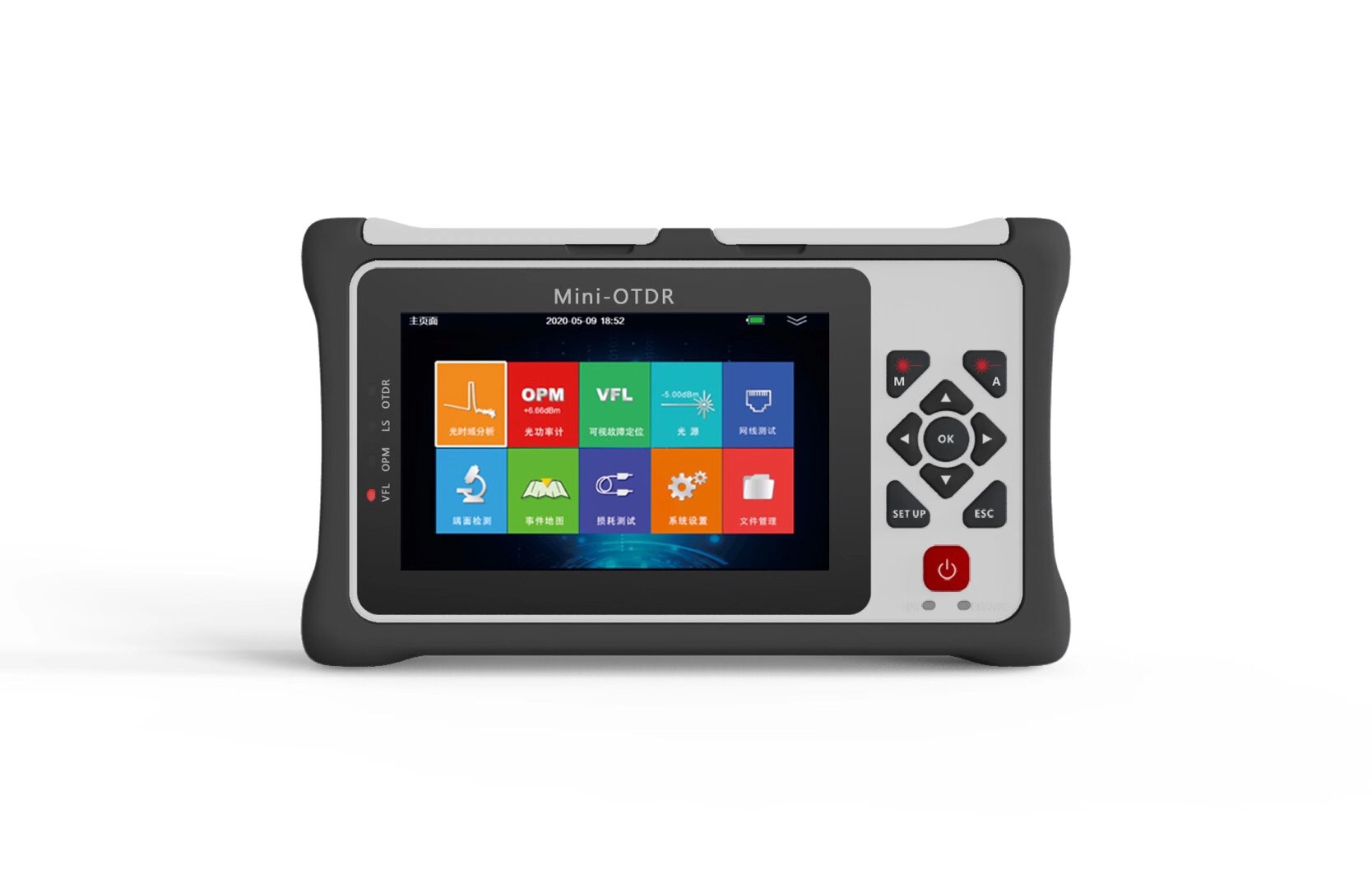

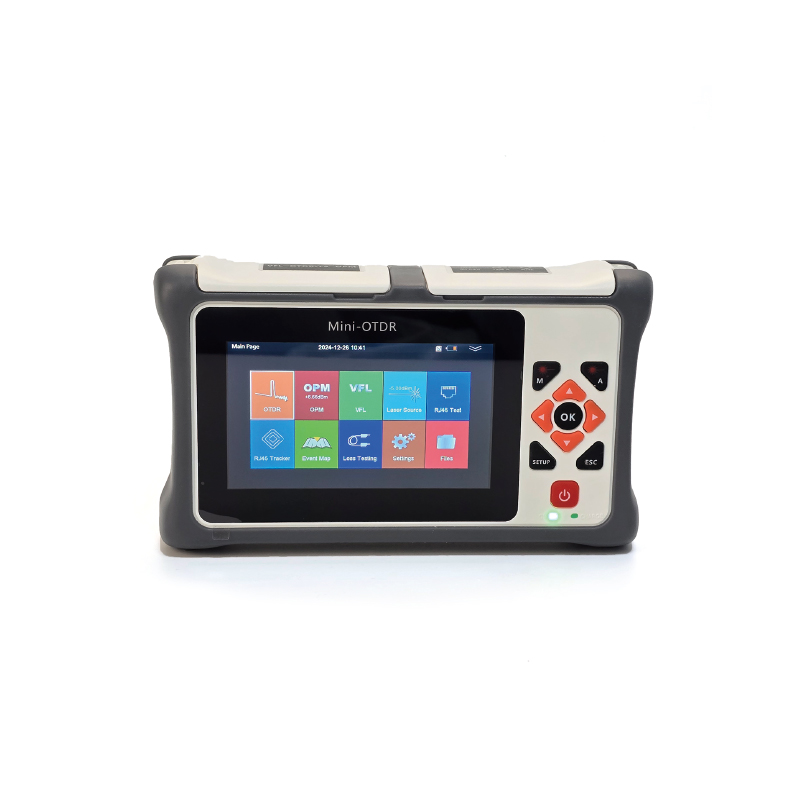

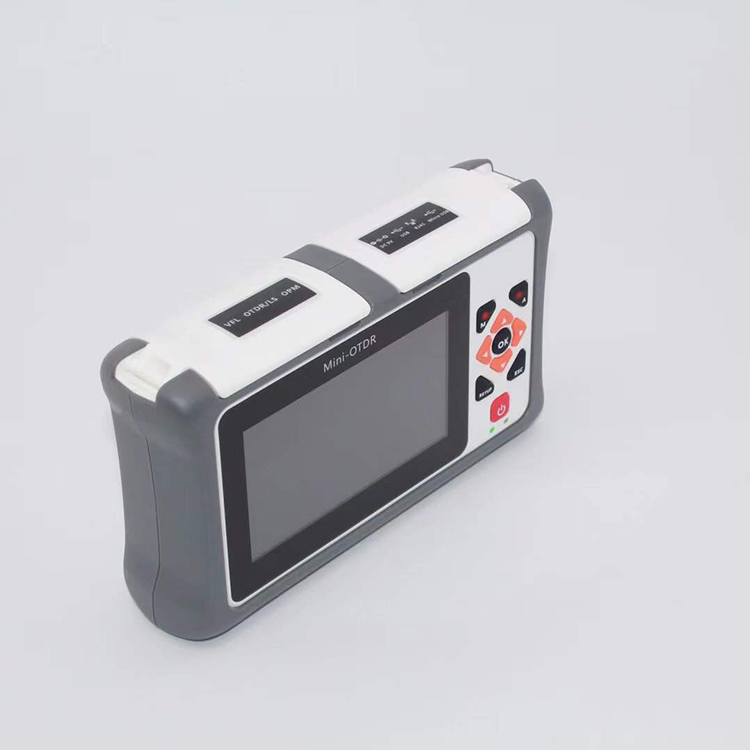

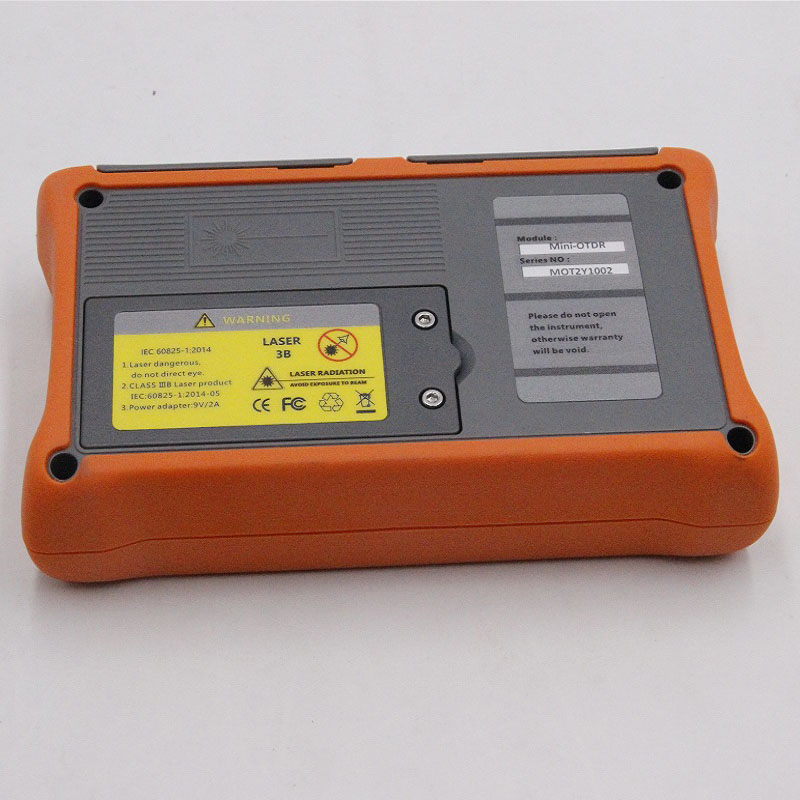

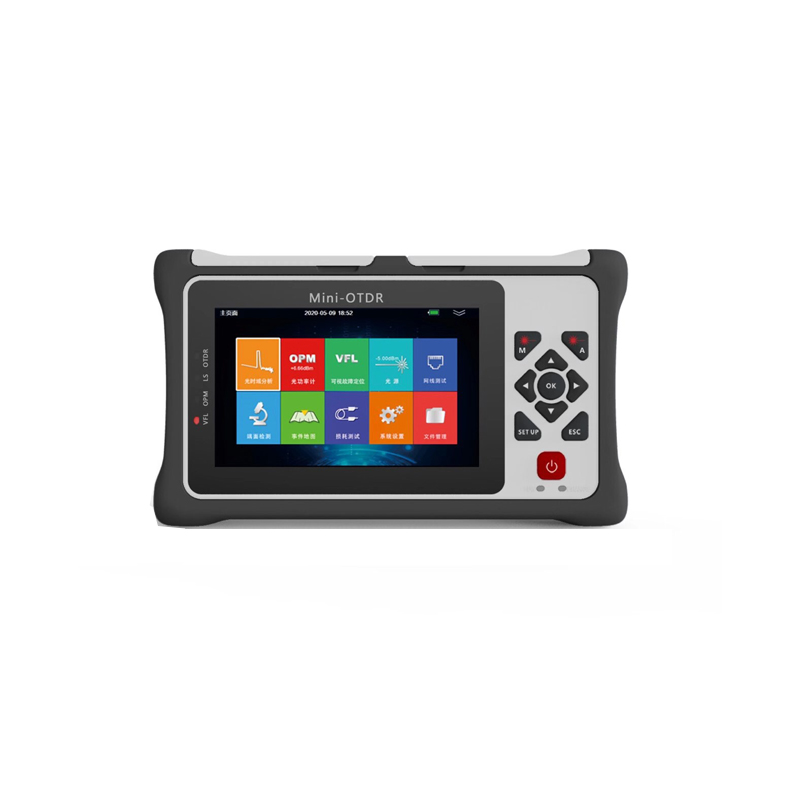

Minini OTDR SHINHO X-1100

X-1100 series OTDR is a mini version of X-2100. It combines 9 functions at one machine. Different colors for choice.

Features

1. 12-in-one function: OTDR,VFL,OPM,OLS,Cable Test Event map, fiber inspection, loss test and flashlight.
2. The 4.3-inch full-view capacitive touch screen supports multi-touch
3. Cover plate type tempered glass panel, don't worry about screen scratch
4. Support horizontal version, vertical version, perfect fusion of the two habits of user operations
5. Support charging treasure charging, do not worry about the battery is not enough
6. In line with the international standards of test data with perfect simulation software, so that your report more simple

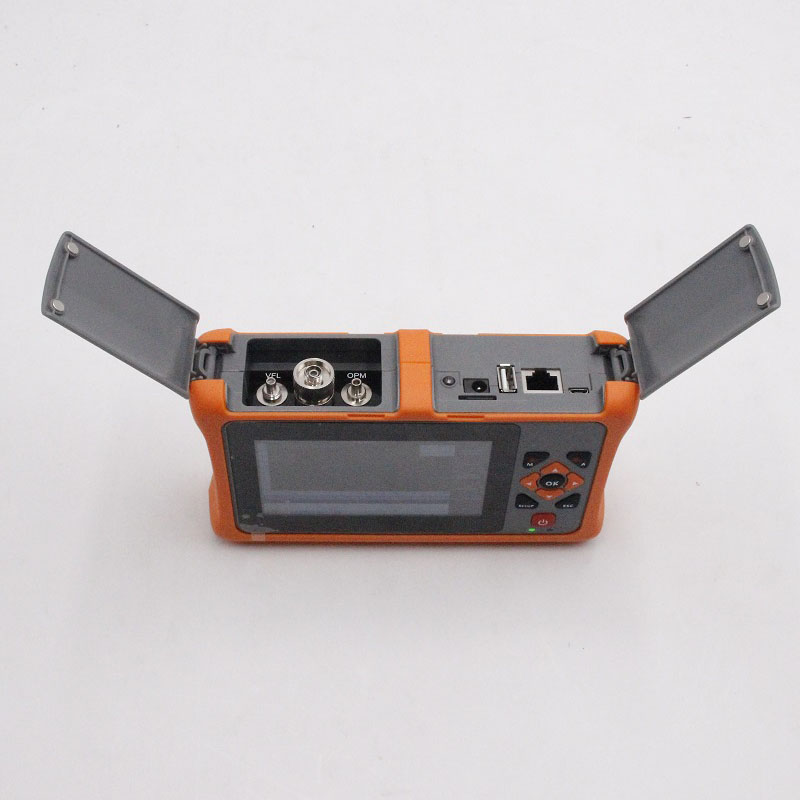

7. Sink type light port design, so that the instrument light port to get better protection
8. Support U disk, SD card and Micro USB export data protection
9. Any interface supports screen capture

Item NO.:
X1100
Color:
White Orange Black

Product Details

Specifications

Display	4.3-inch capacitive touch screen with full viewing , TFT 800x480 resolution
Battery	5200mAh/ 3.7v, standby time > for 10 hours
Power Adapter	Power supply AC/DC adapter, input 100-250V AC, 50-60 Ilz, 3 A max, Output 12 V DC. 35W
Data Storage	100,000 groups of curves
Interface	USB A Type×1, Micro-USB×1）, SD card
Working Temp	-10℃~+50℃
Storage Temp	-20℃~+80℃
Humidity	≤95% (non-condensation)
Dimension	175x105x45mm/560g (including battery)

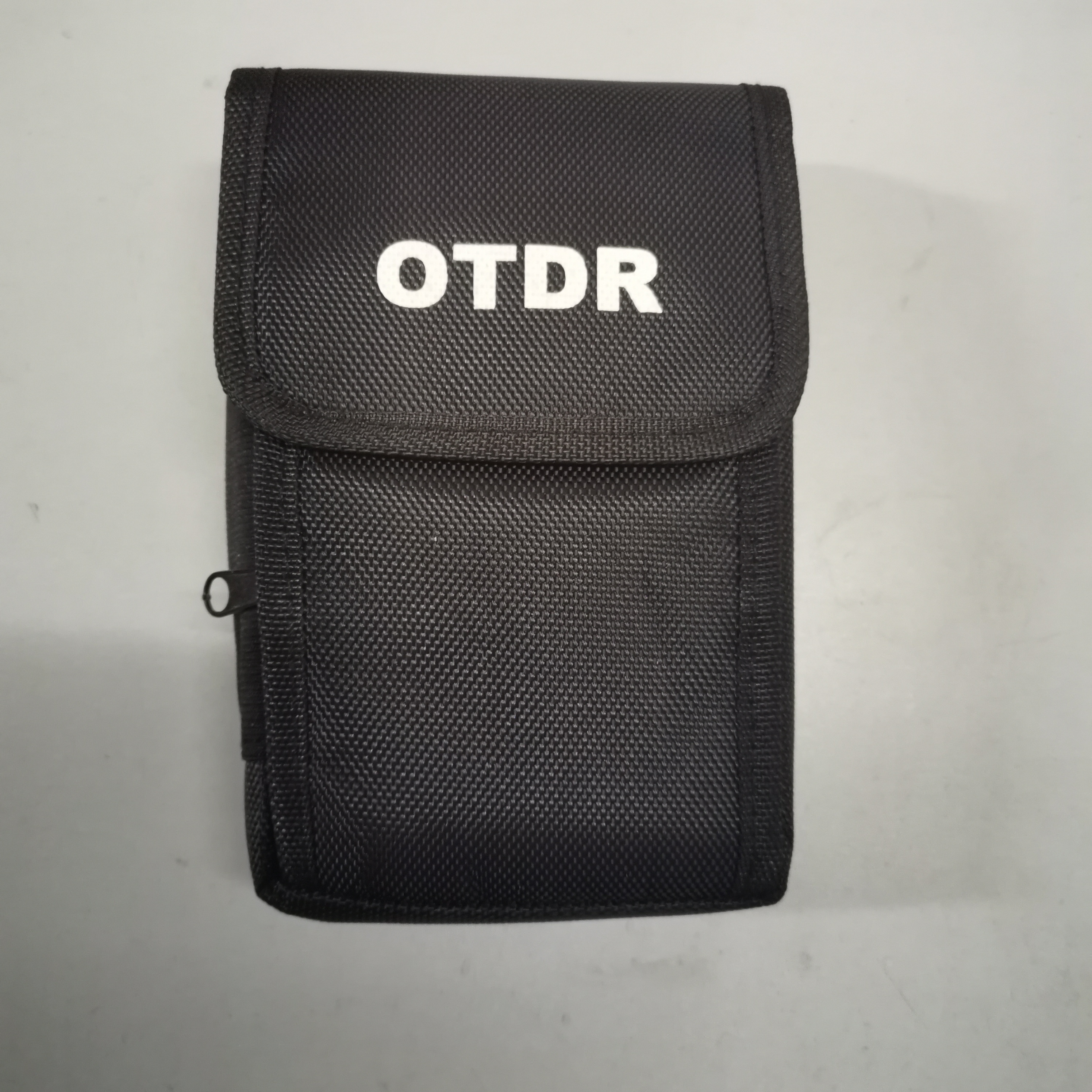

Standard Package	Main Machine,Power adapter, lithium battery, FC adaptor, USB cable, quick guide, portable package

Modules

Model	wavelength（nm）	Dynamic range（dB）	Measuring range（km）	note
Dual wavelength sequence
X1100-A22D	1310/1550	22/20	70
X1100-A24D	1310/1550	24/22	80
X1100-A26D	1310/1550	26/24	90
Single wavelength sequence
X1100-A20S	1550	20	70
X1100-A22S	1550	22	80
X1100-A20SF	1550	20	70	Filter
X1100-A22SF	1550	22	80	Filter

Any more question, do not hesitate to contact us!
