Optical Talk Set (Optical phone & light source) X-5010

On line communications available

Digital optical phone call & light source two in one

High quality conversation connection and low background noise

  • Item NO.:

    X-5010
  • Product Origin:

    CHINA
  • Color:

    Standard
  • Shipping Port:

    Shanghai/Shenzhen/Guangzhou
  • Lead Time:

    in 3 working days
Product Details

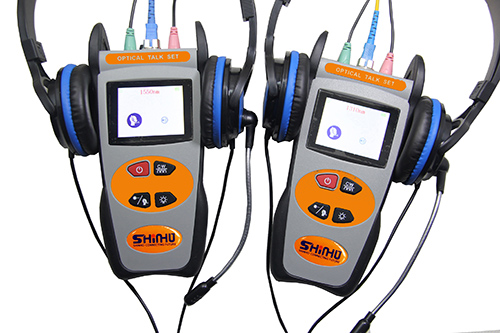

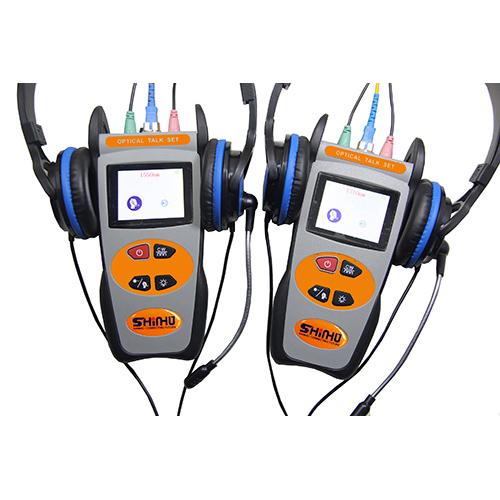

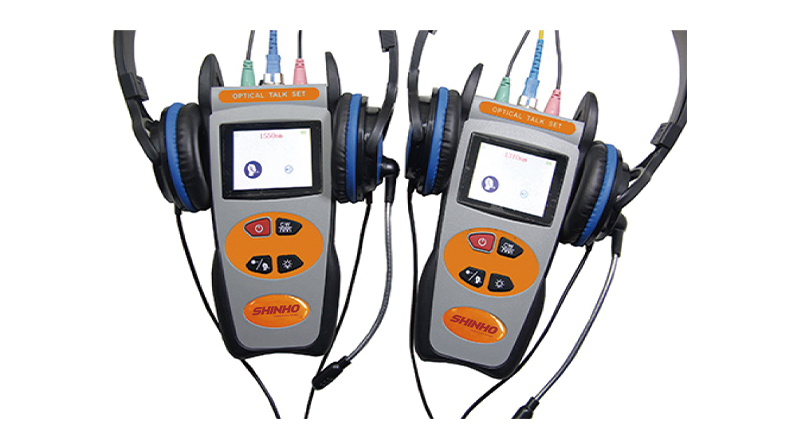

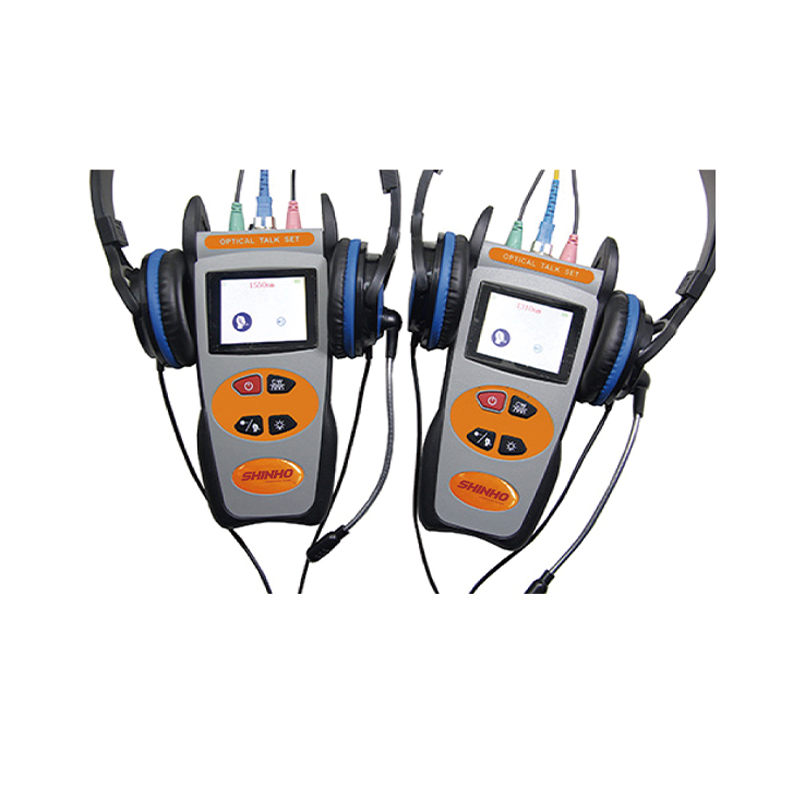

Optical Talk Set X-5010


This is an efficient instrument that combines in one set the functions of both a digital optical phone and a stabilized light source. It is widely used in operations of installation, optical testing, maintenance, CATV and Telecommunication network. It can carry out full-duplex communication with high quality connection and not be affected by distance. With comfortable hand feelings, and nice outside looking, the user can easily operate on this optical tester.



Features


  • Low battery power indication
  • Large LCD display with backlight
  • Laser source have the modulation of 270Hz330Hz1KHz2KHz
  • Together with Optical Clip-on Coupler, enables on line communications available
  • Combining functions of both a digital optical phone call and a stabilized light source
  • Full-duplex digital communication with high quality conversation connection and low background noise


Specifications

Product Name

Optical Talk Set

Wavelengthnm

1310(A)/1550(B)

Fiber type

SM

Dynamic rangedB

40

Distancekm

80

Laser Device type

FP-LD

Output powerdBm

≥-5

Output stability(dB30min20℃) ①

<0.05

Modulation

CW270Hz330Hz1KHz2KHz

Connector type

FC/PC

Battery

3*AA1.5V

Battery operation time(h) ②

30Talk set function50laser source function

Work temperature(℃)

-10+60

Storage temperature (℃)

-25+70

Dimensionmm

200×90×50

Weightg

435(Include the headset)
