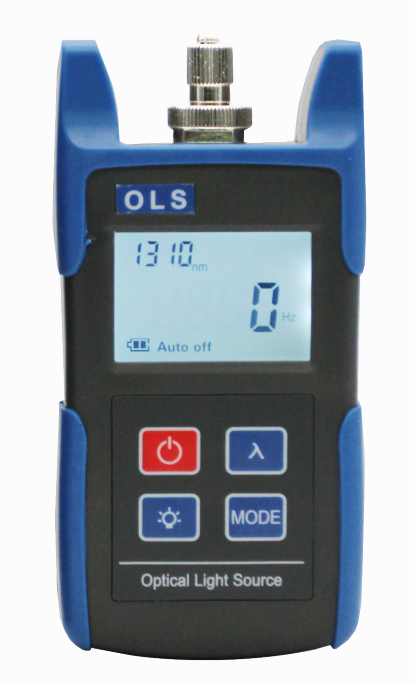

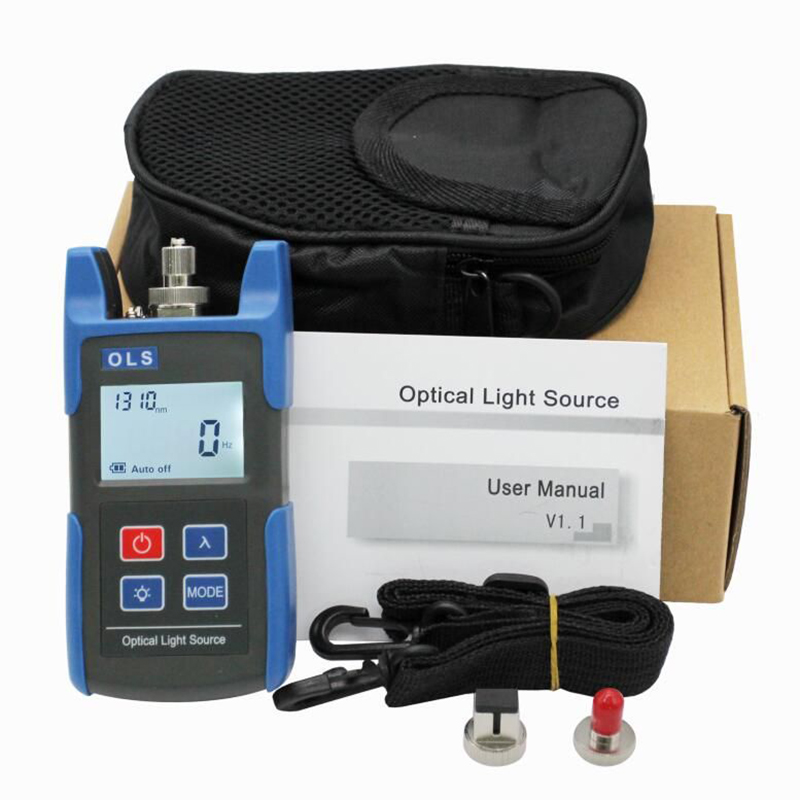

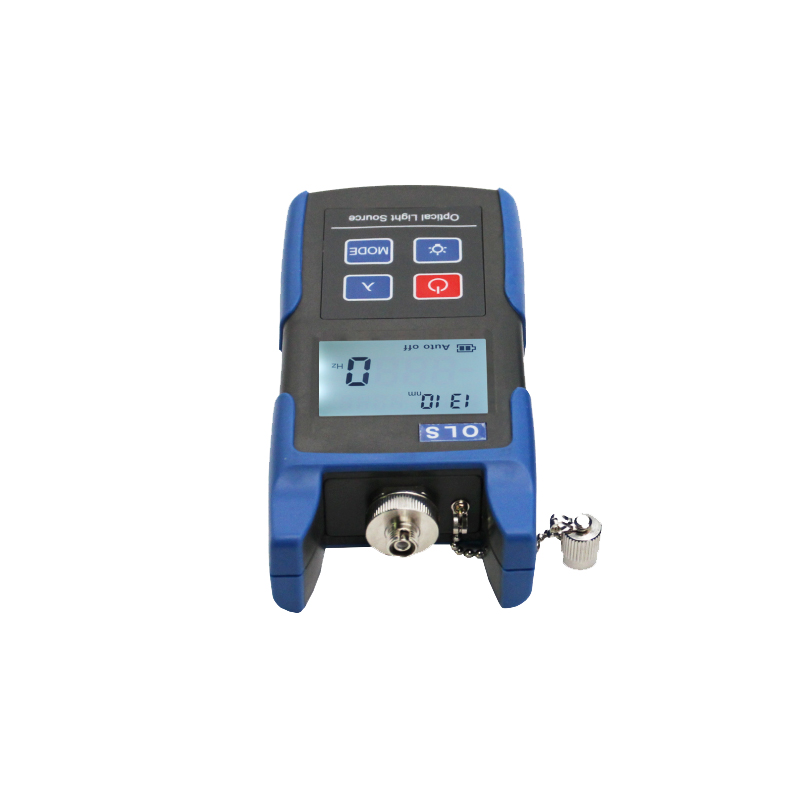

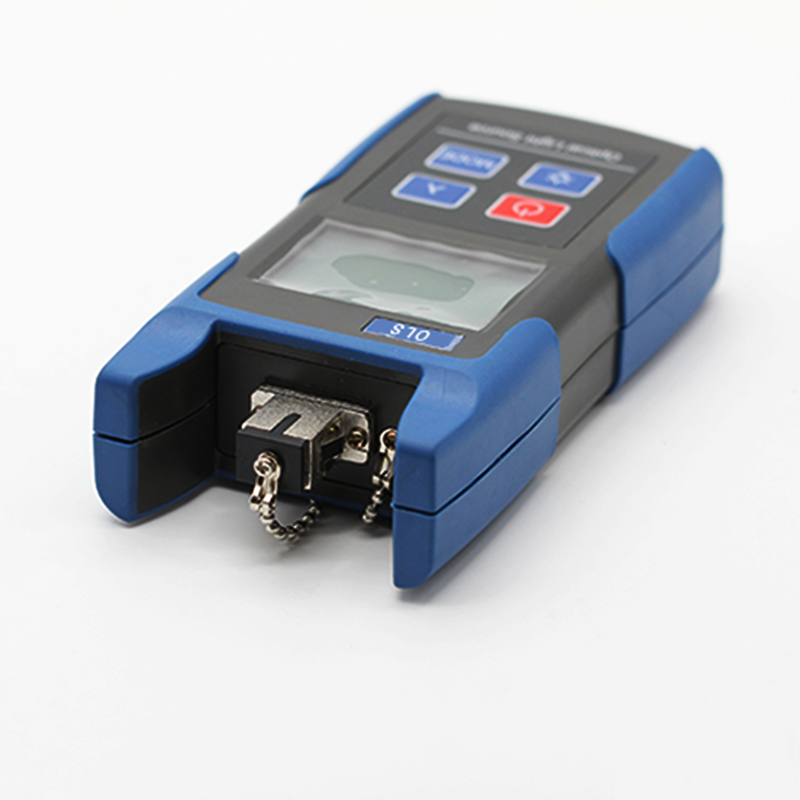

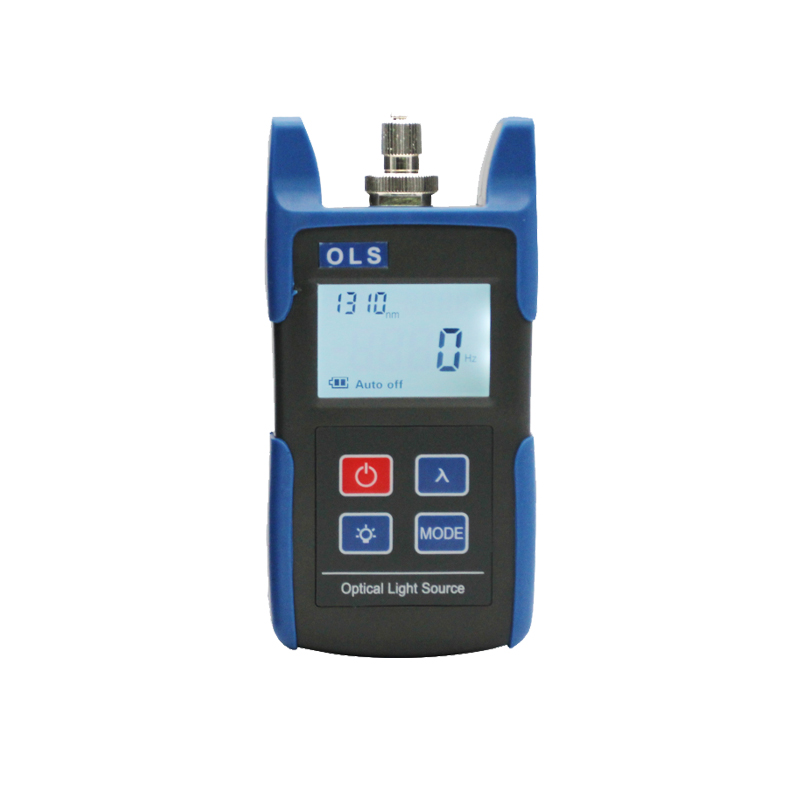

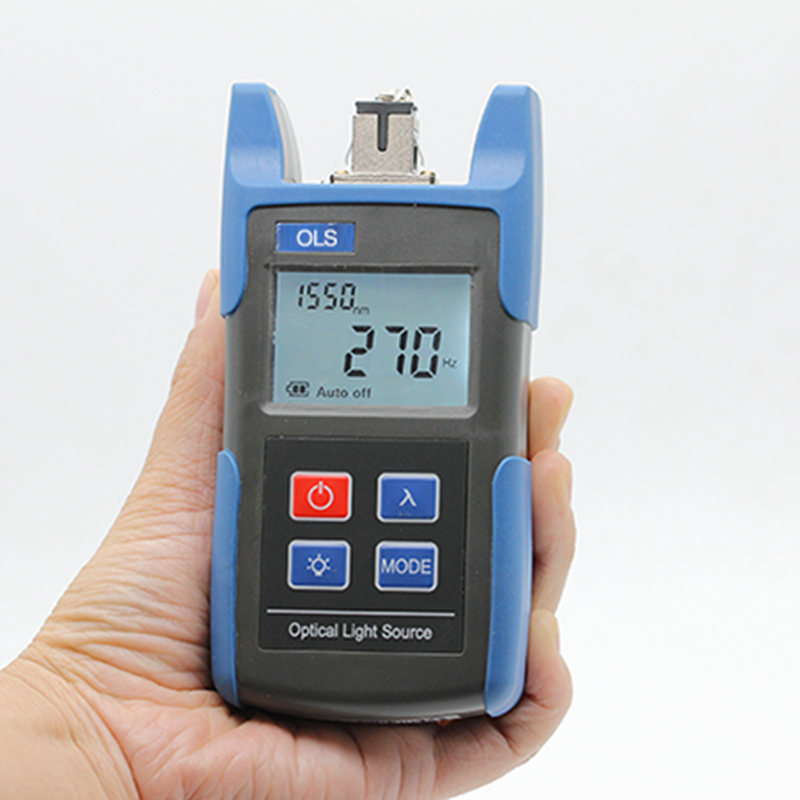

X-0512 Mini Optical Light Source

X-0512 Optical laser light source is a self-developed instrument, It can work at single wavelength, dual-wavelength or tri -wavelength.It is widely used in optical communication, optical measurement, optical fiber sensing, and so on.


  • Item NO.:

    X-0512
  • Product Origin:

    CHINA
  • Color:

    Standard
  • Shipping Port:

    Shanghai/Shenzhen/Guangzhou
  • Lead Time:

    in 3 working days
Product Details


X-0512 Mini Optical Light Source





Features

  • Good stability in output power

  • Optional auto-shutdown
  • Large LCD display and backlight

  • Battery power display


Applications

Maintenance Telecom

Maintenance CATV

Test Lab of Fiber Optic

Optical fiber sensors



Specifications

Type

X-0512

Emitter Type

FP-LD

Wavelengthnm

850130013101490155016251-3 wave

Optical Connector

FCSC/ST can be optional

Output Power(dBm)

≥ 3m w @ 650nm; ≥ -7dBm @ 850/1300nm

≥ -7/0dBm @ 1310/1490/1550/1625nm

Output Stability(dB)

±0.04@20℃@15min

Modulation Frequencies

CW,2Hz@650nm;CW,270Hz,1KHz,2KHz@others

Fiber Type

SMMM

Power Supply

AAA 1.5V(3pcs batteries)

working time(h)

40hours

Operating Temperature(℃)

-10+50

Storage Temperature(℃)

-20+70

Dimension(mm)

125*65*29mm

Weight(g)

160



Why Choose us

1. Reliable product quality

1) Factory with ISO9001:2015 quality management system.

2) Strict quality control process from materials to finished products and package.

3) 100% testing and checking of products performance and package before delivery.


2. Satisfying after-sales service

1) Lifelong technical support. Any problem during using, we will offer guidance to solve the problem.

2) Quick feedback. Usually customers can get our reply within 1 hour, latest will be not over 10 hours.

3) 24 months warranty period. Within warranty period, all repair and replacement are for free.

4) Reasonable cost for repair & replacement. According to our experience, most problems could be solved by machine menu operation via our remote guidance, do not need repairing or replacement.


3. Industry technology leader

1) More than 20 years experience in the field. Keep developing & upgrading new technology.

2) The latest fiber core to core alignment technology, high level industrial standard design.

3) Different kinds fusion splicers cover all fiber splicing applications.


4. Strong production capacity

1) More than 10,000 units machines are produced every year.

2) Supply products to more than 50 countries and zones in the world.

3) OEM/ODM is available.


We are sincerely looking forward to building a business relationship with you!


Request a Free Quote

Now Shinho's products and services are widely applied to communication engineering, home network, optical device production, scientific research,etc. They are exported to Europe, North America, Africa, South America and other Asian countries. Any inquiry, please feel free to contact us!
