Test objects: ADSL; ADSL2; ADSL2+; READSL; VDSL2
Fast Copper tests with DMM (ACV, DCV, Loop and Insulation Resistance, Capacitance, Distance)
Multi-functions in one tester
Simple, portable and money-saved
Item NO.:
X-5008Price:
$400Product Origin:
CHINAColor:
StandardShipping Port:
Shanghai/ShenzhenLead Time:

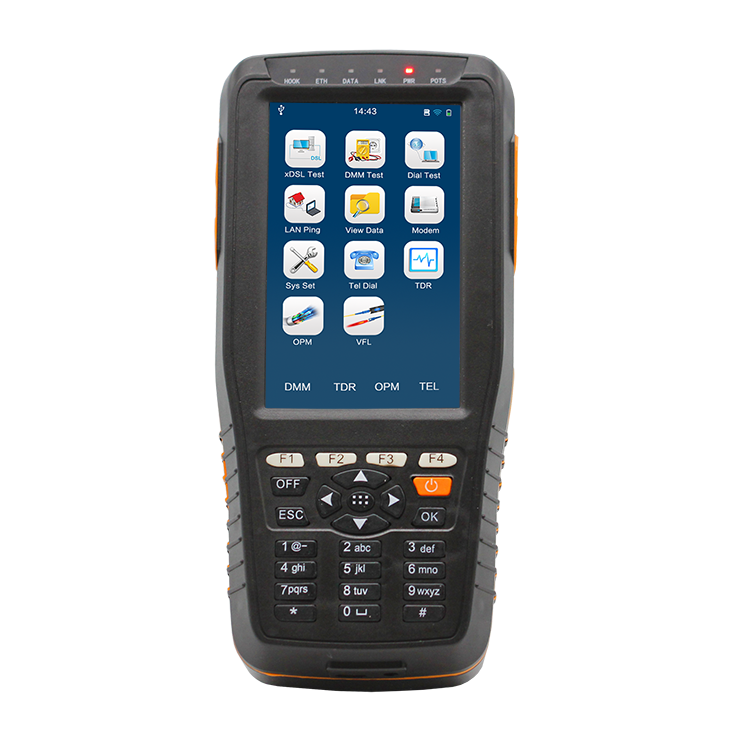

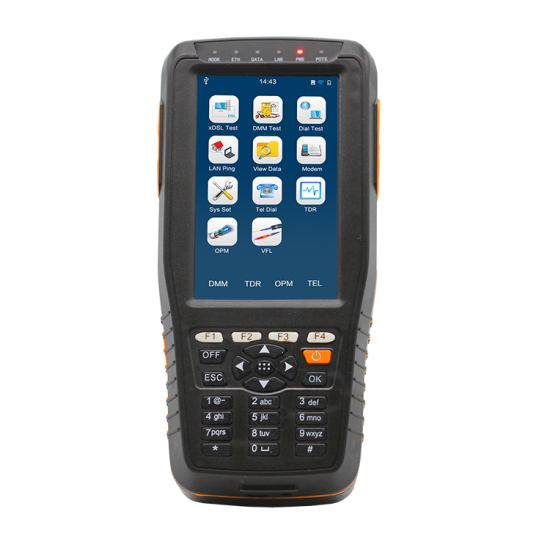

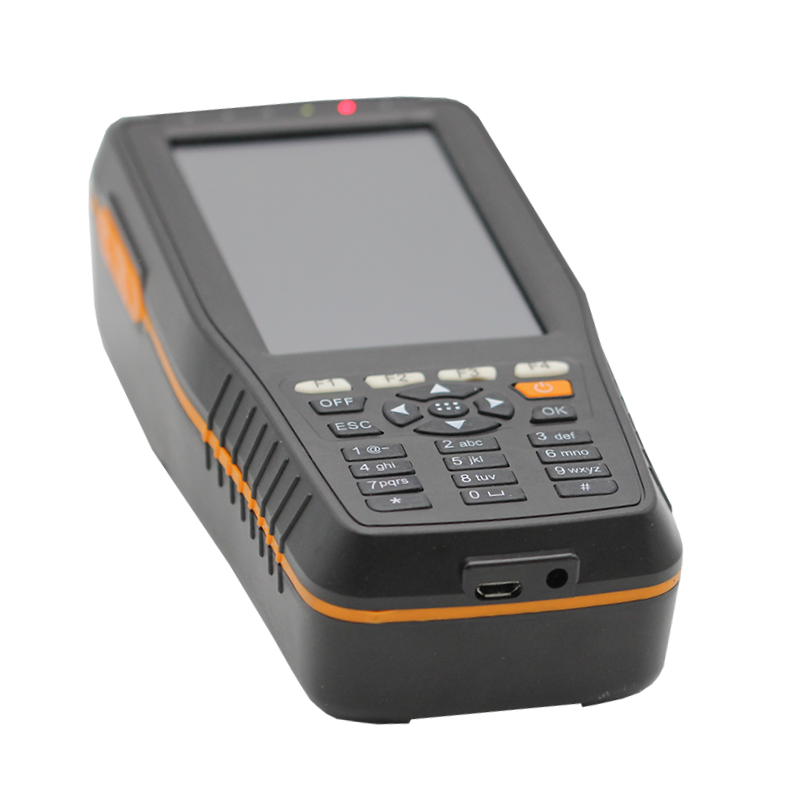

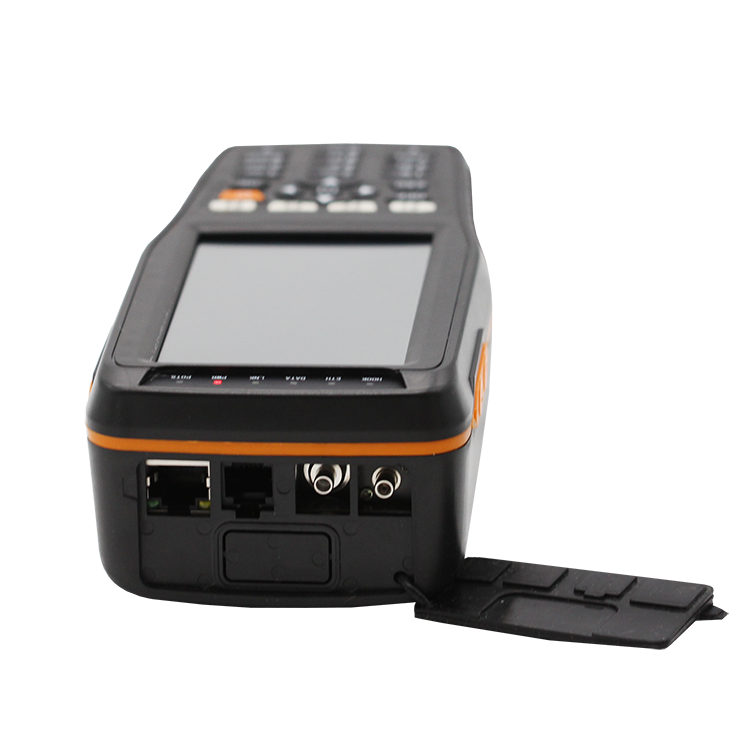

3 working daysVDSL Tester X-5008

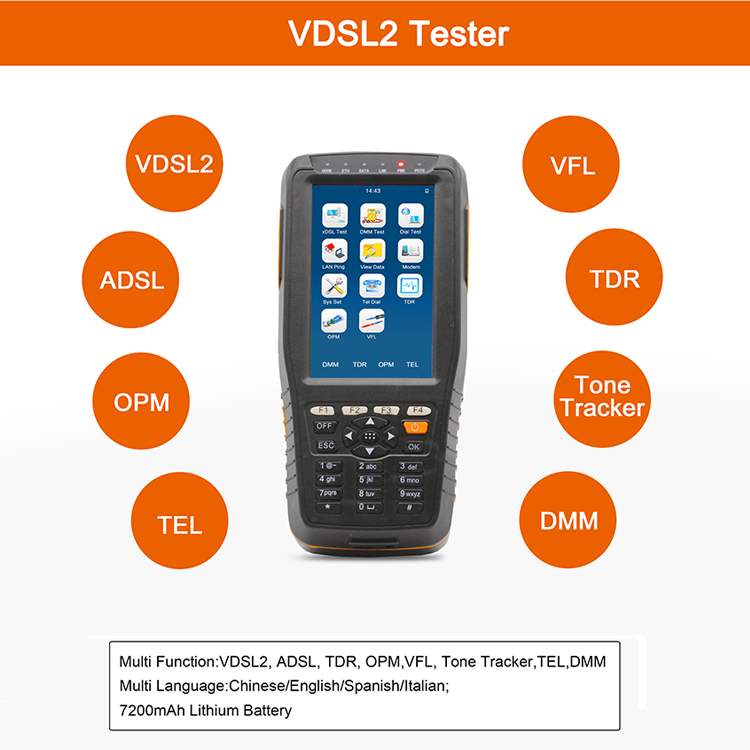

(ADSL/VDSL/OPM/ VFL/TDR Function/Tone Tracker, all in one unit)
X-5008 VDSL tester specially designed for slid line test (xDSL include: ADSL, ADSL2, ADSL2+, READSL, VDSL2 etc) and maintenance It provides xDSL test, PPPoE dial test, DMM test, Modem emulation, line voltage indication and so on. X-5008 VDSL Tester also introduces the Optical Power Meter and Visual Fault Locator function into the unit, as well as the TDR function. It is one mufti-function tester with smart size, true color LCD and powerful management software as well as the 6600mAh rechargeable battery etc.
Functions
Features
Specifications
|
ADSL2+ |
|
|
Standards |
ITU G.992.1(G.dmt),ITU G.992.2(G.lite),ITU G.994.1(G.hs), ANSI T1.413 issue #2,ITU G.992.5(ADSL2+)Annex L |
|
Up channel rate |
0~1.2Mbps |
|
Down channel rate |
0~24Mbps |
|
Up/Down attenuation |
0~63.5dB |
|
Up/Down noise margin |
0~32dB |
|
Output power |
Available |
|
Error test |
CRC, FEC, HEC, NCD, LOS |
|
Display DSL connect mode |
Available |
|
Display channel bit map |
Available |
|
ADSL |
|
|
Standards |
ITU G.992.1 (G.dmt), ITU G.992.2(G.lite) ITU G.994.1(G.hs), ANSI T1.413 Issue # 2 |
|
Up channel rate |
0~1Mbps |
|
Down channel rate |
0~8Mbps |
|
Up/Down attenuation |
0~63.5dB |
|
Up/Down noise margin |
0~32dB |
|
Output power |
Available |
|
Error test |
CRC, FEC, HEC, NCD, LOS |
|
Display DSL connect mode |
Available |
|
Display channel bit map |
Available |
|
VDSL2 |
|
|
Be compatible with ADSL2+, ADSL standard. |
|
|
DSL line attenuation |
|
|
DSL line noise margin |
|
|
DSL line up/down channel speed (Inter/Fast mode) |
|
|
DSL line up/down maximum rate |
|
|
DMT sub channel bit number: 0~15, and each sub channel frequency points |
|
|
DSL line error number (CRC, HEC, FEC, LCD, OCD) |
|
|
DSL line local output power |
|
|
DSLAM information |
|
|
Error Code Second |
|
|
Impulse Noise Protection (INP) |
|
|
Support 7 VDSL2 profiles: profile 8a, 8b, 8c, 8d, 12a, 12b, 17a |
|
|
DMM Test |
|
|
DC voltage (V): |
0~400 |
|
AC voltage (V): |
0~400 |
|
Loop resistance(Ω): |
0~20000 |
|
Capacitance (nF): |
0~1000 |
|
Insulation resistance (MΩ): |
0~50 |
|
Optical Power Meter ( Optional) |
|
|
Measurement range: |
-70~+10dBm or -50~+26dBm |
|
Wavelength |
850nm、1300nm、1310nm、1490nm、1550nm、1625nm |
|
Visual Fault Locator (Optional) |
|
|
Output Power |
10mw |
|
Wavelength |
650nm ± 20nm |
|
Tone Tracker (Optional) |
|
|
With supplied accessories, it can do cable tracing and find the trend of the lines |
|
|
TDR Function (Optional)-Auto Test the cable fault distance (Cable Break/ Cable Mix) |
|
|
Test Range |
<2.5km |
|
Dead Zone |
<1m |
|
Resolution Rate |
1m |
|
General Specification |
|
|
LCD |
800x480 TFT |
|
Power supply |
Internal Rechargeable 6600mAH Li-ion battery |
|
Battery Duration |
4 to 5 hours |
|
Working temperature |
0-40 oC |
|
Working moisture |
5%-90% |
|
Dimensions |
170mm×70mm×52mm |
|
Weight: |
<0.6kg |

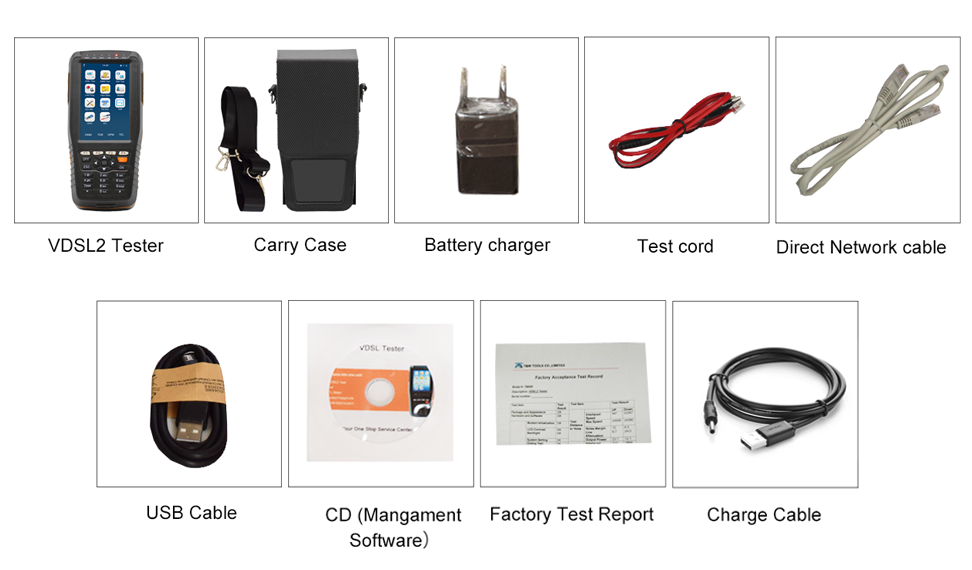

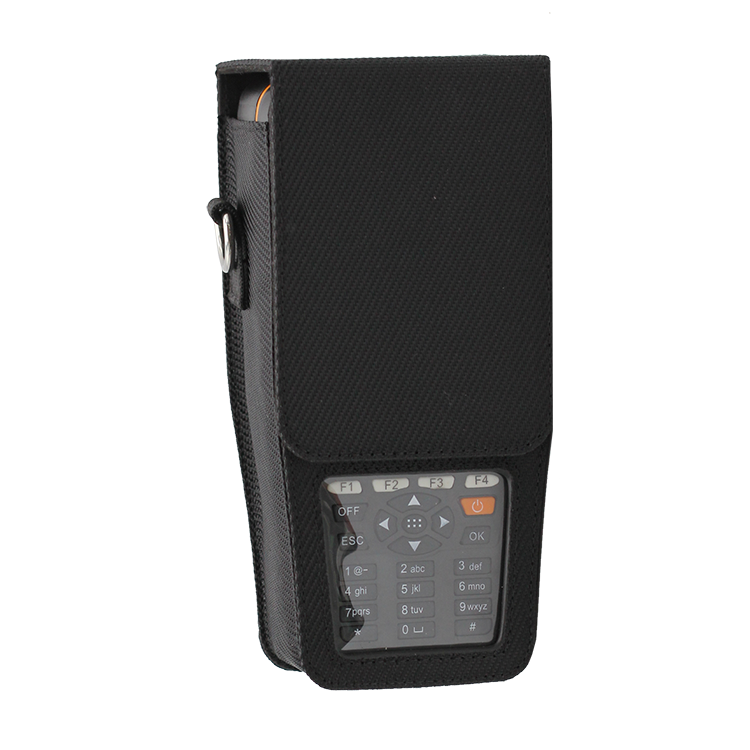

Packing list

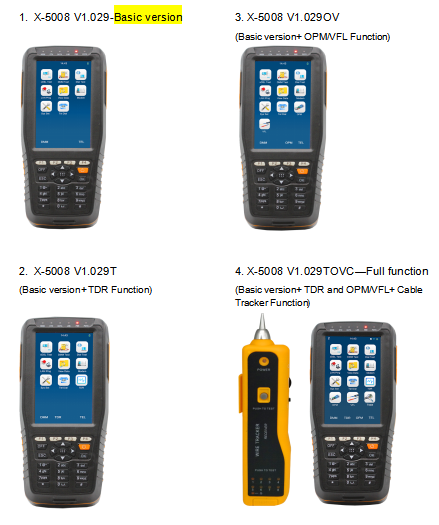

Detailed versions
