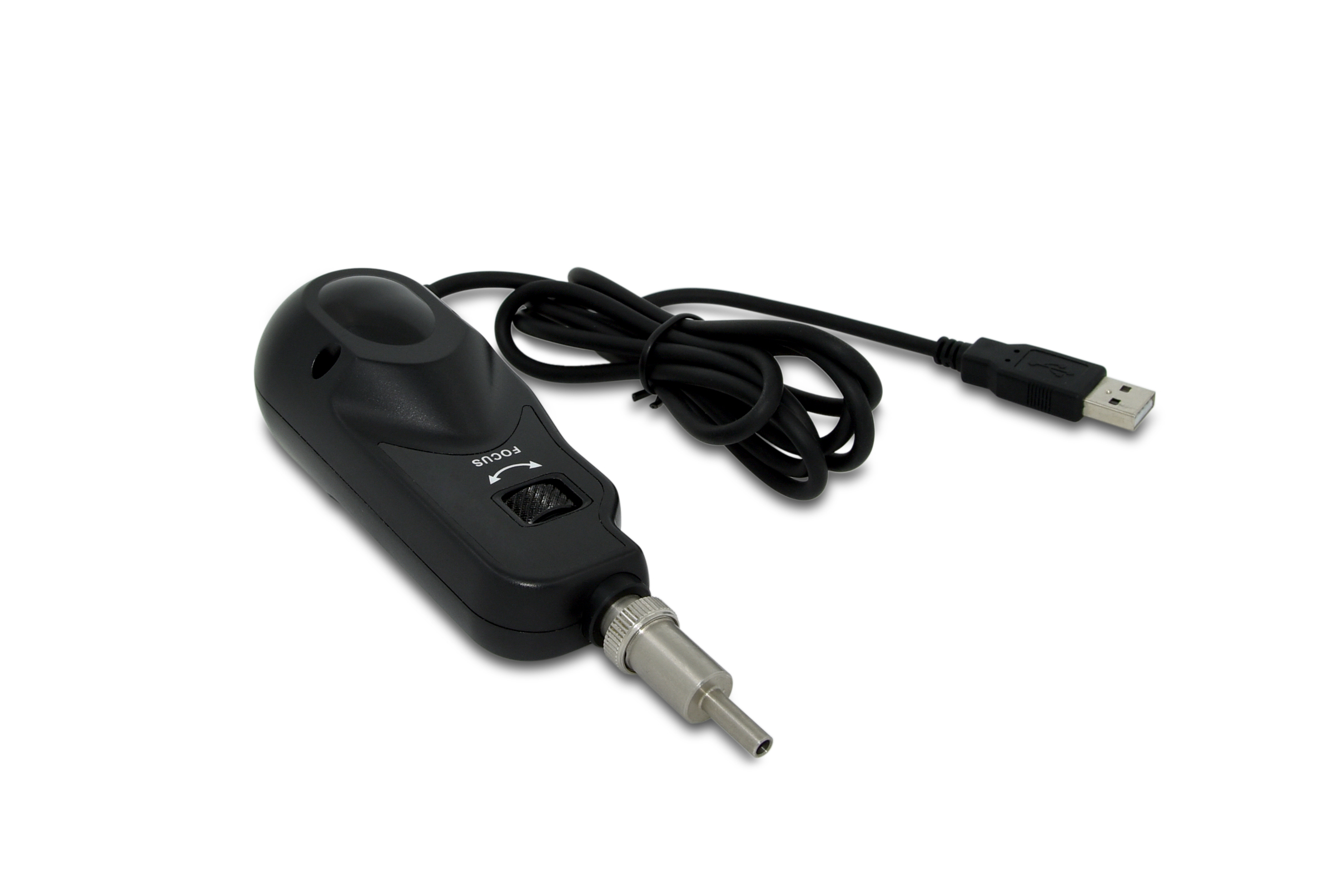

X-103U USB Hand-hel d Inspection Probe is designed to provide customers the ability to troubleshoot network performance issues (most commonly caused by dirty connectors) by inspecting the endface of a connector for debris.
Item NO.:
X103UProduct Origin:
ChinaColor:
blackShipping Port:
Shanghai, Shenzhen

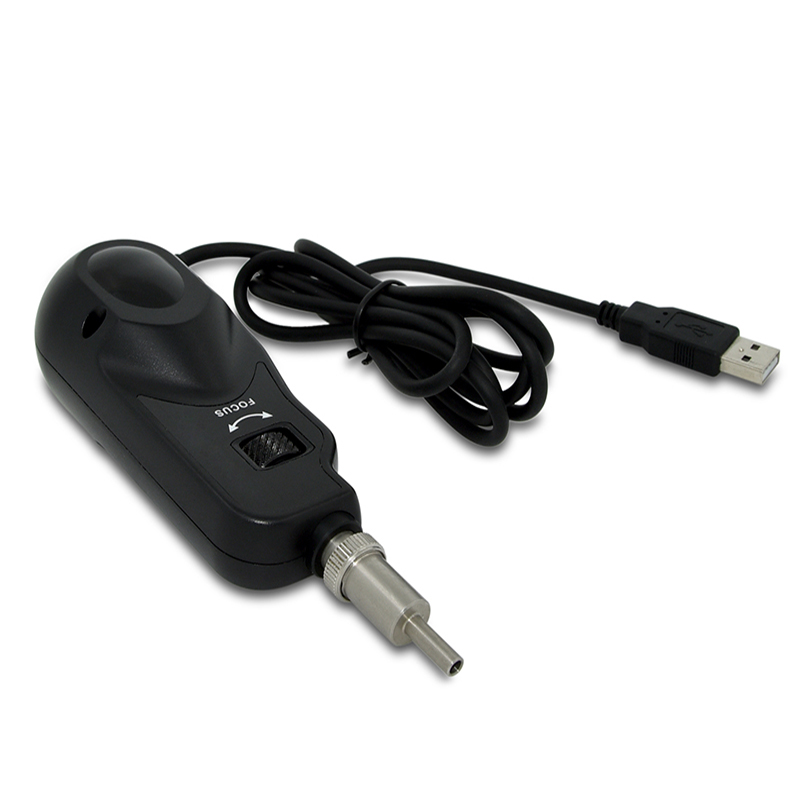

X-103U This product is a portable, video microscope to inspect all kinds of fiber optic terminations,especially for the female ones.It eliminates the need to access the backside of patch panels or disassemble hardware devices prior to inspection.
X-103U are probes of high resolutions.With suitable tips, they could check various ferrules and adapters in FTTH construction and maintenance.
Type |
X-103U |
Magnification |
200x or 400x |
Resolution Ratio |
0.75 µm |
Sennor |
1/3 decimetre 1.3 million pixels |
Weight(kg) |
Probe(0.14) |
Dimensions(cm) |
Probe(22*3*3) |
Work/Storage |
-20℃~+50℃ -30℃~+60℃ |
USB Interface |
1.0/1.1/2.0 |

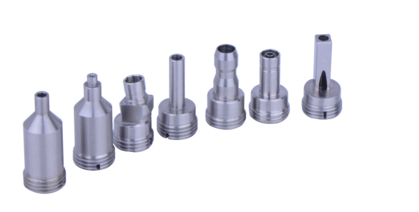

Tips:
Tips type |
Function Description |
25-U-M |
FC/SC/ST/E2000 UPC connector |
125-U-M |
LC/MU UPC connector |
25-U-F |
FC/SC/ST/E2000 UPC bulkhead |
LC-U-F |
LC/MU UPC bulkhead |
25-A-M |
FC/SC/ST/E2000 APC connector |
125-A-M |
LC/MU APC connector |
SC-A-F |
SC APC bulkhead |
FC-A-F |
FC APC bulkhead |
LC-A-F |
LC APC bulkhead |
Any more question, do not hesitate to contact us!
