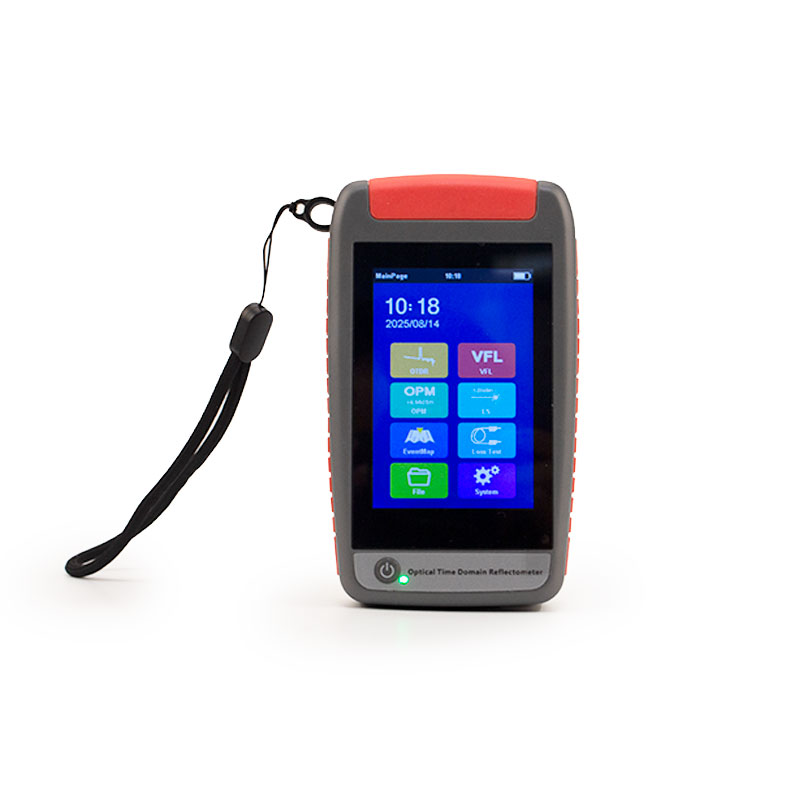

X-350 Series OTDR

3.5 “FTF LCD , capactive TP
Minimum measurement: 2.5 m
Type C USB
Large capacity battery, 8 hours
Multi function integration: OTDR / LS /VFL/Flashlight
Support PDF output report
Palm design,compact and lightweight
Hidden interface , shock and fall resistant

Item NO.:
X-350
Product Origin:
CHINA
Color:
grey
Shipping Port:
Shanghai/Shenzhen/Guangzhou
Lead Time:
3 working days

Product Details

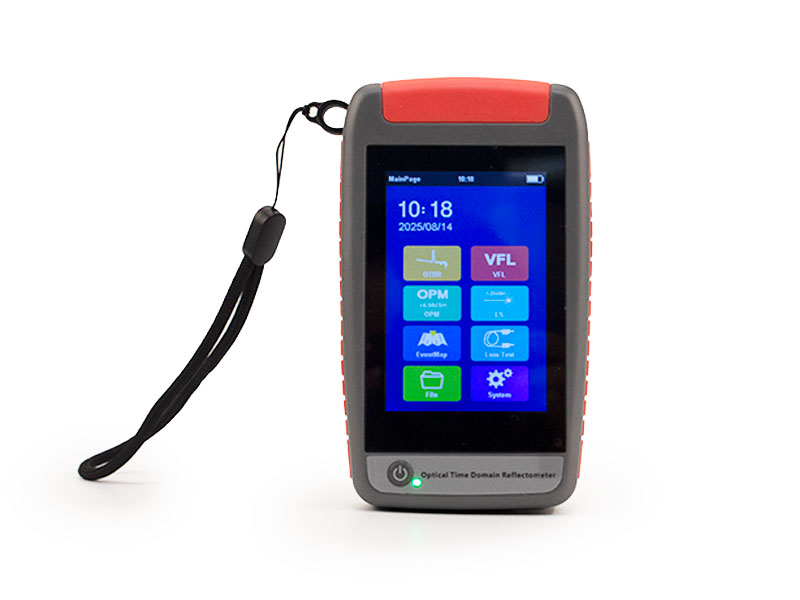

X-350 Series OTDR

X-350 series OTDR is mainly used to measure the length, loss, average loss, return loss, connection quality, etc. of various fiber optic cables. It has automatic optical protection function to prevent damage to the optical module. The model with a filter can support online testing, with a maximum online optical power of 0dBm. It can be widely used in the engineering construction, fault repair, fiber optic line maintenance, engineering acceptance, development and production of fiber optic communication systems, and other fields.
It adopts a 3.5 inch color capactive touch screen, which is easy to operate. It integrates eight functions, including OTDR, event map, stable light source, optical power meter, Visual light source, and lighting. Simple parameter settings and intelligent measurement make the operation more simple and efficient. The model is compact and lightweight, convenient to carry. The large capacity battery ensures an 8-hour extended measurement time and a15-hour extended standby time, providing guarantee for field testing operations.

Features

3.5 “FTF LCD , capactive TP
Minimum measurement: 2.5 m
Type C USB
Large capacity battery, 8 hours
Multi function integration: OTDR / LS /VFL/Flashlight
Support PDF output report
Palm design,compact and light weight
Hidden interface , shock and fall resistant

Specifications

Optical Time Domain Reflectometer
Module		X350-D22	X350-SF1		X350-SF2		X350-SF3	X350-SF4			X350-SF5
Wavelength		1310/1550±20nm	1 310±20nm		1550±20nm		1610±5nm	1625±5nm			1650±5nm
Dynamic range		22/20dB	22dB		22dB		22dB	22dB			22dB
Fiber type		G.652D
Event dead zone		2m
Attenuation zone		8 m
Measuring range		100m/500m/ 1 km/2km/5km/ 10 km/20 km/40 km/60km/80km
Pulse width		5 ns/ 10 ns/20 ns/50ns/ 100ns/275 ns/500ns/ 1us/2us/5us/ 10us
Accuracy		± ( 1m+Sampling interval+0. 005% X measuring range)
Linearity		±0 .2dB/dB
Sample points		Maximum sampling points ：20000
Sampling resolution		25cm~8m
Loss resolution		0 .001 dB
Range resolution		0 .001m
Refractive index		1 .0000~2 .0000
Reflection accuracy		±3dB
File format		Standard sor f i l e format
Safety level		OTDR/LS:Class 2；VFL:Class 3B
Temperature/ humidity		Ambient temperature：- 10℃~50℃ Storage ambient temperature：-40℃~+70℃ Humidity：0~90%(non condensing)
Size/weight		Size ：130x78x35mm / weight：215g（include battery）
OPM				LS					Other
wavelength	850/1270/1300/1310/1490/1550 /1577/1610/1625/1650nm			wavelength		OTDR wavelength			VFL （optional）	（Red）650nm： ≥10mW （Green）515nm： ≥10mW
Range	A:-70~+10dBm B:-50~+26dBm			Laser type		FP - LD/ DFB
Frequency	270Hz/330Hz/1kHz/2kHz			Power		-5dB m±3dB (Adjust)			Battery	2000mAh/3 .7V
Uncertainty	±5%			Uncertainty		±5%			Adapter	USB( Type C)
Connector	Universal			Connector		SC			Memory	Inside≥400 External:SD
